Creating Carousel Using SharePoint Out-Of-The-Box WebPart

First, we need to create a Picture Library and upload a few images in it. Then, go to an existing WebPart page or create a new WebPart page and add "Picture Library Slideshow WebPart".

Then, a little bit of property settings need to be changed and you will see the magical carousel in a few minutes.

Step 1

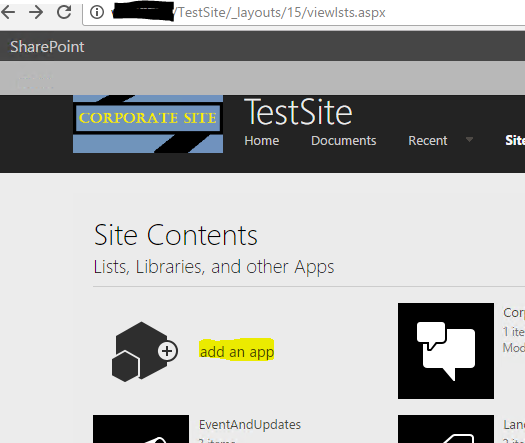

Create a picture library, as shown below. Go to "Site Contents" page and click on "Add an app".

Site Contents

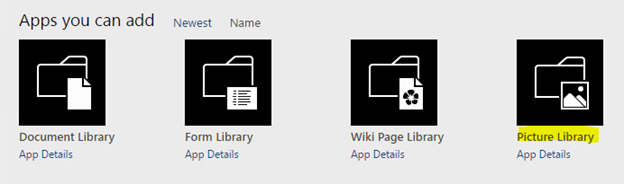

Select the "Picture Library" app.

Site Contents

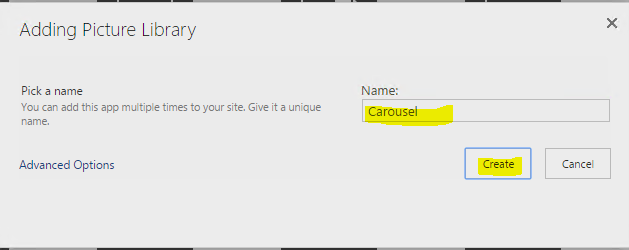

Provide the name for the picture library.

Site Contents

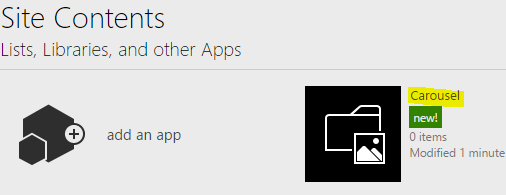

Now, you will see the "Picture Library" created, in the Site contents.

Site Contents

Step 2

Add a few image files to the "Carousel" picture library.

Site Contents

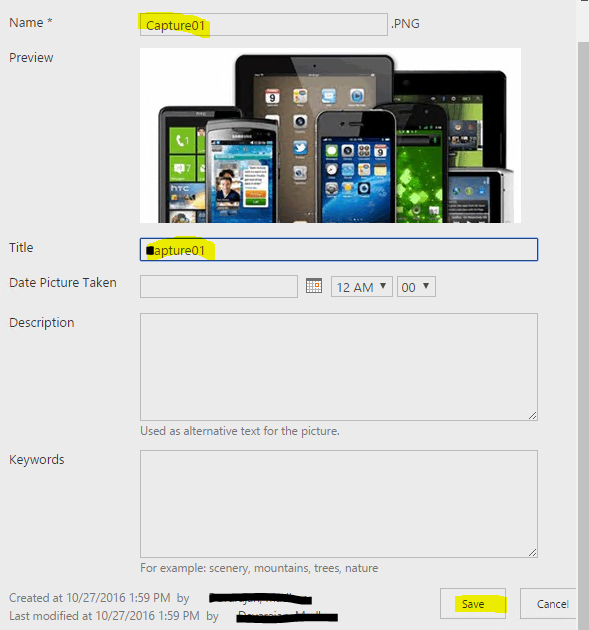

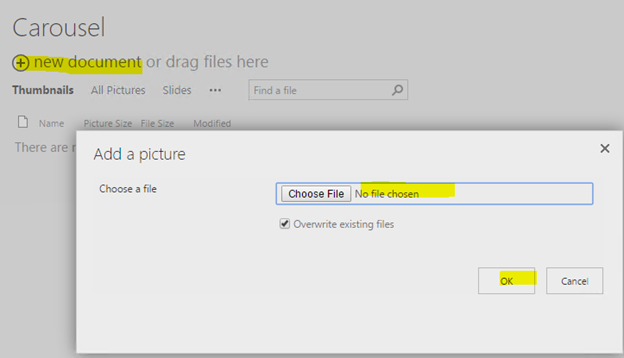

On clicking the "new document" link, you will see a small pop-up with "Choose a file". After selecting the picture from your local file system, click "OK" to proceed next. Then, you will see a pop-up with few mandatory columns. Fill-up the highlighted fields as shown below and save it. Repeat this process for all the pictures you are uploading to this picture library.

Site Contents

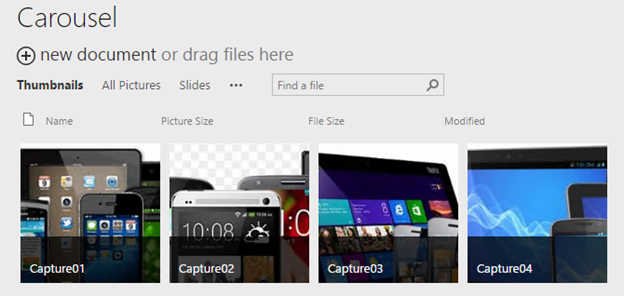

Upload a minimum of 3-4 images, as shown below.

Site Contents

Step 3

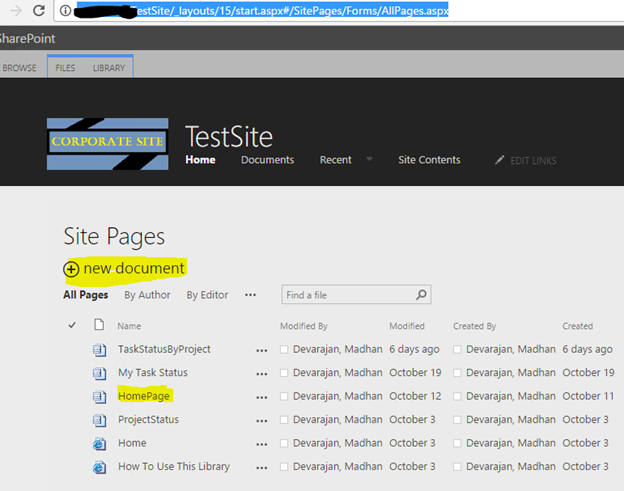

Go to "Site Pages" from "Site Contents" and create a new page.

Site Contents

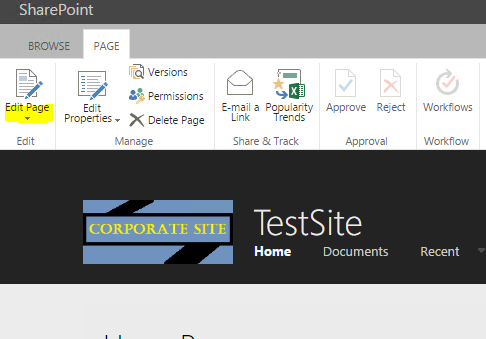

Now, click "Edit Page" to edit the newly created WebPart page.

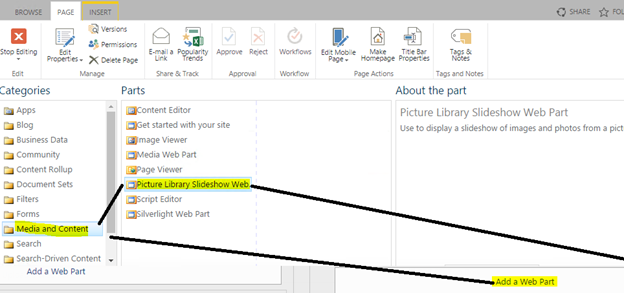

Click the "Add a Web Part" link and select "Media and Content" in the Categories section of the top ribbon. Now, you will find the "Picture Library Slideshow Web Part", select and add it to the current page.

Site Contents

Now, we need to map the picture library and provide a few values in the Web Part properties to create the "Carousel".

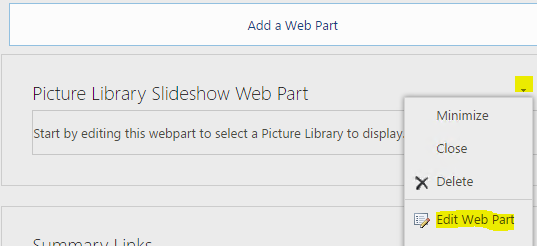

Click on the down arrow in the "Picture Library Slideshow Web Part" and then select "Edit Web Part" from the "context menu", as shown below.

Site Contents

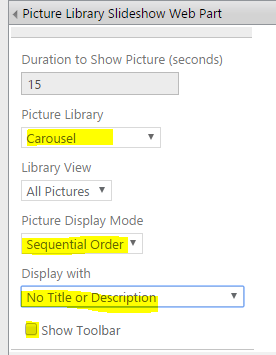

Now, select the time delay in seconds, Picture library name, Picture display mode, and Display with "No Title or Description".

Site Contents

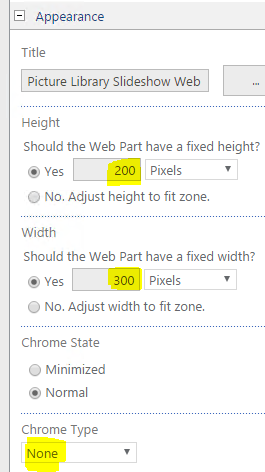

You can also set the "Width and Height" of the Web Part, so that the image will be resized accordingly.

Site Contents

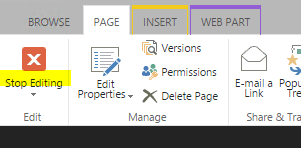

Once you are done with the changes, click "Stop Editing" to save the changes you have made.

Site Contents

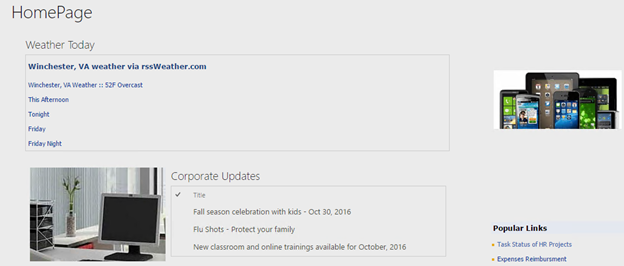

Now, you can see the final output. You have achieved this with no code.

Site Contents
