CRUD Operation In ASP.NET MVC Using AJAX And Bootstrap

This article shows how to perform CRUD Operation in ASP.NET MVC, using AJAX and Bootstrap. In previous ASP.NET MVC tutorials of this series, we saw,
What is AJAX and Bootstrap?

AJAX (Asynchronous JavaScript and XML) in the Web Application is used to update parts of the existing page and to retrieve the data from the Server asynchronously. AJAX improves the performance of the Web Application and makes the Application more interactive.

Bootstrap is one of the most popular HTML, CSS and JS frameworks for developing responsive, mobile first projects on the Web.

Let’s Begin

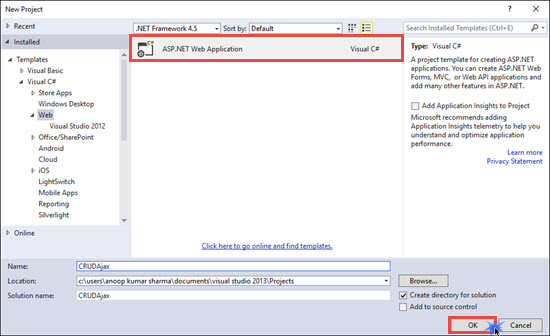

Create a new ASP.NET Web Application.

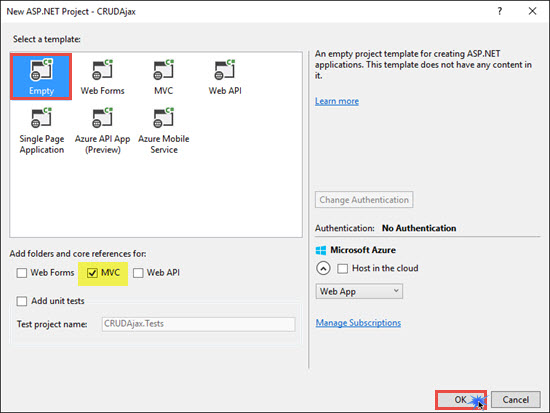

Select Empty ASP.NET MVC template and click OK.

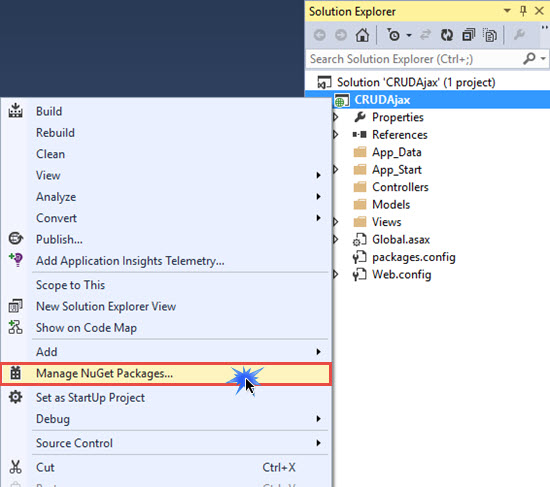

Now, right-click on the project and click Manage NuGet Packages.

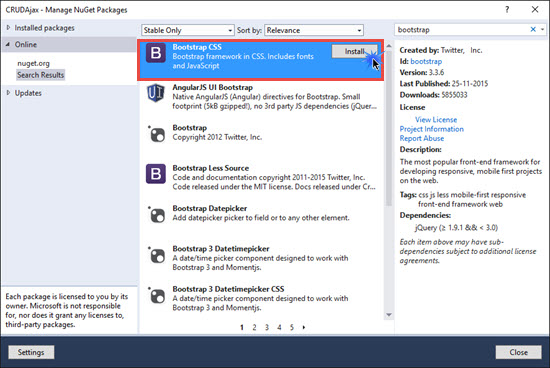

Search for Bootstrap and then click Install button.

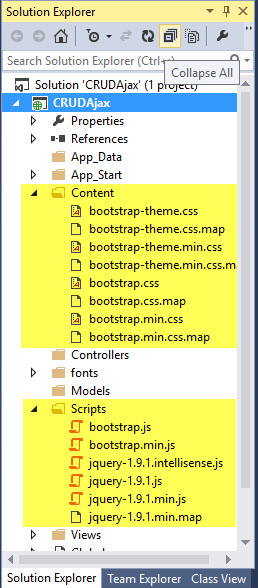

After installing the package, you will see the Content and Scripts folder being added in your Solution Explorer.

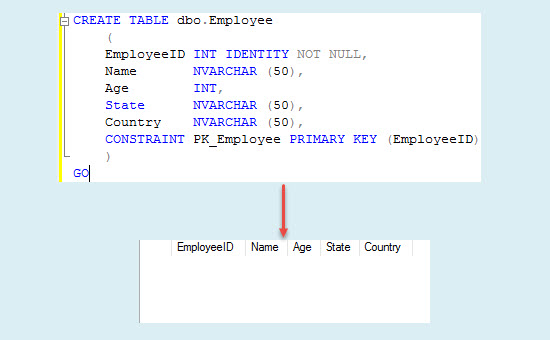

Now, create a database and add a table (named Employee). The following is the schema for creating a table Employee:



After the table creation, create the stored procedures for Select, Insert, Update and Delete operations.
  1. --Select Employees
  2. Create Procedure SelectEmployee
  3. as
  4. Begin
  5. Select * from Employee;
  6. End
  7.
  8. --Insert and Update Employee
  9. Create Procedure InsertUpdateEmployee
  10. (
  11. @Id integer,
  12. @Name nvarchar(50),
  13. @Age integer,
  14. @State nvarchar(50),
  15. @Country nvarchar(50),
  16. @Action varchar(10)
  17. )
  18. As
  19. Begin
  20. if @Action='Insert'
  21. Begin
  22.  Insert into Employee(Name,Age,[State],Country) values(@Name,@Age,@State,@Country);
  23. End
  24. if @Action='Update'
  25. Begin
  26.  Update Employee set Name=@Name,Age=@Age,[State]=@State,Country=@Country where EmployeeID=@Id;
  27. End
  28. End
  29.
  30. --Delete Employee
  31. Create Procedure DeleteEmployee
  32. (
  33.  @Id integer
  34. )
  35. as
  36. Begin
  37.  Delete Employee where EmployeeID=@Id;
  38. End
Right click on Modal Folder and add Employee.cs class.

Employee.cs Code
  1. public class Employee
  2. {
  3.     public int EmployeeID { get; set; }
  4.
  5.     public string Name { get; set; }
  6.
  7.     public int Age { get; set; }
  8.
  9.     public string State { get; set; }
  10.
  11.     public string Country { get; set; }
  12. }
Now, add another class in Modal Folder named as EmployeeDB.cs for the database related operations. In this example, I am going to use ADO.NET to access the data from the database.
  1. public class EmployeeDB
  2.     {
  3.         //declare connection string
  4.         string cs = ConfigurationManager.ConnectionStrings["DBCS"].ConnectionString;
  5.
  6.         //Return list of all Employees
  7.         public List<Employee> ListAll()
  8.         {
  9.             List<Employee> lst = new List<Employee>();
  10.             using(SqlConnection con=new SqlConnection(cs))
  11.             {
  12.                 con.Open();
  13.                 SqlCommand com = new SqlCommand("SelectEmployee",con);
  14.                 com.CommandType = CommandType.StoredProcedure;
  15.                 SqlDataReader rdr = com.ExecuteReader();
  16.                 while(rdr.Read())
  17.                 {
  18.                     lst.Add(new Employee {
  19.                         EmployeeID=Convert.ToInt32(rdr["EmployeeId"]),
  20.                         Name=rdr["Name"].ToString(),
  21.                         Age = Convert.ToInt32(rdr["Age"]),
  22.                         State = rdr["State"].ToString(),
  23.                         Country = rdr["Country"].ToString(),
  24.                     });
  25.                 }
  26.                 return lst;
  27.             }
  28.         }
  29.
  30.         //Method for Adding an Employee
  31.         public int Add(Employee emp)
  32.         {
  33.             int i;
  34.             using(SqlConnection con=new SqlConnection(cs))
  35.             {
  36.                 con.Open();
  37.                 SqlCommand com = new SqlCommand("InsertUpdateEmployee", con);
  38.                 com.CommandType = CommandType.StoredProcedure;
  39.                 com.Parameters.AddWithValue("@Id",emp.EmployeeID);
  40.                 com.Parameters.AddWithValue("@Name", emp.Name);
  41.                 com.Parameters.AddWithValue("@Age", emp.Age);
  42.                 com.Parameters.AddWithValue("@State", emp.State);
  43.                 com.Parameters.AddWithValue("@Country", emp.Country);
  44.                 com.Parameters.AddWithValue("@Action", "Insert");
  45.                 i = com.ExecuteNonQuery();
  46.             }
  47.             return i;
  48.         }
  49.
  50.         //Method for Updating Employee record
  51.         public int Update(Employee emp)
  52.         {
  53.             int i;
  54.             using (SqlConnection con = new SqlConnection(cs))
  55.             {
  56.                 con.Open();
  57.                 SqlCommand com = new SqlCommand("InsertUpdateEmployee", con);
  58.                 com.CommandType = CommandType.StoredProcedure;
  59.                 com.Parameters.AddWithValue("@Id", emp.EmployeeID);
  60.                 com.Parameters.AddWithValue("@Name", emp.Name);
  61.                 com.Parameters.AddWithValue("@Age", emp.Age);
  62.                 com.Parameters.AddWithValue("@State", emp.State);
  63.                 com.Parameters.AddWithValue("@Country", emp.Country);
  64.                 com.Parameters.AddWithValue("@Action", "Update");
  65.                 i = com.ExecuteNonQuery();
  66.             }
  67.             return i;
  68.         }
  69.
  70.         //Method for Deleting an Employee
  71.         public int Delete(int ID)
  72.         {
  73.             int i;
  74.             using (SqlConnection con = new SqlConnection(cs))
  75.             {
  76.                 con.Open();
  77.                 SqlCommand com = new SqlCommand("DeleteEmployee", con);
  78.                 com.CommandType = CommandType.StoredProcedure;
  79.                 com.Parameters.AddWithValue("@Id", ID);
  80.                 i = com.ExecuteNonQuery();
  81.             }
  82.             return i;
  83.         }
  84.     }

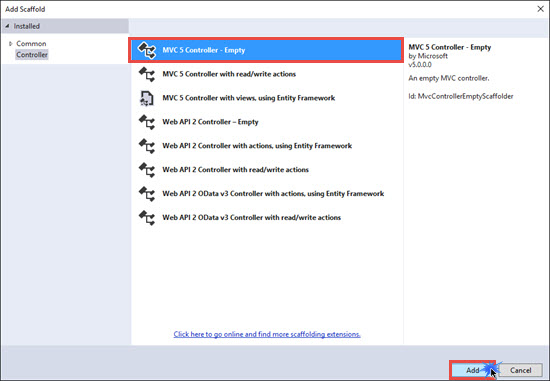

Right click on Controllers folder, add an Empty Controller and name it as HomeController.



Now, open HomeController and add the following action methods:
  1. public class HomeController : Controller
  2.     {
  3.         EmployeeDB empDB = new EmployeeDB();
  4.         // GET: Home
  5.         public ActionResult Index()
  6.         {
  7.             return View();
  8.         }
  9.         public JsonResult List()
  10.         {
  11.             return Json(empDB.ListAll(),JsonRequestBehavior.AllowGet);
  12.         }
  13.         public JsonResult Add(Employee emp)
  14.         {
  15.             return Json(empDB.Add(emp), JsonRequestBehavior.AllowGet);
  16.         }
  17.         public JsonResult GetbyID(int ID)
  18.         {
  19.             var Employee = empDB.ListAll().Find(x => x.EmployeeID.Equals(ID));
  20.             return Json(Employee, JsonRequestBehavior.AllowGet);
  21.         }
  22.         public JsonResult Update(Employee emp)
  23.         {
  24.             return Json(empDB.Update(emp), JsonRequestBehavior.AllowGet);
  25.         }
  26.         public JsonResult Delete(int ID)
  27.         {
  28.             return Json(empDB.Delete(ID), JsonRequestBehavior.AllowGet);
  29.         }
  30.     }
Right click on the Index action method of HomeController and click on Add View. As we are going to use Bootstrap and AJAX, we have to add their relative Scripts and CSS references in the head section of the view. I have also added employee.js, which will contain all AJAX code, that are required for CRUD operation.
  1. <script src="~/Scripts/jquery-1.9.1.js"></script>
  2. <script src="~/Scripts/bootstrap.js"></script>
  3. <link href="~/Content/bootstrap.css" rel="stylesheet" />
  4. <script src="~/Scripts/employee.js"></script>
Add the code, given below, in Index.cshtml view:
  1. <div class="container">
  2.         <h2>Employees Record</h2>
  3.         <button type="button" class="btn btn-primary" data-toggle="modal" data-target="#myModal" onclick="clearTextBox();">Add New Employee</button><br /><br />
  4.         <table class="table table-bordered table-hover">
  5.             <thead>
  6.                 <tr>
  7.                     <th>
  8.                         ID
  9.                     </th>
  10.                     <th>
  11.                         Name
  12.                     </th>
  13.                     <th>
  14.                         Age
  15.                     </th>
  16.                     <th>
  17.                         State
  18.                     </th>
  19.                     <th>
  20.                         Country
  21.                     </th>
  22.                     <th>
  23.                         Action
  24.                     </th>
  25.                 </tr>
  26.             </thead>
  27.             <tbody class="tbody">
  28.
  29.             </tbody>
  30.         </table>
  31.     </div>
  32.     <div class="modal fade" id="myModal" tabindex="-1" role="dialog" aria-labelledby="myModalLabel" aria-hidden="true">
  33.         <div class="modal-dialog">
  34.             <div class="modal-content">
  35.                 <div class="modal-header">
  36.                     <button type="button" class="close" data-dismiss="modal">×</button>
  37.                     <h4 class="modal-title" id="myModalLabel">Add Employee</h4>
  38.                 </div>
  39.                 <div class="modal-body">
  40.                     <form>
  41.                         <div class="form-group">
  42.                             <label for="EmployeeId">ID</label>
  43.                             <input type="text" class="form-control" id="EmployeeID" placeholder="Id" disabled="disabled"/>
  44.                         </div>
  45.                         <div class="form-group">
  46.                             <label for="Name">Name</label>
  47.                             <input type="text" class="form-control" id="Name" placeholder="Name"/>
  48.                         </div>
  49.                         <div class="form-group">
  50.                             <label for="Age">Age</label>
  51.                             <input type="text" class="form-control" id="Age" placeholder="Age" />
  52.                         </div>
  53.                         <div class="form-group">
  54.                             <label for="State">State</label>
  55.                             <input type="text" class="form-control" id="State" placeholder="State"/>
  56.                         </div>
  57.                         <div class="form-group">
  58.                             <label for="Country">Country</label>
  59.                             <input type="text" class="form-control" id="Country" placeholder="Country"/>
  60.                         </div>
  61.                     </form>
  62.                 </div>
  63.                 <div class="modal-footer">
  64.                     <button type="button" class="btn btn-primary" id="btnAdd" onclick="return Add();">Add</button>
  65.                     <button type="button" class="btn btn-primary" id="btnUpdate" style="display:none;" onclick="Update();">Update</button>
  66.                     <button type="button" class="btn btn-default" data-dismiss="modal">Close</button>
  67.                 </div>
  68.             </div>
  69.         </div>
  70.     </div>

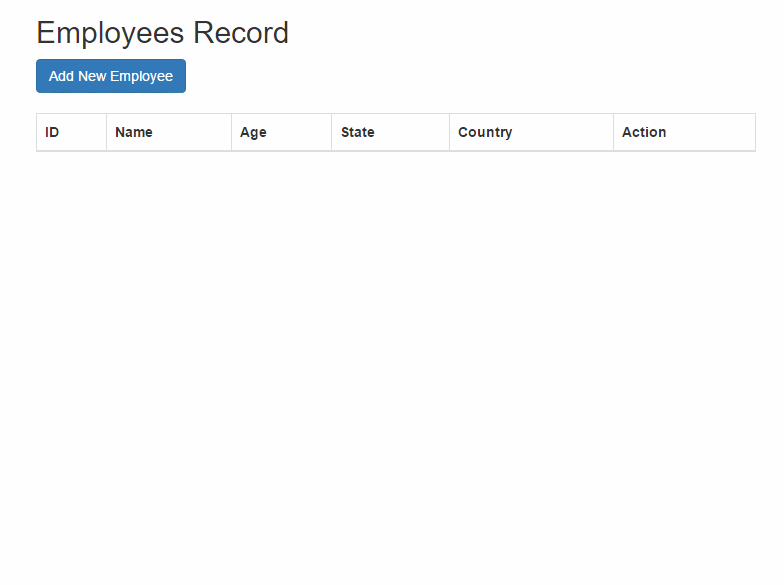

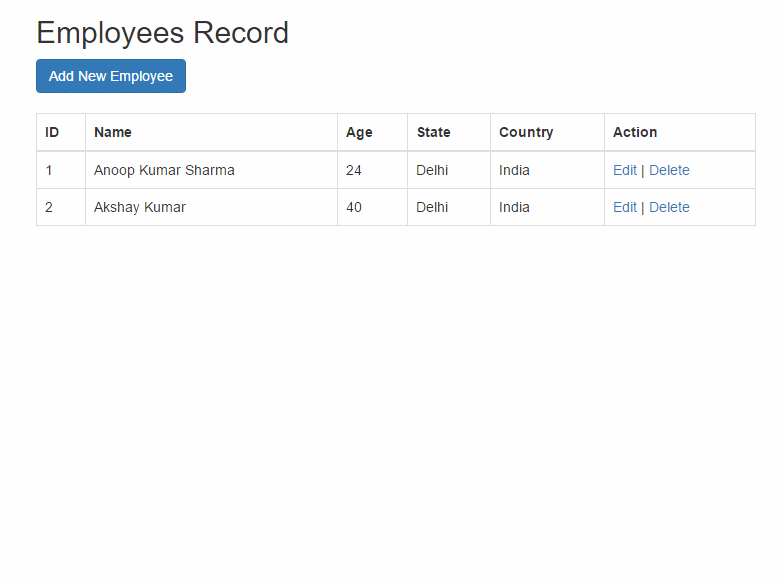

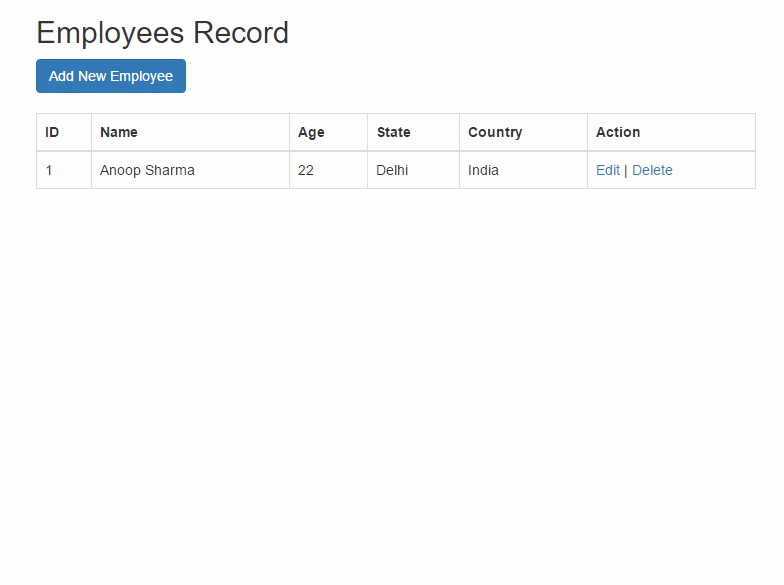

In the code, given above, we have added a button for adding New Employee. On clicking, It will open the modal dialog box of the bootstrap, which contains several fields of the employees for saving. We have also added a table, which will be populated with the use of AJAX.

Employee.js Code
  1. //Load Data in Table when documents is ready
  2. $(document).ready(function () {
  3.     loadData();
  4. });
  5.
  6. //Load Data function
  7. function loadData() {
  8.     $.ajax({
  9.         url: "/Home/List",
  10.         type: "GET",
  11.         contentType: "application/json;charset=utf-8",
  12.         dataType: "json",
  13.         success: function (result) {
  14.             var html = '';
  15.             $.each(result, function (key, item) {
  16.                 html += '<tr>';
  17.                 html += '<td>' + item.EmployeeID + '</td>';
  18.                 html += '<td>' + item.Name + '</td>';
  19.                 html += '<td>' + item.Age + '</td>';
  20.                 html += '<td>' + item.State + '</td>';
  21.                 html += '<td>' + item.Country + '</td>';
  22.                 html += '<td><a href="#" onclick="return getbyID(' + item.EmployeeID + ')">Edit</a> | <a href="#" onclick="Delele(' + item.EmployeeID + ')">Delete</a></td>';
  23.                 html += '</tr>';
  24.             });
  25.             $('.tbody').html(html);
  26.         },
  27.         error: function (errormessage) {
  28.             alert(errormessage.responseText);
  29.         }
  30.     });
  31. }
  32.
  33. //Add Data Function
  34. function Add() {
  35.     var res = validate();
  36.     if (res == false) {
  37.         return false;
  38.     }
  39.     var empObj = {
  40.         EmployeeID: $('#EmployeeID').val(),
  41.         Name: $('#Name').val(),
  42.         Age: $('#Age').val(),
  43.         State: $('#State').val(),
  44.         Country: $('#Country').val()
  45.     };
  46.     $.ajax({
  47.         url: "/Home/Add",
  48.         data: JSON.stringify(empObj),
  49.         type: "POST",
  50.         contentType: "application/json;charset=utf-8",
  51.         dataType: "json",
  52.         success: function (result) {
  53.             loadData();
  54.             $('#myModal').modal('hide');
  55.         },
  56.         error: function (errormessage) {
  57.             alert(errormessage.responseText);
  58.         }
  59.     });
  60. }
  61.
  62. //Function for getting the Data Based upon Employee ID
  63. function getbyID(EmpID) {
  64.     $('#Name').css('border-color', 'lightgrey');
  65.     $('#Age').css('border-color', 'lightgrey');
  66.     $('#State').css('border-color', 'lightgrey');
  67.     $('#Country').css('border-color', 'lightgrey');
  68.     $.ajax({
  69.         url: "/Home/getbyID/" + EmpID,
  70.         typr: "GET",
  71.         contentType: "application/json;charset=UTF-8",
  72.         dataType: "json",
  73.         success: function (result) {
  74.             $('#EmployeeID').val(result.EmployeeID);
  75.             $('#Name').val(result.Name);
  76.             $('#Age').val(result.Age);
  77.             $('#State').val(result.State);
  78.             $('#Country').val(result.Country);
  79.
  80.             $('#myModal').modal('show');
  81.             $('#btnUpdate').show();
  82.             $('#btnAdd').hide();
  83.         },
  84.         error: function (errormessage) {
  85.             alert(errormessage.responseText);
  86.         }
  87.     });
  88.     return false;
  89. }
  90.
  91. //function for updating employee's record
  92. function Update() {
  93.     var res = validate();
  94.     if (res == false) {
  95.         return false;
  96.     }
  97.     var empObj = {
  98.         EmployeeID: $('#EmployeeID').val(),
  99.         Name: $('#Name').val(),
  100.         Age: $('#Age').val(),
  101.         State: $('#State').val(),
  102.         Country: $('#Country').val(),
  103.     };
  104.     $.ajax({
  105.         url: "/Home/Update",
  106.         data: JSON.stringify(empObj),
  107.         type: "POST",
  108.         contentType: "application/json;charset=utf-8",
  109.         dataType: "json",
  110.         success: function (result) {
  111.             loadData();
  112.             $('#myModal').modal('hide');
  113.             $('#EmployeeID').val("");
  114.             $('#Name').val("");
  115.             $('#Age').val("");
  116.             $('#State').val("");
  117.             $('#Country').val("");
  118.         },
  119.         error: function (errormessage) {
  120.             alert(errormessage.responseText);
  121.         }
  122.     });
  123. }
  124.
  125. //function for deleting employee's record
  126. function Delele(ID) {
  127.     var ans = confirm("Are you sure you want to delete this Record?");
  128.     if (ans) {
  129.         $.ajax({
  130.             url: "/Home/Delete/" + ID,
  131.             type: "POST",
  132.             contentType: "application/json;charset=UTF-8",
  133.             dataType: "json",
  134.             success: function (result) {
  135.                 loadData();
  136.             },
  137.             error: function (errormessage) {
  138.                 alert(errormessage.responseText);
  139.             }
  140.         });
  141.     }
  142. }
  143.
  144. //Function for clearing the textboxes
  145. function clearTextBox() {
  146.     $('#EmployeeID').val("");
  147.     $('#Name').val("");
  148.     $('#Age').val("");
  149.     $('#State').val("");
  150.     $('#Country').val("");
  151.     $('#btnUpdate').hide();
  152.     $('#btnAdd').show();
  153.     $('#Name').css('border-color', 'lightgrey');
  154.     $('#Age').css('border-color', 'lightgrey');
  155.     $('#State').css('border-color', 'lightgrey');
  156.     $('#Country').css('border-color', 'lightgrey');
  157. }
  158. //Valdidation using jquery
  159. function validate() {
  160.     var isValid = true;
  161.     if ($('#Name').val().trim() == "") {
  162.         $('#Name').css('border-color', 'Red');
  163.         isValid = false;
  164.     }
  165.     else {
  166.         $('#Name').css('border-color', 'lightgrey');
  167.     }
  168.     if ($('#Age').val().trim() == "") {
  169.         $('#Age').css('border-color', 'Red');
  170.         isValid = false;
  171.     }
  172.     else {
  173.         $('#Age').css('border-color', 'lightgrey');
  174.     }
  175.     if ($('#State').val().trim() == "") {
  176.         $('#State').css('border-color', 'Red');
  177.         isValid = false;
  178.     }
  179.     else {
  180.         $('#State').css('border-color', 'lightgrey');
  181.     }
  182.     if ($('#Country').val().trim() == "") {
  183.         $('#Country').css('border-color', 'Red');
  184.         isValid = false;
  185.     }
  186.     else {
  187.         $('#Country').css('border-color', 'lightgrey');
  188.     }
  189.     return isValid;
  190. }
Build and run the Application.

Adding a Record (Preview)



Editing a Record (Preview)



Delete a Record(Preview)



Up Next
    Ebook Download
    View all
    Learn
    View all
    Get Started

    You need to be a premium member to use this feature. To access it, you'll have to upgrade your membership.

    Become a sharper developer and jumpstart your career.

    Basic

    $0

    $

    . 00

    monthly

    For Basic members:

    • Standard Profile
    • Access learning courses
    • Access free e-books
    • 1x point
    Premium

    $20

    $

    . 00

    monthly

    For Premium members:

    • Earn 2x reward points
    • Premium profile with Verified check
    • Premium Avatar with status update
    • Learning courses
    • Unlimited Certifications and badges on profile
    • Unlimited Book downloads
    • Access to Premium content
    • Online Training
    • Unlimited PDF conversions and downloads
    • Professional Resume Writing
    • Interview Preparations Guide
    • 25 messages per month
    • 1 "Kodzu" avatar, basic
    Elite

    $45

    $

    . 00

    monthly

    For Elite members:

    • Bundle E-books
    • Access to all Learn Series
    • Unlimited Apply Jobs
