CRUD Operations In ASP.NET Core 1.0 MVC Application - Part Seven

  • WhatsApp
  • Imran Javed Zia
  • 8y
  • 5.6k
  • 0
  • 0
    • 100
  • Article
CRUDoperationsinASP.NETCore1.0MVCApplicationPart7Code.zip

Let's discuss how to connect to databases.

We have already implemented basic CRUD operations with mockup data. Now, we are going to extend our application from last discussion Crud Operations in Asp.net Core 1.0 Mvc Application - Part Six to connect with SQL Server Database. And, we will be using DataAccess Project from .NET Core 1.0 Connecting SQL Server Database.

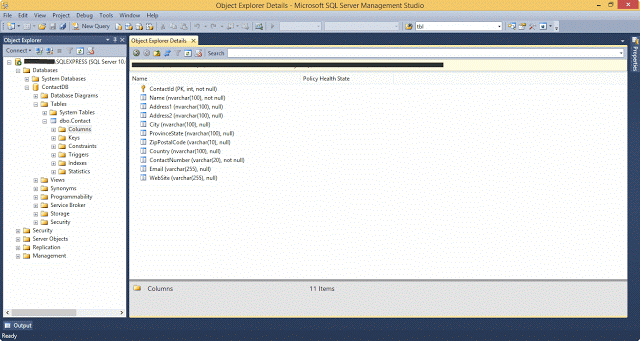

A .NET Core application can connect to a database through Database Provider. We are going to use an SQL Server Database ContactDB, therefore, we are going to use Microsoft SQL Server Database Provider.

Create Data Access Project
  • Open existing Solution in Visual Studio 2015.

  • Add new WebApplicationCore.NetCore.DataAccess and add reference to Microsoft.EntityFrameworkCore.SqlServer and BaseDataAccess class following steps in .NET Core 1.0 Connecting SQL Server Database.

  • We are going to use IConfigurationRoot to get web application configurations. So, add Reference to Microsoft.Extensions.Configuration.Abstractions as following.

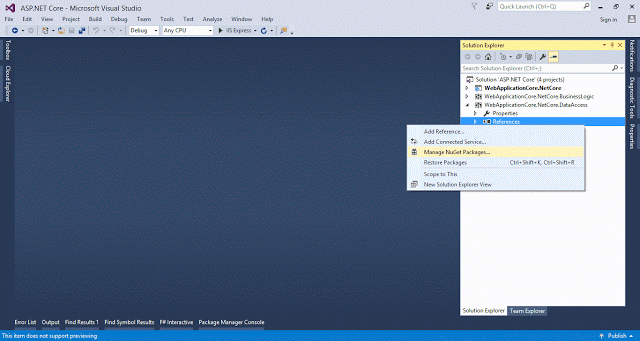

    • Open NuGet Manager through WebApplicationCore.NetCore.DataAccess Reference ContextMenu >> References >> Manage NuGet Packages. In Browse tab, search for "Microsoft.Extensions.Configuration.Abstractions" and install.

  • Add new Constructor with parameter of IConfigurationRoot type to get configurations.
  1. public BaseDataAccess(IConfigurationRoot configuration) {
  2.     this.ConnectionString = configuration["ConnectionStrings:DefaultConnection"];
  3. }


Add ContactDataAccess to WebApplicationCore.NetCore.DataAccess
  • Add reference to “WebApplicationCore.NetCore.Model” because we are going to use Contact Model Class in project.

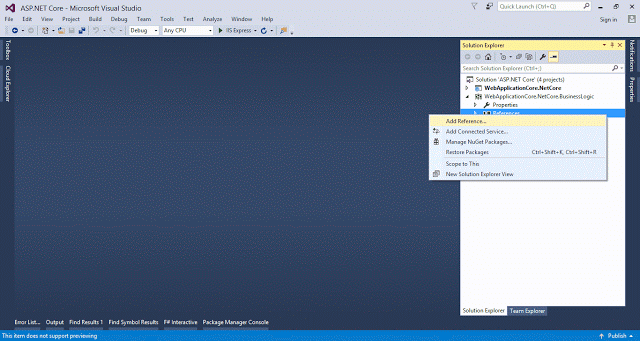

    • Open WebApplicationCore.NetCore. BusinessLogic References >> Add References >> Reference Manager Screen >> Projects >> Solution >> Select WebApplicationCore.NetCore.Model.
    • Click OK.
  • Add new Interface.

    • Open Add New Item Screen through Solution Context Menu >> Add >> New Item >> Installed >> .NET Core >> Code >> Interface.
    • Name it IContactDataAccess.cs.
    • Click OK Button.
  • It will add a new interface in project.
  • Define CRUD operations in interface.
  • Add new Class.

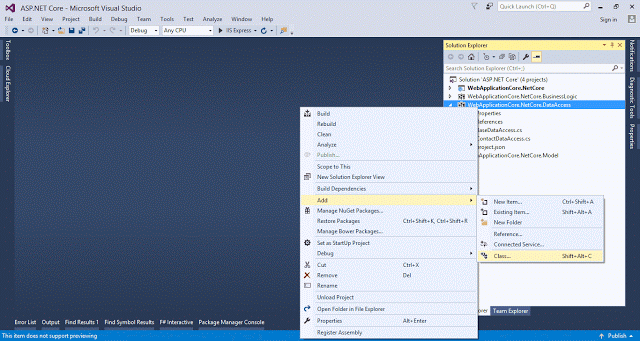

    • Open Add New Item Screen through Solution Context Menu >> Add >> Class >> Installed >> .NET Core >> Code >> Class.
    • Name it ContactDataAccess.cs.
    • Click OK Button.
  • It will add a new class in project.
  • Make ContactDataAccess child of BaseDataAccess and implement IContactDataAccess.
  • Implement code to perform CRUD operation from database.
  1. public interface IContactDataAccess {
  2.     Contact GetContact(int contactId);
  3.     List < Contact > GetContacts();
  4.     Contact CreateContact(Contact contact);
  5.     bool UpdateContact(Contact contact);
  6.     bool DeleteContact(int contactId);
  7. }
  1. public class ContactDataAccess: BaseDataAccess, IContactDataAccess {
  2.     public ContactDataAccess(IConfigurationRoot configuration): base(configuration) {}
  3.     public Contact GetContact(int contactId) {
  4.         Contact contactItem = null;
  5.
  6.         List < DbParameter > parameterList = new List < DbParameter > ();
  7.
  8.         parameterList.Add(base.GetParameter("ContactId", contactId));
  9.
  10.         using(DbDataReader dataReader = base.ExecuteReader("Contact_Get", parameterList, CommandType.StoredProcedure)) {
  11.             if (dataReader != null && dataReader.HasRows) {
  12.                 if (dataReader.Read()) {
  13.                     contactItem = new Contact();
  14.                     contactItem.ContactId = (int) dataReader["ContactId"];
  15.                     contactItem.Name = (string) dataReader["Name"];
  16.                     contactItem.Address1 = (string) dataReader["Address1"];
  17.                     contactItem.Address2 = (string) dataReader["Address2"];
  18.                     contactItem.City = (string) dataReader["City"];
  19.                     contactItem.ProvinceState = (string) dataReader["ProvinceState"];
  20.                     contactItem.ZipPostalCode = (string) dataReader["ZipPostalCode"];
  21.                     contactItem.Country = (string) dataReader["Country"];
  22.                     contactItem.ContactNumber = (string) dataReader["ContactNumber"];
  23.                     contactItem.Email = (string) dataReader["Email"];
  24.                     contactItem.WebSite = (string) dataReader["WebSite"];
  25.                 }
  26.             }
  27.         }
  28.         return contactItem;
  29.     }
  30.
  31.     public List < Contact > GetContacts() {
  32.         List < Contact > contacts = new List < Contact > ();
  33.         Contact contactItem = null;
  34.
  35.         List < DbParameter > parameterList = new List < DbParameter > ();
  36.
  37.         using(DbDataReader dataReader = base.ExecuteReader("Contact_GetAll", parameterList, CommandType.StoredProcedure)) {
  38.             if (dataReader != null) {
  39.                 while (dataReader.Read()) {
  40.                     contactItem = new Contact();
  41.                     contactItem.ContactId = (int) dataReader["ContactId"];
  42.                     contactItem.Name = (string) dataReader["Name"];
  43.                     contactItem.Email = (string) dataReader["Email"];
  44.                     contactItem.WebSite = (string) dataReader["WebSite"];
  45.
  46.                     contacts.Add(contactItem);
  47.                 }
  48.             }
  49.         }
  50.         return contacts;
  51.     }
  52.
  53.     public Contact CreateContact(Contact contact) {
  54.         List < DbParameter > parameterList = new List < DbParameter > ();
  55.
  56.         DbParameter contactIdParamter = base.GetParameterOut("ContactId", SqlDbType.Int, contact.ContactId);
  57.         parameterList.Add(contactIdParamter);
  58.         parameterList.Add(base.GetParameter("Name", contact.Name));
  59.         parameterList.Add(base.GetParameter("Address1", contact.Address1));
  60.         parameterList.Add(base.GetParameter("Address2", contact.Address2));
  61.         parameterList.Add(base.GetParameter("City", contact.City));
  62.         parameterList.Add(base.GetParameter("ProvinceState", contact.ProvinceState));
  63.         parameterList.Add(base.GetParameter("ZipPostalCode", contact.ZipPostalCode));
  64.         parameterList.Add(base.GetParameter("Country", contact.Country));
  65.         parameterList.Add(base.GetParameter("ContactNumber", contact.ContactNumber));
  66.         parameterList.Add(base.GetParameter("Email", contact.Email));
  67.         parameterList.Add(base.GetParameter("WebSite", contact.WebSite));
  68.         base.ExecuteNonQuery("Contact_Create", parameterList, CommandType.StoredProcedure);
  69.         contact.ContactId = (int) contactIdParamter.Value;
  70.         return contact;
  71.     }
  72.     public bool UpdateContact(Contact contact) {
  73.         bool updated = true;
  74.         List < DbParameter > parameterList = new List < DbParameter > ();
  75.
  76.         parameterList.Add(base.GetParameter("ContactId", contact.ContactId));
  77.         parameterList.Add(base.GetParameter("Name", contact.Name));
  78.         parameterList.Add(base.GetParameter("Address1", contact.Address1));
  79.         parameterList.Add(base.GetParameter("Address2", contact.Address2));
  80.         parameterList.Add(base.GetParameter("City", contact.City));
  81.         parameterList.Add(base.GetParameter("ProvinceState", contact.ProvinceState));
  82.         parameterList.Add(base.GetParameter("ZipPostalCode", contact.ZipPostalCode));
  83.         parameterList.Add(base.GetParameter("Country", contact.Country));
  84.         parameterList.Add(base.GetParameter("ContactNumber", contact.ContactNumber));
  85.         parameterList.Add(base.GetParameter("Email", contact.Email));
  86.         parameterList.Add(base.GetParameter("WebSite", contact.WebSite));
  87.
  88.         int returnValue = base.ExecuteNonQuery("Contact_Update", parameterList, CommandType.StoredProcedure);
  89.
  90.         updated = returnValue > 0;
  91.
  92.         return updated;
  93.     }
  94.
  95.     public bool DeleteContact(int contactId) {
  96.         bool deleted = false;
  97.
  98.         List < DbParameter > parameterList = new List < DbParameter > ();
  99.
  100.         parameterList.Add(base.GetParameter("ContactId", contactId));
  101.
  102.         int returnValue = base.ExecuteNonQuery("Contact_Delete", parameterList, CommandType.StoredProcedure);
  103.
  104.         deleted = returnValue > 0;
  105.
  106.         return deleted;
  107.     }
  108. }


Change WebApplicationCore.NetCore.BusinessLogic
  • Add reference to “WebApplicationCore.NetCore.DataAccess” in WebApplicationCore.NetCore.BusinessLogic because we are going to use ContactDataAccess in this project.

    • Open WebApplicationCore.NetCore. BusinessLogic References >> Add References >> Reference Manager Screen >> Projects >> Solution >> Select WebApplicationCore.NetCore.DataAccess.

    • Click OK Button.
  • Although we are not going to use Configuration in BusinessLogic, yet we may need it in future. To use IConfigurationRoot to get web application configurations, add Reference to Microsoft.Extensions.Configuration.Abstractions as following,

    • Open NuGet Manager through WebApplicationCore.NetCore.BusinessLogic Reference context menu >> References >> Manage NuGet Packages. in Browse tab search for "Microsoft.Extensions.Configuration.Abstractions" and install.
  • Add new Interface.

    • Open Add New Item Screen through Solution Context Menu >> Add >> New Item >> Installed >> .NET Core >> Code >> Interface.

    • Name it IContactBusinessLogic.cs.

    • Click OK Button.
  • It will add a new interface in project.
  • Define CRUD operations in interface.
  • Change ContactBusinessLogic to use ContactDataAccess instead of mockup data.
  1. public interface IContactBusinessLogic {
  2.     Contact GetContact(int contactId);
  3.     List < Contact > GetContacts();
  4.     Contact CreateContact(Contact contact);
  5.     bool UpdateContact(Contact contact);
  6.     bool DeleteContact(int contactId);
  7. }
  1. public class ContactBusinessLogic: IContactBusinessLogic {
  2.     private IConfigurationRoot Configuration;
  3.     private IContactDataAccess ContactDataAccess;
  4.
  5.     public ContactBusinessLogic(IContactDataAccess contactDataAccess, IConfigurationRoot configuration) {
  6.         this.ContactDataAccess = contactDataAccess;
  7.         this.Configuration = configuration;
  8.     }
  9.
  10.     public Contact GetContact(int contactId) {
  11.         return this.ContactDataAccess.GetContact(contactId);
  12.     }
  13.
  14.     public List < Contact > GetContacts() {
  15.         return this.ContactDataAccess.GetContacts();
  16.     }
  17.
  18.     public Contact CreateContact(Contact contact) {
  19.         return this.ContactDataAccess.CreateContact(contact);
  20.     }
  21.
  22.     public bool UpdateContact(Contact contact) {
  23.         return this.ContactDataAccess.UpdateContact(contact);
  24.     }
  25.
  26.     public bool DeleteContact(int contactId) {
  27.         return this.ContactDataAccess.DeleteContact(contactId);
  28.     }
  29. }


Changes in WebApplicationCore.NetCore.Startup

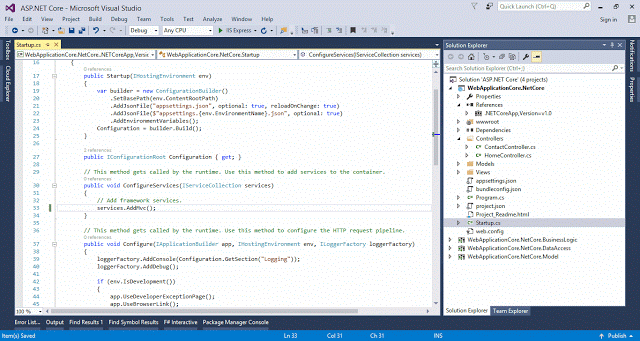

  • Open Startup.cs in WebApplicationCore.NetCore project.

  • open WebApplicationCore.NetCore.Startup and add service dependencies in ConfigureServices method for Configuration, ContactDataAccess and ContactBusinessLogic.

  • Update ContractController class to use ContactBusinessLogic object available from constructor through dependency injection.
  1. public void ConfigureServices(IServiceCollection services) {
  2.     // Add framework services.
  3.     services.AddMvc();
  4.     services.AddSingleton < IConfigurationRoot > (sp => {
  5.         return this.Configuration;
  6.     });
  7.     services.AddScoped < IContactDataAccess, ContactDataAccess > ();
  8.     services.AddScoped < IContactBusinessLogic, ContactBusinessLogic > ();
  9. }
  10.
  11.
  12.
  13.
  14. public class ContactController: Controller {
  15.     private IContactBusinessLogic ContactBusinessLogic;
  16.     private IConfigurationRoot Configuration;
  17.     private IContactDataAccess ContactDataAccess;
  18.
  19.     public ContactController(IContactBusinessLogic contactBusinessLogic, IContactDataAccess contactDataAccess, IConfigurationRoot configuration) {
  20.         this.ContactBusinessLogic = contactBusinessLogic;
  21.         this.ContactDataAccess = contactDataAccess;
  22.         this.Configuration = configuration;
  23.     }
  24.
  25.     // GET: /<controller>/
  26.     public IActionResult Index() {
  27.         List < Contact > contacts = this.ContactBusinessLogic.GetContacts();
  28.         List < ContactListVM > contactVMs = new List < ContactListVM > ();
  29.         ContactListVM contactVM;
  30.
  31.         foreach(Contact contact in contacts) {
  32.             contactVM = new ContactListVM {
  33.                 ContactId = contact.ContactId,
  34.                     ContactNumber = contact.ContactNumber,
  35.                     Email = contact.Email,
  36.                     Name = contact.Name,
  37.                     WebSite = contact.WebSite
  38.             };
  39.             contactVMs.Add(contactVM);
  40.         }
  41.
  42.         return View(contactVMs);
  43.     }
  44.
  45.     public IActionResult GetContact(int id) {
  46.         Contact contact = this.ContactBusinessLogic.GetContact(id);
  47.
  48.         ContactVM contactVM = new ContactVM {
  49.             Address1 = contact.Address1,
  50.                 Address2 = contact.Address2,
  51.                 City = contact.City,
  52.                 ContactId = contact.ContactId,
  53.                 ContactNumber = contact.ContactNumber,
  54.                 Country = contact.Country,
  55.                 Email = contact.Email,
  56.                 Name = contact.Name,
  57.                 ProvinceState = contact.ProvinceState,
  58.                 WebSite = contact.WebSite,
  59.                 ZipPostalCode = contact.ZipPostalCode
  60.         };
  61.
  62.         return View(contactVM);
  63.     }
  64.
  65.     [HttpGet]
  66.     public IActionResult CreateContact() {
  67.         ContactVM contactVM = new ContactVM();
  68.
  69.         return View(contactVM);
  70.     }
  71.
  72.     [HttpPost]
  73.     public IActionResult CreateContact(ContactVM contactVM) {
  74.         if (this.ModelState.IsValid) {
  75.             Contact contact = new Contact {
  76.                 Address1 = contactVM.Address1,
  77.                     Address2 = contactVM.Address2,
  78.                     City = contactVM.City,
  79.                     ContactId = contactVM.ContactId,
  80.                     ContactNumber = contactVM.ContactNumber,
  81.                     Country = contactVM.Country,
  82.                     Email = contactVM.Email,
  83.                     Name = contactVM.Name,
  84.                     ProvinceState = contactVM.ProvinceState,
  85.                     WebSite = contactVM.WebSite,
  86.                     ZipPostalCode = contactVM.ZipPostalCode
  87.             };
  88.
  89.             contact = this.ContactBusinessLogic.CreateContact(contact);
  90.
  91.             if (contact.ContactId > 0) {
  92.                 return RedirectToAction("Index");
  93.             }
  94.         }
  95.
  96.         return View(contactVM);
  97.     }
  98.
  99.     [HttpGet]
  100.     public IActionResult UpdateContact(int id) {
  101.         Contact contact = this.ContactBusinessLogic.GetContact(id);
  102.
  103.         ContactVM contactVM = new ContactVM {
  104.             Address1 = contact.Address1,
  105.                 Address2 = contact.Address2,
  106.                 City = contact.City,
  107.                 ContactId = contact.ContactId,
  108.                 ContactNumber = contact.ContactNumber,
  109.                 Country = contact.Country,
  110.                 Email = contact.Email,
  111.                 Name = contact.Name,
  112.                 ProvinceState = contact.ProvinceState,
  113.                 WebSite = contact.WebSite,
  114.                 ZipPostalCode = contact.ZipPostalCode
  115.         };
  116.
  117.         return View(contactVM);
  118.     }
  119.
  120.     [HttpPost]
  121.     public IActionResult UpdateContact(ContactVM contactVM) {
  122.         if (this.ModelState.IsValid) {
  123.             Contact contact = new Contact {
  124.                 Address1 = contactVM.Address1,
  125.                     Address2 = contactVM.Address2,
  126.                     City = contactVM.City,
  127.                     ContactId = contactVM.ContactId,
  128.                     ContactNumber = contactVM.ContactNumber,
  129.                     Country = contactVM.Country,
  130.                     Email = contactVM.Email,
  131.                     Name = contactVM.Name,
  132.                     ProvinceState = contactVM.ProvinceState,
  133.                     WebSite = contactVM.WebSite,
  134.                     ZipPostalCode = contactVM.ZipPostalCode
  135.             };
  136.
  137.             if (this.ContactBusinessLogic.UpdateContact(contact)) {
  138.                 return RedirectToAction("Index");
  139.             }
  140.         }
  141.
  142.         return View(contactVM);
  143.     }
  144.
  145.     [HttpGet]
  146.     public IActionResult DeleteContact(int id) {
  147.         ContactVM contactVM = new ContactVM {
  148.             ContactId = id
  149.         };
  150.
  151.         return View(contactVM);
  152.     }
  153.
  154.     [HttpPost]
  155.     public IActionResult DeleteContact(ContactVM contactVM) {
  156.         this.ContactBusinessLogic.DeleteContact(contactVM.ContactId);
  157.
  158.         return RedirectToAction("Index");
  159.     }
  160. }


Run Application in Debug Mode
  • Press F5 or Debug Menu >> Start Debugging or Start IIS Express Button on Toolbar to start application in debugging mode.

  • It will show Home Page in browser.

  • Click Contact List Menu Open to open the Contact List Page, so we have performed Get All operation.

  • Now, perform all of following operations,

    • Create New Contact.
    • Open Details of a Contact.
    • Edit and Update a Contact.
    • Delete a Contact.
    • We can observe that changes are persistent as now values have been stored in database.
Sample Contact Database

We are using a test database named ContactDB having single table Contact and Stored Procedures Contact_GetAll, Contact_Get, Contact_Create, Contact_Update and Contact_Delete for GetAll, Get, Create, Update and Delete operations respectively. We have Scripts available to create this database in Solution as "ContractDB.sql", and to insert test data as "ContactTestData.sql". We are using SQL Server 2014 Express, you can download it from MSDN. We are not going to discuss SQL Server Database in this article.



Sample Source Code

I have placed the sample code for this session in "CRUD operations in ASP.NET Core 1.0 MVC Application Part 7_Code.zip" in CodePlex repository.

  • ASP.NET Core 1.0
  • CRUD Operations
  • MVC
  • MVC Application
Up Next
    Ebook Download
    View all
    C# Corner Ebook
    Printing in C# Made Easy
    Read by 10.8k people
    Download Now!
    Learn
    View all
    Learn Image
    SAP Crystal Reports Tutorials
    Leaderboard
    View all
    Satyam Sinha

    Satyam Sinha
    +0
    Deepak Tewatia

    Deepak Tewatia
    +0
    Shivam Payasi

    Shivam Payasi
    +0
    View all
    Yesterday's leader
    Deepak Tewatia
    Deepak Tewatia
    C#, Asp.net, DB, F#, AI, MVC
    India
    12
    18.5k
    16.5k
    50
    Member of the month
    Rinki
    Rinki
    Chennai (India)
    15
    5.7k
    14.2k
    50
    Speaker of the month
    Shivam Payasi
    Shivam Payasi
    C#, .NET
    Chitrakoot (India)
    8
    21.7k
    19.3k
    10
    Upcoming events
    View all
    • Bhubaneswar Chapter
    • Building Websites with Microsoft Power Pages: Exploring WebPage, WebTemplate, and Page Templates - Microsoft Business Application Ep. 25
    Suggested for you
    View all
    Allen James Allen James
    Follow
    Ben Chris Ben Chris
    Follow
    Shivam Payasi Shivam Payasi
    Follow
    Rathrola Prem Kumar Rathrola Prem Kumar
    Follow
    Rinki Rinki
    Follow

    CSharpBot

    Get Started

    You need to be a premium member to use this feature. To access it, you'll have to upgrade your membership.

    Become a sharper developer and jumpstart your career.

    Basic

    $0

    $

    . 00

    monthly

    Sign-Up Now

    For Basic members:

    • Standard Profile
    • Access learning courses
    • Access free e-books
    • 1x point
    Premium

    $20

    $

    . 00

    monthly

    Sign-Up Now

    For Premium members:

    • Earn 2x reward points
    • Premium profile with Verified check
    • Premium Avatar with status update
    • Learning courses
    • Unlimited Certifications and badges on profile
    • Unlimited Book downloads
    • Access to Premium content
    • Online Training
    • Unlimited PDF conversions and downloads
    • Professional Resume Writing
    • Interview Preparations Guide
    • 25 messages per month
    • 1 "Kodzu" avatar, basic
    Elite

    $45

    $

    . 00

    monthly

    Sign-Up Now

    For Elite members:

    • Bundle E-books
    • Access to all Learn Series
    • Unlimited Apply Jobs
    About Us Contact Us Privacy Policy Terms Media Kit Partners C# Tutorials Consultants Ideas Report A Bug FAQs Certifications Sitemap Stories CSharp TV DB Talks Let's React Web3 Universe Interviews.help Jumpstart Blockchain Build with JavaScript

    ©2024 C# Corner.

    All contents are copyright of their authors.
