Display RGB Light With Arduino Mega 2560

Introduction:
  • In this article I will explain about displaying RGB Light With Arduino Mega 2560.
  • It can be used to change according to the colored paper.
  • It can work under the color sensor.
Parts Of Lists:
  • Arduino Mega 2560
  • LED-3
  • Color sensor
  • Hookup Wires

Color Sensor:
  • The color sensor can be used to convert the light to frequency converter.
  • It can be used to filter the RGB color.
  • We will calculate the RGB color value.

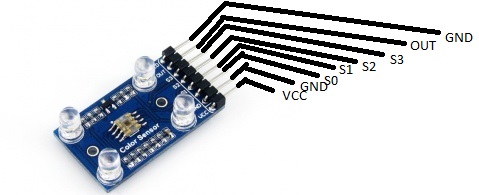

                     Figure 1: Color sensor.
Connection:

Step 1: Connection From Color Sensor To Arduino Mega 2560:
  • Connect the S0 pin to the GND of the Arduino board.
  • Connect the S1 pin to the VCC of the 5V  Arduino board.
  • Connect the S2 pin to the 03  of the Arduino board.
  • Connect the S3 pin to the 04 of the Arduino board.
  • Connect the S0 pin to the 05 of the Arduino board.
  • Connect the VCC pin to the 5V of the Arduino board.
  • Connect the GND pin to the GND of the Arduino board.
Step 2: Connection From LED To Arduino Mega 2560:

LED 1 : RED Color:
  • Postive pin to the 13.
  • Negative pin to the GND.
LED 2 : GREEN Color:
  • Postive pin to the 12.
  • Negative pin to the GND.
LED 3 : BLUE Color:
  • Postive pin to the 11.
  • Negative pin to the GND.
Programming:
  1. int redPin=13; // red ping
  2. int greenPin=12; // green pin
  3. int bluePin=11; // blue pin
  4.
  5. int S2=03; // Color sensore pin S2 to Arduino pin 7
  6. int S3=04; // Color sensor pin S3 to Arduino pin 8
  7. int outPin=05; // color Sensor OUT to Arduino pin 4
  8.
  9. int rColorStrength;
  10. int gColorStrength;
  11. int bcolorStrength;
  12.
  13. unsigned int pulseWidth;
  14.
  15. void setup() {
  16. Serial.begin (9600); //Turn on serial port
  17.
  18. pinMode(redPin, OUTPUT);
  19. pinMode(greenPin, OUTPUT);
  20. pinMode(bluePin, OUTPUT);
  21.
  22. pinMode(S2, OUTPUT);
  23. pinMode(S3, OUTPUT);
  24. pinMode(outPin, INPUT);
  25.
  26. }
  27.
  28. void loop() {
  29. // Lets star by reading Red component of the color
  30. // S2 and S3 should be set LOW
  31.
  32. digitalWrite(S2,LOW);
  33. digitalWrite(S3,LOW);
  34.
  35. pulseWidth = pulseIn(outPin,LOW);
  36.
  37. rColorStrength = pulseWidth/400. -1;
  38.
  39. rColorStrength = (255- rColorStrength);
  40.
  41. // Lets read green component of the color
  42. // S2 and S3 should be set LOW
  43.
  44. digitalWrite (S2,HIGH);
  45. digitalWrite (S3,HIGH);
  46.
  47. pulseWidth = pulseIn(outPin,LOW);
  48.
  49. gColorStrength = pulseWidth/400. -1;
  50.
  51. gColorStrength = (255- gColorStrength);
  52.
  53. // Lets read blue component of the color
  54. // S2 and S3 should be set LOW and HIGH Repectively
  55.
  56. digitalWrite(S2,LOW);
  57. digitalWrite(S3,HIGH);
  58.
  59. pulseWidth = pulseIn(outPin,LOW);
  60.
  61. bcolorStrength = pulseWidth/400. -1;
  62.
  63. bcolorStrength = (255- bcolorStrength);
  64.
  65. Serial.print(rColorStrength);
  66. Serial.print(“, “);
  67. Serial.print(gColorStrength);
  68. Serial.print(“, “);
  69. Serial.println(bcolorStrength);
  70. Serial.println(“ ”);
  71. if (rcolorstrength>bcolorstrength &&rcolorstrength>gcolorstrength){
  72. digitalwrite(redpin,HIGH);
  73. digitalwrite(bluepin,LOW);
  74. digitalwrite(greenpin,LOW);
  75. }
  76. if (gcolorstrength>bcolorstrength &&gcolorstrength>rcolorstrength){
  77. digitalwrite(redpin,LOW);
  78. digitalwrite(bluepin,LOW);
  79. digitalwrite(greenpin,HIGH);
  80. }
  81. if (bcolorstrength>rcolorstrength &&bcolorstrength>gcolorstrength){
  82. digitalwrite(redpin,LOW);
  83. digitalwrite(bluepin,HIGH);
  84. digitalwrite(greenpin,LOW);
  85. }
  86. delay(250);
  87. }
Explanation:
  • In this article I have explained about displaying RGB color in the Arduinomega2560.
  • It changes when the color is shown near the sensor and reflected in the LED.
  • The color value can be seen in the serial monitor.
  • For red, it will turn ON the red LED color.
  • For blue, it will turn ON the blue LED color.
  • For green, it will turn ON the green LED color.
Output:

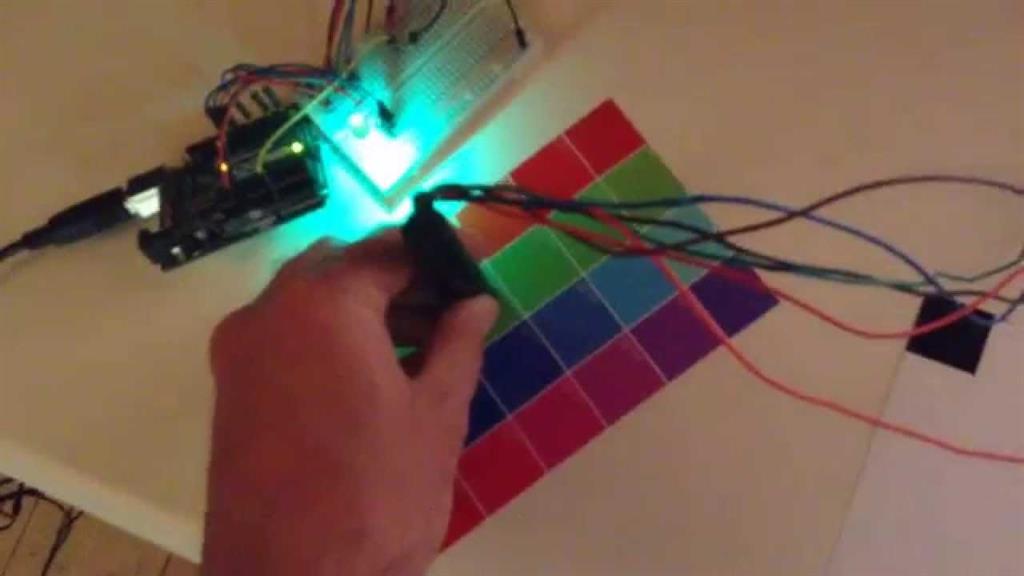

                                  Figure 2: Output
