Dive In To The Virtual Reality World

Introduction

If you look at VR Headsets closely, you'll notice some common features; i.e.,2 lenses for each eye, and one or more display panel behind those lenses. Sometimes, the headset is a tracking hardware built in to the frame but a VR is a headset. Virtual Reality is all about creating a synthetic believable virtual world that requires several hardware and software systems, so VR is not just a headset.This article is about  how to dive in to the major components of Virtual Reality.

Figure 1 : VR World

Why VR headsets have lenses

Since we need the highest resolution display in VR, each lens makes it possible for an eye to focus on a screen, which is extremely close to your eyes. As an experiment, you can try holding your phone screen a couple cm from your eyes. While doing this, you can read anything. Similarly, in cardboard, you can get a great experience with VR, where the images are perfectly focused by using specializing lens.


Figure 2 : Card Board

Big Difference in Mobile and Desktop VR platform

One of the biggest differences between mobile and desktop platforms is the concept of 3-DOF vs 6-DOF Tracking DOF-Degrees of Freedom, which deals accurately how VR system is tracking.

3-DOF Tracking
  • 3-DOF
    It means the head can be tracked while rotating head like X,Y, and Z axis and this is what most mobile VR platforms will do.

  • 3-DOF
    A Head Rotation can accurately be tracked.

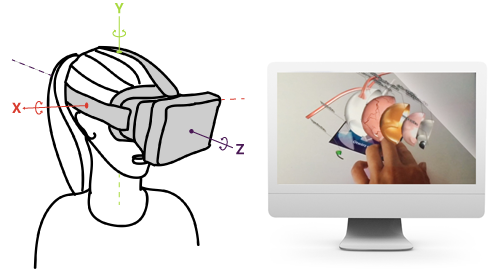

    Figure 3 : 3-DOF Example [Head Rotaion x,y and z]
6-DOF Tracking
  • 6-DOF Tracking allows you to be tracked, as you move around in the room.
  • 6-DOF means a head rotation and its position is tracked.


    Figure 4 : 6-DOF Example [Rotaion and Posistion]
How the Rotation happens in VR

As we have seen before, 3 and 6-DOF tracking is concerned, it's for head rotation but how that happens is incredible. How do they do it? The answer is that these headsets are using really cool electronic devices called IMU (Inertial Measurement Unit). It is a tiny sensor, which is really good, as it quickly and accurately detects the rotation. It does this by combining the data from the on board accelerometer all modern 3-DOF Tracking, which uses IMU

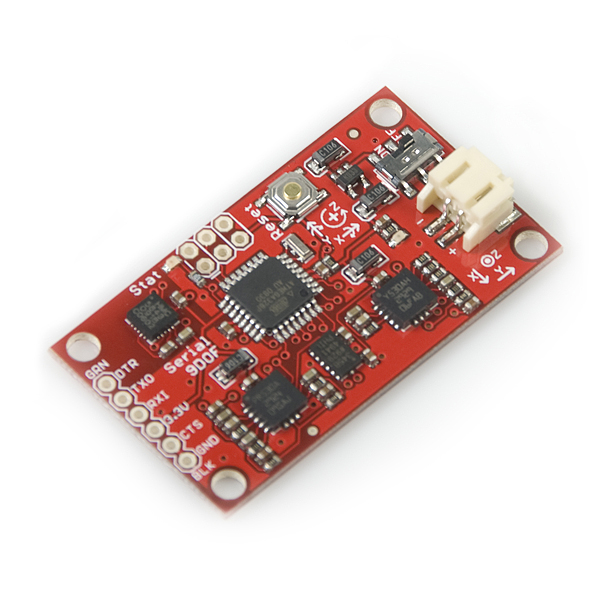

Figure 5 : IMU

Comparison between Mobile and Desktop

               Mobile             Desktop
 IMU Tracking  Optical and IMU Tracking
 Untethered  Tethered
 No wires Hand Controllers
 Less Powerful More Powerful

VR Development Platforms
  • Unity
  • lumberyard
  • UnReal Engine and many more...
I hope you got a clear picture of VR. In the upcoming articles, I am going to explain in detail about developing games in Unity 5 Game Engine with Oculus family of VR devices.
