File Upload With JQuery Progress Bar In ASP MVC

In this article we are going to learn how to implement jquery progress bar in File Upload control in ASP MVC.

Step 1

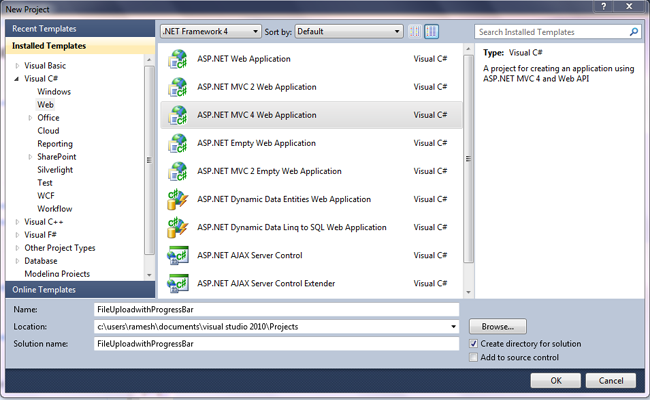

First we have to create an Asp Mvc project in visual studio. To do that, Open Visual Studio -> New Project -> A new dialog window will appear -> In left pane select C# ->select Web -> Select "ASP.NET MVC 4 Application" name your project and click ok.

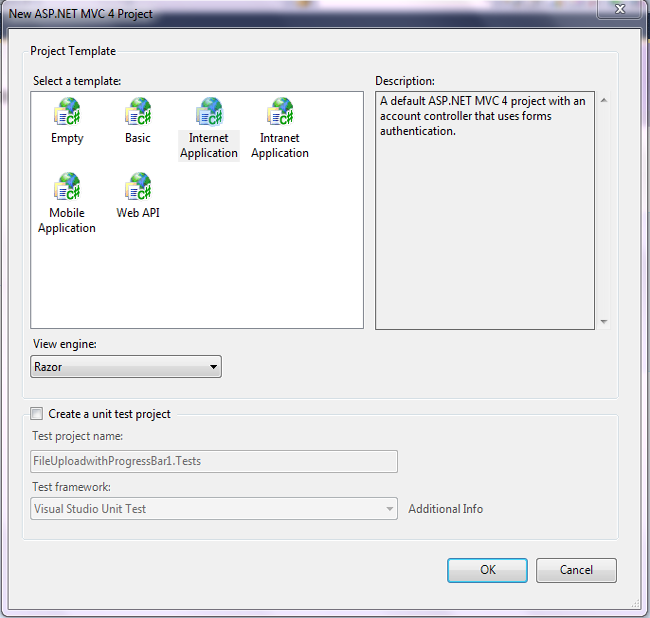

Again a new dialog window will appear. In that select "Internet Application"

Please refer to the below image for your reference.




Step 2

Now you can see your project files in right corner of visual studio. Please refer to the below image for your reference



Step 3

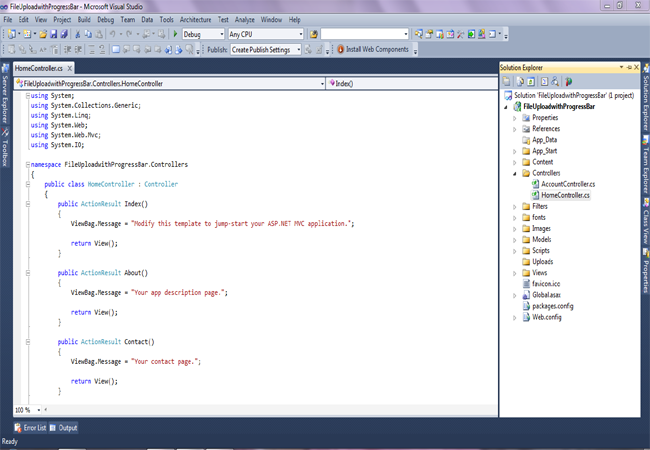

Open controller folder. In that we have "Home" and "Account" controller default. It was created while creating a new project in asp mvc.

If you open "Home" controller , you can see some default code in that. Please refer to the below image for your reference.



Step 4

In view folder we can see the "Home" folder and can see the "Index" view. It was also created when we created a project.

If you want to create a view for your action result , just right click on your action result and click "Add View"

Please refer to the below image for your reference.



Step 5

Now let's change the index view code as per our requirement.

Please just copy and paste the code in your index view.

Note

Here I have added the "ProgressBar" css and script file from CDN(Content Delivery Network)
  1. @{
  2.     ViewBag.Title = "Home Page";
  3. }
  4. <link href="https://code.jquery.com/ui/1.10.4/themes/ui-lightness/jquery-ui.css"
  5.     rel="stylesheet">   @*I got this link from Tutorials point*@
  6. <link href="../../Content/bootstrap.css" rel="stylesheet" type="text/css" /> @*Download Bootstrap from Nuget Package manager*@
  7. <link href="../../Content/bootstrap-theme.css" rel="stylesheet" type="text/css" />
  8. <style>
  9.     .ui-widget-header
  10.     {
  11.         background: #cedc98;
  12.         border: 1px solid #DDDDDD;
  13.         color: #333333;
  14.         font-weight: bold;
  15.     }
  16.     .progress-label
  17.     {
  18.         position: absolute;
  19.         left: 50%;
  20.         top: 13px;
  21.         font-weight: bold;
  22.         text-shadow: 1px 1px 0 #fff;
  23.     }
  24.     .red
  25.     {
  26.         color: red;
  27.     }
  28. </style>
  29. <div class="container">
  30.     <h1>
  31.         File Upload Demo</h1>
  32.     <div id="FileBrowse">
  33.         <div class="row">
  34.             <div class="col-sm-4">
  35.                 <input type="file" id="Files" />
  36.             </div>
  37.             <div class="col-sm-2">
  38.                 <input type="button" id="UploadBtn" class="btn btn-danger" value="Upload" />
  39.             </div>
  40.         </div>
  41.     </div>
  42.     <div class="row">
  43.         <div class="col-sm-4">
  44.             <div id="progressbar-5">
  45.                 <div class="progress-label">
  46.                 </div>
  47.             </div>
  48.         </div>
  49.     </div>
  50.     <br />
  51.     <div class="row">
  52.         <div class="col-sm-6">
  53.             <table class="table" id="ListofFiles">
  54.                 <tr>
  55.                     <th>
  56.                         Files
  57.                     </th>
  58.                     <th>
  59.                         Action
  60.                     </th>
  61.                 </tr>
  62.             </table>
  63.         </div>
  64.     </div>
  65.     <br />
  66.     <br />
  67.     <br />
  68.     <br />
  69. </div>
  70. @section scripts{
  71.     <script src="https://code.jquery.com/jquery-1.10.2.js"></script>
  72.     <script src="https://code.jquery.com/ui/1.10.4/jquery-ui.js"></script>
  73.     <script>
  74.
  75.         $('#UploadBtn').click(function () {
  76.
  77.             var fileUpload = $("#Files").get(0);
  78.             var files = fileUpload.files;
  79.             // Create FormData object
  80.             var fileData = new FormData();
  81.             // Looping over all files and add it to FormData object
  82.             for (var i = 0; i < files.length; i++) {
  83.                 fileData.append(files[i].name, files[i]);
  84.             }
  85.             $.ajax({
  86.                 url: '/Home/UploadFiles',
  87.                 type: "POST",
  88.                 contentType: false, // Not to set any content header
  89.                 processData: false, // Not to process data
  90.                 data: fileData,
  91.                 async: false,
  92.                 success: function (result) {
  93.                     if (result != "") {
  94.                         $('#FileBrowse').find("*").prop("disabled", true);
  95.                         LoadProgressBar(result); //calling LoadProgressBar function to load the progress bar.
  96.                     }
  97.                 },
  98.                 error: function (err) {
  99.                     alert(err.statusText);
  100.                 }
  101.             });
  102.
  103.         });
  104.
  105.         function LoadProgressBar(result) {
  106.             var progressbar = $("#progressbar-5");
  107.             var progressLabel = $(".progress-label");
  108.             progressbar.show();
  109.             $("#progressbar-5").progressbar({
  110.                 //value: false,
  111.                 change: function () {
  112.                     progressLabel.text(
  113.                      progressbar.progressbar("value") + "%");  // Showing the progress increment value in progress bar
  114.                 },
  115.                 complete: function () {
  116.                     progressLabel.text("Loading Completed!");
  117.                     progressbar.progressbar("value", 0);  //Reinitialize the progress bar value 0
  118.                     progressLabel.text("");
  119.                     progressbar.hide(); //Hiding the progress bar
  120.                     var markup = "<tr><td>" + result + "</td><td><a href='#' onclick='DeleteFile(\"" + result + "\")'><span class='glyphicon glyphicon-remove red'></span></a></td></tr>"; // Binding the file name
  121.                     $("#ListofFiles tbody").append(markup);
  122.                     $('#Files').val('');
  123.                     $('#FileBrowse').find("*").prop("disabled", false);
  124.                 }
  125.             });
  126.             function progress() {
  127.                 var val = progressbar.progressbar("value") || 0;
  128.                 progressbar.progressbar("value", val + 1);
  129.                 if (val < 99) {
  130.                     setTimeout(progress, 25);
  131.                 }
  132.             }
  133.             setTimeout(progress, 100);
  134.         }
  135.
  136.         function DeleteFile(FileName) {
  137.
  138.         //Write your delete logic here
  139.         }
  140.
  141.     </script>
  142. }
Let;s understand the code now, I have used one file input control, html input button. Find the code here
  1. <div id="FileBrowse">
  2.        <div class="row">
  3.            <div class="col-sm-4">
  4.                <input type="file" id="Files" />
  5.            </div>
  6.            <div class="col-sm-2">
  7.                <input type="button" id="UploadBtn" class="btn btn-danger" value="Upload" />
  8.            </div>
  9.        </div>
  10.    </div>
  11.    <div class="row">
  12.        <div class="col-sm-4">
  13.            <div id="progressbar-5">
  14.                <div class="progress-label">
  15.                </div>
  16.            </div>
  17.        </div>
  18.    </div>
 I have used one html table to show the files list.find the code here.
  1. <div class="row">
  2.         <div class="col-sm-6">
  3.             <table class="table" id="ListofFiles">
  4.                 <tr>
  5.                     <th>
  6.                         Files
  7.                     </th>
  8.                     <th>
  9.                         Action
  10.                     </th>
  11.                 </tr>
  12.             </table>
  13.         </div>
  14.     </div>
In jquery I have written upload button click event and passed the file to controller using ajax method.

Please find the code below,
  1. $('#UploadBtn').click(function () {
  2.
  3.            var fileUpload = $("#Files").get(0);
  4.            var files = fileUpload.files;
  5.            // Create FormData object
  6.            var fileData = new FormData();
  7.            // Looping over all files and add it to FormData object
  8.            for (var i = 0; i < files.length; i++) {
  9.                fileData.append(files[i].name, files[i]);
  10.            }
  11.            $.ajax({
  12.                url: '/Home/UploadFiles',
  13.                type: "POST",
  14.                contentType: false, // Not to set any content header
  15.                processData: false, // Not to process data
  16.                data: fileData,
  17.                async: false,
  18.                success: function (result) {
  19.                    if (result != "") {
  20.                        $('#FileBrowse').find("*").prop("disabled", true);
  21.                        LoadProgressBar(result); //calling LoadProgressBar function to load the progress bar.
  22.                    }
  23.                },
  24.                error: function (err) {
  25.                    alert(err.statusText);
  26.                }
  27.            });
  28.
  29.        });
Let's create the "UploadFiles" action result in "Home" controller to receive the file from request and save the file in our "Uploads" folder.

Please find the code below for your reference.
  1. public ActionResult UploadFiles()
  2.        {
  3.            string FileName="";
  4.            HttpFileCollectionBase files = Request.Files;
  5.            for (int i = 0; i < files.Count; i++)
  6.            {
  7.                //string path = AppDomain.CurrentDomain.BaseDirectory + "Uploads/";
  8.                //string filename = Path.GetFileName(Request.Files[i].FileName);
  9.
  10.                HttpPostedFileBase file = files[i];
  11.                string fname;
  12.
  13.                // Checking for Internet Explorer
  14.                if (Request.Browser.Browser.ToUpper() == "IE" || Request.Browser.Browser.ToUpper() == "INTERNETEXPLORER")
  15.                {
  16.                    string[] testfiles = file.FileName.Split(new char[] { '\\' });
  17.                    fname = testfiles[testfiles.Length - 1];
  18.                }
  19.                else
  20.                {
  21.                    fname = file.FileName;
  22.                    FileName = file.FileName;
  23.                }
  24.
  25.                // Get the complete folder path and store the file inside it.
  26.                fname = Path.Combine(Server.MapPath("~/Uploads/"), fname);
  27.                file.SaveAs(fname);
  28.            }
  29.            return Json(FileName, JsonRequestBehavior.AllowGet);
  30.        }
In Button Click event we are calling the function "LoadProgressbar" to load the progress bar and bind the fields in  the table.

All the code wrote in "LoadProgressBar", please find the code for your reference.
  1. function LoadProgressBar(result) {
  2.            var progressbar = $("#progressbar-5");
  3.            var progressLabel = $(".progress-label");
  4.            progressbar.show();
  5.            $("#progressbar-5").progressbar({
  6.                //value: false,
  7.                change: function () {
  8.                    progressLabel.text(
  9.                     progressbar.progressbar("value") + "%");  // Showing the progress increment value in progress bar
  10.                },
  11.                complete: function () {
  12.                    progressLabel.text("Loading Completed!");
  13.                    progressbar.progressbar("value", 0);  //Reinitialize the progress bar value 0
  14.                    progressLabel.text("");
  15.                    progressbar.hide(); //Hiding the progress bar
  16.                    var markup = "<tr><td>" + result + "</td><td><a href='#' onclick='DeleteFile(\"" + result + "\")'><span class='glyphicon glyphicon-remove red'></span></a></td></tr>"; // Binding the file name
  17.                    $("#ListofFiles tbody").append(markup);
  18.                    $('#Files').val('');
  19.                    $('#FileBrowse').find("*").prop("disabled", false);
  20.                }
  21.            });
  22.            function progress() {
  23.                var val = progressbar.progressbar("value") || 0;
  24.                progressbar.progressbar("value", val + 1);
  25.                if (val < 99) {
  26.                    setTimeout(progress, 25);
  27.                }
  28.            }
  29.            setTimeout(progress, 100);
  30.        }

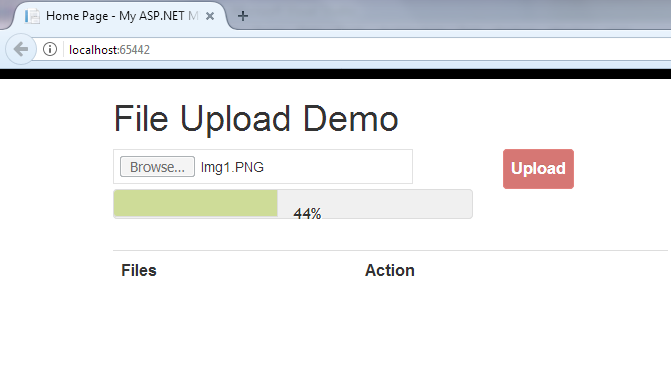

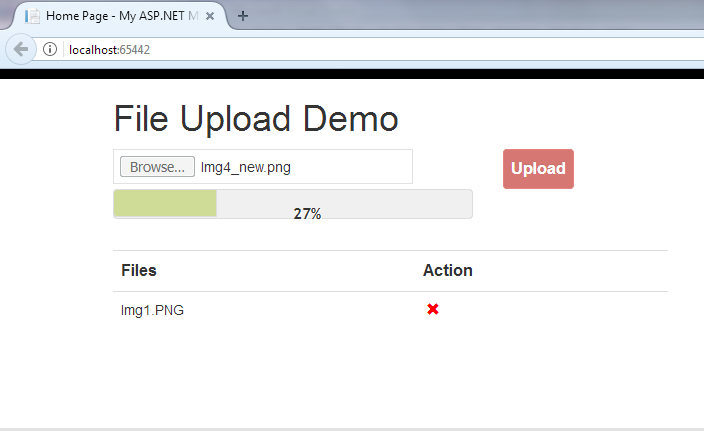

Now let's run our project. Please find the below result for your reference.




Thanks for reading my article. If you have any comments or queries, please mention it comment box.

Up Next
    Ebook Download
    View all
    Learn
    View all
    Get Started

    You need to be a premium member to use this feature. To access it, you'll have to upgrade your membership.

    Become a sharper developer and jumpstart your career.

    Basic

    $0

    $

    . 00

    monthly

    For Basic members:

    • Standard Profile
    • Access learning courses
    • Access free e-books
    • 1x point
    Premium

    $20

    $

    . 00

    monthly

    For Premium members:

    • Earn 2x reward points
    • Premium profile with Verified check
    • Premium Avatar with status update
    • Learning courses
    • Unlimited Certifications and badges on profile
    • Unlimited Book downloads
    • Access to Premium content
    • Online Training
    • Unlimited PDF conversions and downloads
    • Professional Resume Writing
    • Interview Preparations Guide
    • 25 messages per month
    • 1 "Kodzu" avatar, basic
    Elite

    $45

    $

    . 00

    monthly

    For Elite members:

    • Bundle E-books
    • Access to all Learn Series
    • Unlimited Apply Jobs
