Fingerprint Lock Using Arduino Mega 2560

Introduction

In this article I will explain how to create a Fingerprint Lock using Arduino Mega 2560. It will be used to identify the same user in the same way that a fingerprint scanner works.

Parts
  • Fingerprint sensor
  • Arduino Mega 2560
  • Servo motor
  • Jumper wires
Fingerprint Sensor

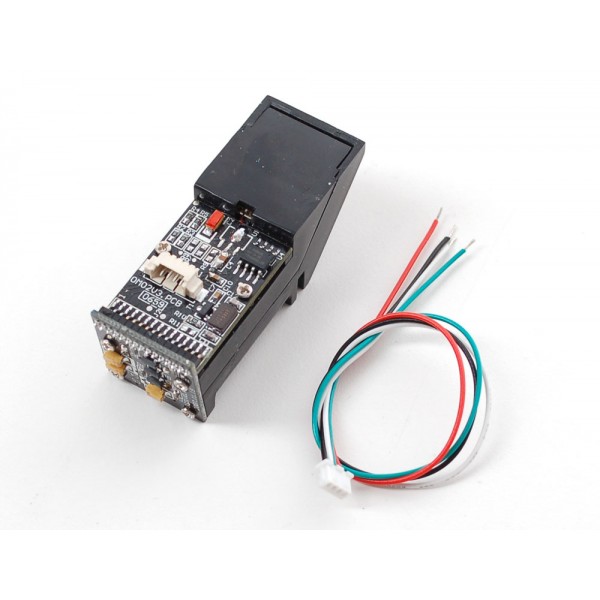

Figure 1: Fingerprint Sensor
  • It is an electronic device and capture the digital images.
  • The captured image is called live scan.
  • It simply identifies the fingerprint and give the result.
  • It can easily match the fingerprint.
Connection:

Step 1: Connection From Servo Motor To Arduino Mega 2560,
  • The servo first pin can be connected to the Gnd.
  • The second pin can be connected to the VCC.
  • The third pin can be connected to the digital pin 06 of the Arduino Mega 2560.
Step 2: Connection From Fingerprint Sensor To Arduino Mega 2560,
  • The Gnd pin of fingerprint sensor to the Gnd of the Arduino Mega 2560
  • The Vcc pin of  fingerprint sensor to the 5v of the Arduino Mega 2560
  • The Rx pin can be connected to the A4 of the Arduino Mega 2560.
  • The Tx pin can be connected to the A5 of the Arduino Mega 2560.
Programming
  1. #include <Fingerprint.h>
  2. #include <SoftwareSerial.h>
  3. #include <Streaming.h>
  4. #include <Servo.h>
  5.
  6. #define __Debug         1                               // if debug mode
  7.
  8. const int pinServo      = 6;                            // servo pin
  9. const int angleServo    = 60;                           // Rotation angle
  10.
  11. #if __Debug
  12. #define DBG(X)          Serial.println(X)
  13. #else
  14. #define DBG(X)
  15. #endif
  16.
  17. SoftwareSerial mySerial(A5, A4);                                // tx, rx
  18.
  19. Fingerprint finger = Fingerprint(&mySerial);
  20. Servo myservo;                                                  // create servo object to control a servo
  21.
  22. void open_close_door()
  23. {
  24.     myservo.attach(pinServo);
  25.     for(int i=20; i<angleServo; i++)
  26.     {
  27.         myservo.write(i);
  28.         delay(5);
  29.     }
  30.
  31.     delay(2000);
  32.
  33.     for(int i=(angleServo-1); i>=20; i--)
  34.     {
  35.         myservo.write(i);
  36.         delay(5);
  37.     }
  38.     myservo.detach();
  39.
  40.
  41. }
  42.
  43.
  44. void setup()
  45. {
  46.
  47.     Serial.begin(38400);
  48.     finger.begin(19200);
  49.     delay(500);
  50.     DBG("setup ok!");
  51. }
  52.
  53. void loop()                     // run over and over again
  54. {
  55.     if(getFingerprintIDez()>=0)
  56.     {
  57.         open_close_door();
  58.         DBG("get right finger, open door now!!");
  59.
  60.         delay(2000);
  61.     }
  62.     delay(50);
  63. }
  64.
  65.
  66. // returns -1 if failed, otherwise returns ID #
  67. int getFingerprintIDez()
  68. {
  69.
  70.     if (!finger.verifyPassword())
  71.     {
  72.         DBG("Did not find fingerprint sensor :(");
  73.         return -1;
  74.     }
  75.
  76.     uint8_t p = finger.getImage();
  77.     if (p != FINGERPRINT_OK)
  78.     {
  79.         return -1;
  80.     }
  81.
  82.     p = finger.image2Tz();
  83.     if (p != FINGERPRINT_OK)
  84.     {
  85.         return -1;
  86.     }
  87.
  88.     p = finger.fingerFastSearch();
  89.     if (p != FINGERPRINT_OK)
  90.     {
  91.         return -1;
  92.     }
  93.
  94. #if __Debug
  95.     Serial.print("Found ID #");
  96.     Serial.print(finger.fingerID);
  97.     Serial.print(" with confidence of ");
  98.     DBG(finger.confidence);
  99. #endif
  100.
  101.     return finger.fingerID;
  102.
  103. }
Explanation:
  • When the fingerprint isthe  same, the sensor identifies it and prints the message as matched.
  • The servo motor also gets rotate to 60 degree direction.
  • When fingerprints do not match, a message is sent as "Not Matched."

Output:

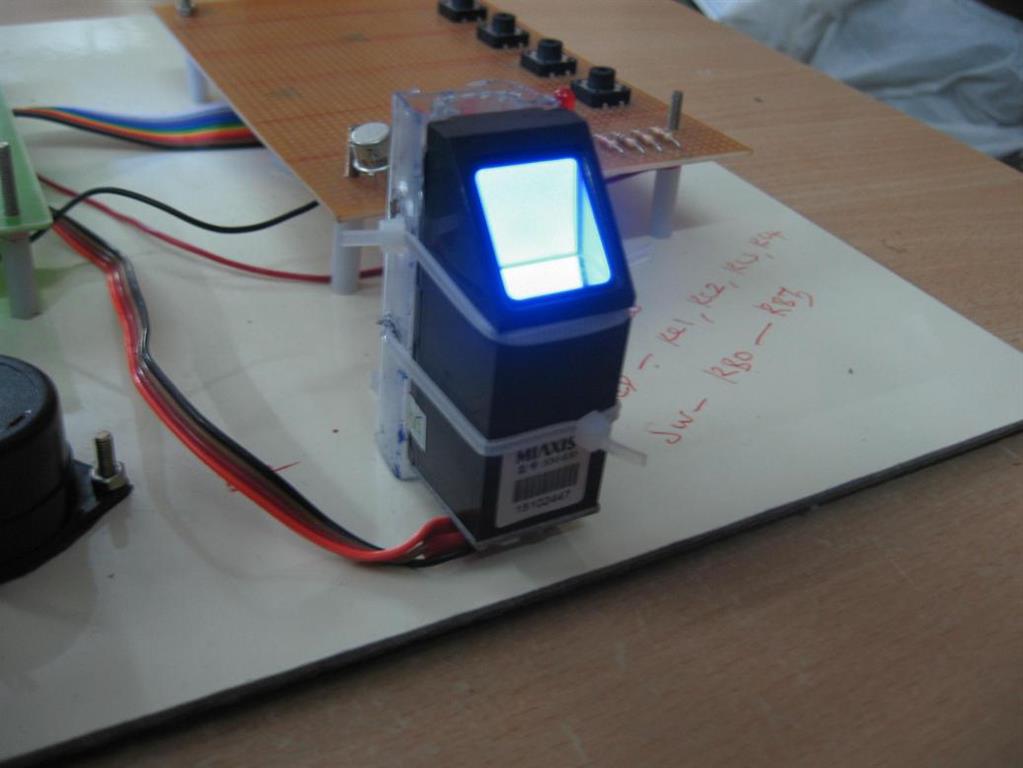

                          Figure 2: Output.
