Getting Started With Windows Server 2016

After successfully installing Windows Server 2016 operating system ( Read my previous article on how to install Windows server 2016 ), you have to do some initial configuration before starting to work on it. This initial configuration includes,

  • Naming the computer
  • Setting the clock and region
  • Configuring network address (TCP/IP)
  • Adding Roles and features.
  • Configuring Firewall
  • And, enabling automatic updates

Note - Changing the computer name requires system restart.

  1. Name Your Computer

    Let me show you how to change the computer name in Windows Server 2016. There’s a unique name that’s been already assigned to your Windows Server 2016 by default. You need to change this name to have a meaningful name and to easily identify your computer on the network. Changing the name of your computer is very easy. As you can see below, “WIN-183PHTUHDEF is the default name that my computer already has. I just want to change it to have a meaningful name. This can be done very easily by following the below steps,

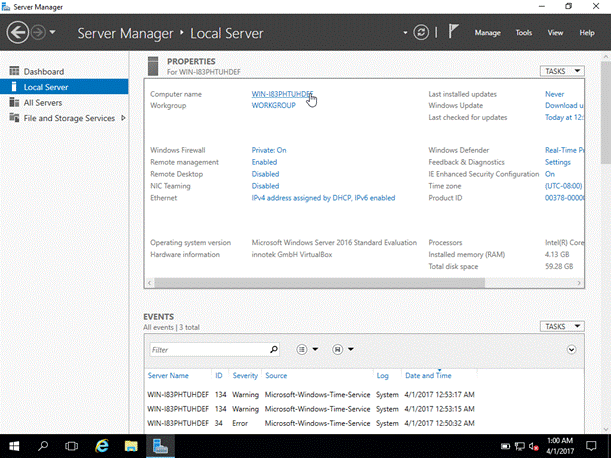

    Open Server Manager —> click on Local Server —> click on the default computer name (see below image) .

    Server
    Image: Server with a default Name

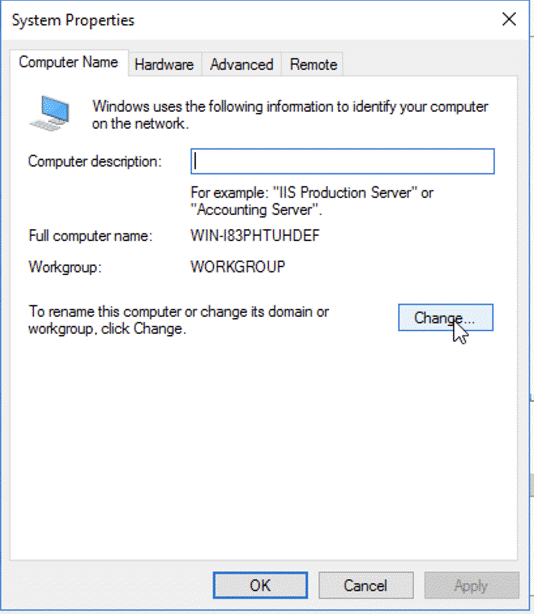

    Now, on the System Properties window, click on Change, type whatever name you want to give followed by a click on OK.

    Server

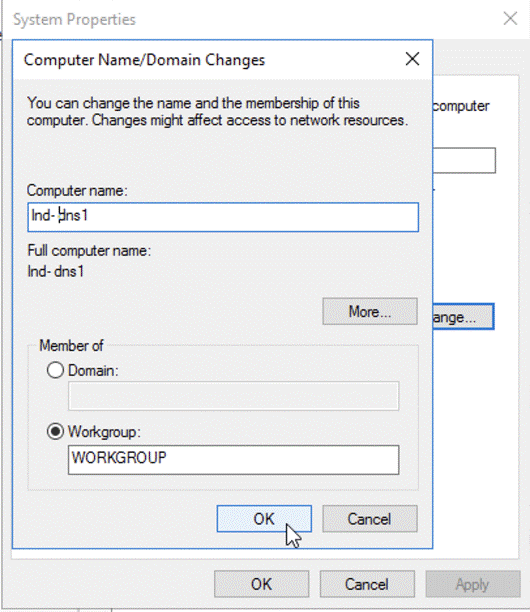

    I have given my computer the name “Ind-dns1”.

    Server

    You can also change your computer name using command prompt.

    Go to your command prompt and run it as “Administrator” and use the below command,

    > hostname

    > Netdom renamecomputer %ComputerName% /NewName: NewComputerName

  1. Set the Clock

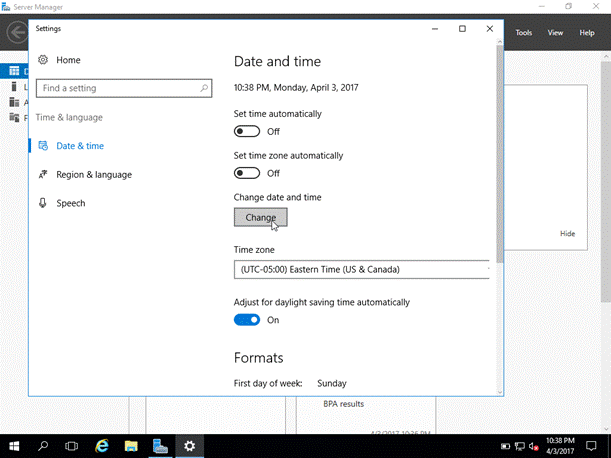

    To set date and time, click on Start —> Settings —> Date and Time settings —> Select Timezone and click on Change ( See below image ).

    Server

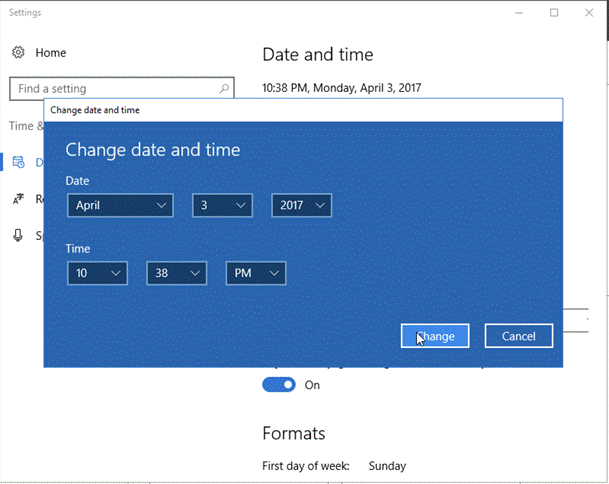

    In the "Change date and time" window, give your current date and time and click Change.

    Server
  1. Configure Network Address.

    Your Server should have a static IP address to use other roles and features. Follow below steps to configure your computer’s network address

    Steps

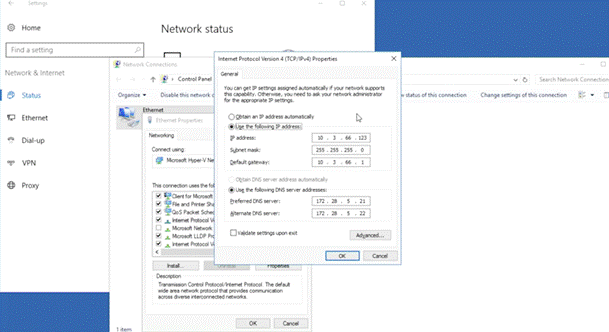

    Go to —> Server Manager —> Local Server —> click on your computer’s network interface hyperlink(Ethernet) —> select the network adapter and right click on it —> click on Properties —> Now double click on Internet Protocol Version 4 (TCP/IPV4) — > select Use the following IP address radio button —> type your IP address details,

    In my case, I’m using IP address (10.3.66.123) , Subnet Mask (255.255.255.0), preferred DNS Server (172.28.5.21) and the default Gateway (10.3.66.1). Now, click OK.

    Server

    Set this TCP/IP configuration from command prompt

    cmd> netsh interface ipv4 show interfaces

    cmd> Netsh interface ipv4 set address name=Ethernet source=static address=10.3.66.123 mask=255.255.255.0

    cmd> Netsh interface ipv4 add dnsserver name=Ethernet address=10.3.66.123 index=1

    To verify your IP address

    cmd> IPconfig /all

    It will show all the details of network including IP address, Subnet mask, DNS IP address.

  1. Add Roles and Features

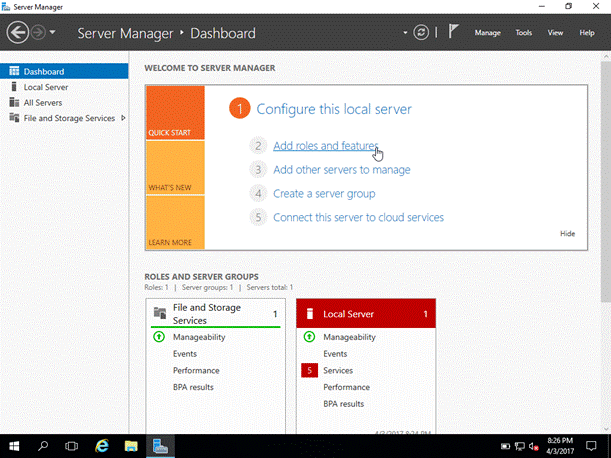

    To add Roles and eeatures, go to Server Manager —> Add roles and features — and select installation type.

    Server

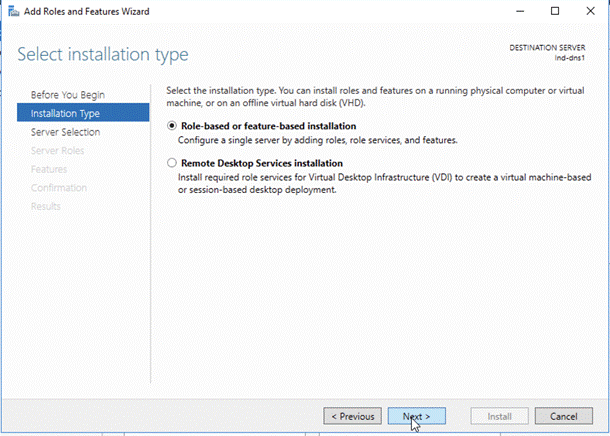

    In this article, I’m selecting “Role-based or feature-based installation” and click Next.

    Server

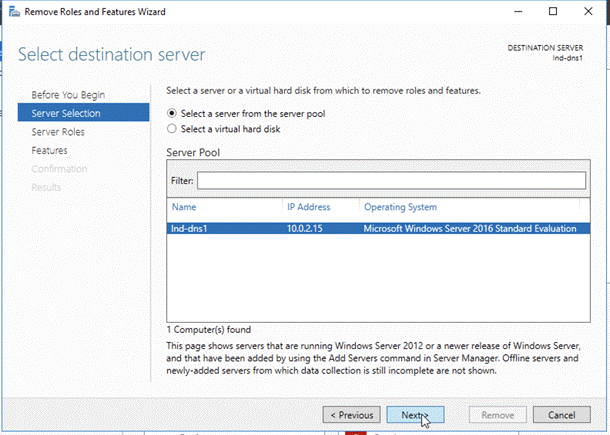

After selecting installation type, you have to provide your destination Server. In my case, I only have one Server so I’m selecting this “Ind-dns1”.

Server

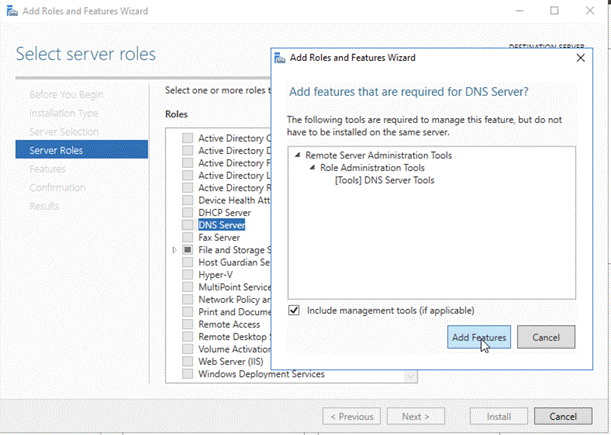

Now, this is where you can add whatever roles you want, by selecting the check box from list of roles. And then, click on Add Features.

Server

Once you successfully add the role, you will be able to see it under the dashboard of your Server Manager.
