How To Create A Calling Application In Android Using Android Studio

Introduction

Android is one of the most popular operating systems for mobile. In this article, I will show you how to create a Calling Application in Android Using Android Studio.

Requirements

Steps to be followed

Follow these steps to create a Calling Application in Android Using Android Studio. I have included the source code in the attachment.

Step 1

Open Android Studio and start a new Android Studio Project.

Android

Step 2

You can choose your application name and choose where your project is stored on the location. If you wish to use C++ for coding the project, mark the "Include C++ support", and click "Next" button.

Android

Now, select the version of Android and select the target Android devices.

Android

Step 3

Now, add the activity and click "Next" button.

Android

Add activity name and click "Finish".

Android

Step 4

Go to activity_main.xml. This XML file contains the designing code for your Android app.

Android

The XML code is given below.

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <android.support.constraint.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     xmlns:app="http://schemas.android.com/apk/res-auto"
  4.     xmlns:tools="http://schemas.android.com/tools"
  5.     android:layout_width="match_parent"
  6.     android:layout_height="match_parent"
  7.
  8.     tools:context="abu.call.MainActivity" >
  9.  <RelativeLayout
  10.         android:layout_width="match_parent"
  11.         android:layout_height="wrap_content"
  12.         android:orientation="vertical">
  13.
  14.
  15.     <TextView
  16.         android:id="@+id/textView1"
  17.         android:layout_width="wrap_content"
  18.         android:layout_height="wrap_content"
  19.         android:text="Dial No." />
  20.     <Button
  21.         android:id="@+id/button1"
  22.         android:layout_width="wrap_content"
  23.         android:layout_height="wrap_content"
  24.         android:layout_alignLeft="@+id/textView1"
  25.         android:layout_below="@+id/textView1"
  26.         android:layout_marginLeft="44dp"
  27.         android:layout_marginTop="84dp"
  28.         android:text="Call" />
  29.     <EditText
  30.         android:id="@+id/editText1"
  31.         android:layout_width="wrap_content"
  32.         android:layout_height="wrap_content"
  33.         android:layout_alignLeft="@+id/textView1"
  34.         android:layout_below="@+id/textView1"
  35.         android:layout_marginLeft="18dp"
  36.         android:ems="10" >
  37.         <requestFocus />
  38.     </EditText>
  39. </RelativeLayout>
  40. </android.support.constraint.ConstraintLayout>

Step 5

Go to  Main Activity.java. This Java program is the backend language of the Android app.

Android

The Java code is given below

  1. package abu.call;
  2.
  3. import android.Manifest;
  4. import android.content.pm.PackageManager;
  5. import android.net.Uri;
  6. import android.os.Bundle;
  7. import android.app.Activity;
  8. import android.content.Intent;
  9. import android.support.v4.app.ActivityCompat;
  10. import android.view.Menu;
  11. import android.view.View;
  12. import android.view.View.OnClickListener;
  13. import android.widget.Button;
  14. import android.widget.EditText;
  15.
  16. public class MainActivity extends Activity
  17. {
  18.     EditText et;
  19.     Button call_btn;
  20.     @Override
  21.     protected void onCreate(Bundle savedInstanceState)
  22.     {
  23.         super.onCreate(savedInstanceState);
  24.         setContentView(R.layout.activity_main);
  25.         et=(EditText)findViewById(R.id.editText1);
  26.         call_btn=(Button)findViewById(R.id.button1);
  27.         call_btn.setOnClickListener(new OnClickListener()
  28.         {
  29.             @Override
  30.             public void onClick(View v)
  31.             {
  32.                 // TODO Auto-generated method stub
  33.                 Intent i = new Intent(Intent.ACTION_CALL);
  34.                 i.setData(Uri.parse("tel:"+et.getText().toString()));
  35.                 startActivity(i);
  36.             }
  37.         });
  38.     }
  39. }

Step 6

We need to make call requests, so add call permissions in AndroidManifest.xml.

Android

The AndroidManifest.xml code is given below.

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <manifest xmlns:android="http://schemas.android.com/apk/res/android"
  3.     package="abu.call">
  4.
  5.     <uses-permission android:name="android.permission.CALL_PHONE" />
  6.     <application
  7.         android:allowBackup="true"
  8.         android:icon="@mipmap/ic_launcher"
  9.         android:label="@string/app_name"
  10.         android:roundIcon="@mipmap/ic_launcher_round"
  11.         android:supportsRtl="true"
  12.         android:theme="@style/AppTheme">
  13.         <activity android:name=".MainActivity">
  14.             <intent-filter>
  15.                 <action android:name="android.intent.action.MAIN" />
  16.
  17.                 <category android:name="android.intent.category.LAUNCHER" />
  18.             </intent-filter>
  19.         </activity>
  20.     </application>
  21.
  22. </manifest>

Step 7

Now, go to menu bar and click "Make Project" or press ctrl+f9 so as to debug it from errors.

Android

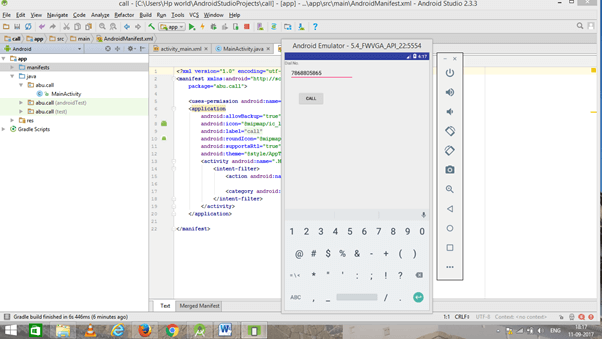

Step 8

Then, click "Run" button or press shift+f10 to run the project. Choose the "virtual machine" option and click OK.

Android

Conclusion

We have successfully created a Calling application in Android using Android Studio.
