Xamarin.Forms Custom Switch Control

Introduction

This article demonstrates how to create and use a custom switch control in Xamarin.Forms using XAML and C#. This article starts with the introduction of the CustomSwitch tag in XAML. After that, it demonstrates how to set BorderColor, ThumbColor, and ThumbImage of a Custom Switch.

Implementation

Open Visual Studio and create a "New Project".

Another way to create a project is to go to File >> New>>Project or press ctrl+Shft+N.

Now, select Cross-Platform App, give the project a name, and set the project path. Then, click OK.



Select the template as "Blank App" and code sharing as "PCL".

Right-click on PCL Project and select Add >> New Item or Add >> Class.

Now, we give the class a name as "CustomSwich.cs".

Now, generate the custom properties...

CustomSwitch.cs

public class CustomSwitch : Switch
   {
       public static readonly BindableProperty SwitchOffColorProperty =
         BindableProperty.Create(nameof(SwitchOffColor),
             typeof(Color), typeof(CustomSwitch),
             Color.Default);

       public Color SwitchOffColor
       {
           get { return (Color)GetValue(SwitchOffColorProperty); }
           set { SetValue(SwitchOffColorProperty, value); }
       }

       public static readonly BindableProperty SwitchOnColorProperty =
         BindableProperty.Create(nameof(SwitchOnColor),
             typeof(Color), typeof(CustomSwitch),
             Color.Default);

       public Color SwitchOnColor
       {
           get { return (Color)GetValue(SwitchOnColorProperty); }
           set { SetValue(SwitchOnColorProperty, value); }
       }

       public static readonly BindableProperty SwitchThumbColorProperty =
         BindableProperty.Create(nameof(SwitchThumbColor),
             typeof(Color), typeof(CustomSwitch),
             Color.Default);

       public Color SwitchThumbColor
       {
           get { return (Color)GetValue(SwitchThumbColorProperty); }
           set { SetValue(SwitchThumbColorProperty, value); }
       }

       public static readonly BindableProperty SwitchThumbImageProperty =
         BindableProperty.Create(nameof(SwitchThumbImage),
             typeof(string),
             typeof(CustomSwitch),
             string.Empty);

       public string SwitchThumbImage
       {
           get { return (string)GetValue(SwitchThumbImageProperty); }
           set { SetValue(SwitchThumbImageProperty, value); }
       }
   }

This property is set in the Android project as well as in iOS project.

Let us start with Android. We are creating a Class in Android Project and rendering the Switch. Then, we set all the properties when we generate it in PCL Project.



Please make sure of the dependency [assembly: ExportRenderer(typeof(CustomSwitch), typeof(MySwitchRenderer))] of Android (MySwitchRndered) and PCL (CustomSwitch).

MySwitchRenderer.cs

public class MySwitchRendererd : SwitchRenderer
    {
        private CustomSwitch view;
        protected override void OnElementChanged(ElementChangedEventArgs<Xamarin.Forms.Switch> e)
        {
            base.OnElementChanged(e);
            if (e.OldElement != null || e.NewElement == null)
                return;
            view = (CustomSwitch)Element;
            if (Android.OS.Build.VERSION.SdkInt >= Android.OS.BuildVersionCodes.JellyBean)
            {
                if (this.Control != null)
                {
                    if (this.Control.Checked)
                    {
                        this.Control.TrackDrawable.SetColorFilter(view.SwitchOnColor.ToAndroid(), PorterDuff.Mode.SrcAtop);
                    }
                    else
                    {
                        this.Control.TrackDrawable.SetColorFilter(view.SwitchOffColor.ToAndroid(), PorterDuff.Mode.SrcAtop);
                    }
                   this.Control.CheckedChange += this.OnCheckedChange;
                    UpdateSwitchThumbImage(view);
                }
                //Control.TrackDrawable.SetColorFilter(view.SwitchBGColor.ToAndroid(), PorterDuff.Mode.Multiply);
            }
        }

        private void UpdateSwitchThumbImage(CustomSwitch view)
        {
            if (!string.IsNullOrEmpty(view.SwitchThumbImage))
            {
                view.SwitchThumbImage = view.SwitchThumbImage.Replace(".jpg", "").Replace(".png", "");
                int imgid = (int)typeof(Resource.Drawable).GetField(view.SwitchThumbImage).GetValue(null);
                Control.SetThumbResource(Resource.Drawable.icon);
            }
            else
            {
                Control.ThumbDrawable.SetColorFilter(view.SwitchThumbColor.ToAndroid(), PorterDuff.Mode.Multiply);
                // Control.SetTrackResource(Resource.Drawable.track);
            }
        }

      private void OnCheckedChange(object sender, CompoundButton.CheckedChangeEventArgs e)
        {
            if (this.Control.Checked)
            {
                this.Control.TrackDrawable.SetColorFilter(view.SwitchOnColor.ToAndroid(), PorterDuff.Mode.SrcAtop);
            }
            else
            {
                this.Control.TrackDrawable.SetColorFilter(view.SwitchOffColor.ToAndroid(), PorterDuff.Mode.SrcAtop);
            }
        }
        protected override void Dispose(bool disposing)
        {
            this.Control.CheckedChange -= this.OnCheckedChange;
            base.Dispose(disposing);
        }
    }

Now, it's time to go to the iOS project and set the PCL (CustomSwitch) properties in iOS Project….

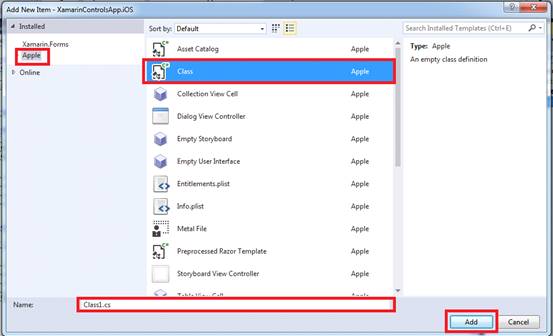

We are creating a Class, so right click on iOS project and select Apple. Then, select "Class" and give this class a name as MySliderRendered.cs.



Now, let us write some code for Switch and Set Properties.

MySwitchRenderer.cs

public class MySwitchRendererd : SwitchRenderer
    {
        Version version = new Version(ObjCRuntime.Constants.Version);
        protected override void OnElementChanged(ElementChangedEventArgs<Switch> e)
        {
            base.OnElementChanged(e);
            if (e.OldElement != null || e.NewElement == null)
                return;
            var view = (CustomSwitch)Element;
            if (!string.IsNullOrEmpty(view.SwitchThumbImage))
            {
                if (version > new Version(6, 0))
                {   //n iOS 6 and earlier, the image displayed when the switch is in the on position.
                    Control.OnImage = UIImage.FromFile(view.SwitchThumbImage.ToString());
                    //n iOS 6 and earlier, the image displayed when the switch is in the off position.
                    Control.OffImage = UIImage.FromFile(view.SwitchThumbImage.ToString());
                }
                else
                {
                    Control.ThumbTintColor = view.SwitchThumbColor.ToUIColor();
                }
            }
            //The color used to tint the appearance of the thumb.
            Control.ThumbTintColor = view.SwitchThumbColor.ToUIColor();
            //Control.BackgroundColor = view.SwitchBGColor.ToUIColor();
            //The color used to tint the appearance of the switch when it is turned on.
            Control.OnTintColor = view.SwitchOnColor.ToUIColor();
            //The color used to tint the outline of the switch when it is turned off.
            Control.TintColor = view.SwitchOffColor.ToUIColor();
        }
    }

Now, go to the PCL project and use in the MainPage.xaml.



As you can see in the above code, we have to set the view reference in xmlns:custom="clr-namespace:XamarinControlApp.CustomControls" MainPage.xaml.

Write the following code for CustomSwitch.

MainPage.xaml

<ContentPage.Content>
        <StackLayout Padding="20" BackgroundColor="Gray" >
            <Label Text="Custom Switch" FontSize="Large"/>
           <cs:CustomSwitch x:Name="customSwitch"
                                SwitchOffColor="Yellow"
                                 SwitchOnColor="Black"
                                 SwitchThumbImage="icon"
                                 HorizontalOptions="CenterAndExpand"
                                 VerticalOptions="CenterAndExpand"/>
                <cs:CustomSwitch SwitchOffColor="Navy"
                                 SwitchOnColor="Green"
                                 SwitchThumbColor="Violet"
                                 HorizontalOptions="CenterAndExpand"
                                 VerticalOptions="CenterAndExpand"/>
        </StackLayout>
    </ContentPage.Content>



Now, you will have your CustomSwitch working!!

NOTE

Not tested on iOS.

Features of CustomSwitch Controls

1. Custom Switch On Color Property=(SwitchOnColor="Red")
2. Custom Switch Off Color Property=(SwitchOffColor="Yellow")
3. Custom Switch Thumb Color Property=(SwitchThumbColor="Yellow")
4. Custom Thumb Image Property=(SwitchThumbImage="Black")
