How To Create Calendar View In Android Application

Introduction

Android is one of the most popular operating systems for mobile. Users can access the internet through the browser. Each Android mobile has calendar view. Calendar is an important thing to handle the events and commitments. So, I will show you how to create calendar view in Android applications using android studio. Android is a kernel based operating system. It allows the user to modify the GUI components and source code.

Requirements

Steps should be followed

Carefully follow my steps to create calendar view in android applications using android studio and I have included the source code below.

Step 1

Open the android studio start the new project.

Android

Step 2

Put the application name and company domain. If you wish to use c++ for code the project , mark the Include c++ support then click next.

Android

Step 3

Select the android minimum SDK. After you chose the minimum SDK it will show approximate percentage of people use the that sdk then click next.

Android

Step 4

Choose the basic activity then click next.

Android

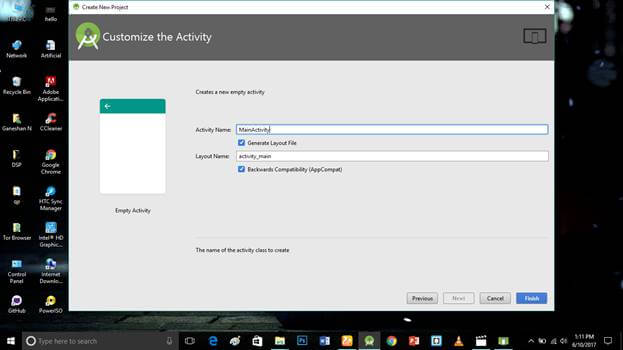

Step 5

Put the activity name and layout name. Android studio basically takes the java class name is what you provide the activity name and click finish.

Android

Step 6

Go to activity_main.xml then click the text bottom. This xml file contains the designing code for android app. Into the activity_main.xml copy and paste the below code.

Activity_main.xml code

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <android.support.constraint.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     xmlns:app="http://schemas.android.com/apk/res-auto"
  4.     xmlns:tools="http://schemas.android.com/tools"
  5.     android:layout_width="match_parent"
  6.     android:layout_height="match_parent"
  7.     tools:context="ganeshannt.calendarview.MainActivity">
  8.
  9.     <TextView
  10.         android:id="@+id/date"
  11.         android:layout_width="0dp"
  12.         android:layout_height="51dp"
  13.         android:text="Date"
  14.         android:textAlignment="center"
  15.         android:textSize="45dp"
  16.         android:visibility="visible"
  17.         app:layout_constraintBottom_toBottomOf="parent"
  18.         app:layout_constraintHorizontal_bias="0.0"
  19.         app:layout_constraintLeft_toLeftOf="parent"
  20.         app:layout_constraintRight_toRightOf="parent"
  21.         app:layout_constraintTop_toTopOf="parent"
  22.         app:layout_constraintVertical_bias="0.219" />
  23.
  24.     <Button
  25.         android:id="@+id/btngocalendar"
  26.         android:layout_width="266dp"
  27.         android:layout_height="47dp"
  28.         android:text="Go to calendar"
  29.         tools:layout_editor_absoluteX="47dp"
  30.         tools:layout_editor_absoluteY="8dp" />
  31.
  32. </android.support.constraint.ConstraintLayout>



Android

Step 7

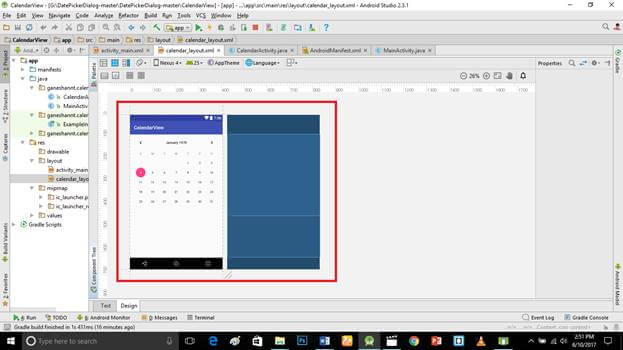

Create new calendar_layout.xml file (File ⇒ New ⇒Activity⇒Empty_activity).

Go to calendar_layout.xml then click the text bottom. This xml file contains the designing code for android app. Into the calendar_layout.xml copy and paste the below code

calendar_layout.xml code

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     android:orientation="vertical" android:layout_width="match_parent"
  4.     android:layout_height="match_parent">
  5.
  6.     <CalendarView
  7.         android:id="@+id/calendarView"
  8.         android:layout_width="match_parent"
  9.         android:layout_height="wrap_content" />
  10. </LinearLayout>



Android

Step 8

Into the MainActivity.java copy and paste the below code.java programming is the backend language for android. Do not replace your package name otherwise app will not run.

MainActivity.java code

  1. package ganeshannt.calendarview;
  2.
  3. import android.content.Intent;
  4. import android.os.Bundle;
  5. import android.support.v7.app.AppCompatActivity;
  6. import android.view.View;
  7. import android.widget.Button;
  8. import android.widget.TextView;
  9.
  10. public class MainActivity extends AppCompatActivity {
  11.
  12.     private static final String TAG = "MainActivity";
  13.
  14.     private TextView thedate;
  15.     private Button btngocalendar;
  16.
  17.     @Override
  18.     protected void onCreate(Bundle savedInstanceState) {
  19.         super.onCreate(savedInstanceState);
  20.         setContentView(R.layout.activity_main);
  21.         thedate = (TextView) findViewById(R.id.date);
  22.         btngocalendar = (Button) findViewById(R.id.btngocalendar);
  23.
  24.         Intent incoming = getIntent();
  25.         String date = incoming.getStringExtra("date");
  26.         thedate.setText(date);
  27.
  28.         btngocalendar.setOnClickListener(new View.OnClickListener() {
  29.             @Override
  30.             public void onClick(View v) {
  31.                 Intent intent = new Intent(MainActivity.this,CalendarActivity.class);
  32.                 startActivity(intent);
  33.             }
  34.         });
  35.     }
  36. }



Step 9

Create new CalendarActivity.java file (File ⇒ New ⇒Java class).

Into the CalendarActivity.java copy and paste the below code.java programming is the backend language for android. Do not replace your package name otherwise app will not run.

CalendarActivity.java code

  1. package ganeshannt.calendarview;
  2.
  3. import android.content.Intent;
  4. import android.os.Bundle;
  5. import android.support.annotation.Nullable;
  6. import android.support.v7.app.AppCompatActivity;
  7. import android.util.Log;
  8. import android.widget.CalendarView;
  9.
  10. /**
  11.  * Created by ganesh on 6/10/2017.
  12.  */
  13.
  14. public class CalendarActivity extends AppCompatActivity {
  15.
  16.     private  static final String TAG = "CalendarActivity";
  17.     private CalendarView mCalendarView;
  18.     @Override
  19.     protected void onCreate(@Nullable Bundle savedInstanceState) {
  20.         super.onCreate(savedInstanceState);
  21.         setContentView(R.layout.calendar_layout);
  22.         mCalendarView = (CalendarView) findViewById(R.id.calendarView);
  23.         mCalendarView.setOnDateChangeListener(new CalendarView.OnDateChangeListener() {
  24.             @Override
  25.             public void onSelectedDayChange(CalendarView CalendarView, int year, int month, int dayOfMonth) {
  26.               String date = year + "/" + month + "/"+ dayOfMonth ;
  27.                 Log.d(TAG, "onSelectedDayChange: yyyy/mm/dd:" + date);
  28.                 Intent intent = new Intent(CalendarActivity.this,MainActivity.class);
  29.                 intent.putExtra("date",date);
  30.                 startActivity(intent);
  31.
  32.             }
  33.         });
  34.     }
  35. }
Step 10

Add the calendaractivity into the androidmanifest.xml so add below code into the AndroidManifest.xml.

AndroidManifest.xml code
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <manifest xmlns:android="http://schemas.android.com/apk/res/android"
  3.     package="ganeshannt.calendarview">
  4.
  5.     <application
  6.         android:allowBackup="true"
  7.         android:icon="@mipmap/ic_launcher"
  8.         android:label="@string/app_name"
  9.         android:roundIcon="@mipmap/ic_launcher_round"
  10.         android:supportsRtl="true"
  11.         android:theme="@style/AppTheme">
  12.         <activity android:name=".MainActivity">
  13.             <intent-filter>
  14.                 <action android:name="android.intent.action.MAIN" />
  15.
  16.                 <category android:name="android.intent.category.LAUNCHER" />
  17.             </intent-filter>
  18.         </activity>
  19.         <activity android:name=".CalendarActivity"></activity>
  20.     </application>
  21.
  22. </manifest>
Step 11

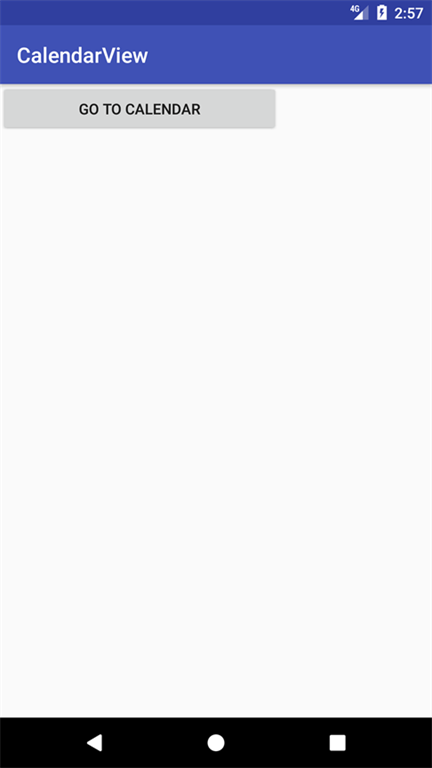

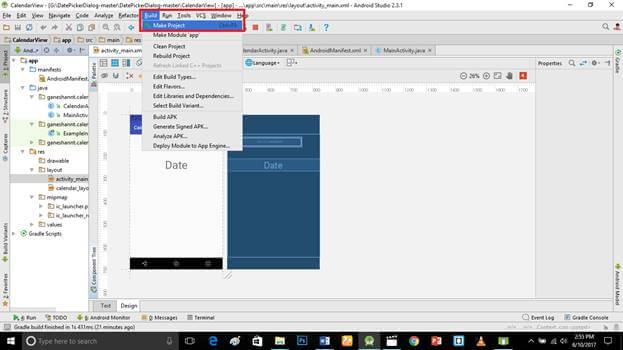

This is our user interface of the application. Click the make project option.

Android

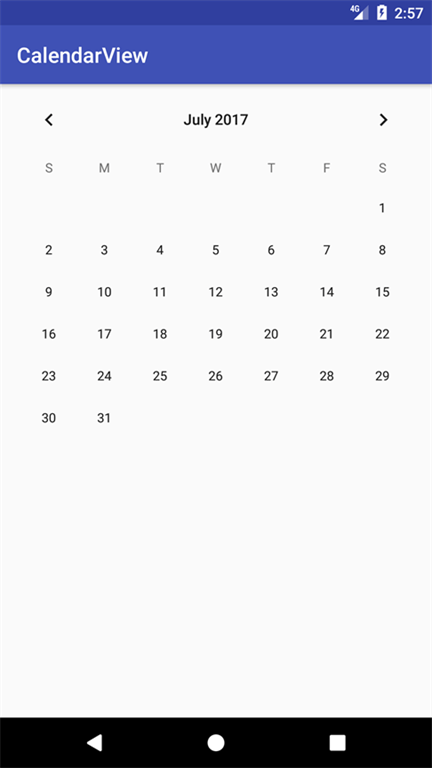

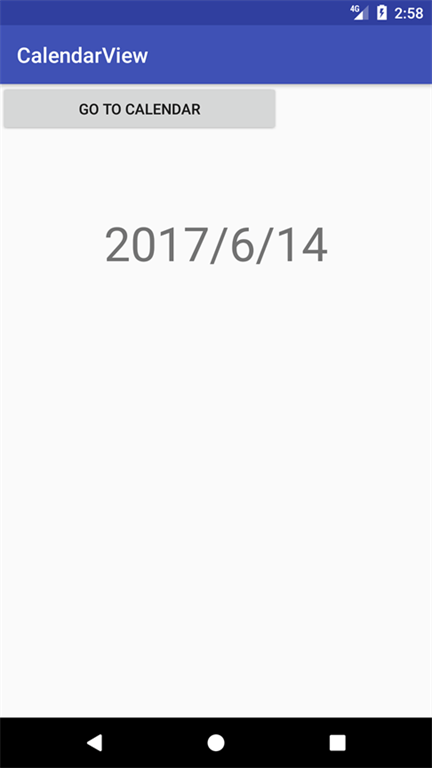

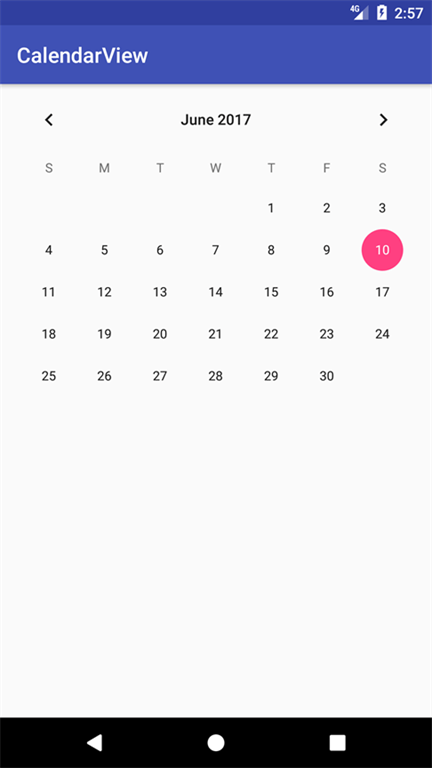

Deliverables

Here calendar view in android application was successfully created and executed.

Android

Android

Android

Android

Android

Don’t forgeet to like and follow me. If you have any doubts just comment below.
