How To Create Columns In A List Using REST API In SharePoint Online And Office 365

Welcome to an article on “How to create columns in a list using REST API in SharePoint Online and Office 365” where we will see the steps of creating an app using Napa Tool which will help us to create a column in a list using REST API.

  • Open the “NAPA” Office 365 Development Tools through your SharePoint store.

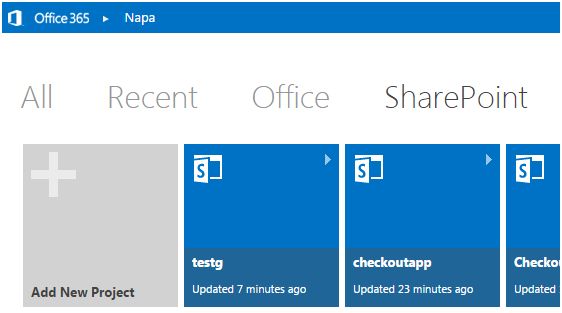

  • Click on Add New Project.

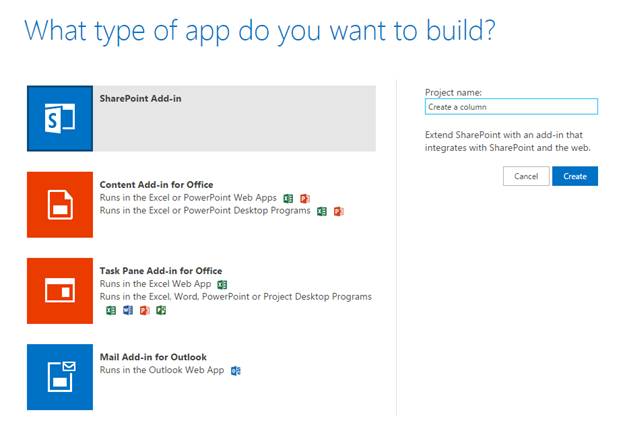

  • It will ask you, what type of app do you want to build?

    build

  • Select SharePoint Add-in and provide a name to your app and click on Create.

    type

  • You will see the screen below on the app,

    content

  • Click on Default.aspx and paste the code below under the,
    1. “<asp:ContentContentPlaceHolderID="PlaceHolderMain" runat="server">”.
    Code:
    1. <div>
    2.     <p>
    3.         <b>Create List Column</b>
    4.         <br />
    5.         <input type="text" id="createcolumnname" />
    6.         <button id="createcolumn">Create Column</button>
    7.     </p>
    8. </div>
    Now on the navigation click on the App.js file and paste the code below removing the previous code completely.

    Code:
    1. 'use strict';
    2. var hostweblink;
    3. var applink;
    4. // get the links on app load
    5. $(document).ready(function()
    6. {
    7.     hostweblink = decodeURIComponent(
    8.         getQueryStringParameter("SPHostUrl"));
    9.     applink = decodeURIComponent(
    10.         getQueryStringParameter("SPAppWebUrl"));
    11.     //Define click event
    12.     $("#createcolumn").click(function(event) {
    13.         createcolumn();
    14.         event.preventDefault();
    15.     });
    16.     var scriptlink = hostweblink + "/_layouts/15/";
    17.     $.getScript(scriptlink + "SP.RequestExecutor.js");
    18. });
    19. //get the data and clear it in a function
    20. function getQueryStringParameter(paramvalue)
    21. {
    22.     var paramval = document.URL.split("?")[1].split("&");
    23.     for (var i = 0; i < paramval.length; i = i + 1)
    24.     {
    25.         var paramval1 = paramval[i].split("=");
    26.         if (paramval1[0] == paramvalue) return paramval1[1];
    27.     }
    28. }
    29. // Create a column in a list
    30. function createcolumn()
    31. {
    32.     var columnname = document.getElementById("createcolumnname").value;
    33.     var play;
    34.     play = new SP.RequestExecutor(applink);
    35.     //DevData is the name of my list where I want to create a column
    36.     play.executeAsync({
    37.         url: applink + "/_api/SP.AppContextSite(@target)/web/Lists/getbytitle('DevData')/fields?@target='" + hostweblink + "'",
    38.         method: "POST",
    39.         body: "{ '__metadata': { 'type': 'SP.Field' }, 'FieldTypeKind': 2, 'Title':'" + columnname + "'}",
    40.         headers:
    41.         {
    42.             "content-type""application/json; odata=verbose",
    43.         },
    44.         success: createListcolumnsuccessful,
    45.         error: createListcolumnfailure
    46.     });
    47. }
    48.
    49. // Success Handler
    50. function createListcolumnsuccessful(data)
    51. {
    52.     alert("Column Created Successfully")
    53. }
    54.
    55. // Error Handler
    56. function createListcolumnfailure(data, errorCode, errorMessage)
    57. {
    58.     alert("Column coud not be created, view the error: " + errorMessage);
    59. }
  • Click on the settings icon on the tool on the left.

    settings

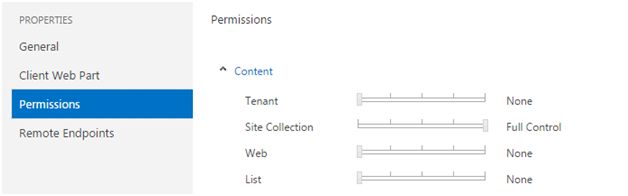

  • Under the properties, select Permissions and provide full control to the app on the Site Collection level.

    Permissions

  • Click on the deploy button on the left and run the project.

    deploy

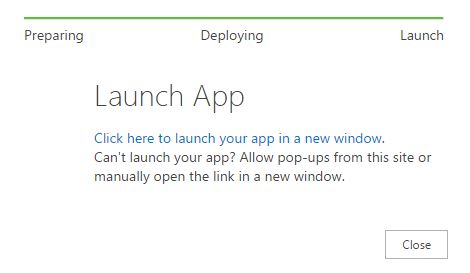

  • Click on the launch button.

    launch

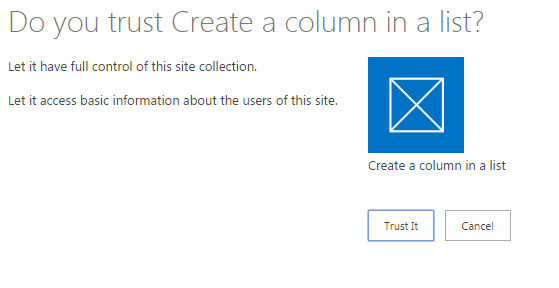

  • Accept the trust and click on ‘Trust It’.

    Trust It

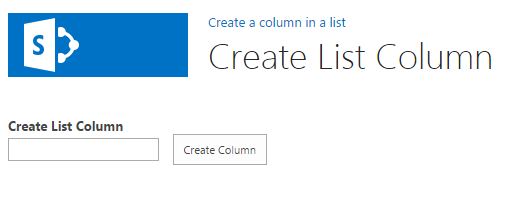

  • Your app will be deployed and open for you as per the following screenshot:

    create

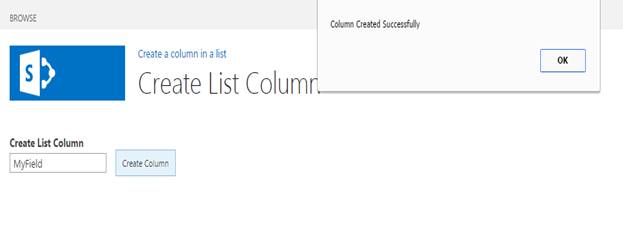

  • Provide the name of the column you want to create and click on ‘Create Column’ button.

    Create Column

  • Once you click on the button you will receive an alert that your column has been successfully created.

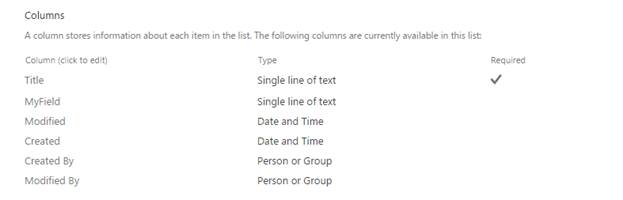

  • Go to your list, you will see your created column.

    column

Here we saw today how to create a column in a list using REST API in SharePoint Online and Office 365. You will love your app. Keep reading and keep learning!
