How To Switch ON/OFF LED Using ARDUINO UNO And C# Form Applications

Introduction

This article is for beginners who are interested in the Internet of Things. This article demonstrates how to create two buttons for switching the LED light ON and OFF, with simple Arduino and C# code.

Requirements

  1. Arduino Uno R3 + Arduino data cable I already have this broad
  2. USB 2.0 Male to B Male cable
  3. Arduino Uno R3 Software I have also downloaded
  4. One LED light “5MM”
  5. 300 Ohm resister
  6. Jumper wire only two (Male to Male)
  7. Bread broad
  8. Visual Studio Any versions
Follow my steps

Arduino is available in several versions online but you only have to buy  Arduino Uno R3.

Step 1

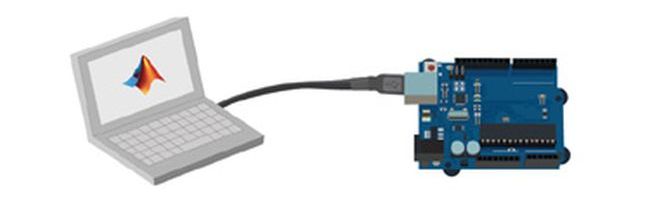

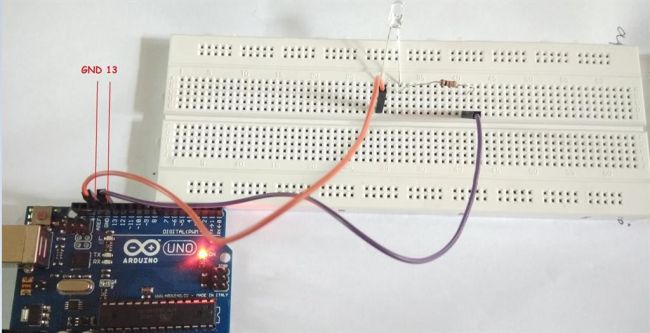

First connect Arduino from your computer if the  flash light is ON it's successfully connected

Step 2

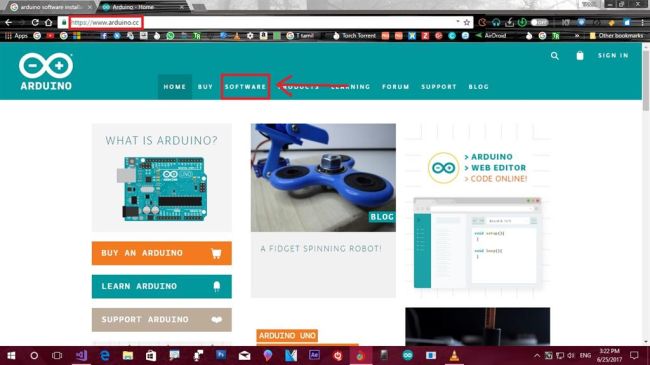

Go to any browser type this link https://www.arduino.cc/

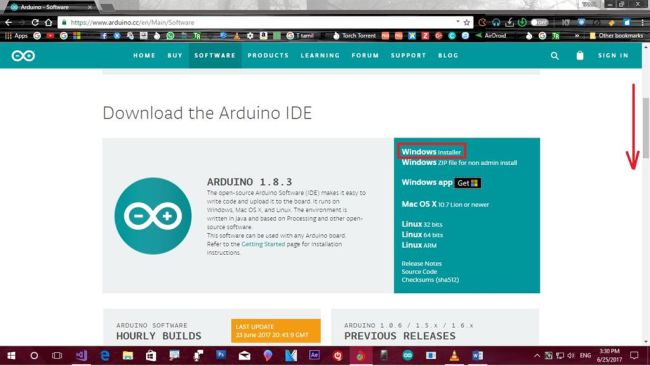

Scroll down on windows installer click to download 96MB Software





Step 3

Download the software





Step 4

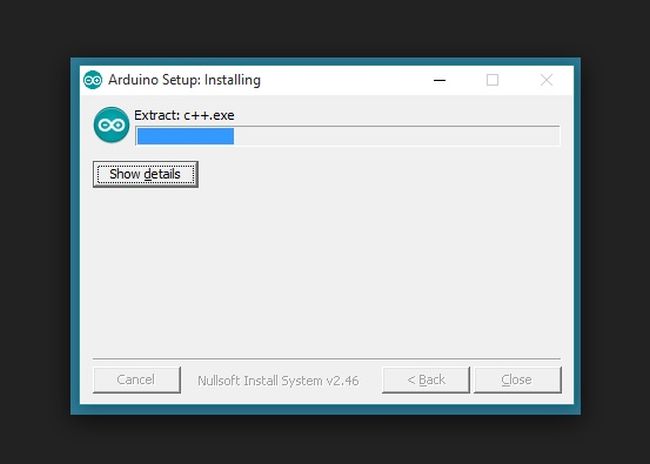

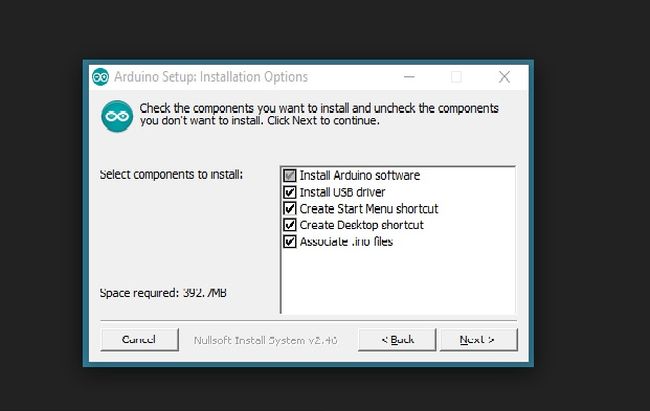

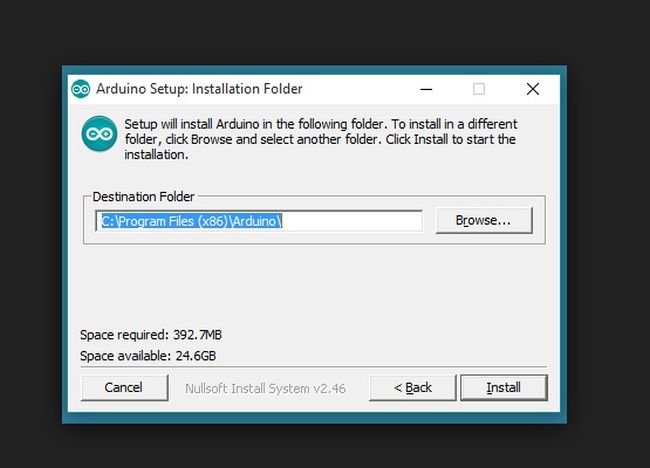

Then after installation completes this page appears



Step 5

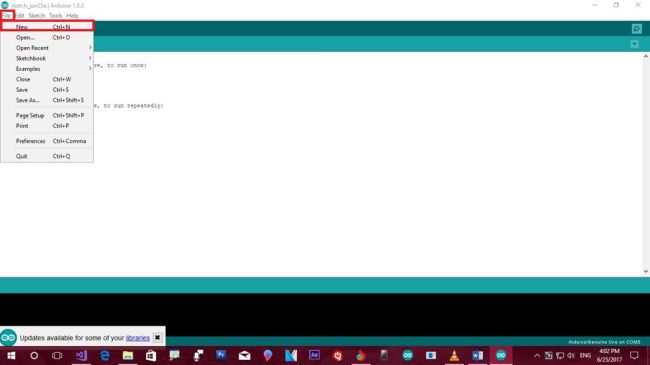

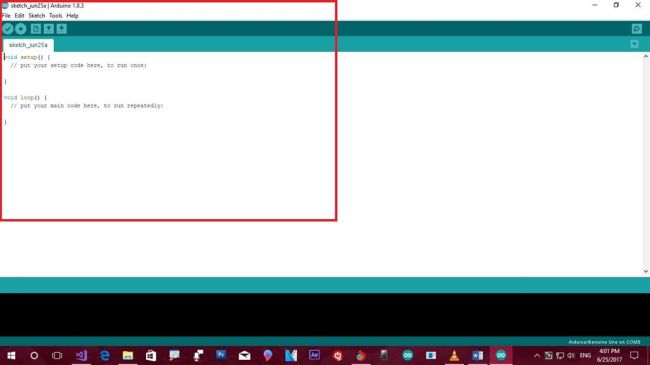

Then select FILL NEW . This will open a new page



Step 6

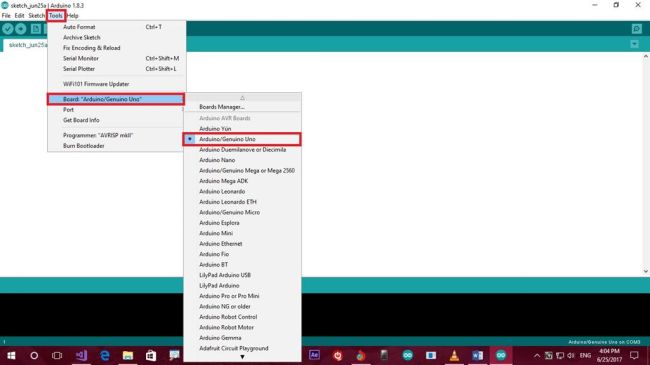

Then Click Tool box Selected TOOL BROAD ARDUINO/GENUINO UNO



Step 7

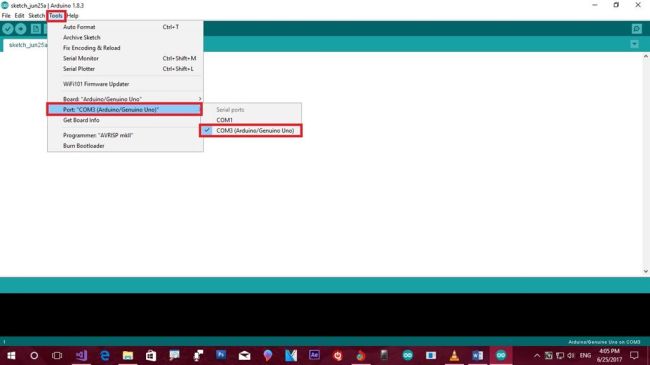

Then select Tool Box TOOL  PORT COM3 ARDUINO UNO



Step 8

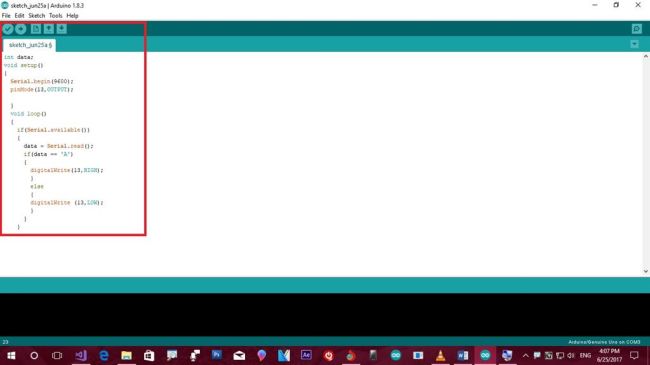

Given source code type our Arduino Software



source code

  1. int data;
  2. void setup() {
  3.     Serial.begin(9600);
  4.     pinMode(13, OUTPUT);
  5. }
  6. void loop() {
  7.     if (Serial.available()) {
  8.         data = Serial.read();
  9.         if (data == 'A') {
  10.             digitalWrite(13, HIGH);
  11.         } else {
  12.             digitalWrite(13, LOW);
  13.         }
  14.     }
  15. }

Step 9

Compiler process is successful





Step 10

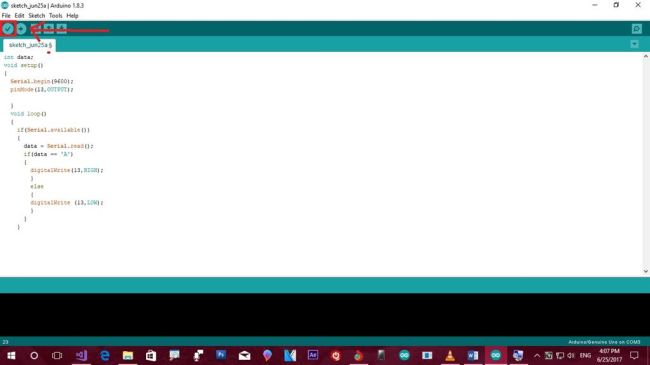

Then select the upload a program option



Step 11

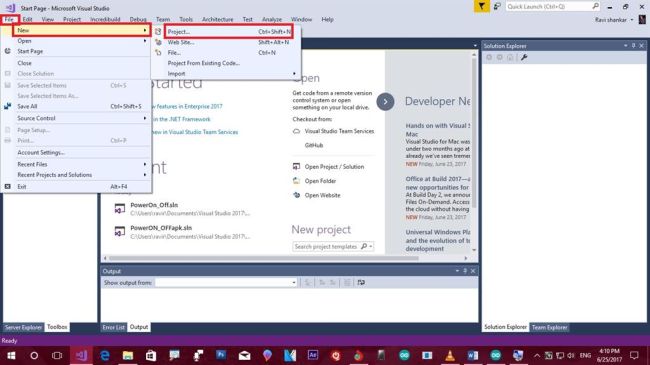

I also have Visual Studio 2017.Then select FILE NEW PROJECT



Step 12

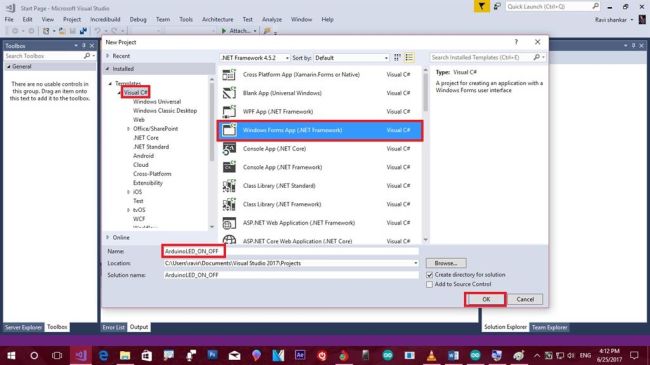

Select Windows form applications Change file name as per your wish



Step 13

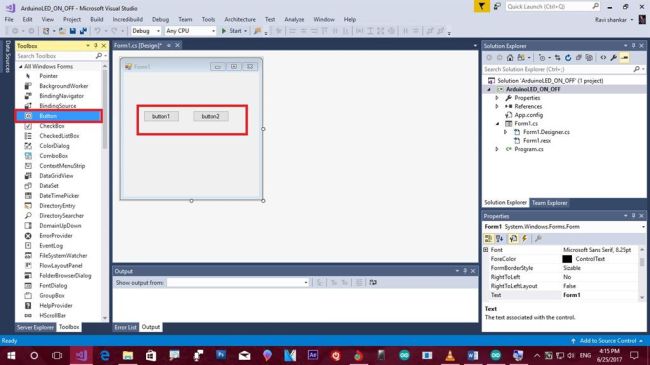

Then left corner appears on tool box select search button drag and drop two buttons and search Serial Port drag and drop from form applications



Step 14

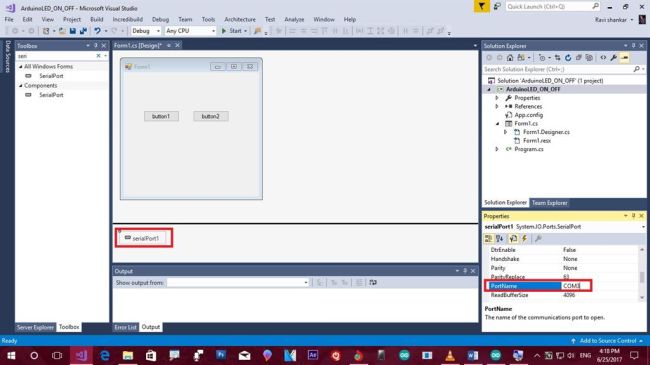

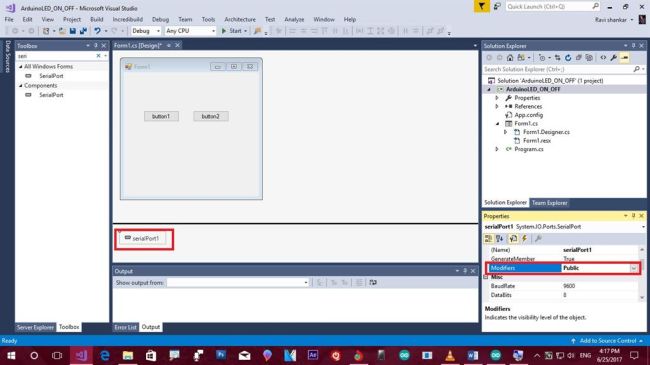

Then select serial port1 properties;  modifier will change for public view



Then scroll down to  port name it will change to COM3



Step 15

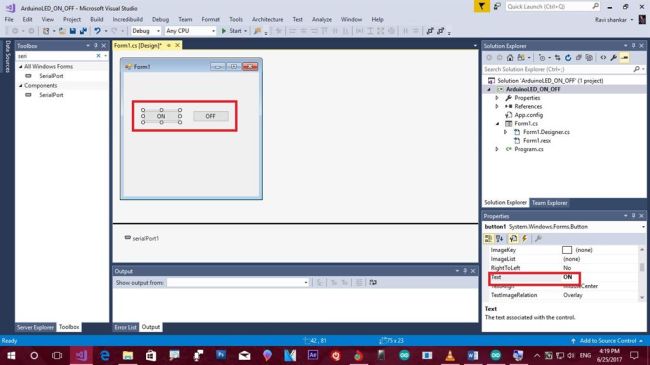

Button1 click to change from properties will change button name for ON

Button2 click to change from properties will change button name for OFF



Step 16

ON Double click to going to page from Form1.cs file

Again OFF Double click to going to page from Form1.cs file

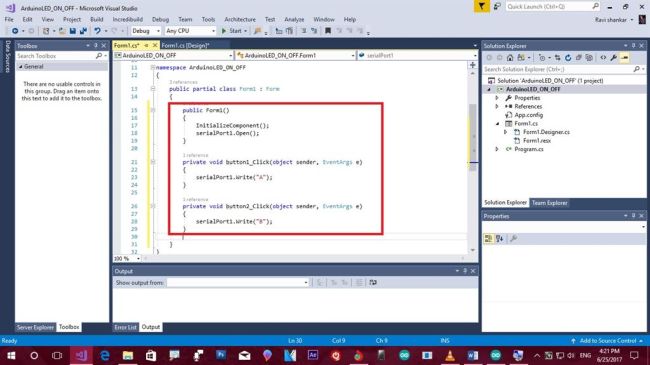

Then replace this C# source code



Source code

  1. public Form1() {
  2.     InitializeComponent();
  3.     serialPort1.Open();
  4. }
  5. private void button1_Click(object sender, EventArgs e) {
  6.     serialPort1.Write("A");
  7. }
  8. private void button2_Click(object sender, EventArgs e) {
  9.     serialPort1.Write("B");
  10. // This is just a sample script. Paste your real code (javascript or HTML) here.
  11. if ('this_is' == /an_example/) {
  12.     of_beautifier();
  13. else {
  14.     var a = b ? (c % d) : e[f];
  15. }

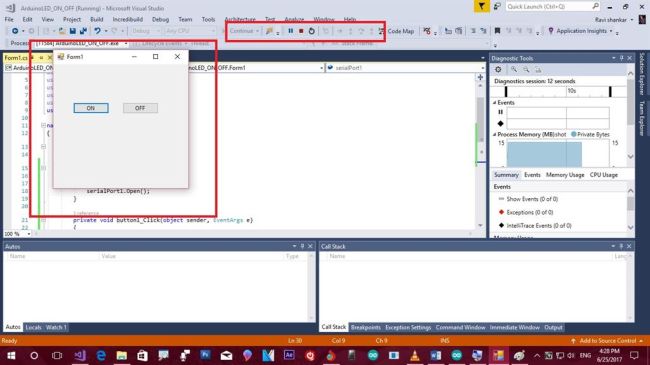

Then click Start button or Ctrl+F5 and our program will debug

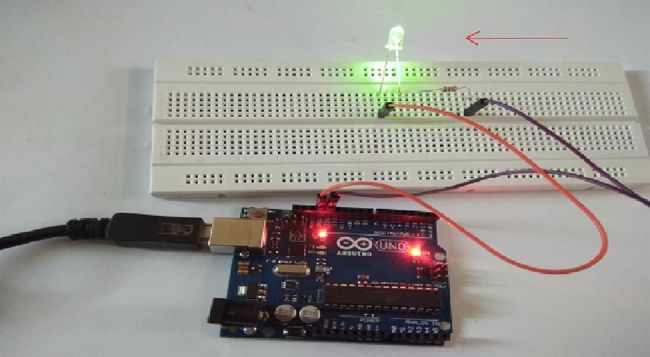

Click  LED ON and OFF; the  process is working.



Summary

LED light switch ON to LED is ON then switch LED LED is OFF. Simple project will be created and deployed.
