Node.js

How to use NPM Install (The Command) behind Corporate Proxy Server

This article describes a step by step solution to use NPM install command when you are working behind any corporate proxy server.

Problem

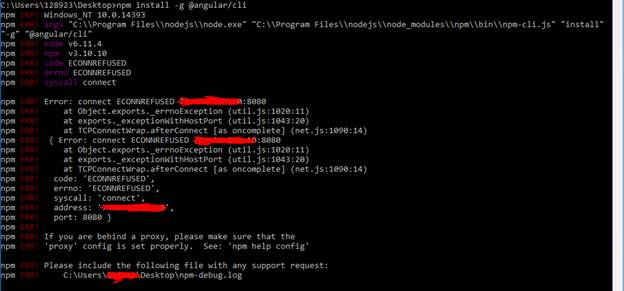

When you want to install packages for angular, angular CLI, typescript etc. via NPM using Command Prompt and you are working in an office environment where everything runs behind a corporate proxy server, you will most probably get the below exception,

NPM

Even while working on the Angular project using Visual Studio and trying to restore packages with the help of package.json, developers find the message “Package Restoring Complete” in Visual Studio title bar, but when they look for the node_modules folder inside the project folder, the node_modules folder does not exist. Developers usually find the below exception in output window of visual studio,

  1. === = Executing command 'npm install' === = npm WARN package.json angular - quickstart @1 .0 .0 No README data
  2. npm http GET https: //registry.npmjs.org/systemjs
  3.     npm http GET https: //registry.npmjs.org/angular-in-memory-web-api
  4.     npm http GET https: //registry.npmjs.org/core-js
  5.     npm http GET https: //registry.npmjs.org/rxjs
  6.     npm http GET https: //registry.npmjs.org/zone.js
  7.     npm http GET https: //registry.npmjs.org/concurrently
  8.     npm http GET https: //registry.npmjs.org/lite-server
  9.     npm http GET https: //registry.npmjs.org/typescript
  10.     npm http GET https: //registry.npmjs.org/tslint
  11.     npm http GET https: //registry.npmjs.org/lodash
  12.     npm http GET https: //registry.npmjs.org/jasmine-core
  13.     npm http GET https: //registry.npmjs.org/karma
  14.     npm http GET https: //registry.npmjs.org/karma-cli
  15.     npm http GET https: //registry.npmjs.org/karma-chrome-launcher
  16.     npm http GET https: //registry.npmjs.org/karma-jasmine
  17.     npm http GET https: //registry.npmjs.org/karma-jasmine-html-reporter
  18.     npm http GET https: //registry.npmjs.org/protractor
  19.     npm http GET https: //registry.npmjs.org/canonical-path
  20.     npm http GET https: //registry.npmjs.org/angular/forms
  21.     npm http GET https: //registry.npmjs.org/angular/http
  22.     npm http GET https: //registry.npmjs.org/angular/router
  23.     npm http GET https: //registry.npmjs.org/angular/platform-browser
  24.     npm http GET https: //registry.npmjs.org/angular/platform-browser-dynamic
  25.     npm http GET https: //registry.npmjs.org/angular/core
  26.     npm http GET https: //registry.npmjs.org/angular/compiler
  27.     npm http GET https: //registry.npmjs.org/angular/common
  28.     npm http GET https: //registry.npmjs.org/rimraf
  29.     npm http GET https: //registry.npmjs.org/types/node
  30.     npm http GET https: //registry.npmjs.org/types/jasmine
  31.     npm http GET https: //registry.npmjs.org/rxjs
  32.     npm http GET https: //registry.npmjs.org/systemjs
  33.     npm http GET https: //registry.npmjs.org/core-js
  34.     npm http GET https: //registry.npmjs.org/angular-in-memory-web-api
  35.     npm http GET https: //registry.npmjs.org/zone.js
  36.     npm http GET https: //registry.npmjs.org/concurrently
  37.     npm http GET https: //registry.npmjs.org/lite-server
  38.     npm http GET https: //registry.npmjs.org/typescript
  39.     npm http GET https: //registry.npmjs.org/karma-chrome-launcher
  40.     npm http GET https: //registry.npmjs.org/karma-cli
  41.     npm http GET https: //registry.npmjs.org/lodash
  42.     npm http GET https: //registry.npmjs.org/karma-jasmine
  43.     npm http GET https: //registry.npmjs.org/karma
  44.     npm http GET https: //registry.npmjs.org/karma-jasmine-html-reporter
  45.     npm http GET https: //registry.npmjs.org/protractor
  46.     npm http GET https: //registry.npmjs.org/jasmine-core
  47.     npm http GET https: //registry.npmjs.org/tslint
  48.     npm http GET https: //registry.npmjs.org/angular/platform-browser
  49.     npm http GET https: //registry.npmjs.org/angular/platform-browser-dynamic
  50.     npm http GET https: //registry.npmjs.org/angular/http
  51.     npm http GET https: //registry.npmjs.org/angular/compiler
  52.     npm http GET https: //registry.npmjs.org/types/node
  53.     npm http GET https: //registry.npmjs.org/angular/forms
  54.     npm http GET https: //registry.npmjs.org/angular/core
  55.     npm http GET https: //registry.npmjs.org/rimraf
  56.     npm http GET https: //registry.npmjs.org/angular/router
  57.     npm http GET https: //registry.npmjs.org/canonical-path
  58.     npm http GET https: //registry.npmjs.org/types/jasmine
  59.     npm http GET https: //registry.npmjs.org/angular/common
  60.     npm http GET https: //registry.npmjs.org/rxjs
  61.     npm http GET https: //registry.npmjs.org/systemjs
  62.     npm http GET https: //registry.npmjs.org/zone.js
  63.     npm http GET https: //registry.npmjs.org/angular-in-memory-web-api
  64.     npm http GET https: //registry.npmjs.org/core-js
  65.     npm http GET https: //registry.npmjs.org/lite-server
  66.     npm http GET https: //registry.npmjs.org/karma
  67.     npm http GET https: //registry.npmjs.org/concurrently
  68.     npm http GET https: //registry.npmjs.org/karma-jasmine
  69.     npm http GET https: //registry.npmjs.org/karma-chrome-launcher
  70.     npm http GET https: //registry.npmjs.org/karma-cli
  71.     npm http GET https: //registry.npmjs.org/typescript
  72.     npm http GET https: //registry.npmjs.org/lodash
  73.     npm http GET https: //registry.npmjs.org/jasmine-core
  74.     npm http GET https: //registry.npmjs.org/karma-jasmine-html-reporter
  75.     npm http GET https: //registry.npmjs.org/protractor
  76.     npm http GET https: //registry.npmjs.org/tslint
  77.     npm http GET https: //registry.npmjs.org/angular/platform-browser
  78.     npm http GET https: //registry.npmjs.org/angular/platform-browser-dynamic
  79.     npm http GET https: //registry.npmjs.org/angular/compiler
  80.     npm http GET https: //registry.npmjs.org/angular/http
  81.     npm http GET https: //registry.npmjs.org/types/node
  82.     npm http GET https: //registry.npmjs.org/angular/router
  83.     npm http GET https: //registry.npmjs.org/angular/core
  84.     npm http GET https: //registry.npmjs.org/angular/forms
  85.     npm http GET https: //registry.npmjs.org/canonical-path
  86.     npm http GET https: //registry.npmjs.org/angular/common
  87.     npm http GET https: //registry.npmjs.org/rimraf
  88.     npm http GET https: //registry.npmjs.org/types/jasmine
  89.     npm ERR!network tunneling socket could not be established, cause = connect ECONNREFUSED
  90. npm ERR!network This is most likely not a problem with npm itself
  91. npm ERR!network and is related to network connectivity.
  92. npm ERR!network In most cases you are behind a proxy or have bad network settings.
  93. npm ERR!network
  94. npm ERR!network If you are behind a proxy, please make sure that the
  95. npm ERR!network 'proxy'
  96. config is set properly.See: 'npm help config'
  97. npm ERR!System Windows_NT 6.2 .9200
  98. npm ERR!command "C:\\Program Files (x86)\\Microsoft Visual Studio 14.0\\Common7\\IDE\\Extensions\\Microsoft\\Web Tools\\External\\\\node\\node"
  99. "C:\\Program Files (x86)\\Microsoft Visual Studio 14.0\\Common7\\IDE\\Extensions\\Microsoft\\Web Tools\\External\\npm\\node_modules\\npm\\bin\\npm-cli.js"
  100. "install"
  101. npm ERR!cwd D: \Rahul\ PRACTICES\ Angular\ Angular2MVC\ Angular2MVC
  102. npm ERR!node - v v0 .10 .31
  103. npm ERR!npm - v 1.4 .9
  104. npm ERR!code ECONNRESET
  105. npm === = npm command completed with exit code 1 === =

Solution

To solve the above problem, you need to follow the below steps,

Step 1

Open command prompt of your system (run as administrator).

Step 2

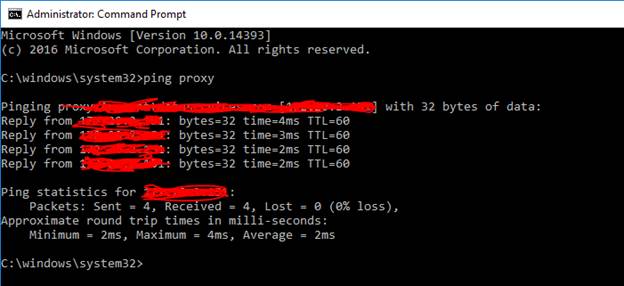

In command prompt, type the below-highlighted command and enter,

C:\windows\system32>ping proxy

Step 3

You will find proxy URL of your work environment very similar to the below proxy URL format in the first line,

proxy.[company name].com

NPM

Note

Due to security purpose, I cannot show you the exact proxy URL of my work environment.

On pressing enter after writing above proxy command, you will get the output very similar to the about command window. You will get the proxy URL of your work environment in the first line.

Step 4

Now you need to set this proxy URL to your NPM config file using the command prompt. Run the below both commands one by one and enter (if the proxy doesn't need credentials),

  1. >npm config set https-proxy http://proxy.[Company Name].com:8080
  2. >npm config set https-proxy http://proxy.[Company Name].com:8080

NPM

In case proxy needs credentials, you need to pass credentials like below,

  1. >npm config set https-proxy http://<username>:<password>@proxy.[Company Name].com:[Port]
  2. >npm config set https-proxy http://<username>:<password>@proxy.[Company Name].com:[Port]

Step 5

Now you will be able to install any npm package just as below I am able to install TypeScript here,

NPM

Step 6

Once TypeScript is installed successfully, run the below command just to check which TypeScript version is installed,

>tsc –v

Note

To read more articles on Angular 2, please check out the below link,

Write me in comment box in case you have any questions or concerns. Have a great day!
