Implement Responsive UI In SharePoint 2016

It gives me immense pleasure to publish my 100th article at C# Corner. This has been a long journey and I would like to thank my readers and C# Corner for the whole-hearted support. In this milestone article, let’s take a deep dive into how to implement Responsive UI in SharePoint 2016.

SharePoint 2016 general availability was announced at the Future Of SharePoint conference in May 2016. The series that discusses the installation of SharePoint 2016 in Azure can be found at C# Corner from the below links.

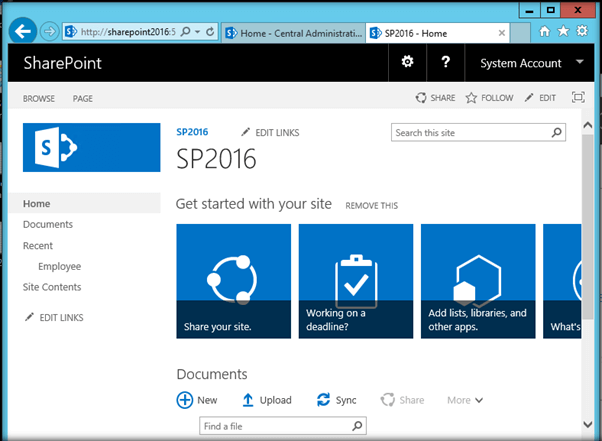

SharePoint UI branding to bring responsiveness for tablet and mobile view can be complex at times. Though SharePoint ribbon is responsive, other content areas including navigation, search box, and content pages are not responsive. SharePoint 2016 desktop view works as expected, at screen size greater than 768 px.

size

However, as the screen size reduces, the screen elements are not re-ordered and re-aligned with the width causing the content area to be trimmed.

content area

In the pre SharePoint 2016 days, one of the most commonly used Responsive UI packages was Twitter Bootstrap Responsive package that was tweaked for SharePoint On premise use. This was a project managed by Eric Overfield. You can find the Twitter Bootstrap Responsive Package here .

However, PnP has brought out a Github package that changes the Out Of the Box behavior of SharePoint 2016/Online, by providing three different rendering options depending on the view port size – Desktop, Tablet, and Mobile View. PnP stands for Practices and Patterns which is a community driven open source project where Microsoft and the community members have created an implementation pattern for Office 365 and SharePoint On-premises. As part of the PnP initiative, Responsive package for SharePoint 2016/online has been introduced.

The Github Responsive UI package project location for SharePoint 2016 can be found here.

Github Responsive UI package

The branch contains PowerShell scripts, XML, CSS and JS files that facilitate the Responsive package implementation. This responsive package can be deployed to SharePoint2016/Online by using the PowerShell cmdlet ‘Enable-SPOResponsiveUI'. This implementation does not make use of any custom master page, instead the required JavaScript and CSS files are embedded using JavaScript embed pattern. Thus we really don’t have to use a custom master page, we can still use the Out Of the Box master page to implement responsiveness (This was one of the drawbacks that existed in Twitter Bootstrap responsive package).

Responsive Package Implementation

The responsive package can be implemented for a site collection as a three-step process.

  • Download the Github project file
  • Install PnP Powershell
  • Run Enable-SPOResponsiveUI cmdlet

This would make the site collection responsive for mobile and tablet views. Let’s see each of them in detail.

Download the Github project file

The required files for implementing the responsive package can be downloaded as a zip file from here . This would download the ‘PnP-Tools-master’ zip file to the local machine.

Download

Upon Unzipping the package we can see the contents of the package at the relative location – “Solutions\SharePoint.UI.Responsive”. SP-Responsive-UI CSS and JS files are the main files that provide the responsive rendering behavior for SharePoint depending on the view port size. You can customize the branding by making the changes to the CSS and JS file as per the requirement. This will be reflected in the Responsive UI upon the running of the Enable-SPOResponsiveUI cmdlet.

SPOResponsiveUI

Setup PnP PowerShell

In order to run the ‘Enable-SPOResponsiveUI’ cmdlet, we have to make sure that SharePointPnP.PowerShell commands are installed in the machine. You can download the executable from here. Click on Download button and subsequently run the msi file.

Setup

Accept the agreement and click on Install.

Accept

This will complete the installation of PnP PowerShell Commands for SharePoint 2016 in the machine.

Accept

Run the Enable-SPOResponsiveUI cmdlet

Now, spin up the SharePoint 2016 Management Shell as administrator.

SharePoint 2016 Management Shell

Run the below command in the Powershell console.

.\Enable-SPResponsiveUI.ps1 -TargetSiteurl http://sharepoint2016:51000/


TargetSiteurl - is the site collection where the responsive package will be implemented.

Upon running the script, it will ask for user authentication. Enter the user name and password and click on OK.

authentication

This will enable Responsive UI in the specified site collection.

Responsive UI

Once the responsive UI activation success message comes up on the screen, we can go to the style library of the site collection where Responsive UI was enabled. Here, we can see a new folder by the name ‘SP.Responsive.UI’ added. This folder will host the required CSS and JS files responsible for the responsiveness of the site collection.

Responsive UI

We can also run a variation of the script as shown below,
1. $creds = Get-Credential
2. .\Enable-SPResponsiveUI.ps1 -TargetSiteUrl "http://sharepoint2016:51000/" -InfrastructureSiteUrl "http://sharepoint2016:51000/sites/ReUsable" -Credentials $creds

  • TargetSiteURL – This is the site collection where the responsive package will be implemented.
  • InfrastructureSiteUrl – This site collection is used for hosting the JavaScript and CSS files

Here the Responsive UI supporting files will be added to a central site collection as specified in the ‘InfrastructureSiteUrl’ parameter. Unless this parameter is specified, the files will be added to the same target URL where responsiveness is enabled.

Caveat

In order to implement the responsive UI package for SharePoint 2016 we have to ensure that the native ‘Mobile Browser View’ feature is not enabled in the site collection. So, when the Responsive UI enabling PowerShell script (Enable-SPOResponsiveUI) is run, the ‘Mobile browser View’ feature will be disabled in the root site of the site collection.

End Result: Responsive UI for SharePoint 2016

When the view port reduces to between 481 and 768 px – tablet view, the left navigation becomes a collapsed hamburger menu and the search bar realigns to accommodate itself within the viewport.

End Result

Upon expanding the left navigation hamburger menu, it shows the entire quick launch navigation items.

navigation

When the view port is yet again reduced to mobile view where the view port size is less than 480 pixels, the hamburger menu and search box realigns further with respect to the view port.

port

Expanding the hamburger menu shows the quick launch items as a vertical drop down.

hamburger menu

Clicking on ‘Documents’ will take us inside the document library. The contents and the ribbon areas are responsive within the lists/libraries as well.

Documents

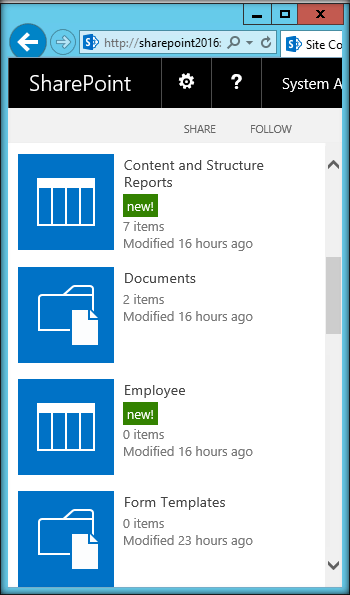

Now let’s take a look at the Site Contents page. Here also the Out of the box and custom add-ins appears to be responsive in a vertical tile fashion.

vertical tile fashion

The site assets page has also carried over the responsiveness of the SharePoint 2016 Responsive UI package making the entire site collection responsive with respect to the view port of the viewing device.

device

Disable Responsive UI

In order to disable the responsive UI in SharePoint 2016, we can run the command Disable-SPOResponsiveUI in the PowerShell console.

 Disable Responsive UI

This will remove the responsive package and will reinstate the Out of the Box behavior for SharePoint 2016 as shown below. In order to re-enable the responsive behavior, we can run the Enable-SPOResponsiveUI cmdlet.

cmdlet

Summary

Thus, we saw how to implement responsive UI in SharePoint 2016 so as to re-order and re-align the web content with respect to mobile and tablet view port.
