Learn AWS With MS-SQL(DB) Using SQL Client

Introduction

In this article, we will learn about Amazon web service with MS-SQL database using local ms-sql management studio.
SQL Database in AWS
Requirements

  • Register AWS console
  • SQL Server Management Server

Let’s start

Create SQL Database in AWS

You want to login to the AWS console here. If you have no login register new users here. After registering amazon will provide one year free access. Home page will be loaded like the picture, after login.

SQL Database in AWS

In there, you can select Database >RDS or search in text box as “RDS”

SQL Database in AWS

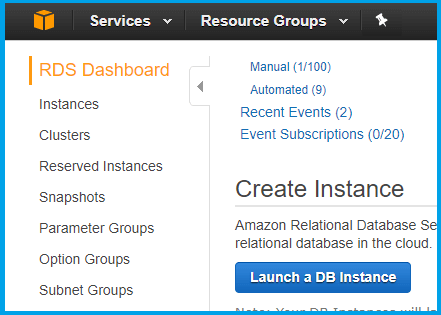

The RDS Dashboard page will be loaded, when you clicked the RDS .

SQL Database in AWS

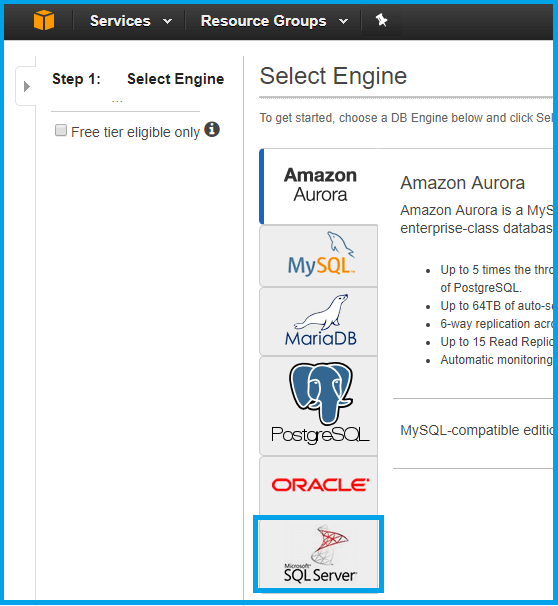

Now you can create a DB Instance, so click to above the button. Then it will show DB Engines

SQL Database in AWS

Yes, you can see more types of the databases they are providing, so you select MS-SQL Server. They are giving four types of SQL Servers.

  • SQL Server Express
  • SQL Server Web Edition
  • SQL Server Standard Edition
  • SQL Server Enterprise Edition

Free tier is eligible only in Express Edition, so you can select it.

SQL Database in AWS

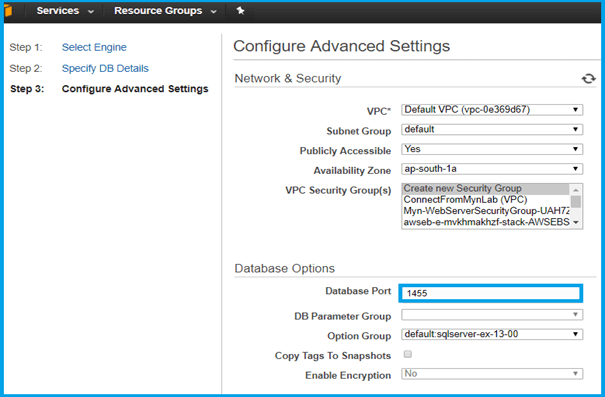

You will select default option & database port I have set as “1455”.

SQL Database in AWS

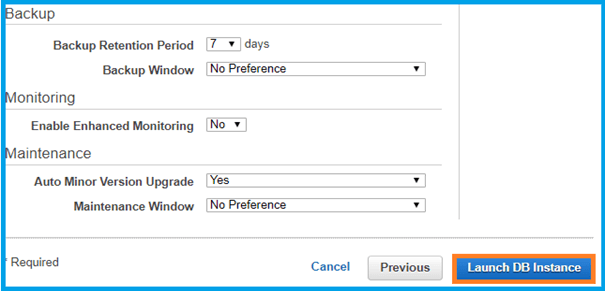

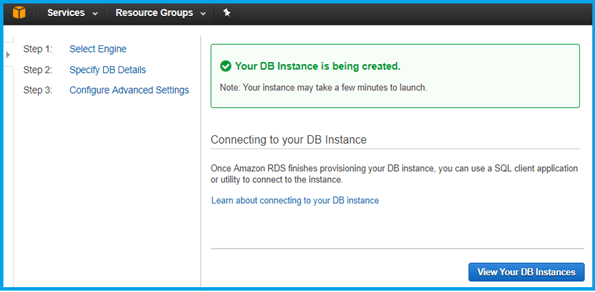

Set backup as your preference & click Launch DB Instance. Success message will show in the next page, like given below.

SQL Database in AWS

Then you can see your database status if you select view Your DB Instance.
SQL Database in AWS

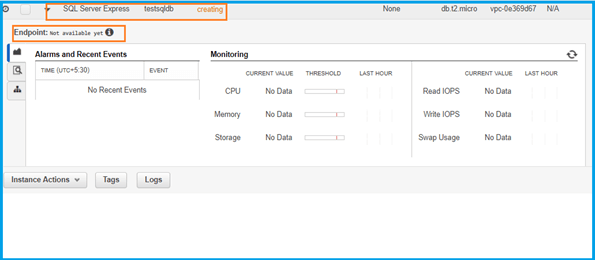

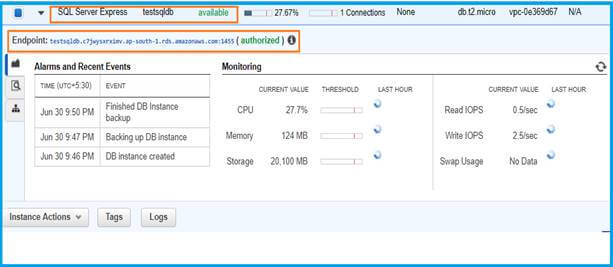

Your database status is “creating” & endpoint isn’t available yet. It will take up to 5 to 10 minutes. Then status change to “Available” and generate the endpoint

SQL Database in AWS

Connect to SQL Server Management Studio

If you have SSMS in your PC open it. Otherwise you can download from here.

SQL Database in AWS

Use copy & paste the Endpoint as the Server Name “testsqldb.c7jwysxrximv.ap-south-1.rds.amazonaws.com,1455”. Before the port number change from “:” to “,” follow the steps fill the user name & password whatever you made it during DB creation & connect.

SQL Database in AWS

I have forgotten to create security group, so please find the menu Compute >EC2>Network & Security.

SQL Database in AWS

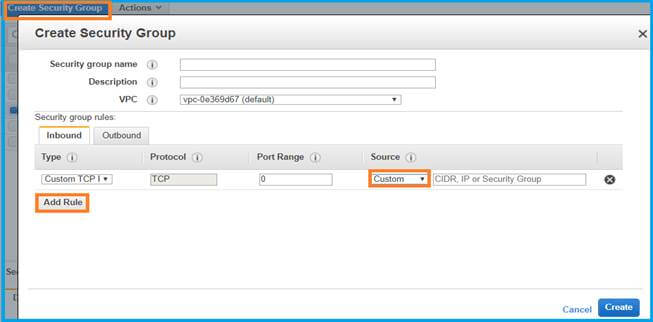

In this popup you want add rule and set to the source based on your choice. But I have set anywhere option. Default security group is already there, just update the source.

SQL Database in AWS

Now you can try to connect in SQL Server Management studio.

SQL Database in AWS

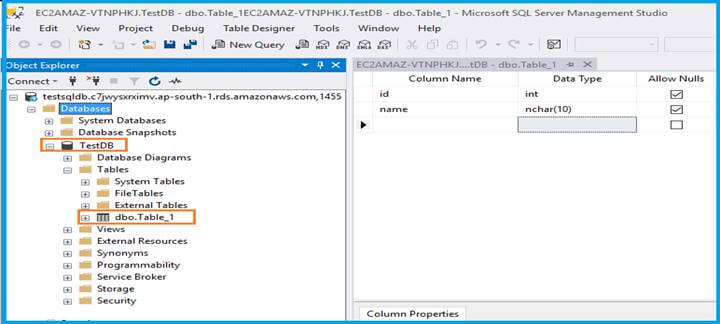

Oh yes finally I have connected & created sample DB & Table.

Conclusion

In this article, we have learned Amazon web service with MS-SQL database using local ms-sql management studio. If you have any queries, please tell me through the comments section. Because your comments are very valuable.

Happy Coding …..
