MVC - Show Record Using Cascading Dropdown List In MVC Using jQuery And JSON

I got a request from one of my friends to write this requirement.

In this article, I am going to show how we can show records by selecting drop down list in ASP.NET MVC, jQuery, JSON.

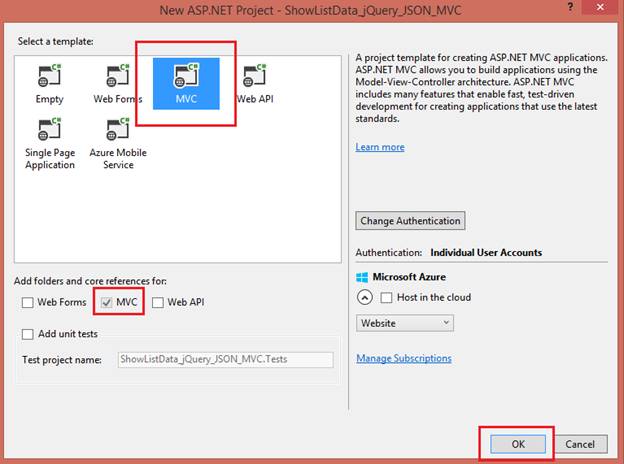

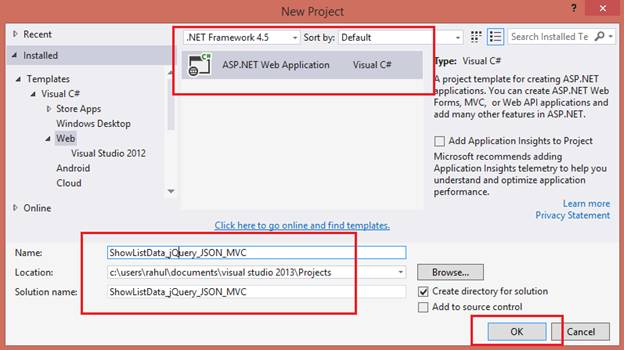

Open Visual Studio, click File, then New Project,

new

mvc

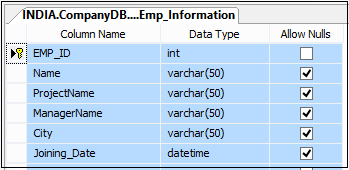

Below is my data table from which I will fill my DropDown list with City Column value.

value

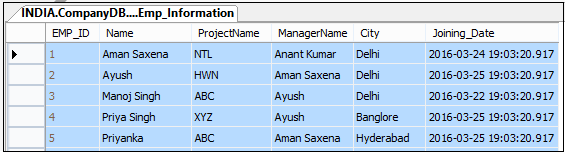

Data in my table.

table

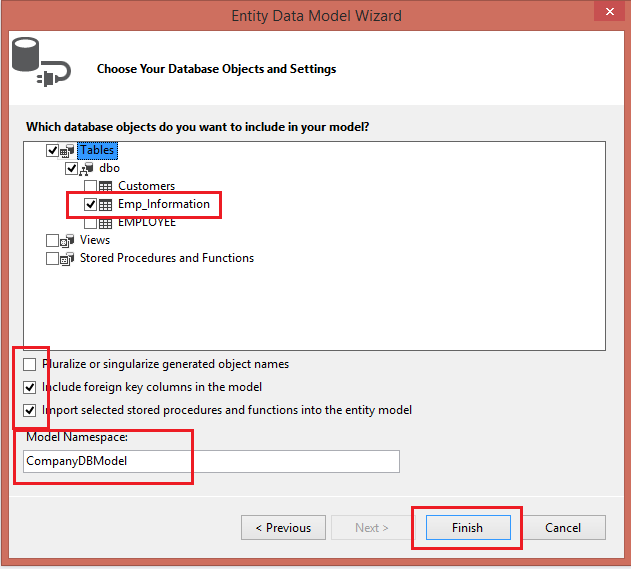

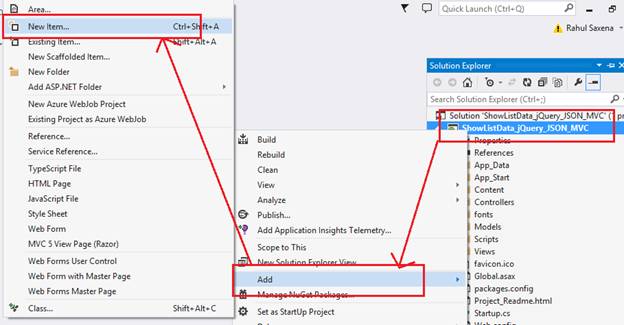

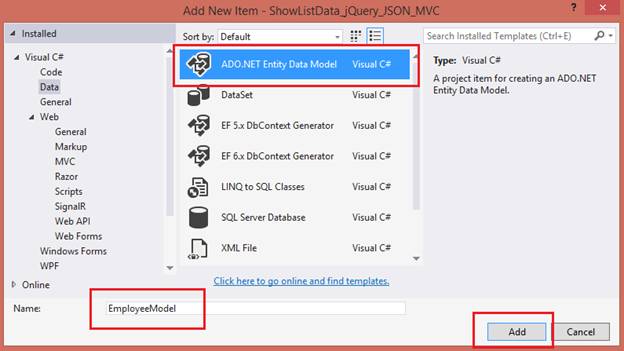

Now add an ADO.NET Entity Data Model.

model

ef

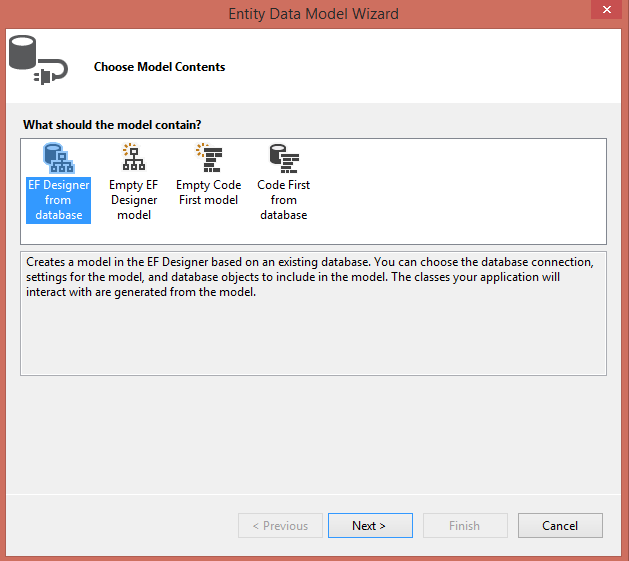

efd

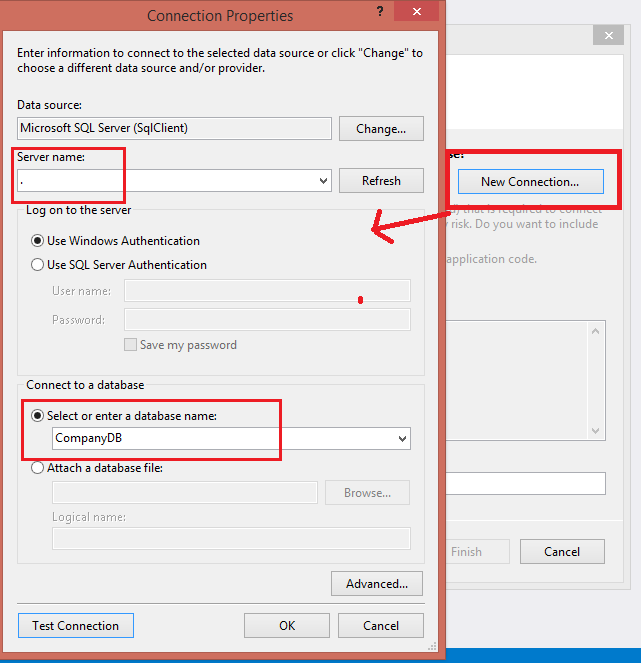

connection

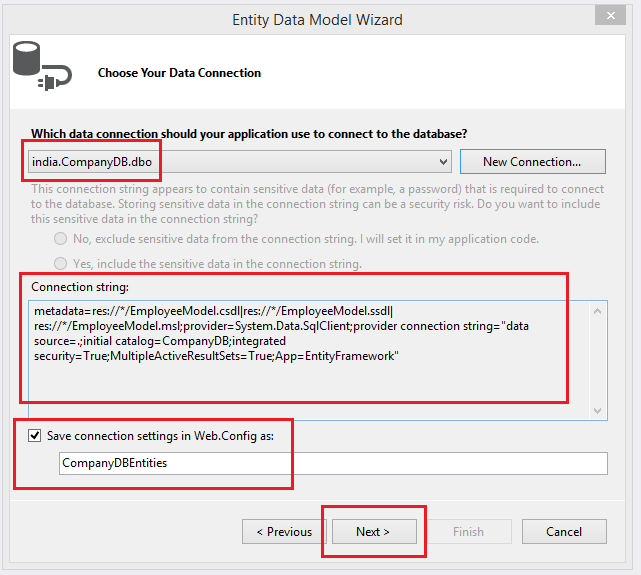

dbo

table

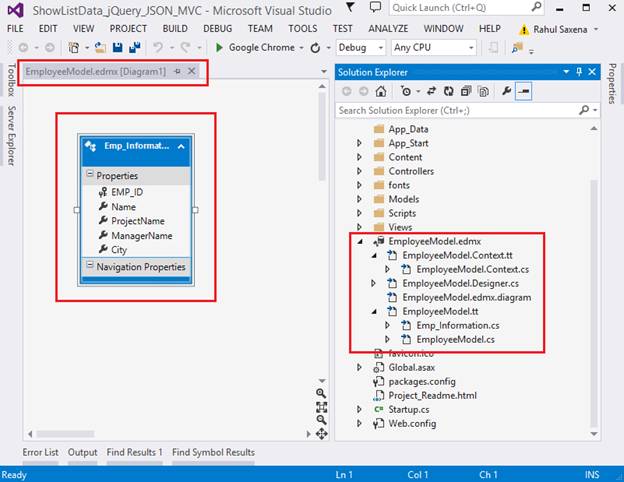

properties

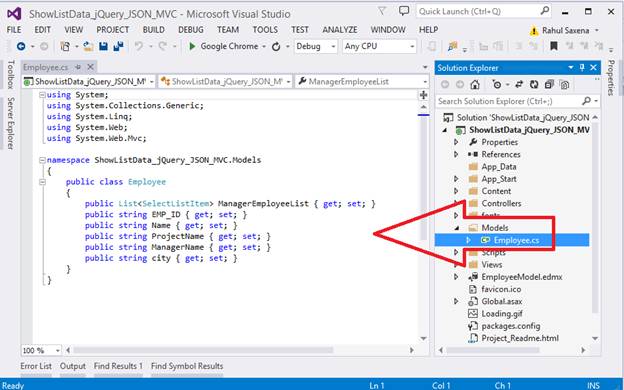

Now right click on Model Folder, Add New Class, then Employee.cs and write the following code,

code

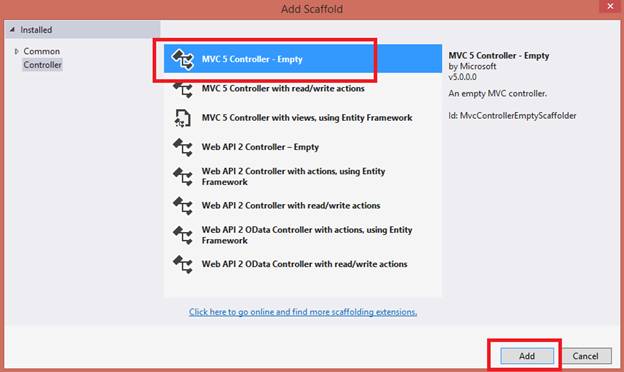

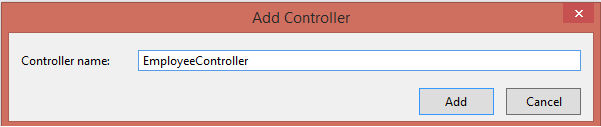

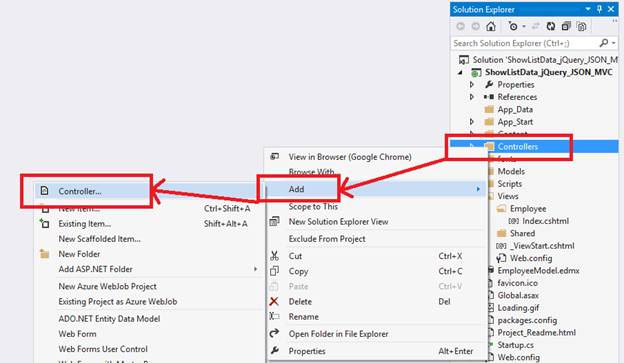

Now add a new controller, then click EmployeeController

EmployeeController

EmployeeController

EmployeeController

Write the following code in EmployeeController:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6. using ShowListData_jQuery_JSON_MVC.Models;
  7. namespace ShowListData_jQuery_JSON_MVC.Controllers
  8. {
  9.     public class EmployeeController: Controller
  10.     {
  11.         // GET: Employee
  12.         public ActionResult Index()
  13.         {
  14.             CompanyDBEntities db = newCompanyDBEntities();
  15.             Employee _model = newEmployee();
  16.             var managerList = db.Emp_Information.GroupBy(x => x.City).Select(g => g.FirstOrDefault());
  17.             _model.ManagerEmployeeList = (from d in managerList.Distinct() selectnewSelectListItem
  18.             {
  19.                 Value = d.City.ToString(),
  20.                     Text = d.City
  21.             }).ToList();
  22.             ViewBag.EMPCity = _model.ManagerEmployeeList;
  23.             return View();
  24.         }
  25.         public JsonResult GetEmployeeList(string city) {
  26.             CompanyDBEntities obj = newCompanyDBEntities();
  27.             var contacts = obj.Emp_Information.Where(rec => rec.City.Equals(city)).Select(x => new
  28.             {
  29.                 Id = x.EMP_ID,
  30.                     Name = x.Name,
  31.                     ProjectName = x.ProjectName,
  32.                     ManagerName = x.ManagerName,
  33.                     city = x.City
  34.             }).ToList();
  35.             return Json(contacts, JsonRequestBehavior.AllowGet);
  36.         }
  37.     }
  38. }

Add a new View with Index Action Method:

  1. @
  2. {
  3.     ViewBag.Title = "Showing Record with Cascading Drop Down List Using MVC jQuery JSON";
  4. } < h1 > Showing Record with Cascading Drop Down List Using MVC jQuery JSON < /h1>
  5. @using(Html.BeginForm("Index""Employee", FormMethod.Get)) { < tablecellspacing = "2"
  6.     cellpadding = "2" > < tr > < td > Select City To Get Employee List: < /td> < td > @Html.DropDownList("EMPCity""Select City") < /td> < /tr> < /table> < br / > < div > < tableid = "tblEmpoyees"
  7.     class = "tblEmpoyees"
  8.     style = "width:100%" > < thead > < tr > < thalign = "left"
  9.     class = "empTableTH" > Employee ID < /th> < thalign = "left"
  10.     class = "empTableTH" > Name < /th> < thalign = "left"
  11.     class = "empTableTH" > Project < /th> < thalign = "left"
  12.     class = "empTableTH" > Manager Name < /th> < thalign = "left"
  13.     class = "empTableTH" > City < /th> < /tr> < /thead> < tbody > < /tbody> < /table> < /div> < scriptsrc = "~/Scripts/jquery-1.10.2.min.js" > < /script> < scripttype = "text/javascript" > $(document).ready(function() {
  14.         $("#EMPCity").change(function()
  15.         {
  16.             $("#tblEmpoyees tbody tr").remove();
  17.             $.ajax({
  18.                 type: 'POST',
  19.                 url: '@Url.Action("GetEmployeeList")',
  20.                 dataType: 'json',
  21.                 data:
  22.                 {
  23.                     city: $("#EMPCity").val()
  24.                 },
  25.                 success: function(data)
  26.               {
  27.                     var items = '';
  28.                     $.each(data, function(i, item)
  29.                      {
  30.                         var rows = "<tr>" + "<td class='empTableTD'>" + item.Id + "</td>" + "<td class='empTableTD'>" + item.Name + "</td>" + "<td class='empTableTD'>" + item.ProjectName + "</td>" + "<td class='empTableTD'>" + item.ManagerName + "</td>" + "<td class='empTableTD'>" + item.city + "</td>" + "</tr>";
  31.                         $('#tblEmpoyees tbody').append(rows);
  32.                     });
  33.                 },
  34.                 error: function(ex) {
  35.                     var r = jQuery.parseJSON(response.responseText);
  36.                     alert("Message: " + r.Message);
  37.                 }
  38.             });
  39.             returnfalse;
  40.         })
  41.     }); < /script> < styletype = "text/css" > .tblEmpoyees {
  42.         font - family: verdana, arial, sans - serif;
  43.         font - size: 11 px;
  44.         color: white;
  45.         border - width: 1 px;
  46.         border - color: #666666;
  47.
  48. border-collapse: collapse;
  49.
  50. }
  51.
  52. .empTableTH
  53. {
  54.
  55. border-width: 1px;
  56.
  57. padding: 8px;
  58.
  59. border-style: solid;
  60.
  61. border-color: # 666666;
  62.         background - color: #ff6a00;
  63.     }.empTableTD {
  64.         border - width: 1 px;
  65.         padding: 8 px;
  66.         border - style: solid;
  67.         border - color: #666666;
  68.
  69. background-color: # 0094 ff;
  70.     } < /style>
  71. }

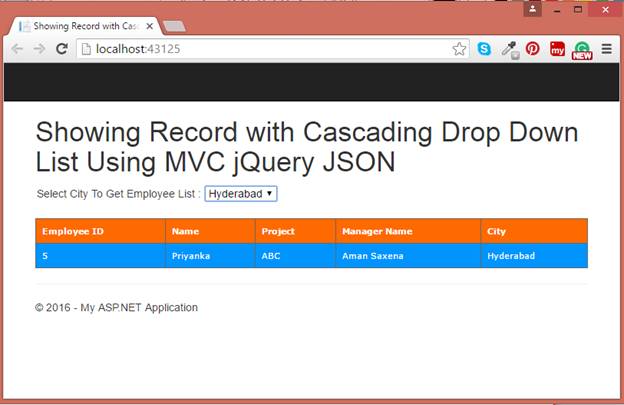

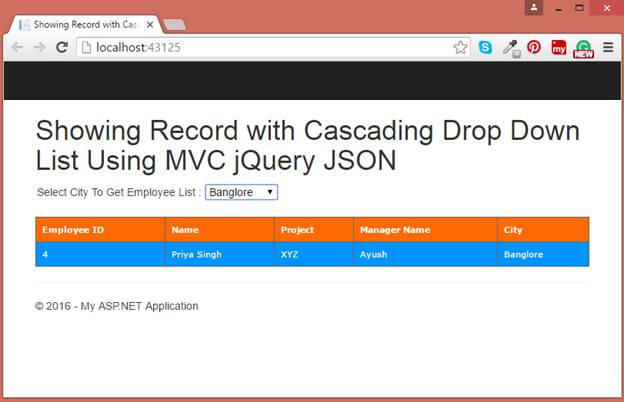

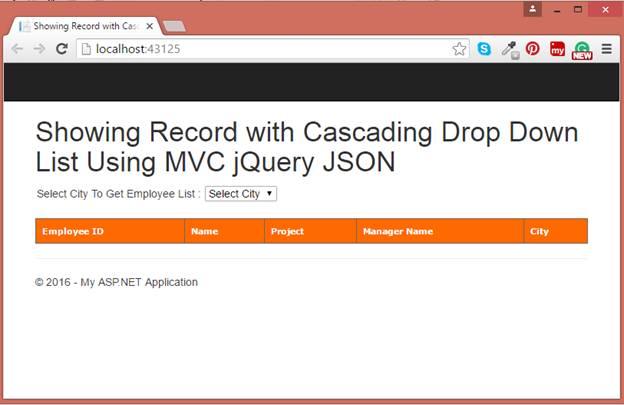

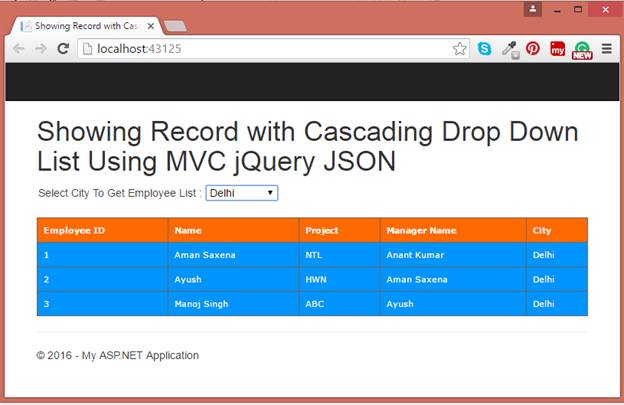

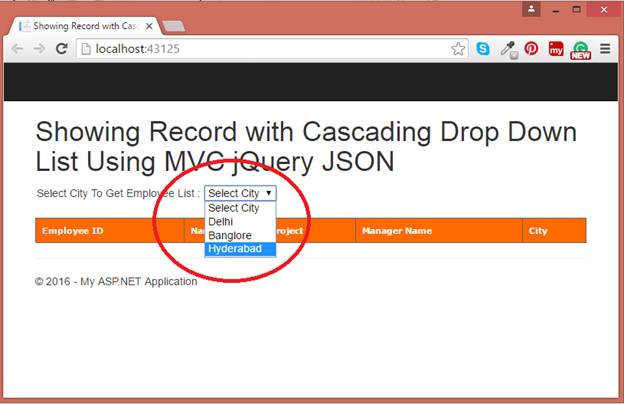

Now Run your Application:

browser

browser

browser

browser

browser
