OData Using ASP.NET Web API 2

Introduction

In this post, we will learn about OData by using ASP.Net Web API 2 in MVC application.

What’s OData protocol?

The Open Data Protocol (OData) is a data access protocol for the web. OData provides a uniform way to query and manipulate data sets through CRUD operations (create, read, update, and delete).

Prerequisites

As I said earlier, we are going to use OData protocol in our MVC application. For this, you must have Visual Studio 2015 (.NET Framework 4.5.2) and SQL Server.

SQL Database part

Here, find the script to create database.

Create Database

USE [master]
GO

/****** Object: Database [EmployeeDB] Script Date: 9/27/2016 2:58:52 AM ******/
CREATE DATABASE [EmployeeDB]
CONTAINMENT = NONE
ON PRIMARY
( NAME = N'EmployeeDB', FILENAME = N'c:\Program Files (x86)\Microsoft SQL Server\MSSQL11.MSSQLSERVER\MSSQL\DATA\EmployeeDB.mdf' , SIZE = 3072KB , MAXSIZE = UNLIMITED, FILEGROWTH = 1024KB )
LOG ON
( NAME = N'EmployeeDB_log', FILENAME = N'c:\Program Files (x86)\Microsoft SQL Server\MSSQL11.MSSQLSERVER\MSSQL\DATA\EmployeeDB_log.ldf' , SIZE = 1024KB , MAXSIZE = 2048GB , FILEGROWTH = 10%)
GO

ALTER DATABASE [EmployeeDB] SET COMPATIBILITY_LEVEL = 110
GO

IF (1 = FULLTEXTSERVICEPROPERTY('IsFullTextInstalled'))
begin
EXEC [EmployeeDB].[dbo].[sp_fulltext_database] @action = 'enable'
end
GO

ALTER DATABASE [EmployeeDB] SET ANSI_NULL_DEFAULT OFF
GO

ALTER DATABASE [EmployeeDB] SET ANSI_NULLS OFF
GO

ALTER DATABASE [EmployeeDB] SET ANSI_PADDING OFF
GO

ALTER DATABASE [EmployeeDB] SET ANSI_WARNINGS OFF
GO

ALTER DATABASE [EmployeeDB] SET ARITHABORT OFF
GO

ALTER DATABASE [EmployeeDB] SET AUTO_CLOSE OFF
GO

ALTER DATABASE [EmployeeDB] SET AUTO_CREATE_STATISTICS ON
GO

ALTER DATABASE [EmployeeDB] SET AUTO_SHRINK OFF
GO

ALTER DATABASE [EmployeeDB] SET AUTO_UPDATE_STATISTICS ON
GO

ALTER DATABASE [EmployeeDB] SET CURSOR_CLOSE_ON_COMMIT OFF
GO

ALTER DATABASE [EmployeeDB] SET CURSOR_DEFAULT GLOBAL
GO

ALTER DATABASE [EmployeeDB] SET CONCAT_NULL_YIELDS_NULL OFF
GO

ALTER DATABASE [EmployeeDB] SET NUMERIC_ROUNDABORT OFF
GO

ALTER DATABASE [EmployeeDB] SET QUOTED_IDENTIFIER OFF
GO

ALTER DATABASE [EmployeeDB] SET RECURSIVE_TRIGGERS OFF
GO

ALTER DATABASE [EmployeeDB] SET DISABLE_BROKER
GO

ALTER DATABASE [EmployeeDB] SET AUTO_UPDATE_STATISTICS_ASYNC OFF
GO

ALTER DATABASE [EmployeeDB] SET DATE_CORRELATION_OPTIMIZATION OFF
GO

ALTER DATABASE [EmployeeDB] SET TRUSTWORTHY OFF
GO

ALTER DATABASE [EmployeeDB] SET ALLOW_SNAPSHOT_ISOLATION OFF
GO

ALTER DATABASE [EmployeeDB] SET PARAMETERIZATION SIMPLE
GO

ALTER DATABASE [EmployeeDB] SET READ_COMMITTED_SNAPSHOT OFF
GO

ALTER DATABASE [EmployeeDB] SET HONOR_BROKER_PRIORITY OFF
GO

ALTER DATABASE [EmployeeDB] SET RECOVERY SIMPLE
GO

ALTER DATABASE [EmployeeDB] SET MULTI_USER
GO

ALTER DATABASE [EmployeeDB] SET PAGE_VERIFY CHECKSUM
GO

ALTER DATABASE [EmployeeDB] SET DB_CHAINING OFF
GO

ALTER DATABASE [EmployeeDB] SET FILESTREAM( NON_TRANSACTED_ACCESS = OFF )
GO

ALTER DATABASE [EmployeeDB] SET TARGET_RECOVERY_TIME = 0 SECONDS
GO

ALTER DATABASE [EmployeeDB] SET READ_WRITE
GO

Create your MVC application

Open Visual Studio and select File >> New Project.

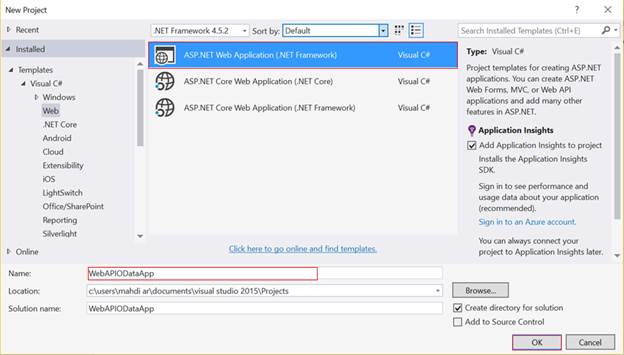

The "New Project" window will pop up. Select ASP.NET Web Application (.NET Framework), name your project, and click OK.

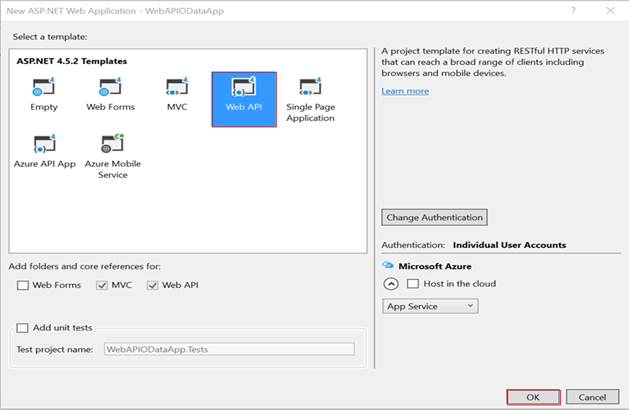

Now, new dialog will pop up for selecting the template. We are going to choose Web API template and click OK.



Add a Model class

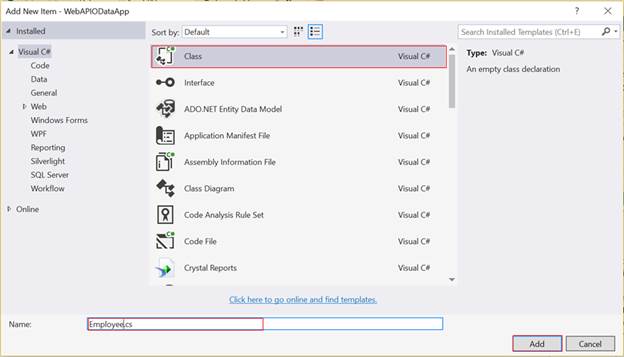

In Solution Explorer, right click on Models folder > Add > Class > Name your class.



Employee.cs

using System;
using System.Collections.Generic;
using System.ComponentModel.DataAnnotations.Schema;
using System.Linq;
using System.Web;

namespace WebAPIODataApp.Models
{
    [Table("Employee")]
    public class Employee
    {
        public int EmployeeID { get; set; }
        public string FirstName { get; set; }
        public string LastName { get; set; }
        public string Gender { get; set; }
        public string Designation { get; set; }
        public int Salary { get; set; }
        public string City { get; set; }
        public string Country { get; set; }


    }
}

Create a Controller

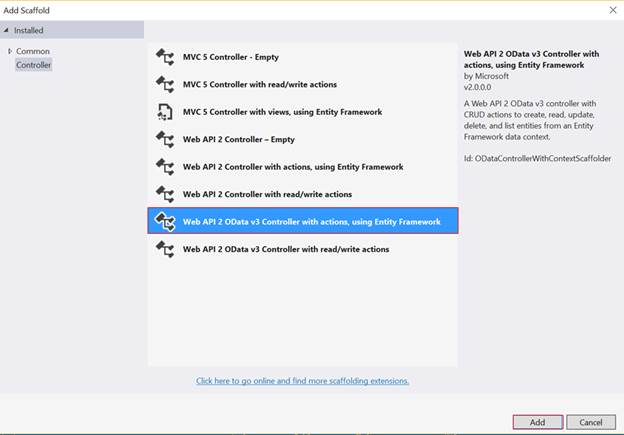

Now, we are going to create a Controller. Right click on the Controllers folder > Add > Controller> selecting Web API 2 OData v3 Controller with actions, using Entity Framework > click Add.

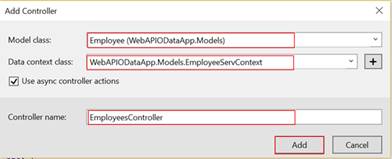

After clicking on Add button, window will pop up, as shown below.

We need to specify our Model class (in this case Employee.cs) and name for our Controller.



Finally, in order to add data context class, click on new data context > given a name for our new data context > Click Add.



The scaffolding adds two code files to the project.

• EmployeesController.cs - defines the Controller which implements the OData endpoint.
• EmployeeServContext.cs - ensures that our application is connected to the database.

EmployeesController.cs

using System;
using System.Collections.Generic;
using System.Data;
using System.Data.Entity;
using System.Data.Entity.Infrastructure;
using System.Linq;
using System.Net;
using System.Net.Http;
using System.Threading.Tasks;
using System.Web.Http;
using System.Web.Http.ModelBinding;
using System.Web.Http.OData;
using System.Web.Http.OData.Routing;
using WebAPIODataApp.Models;

namespace WebAPIODataApp.Controllers
{

    public class EmployeesController : ODataController
    {
        private EmployeeServContext db = new EmployeeServContext();

        // GET: odata/Employees
        [EnableQuery]
        public IQueryable<Employee> GetEmployees()
        {
            return db.Employees;
        }

    }

EmployeeServContext.cs

using System;
using System.Collections.Generic;
using System.Data.Entity;
using System.Linq;
using System.Web;

namespace WebAPIODataApp.Models
{
    public class EmployeeServContext : DbContext
    {
        // You can add custom code to this file. Changes will not be overwritten.
        //
        // If you want Entity Framework to drop and regenerate your database
        // automatically whenever you change your model schema, please use data migrations.
        // For more information refer to the documentation:
        // http://msdn.microsoft.com/en-us/data/jj591621.aspx

        public EmployeeServContext() : base("name=EmployeeServContext")
        {
        }

        public System.Data.Entity.DbSet<WebAPIODataApp.Models.Employee> Employees { get; set; }
    }
}

Add EDM and route

First of all, we need to add connection string.

In Solution Explorer, open web.config file and add inside configuration element in the following section.

<connectionStrings>
        <add name="EmployeeServContext" connectionString="Data Source=.;Initial Catalog=EmployeeDB;Integrated Security=True" providerName="System.Data.SqlClient" />
  </connectionStrings>

Note - You must specify the connection string from EmployeeDB database which has been created above.

Next step is - In Solution Explorer, select App_Start > double click on WebApiConfig.cs, then we should add the following code to the register method:

public static void Register(HttpConfiguration config)
      {
          ODataConventionModelBuilder builder = new ODataConventionModelBuilder();
          builder.EntitySet<Employee>("Employees");
          config.Routes.MapODataRoute("odata", "odata", builder.GetEdmModel());

      }

Explanation - Register method ensures two things,



• Creates an EDM (Entity Data Model).
• Adds a route for OData service.

The EDM is used to create the service metadata document. At this level, we have two possibilities by using,

• The ODataConventionModelBuilder class which creates an EDM by using default naming conventions.
• The ODataModelBuilder class to create the EDM by adding properties, keys, and navigation properties.

In the last, we need to call the MapOdataRoute extension method for routing. We can conclude that our URI for Employees EntitySet is http://localhost:56262/odata/Employees.

Note - When you run our URI first time, the database table will be created as follow. Don’t forget add some records into Employee table for demo.



Consuming OData Service

In order to consume OData service, we will work to display data by using jqxGrid plugin.

Let’s GO.

Create controller

Now, we are going to create a controller. Right click on the controllers folder > Add > Controller> selecting MVC 5 Controller – Empty > click Add.

HomeController.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Mvc;

namespace WebAPIODataApp.Controllers
{
    public class HomeController : Controller
    {
        public ActionResult Index()
        {

            return View();
        }
    }
}

Adding View

In HomeController, just right click on Index() action, select Add View and window will pop up. Write a name for your View. Finally, click Add.

Index cshtml

@{
    ViewBag.Title = "Data Employees";
}

<h2> Data Employees </h2>

<div id="gridEmployee" style="margin:20px auto;"></div>

@section scripts {


    <script type="text/javascript" src="http://jqwidgets.com/jquery-widgets-demo/scripts/jquery-1.11.1.min.js"></script>

    <script type="text/javascript" src="http://jqwidgets.com/jquery-widgets-demo/jqwidgets/jqx-all.js"></script>

    <link rel="stylesheet" type="text/css" href="http://jqwidgets.com/jquery-widgets-demo/jqwidgets/styles/jqx.base.css" />

    <script type="text/javascript">

    $(document).ready(function () {

        // In this part, you need to prepare your data
        var source =
            {
                datatype: "json",

                // Here you will declare all fields that must be used in the grid
                datafields: [

               { name: 'EmployeeID', type: 'number' },
               { name: 'FirstName', type: 'string' },
               { name: 'LastName', type: 'string' },
               { name: 'Gender', type: 'string' },
               { name: 'Designation', type: 'string' },
               { name: 'Salary', type: 'number' },
               { name: 'City', type: 'string' },
               { name: 'Country', type: 'string' }

                ],
                // call the action which retrieve data employees in json format
                url: '/odata/Employees'
            };

        var dataAdapter = new $.jqx.dataAdapter(source);

        // displaying data in the grid with jqxGrid
        $("#gridEmployee").jqxGrid(
            {
                width: 800,
                source: dataAdapter,
                pageable: true,
                sortable: true,

                columns: [

                    { text: "Employee ID", datafield: "EmployeeID" },
                    { text: "FirstName", datafield: "FirstName" },
                    { text: "LastName", datafield: "LastName" },
                    { text: "Gender", datafield: "Gender" },
                    { text: "Designation", datafield: "Designation" },
                    { text: "Salary", datafield: "Salary" },
                    { text: "City", datafield: "City" },
                    { text: "Country", datafield: "Country" }

                ]
            });
    });
    </script>
}

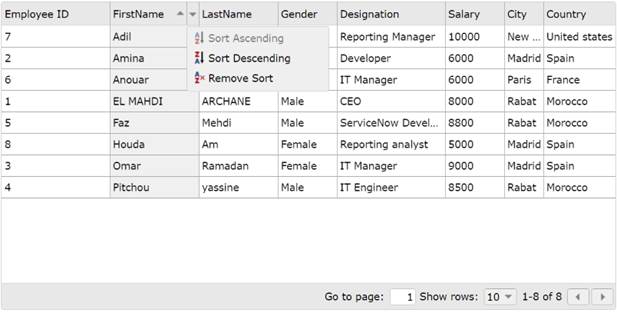

Output - That’s all. Please send your feedback and queries in comments box.
