Populating Kendo DropDownLists With Multiple JSON Objects Using ASP.NET WEB API

Before going through this article ensure that you have a basic understanding of the MVC Architecture, ASP.NET Web API and jQuery.

Let us start with creating an ASP.NET WEB API Application.

Creating an Empty ASP.NET WEB API Project

Create a simple empty WEB API project as in the following figure:

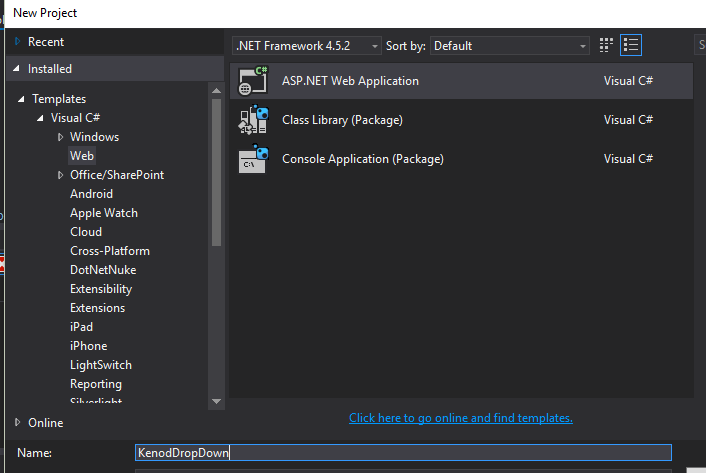

                                                                     Figure 1

 '

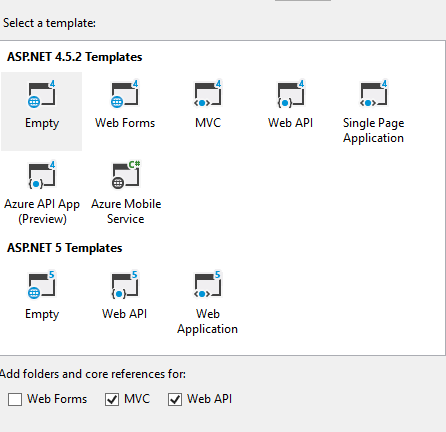

                                          Figure 2

Creating a Model Class

Right click on the model folder and add a new class, in my case I named it CommonList.cs:

Code in CommonList.cs
  1. public class CommonList
  2. {
  3.     public  CommonList(int Id, string Text)
  4.     {
  5.         this.Id = Id;
  6.         this.Text = Text;
  7.     }
  8.     public int Id { getset; }
  9.     public string Text { getset; }
  10. }

Creating a Controller

Right click on the Controller folder and add a new controller, in my case I named it ListsitemsController.cs:

Code in ListsitemsController.cs
  1. [RoutePrefix("api/list")]
  2.    public class ListsitemsController : ApiController
  3.    {
  4.        [HttpGet]
  5.        [Route("items")]
  6.        public HttpResponseMessage ListItems()
  7.        {
  8.            List<CommonList> _list = new List<CommonList>();
  9.            _list.Add(new CommonList(1, "India"));
  10.            _list.Add(new CommonList(2, "China"));
  11.            _list.Add(new CommonList(3, "United States"));
  12.
  13.
  14.            List<CommonList> _list1 = new List<CommonList>();
  15.            _list1.Add(new CommonList(1, "TamilNadu"));
  16.            _list1.Add(new CommonList(2, "Karnataka"));
  17.            _list1.Add(new CommonList(3, "NewYork"));
  18.
  19.            return this.JsonResponse(
  20.                new
  21.                {
  22.                    CountryList = _list,
  23.                    StateList = _list1,
  24.                });
  25.
  26.        }
  27.
  28.
  29.        public HttpResponseMessage JsonResponse(object response, HttpStatusCode httpStatusCode = HttpStatusCode.OK)
  30.        {
  31.            return Request.CreateResponse(httpStatusCode, response, Configuration.Formatters.JsonFormatter);
  32.        }
  33.    }
The above controller ListItems action  will return a Country list and State list as a response.

Now the API is ready to consume.

Using a Kendo Dropdownlist with MVVM pattern

Please read my previous article to get more details about implementing kendo dropdownlist with MVVM Pattern.

Creating a HTML page

Create a new HTML page in the project.

Design:

  1. <!DOCTYPE html>
  2. <html>
  3. <head>
  4.     <title>Kendo Dropdownlist MVVM</title>
  5.     <meta charset="utf-8" />
  6.     <link rel="stylesheet" href="http://kendo.cdn.telerik.com/2016.1.112/styles/kendo.common.min.css">
  7.     <link rel="stylesheet" href="http://kendo.cdn.telerik.com/2016.1.112/styles/kendo.rtl.min.css">
  8.     <link rel="stylesheet" href="http://kendo.cdn.telerik.com/2016.1.112/styles/kendo.default.min.css">
  9.     <link rel="stylesheet" href="http://kendo.cdn.telerik.com/2016.1.112/styles/kendo.mobile.all.min.css">
  10.
  11.     <script src="http://code.jquery.com/jquery-1.9.1.min.js"></script>
  12.     <script src="http://kendo.cdn.telerik.com/2016.1.112/js/angular.min.js"></script>
  13.     <script src="http://kendo.cdn.telerik.com/2016.1.112/js/jszip.min.js"></script>
  14.     <script src="http://kendo.cdn.telerik.com/2016.1.112/js/kendo.all.min.js"></script>
  15.
  16.     <script src="scripts/Core.js"></script>
  17.     <script src="scripts/Data.js"></script>
  18.     <script src="scripts/ViewModel.js"></script>
  19. </head>
  20. <body>
  21.     <div class="col-lg-12">
  22.         <div id="Main" class="main"></div>
  23.     </div>
  24.
  25.     <script type="text/x-kendo-template" id="Layout-temp">
  26.         <div class="col-lg-12">
  27.             <div id="content"></div>
  28.         </div>
  29.     </script>
  30.     <script type="text/x-kendo-template" id="Dashboard-temp">
  31.         <div class="row">
  32.             <h4>Kendo DropDownlist with MVVM Pattern</h4>
  33.             <input data-role="dropdownlist"
  34.                    data-bind="source:state,value:State"
  35.                    data-text-field="Text" data-value-field="Id" data-option-label="--Select State--"
  36.                    style="width:50%" />
  37.             <br />
  38.             <br />
  39.             <br />
  40.             <input data-role="dropdownlist"
  41.                    data-bind="source:country,value:Country"
  42.                    data-text-field="Text" data-value-field="Id" data-option-label="--Select Country--"
  43.                    style="width:50%" />
  44.         </div>
  45.     </script>
  46.
  47. </body>
  48. </html>

Creating a JavaScript files

  1. View Model: Create a JavaScript file, in my case I named it ViewModel.Js

    The View-Model is a representation of your data (the Model) which will be displayed in the View.

    ViewModel.Js
    1. (function (G, $, undefined) {
    2.
    3.
    4.     $.extend(true, G, {
    5.         KendoDropdown: {
    6.             ViewModel: {
    7.                 DashboardModel: new kendo.observable({
    8.                     Country: '',
    9.                     country: [],
    10.                     state: [],
    11.                     State: '',
    12.
    13.
    14.                 }),
    15.                 UpdateList: function (resp) {
    16.                     this.DashboardModel.set('country', resp.CountryList);
    17.                     this.DashboardModel.set('state', resp.StateList)
    18.                 },
    19.             }
    20.         }
    21.     });
    22. })(window.Gni = window.Gni || {}, jQuery);
  2. Data: Create a JavaScript file, in my case I named it Data.Js

    This script is responsible to bound the DataSource by requesting the API.

    Data.js
    1. (function (G, $, K, undefined) {
    2.
    3.     $.extend(true, G, {
    4.         KendoDropdown: {
    5.             Data: {
    6.                 List: new K.data.DataSource({
    7.                     data: {},
    8.                     transport: {
    9.                         read: {
    10.                             url: 'api/list/items',
    11.                             type: 'get',
    12.                             dataType: 'json',
    13.
    14.                         }
    15.                     },
    16.                     schema: {
    17.                         data: function (response) {
    18.                             return [response]; // create an array from the response
    19.                         }
    20.                     },
    21.                     error: function (e) {
    22.
    23.                         alert(error);
    24.                     },
    25.                     requestEnd: function (e) {
    26.                         G.KendoDropdown.ViewModel.UpdateList(e.response);
    27.                     }
    28.                 }),
    29.                 Load: function () {
    30.                     this.List.read();
    31.
    32.                 },
    33.             }
    34.         }
    35.     });
    36. })(window.Gni = window.Gni || {}, jQuery, kendo);
  3. Core: Create a JavaScript file, in my case I named it Core.Js.

    This core script is used to start the rendering of the templates and calls the view model to bind the data in the UI.
    1. $(function () {
    2.     var Layout = new kendo.Layout("Layout-temp");
    3.     var DashboardView = new kendo.View("Dashboard-temp", { model: Gni.KendoDropdown.ViewModel.DashboardModel });
    4.     var router = new kendo.Router({
    5.         init: function () {
    6.             Layout.render("#Main");
    7.             Layout.showIn("#content", DashboardView);
    8.
    9.         }
    10.     });
    11.     router.start();
    12.     Gni.KendoDropdown.Data.Load();
    13. });
The Result in Browser:

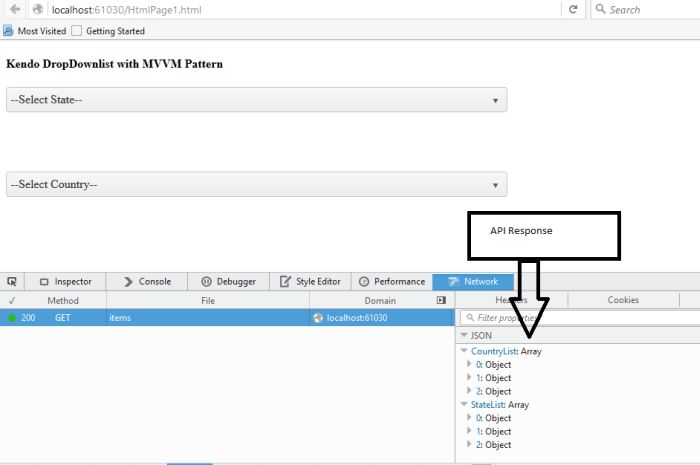

API Responce
                                                                          Figure 3

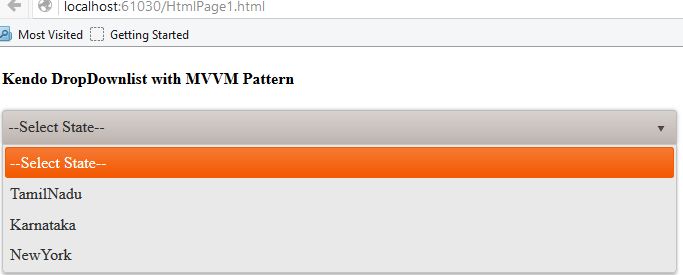

StateList in Dropdown

Select state
                                                                         Figure 4

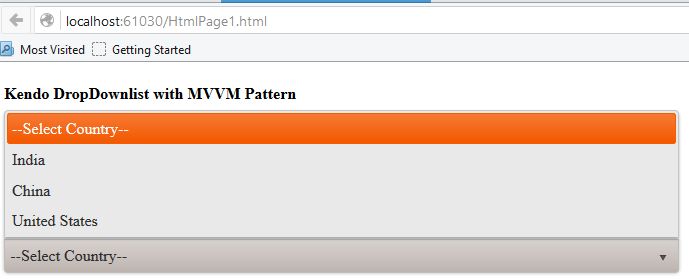

CountryList in Kendo DropDown

Select country
                                                                        Figure 5

I hope you enjoyed this article. Your valuable feedback, question, or comments about this article are always welcome.
