PowerShell Script To Get SharePoint Document Versioning Report

Objective

This purpose of this document is to mention the steps to get a SharePoint Document Versioning report for a web application. The reusable script for this job has also attached with this document. This script offers -

  • To select the a web application to operate on
  • To Select the set of site collection to operate on
  • Generate a report in CSV format, which will be helpful for excel reporting.

Business Case

S. No. Business Case
1 Before we go ahead and start doing migration we need to extract many report and insights about the current SharePoint environment. One of those need is to get a SharePoint document versioning report in your SharePoint. This script will allow administrator to do this job easily.

Targeted Audience

  • SharePoint Application Developers
  • SharePoint Administrator
  • SharePoint Architect

Offerings

  • One reusable PowerShell script is provided which needs to be run to get SharePoint Versioning report.
  • Generate a report in excel format which includes information like:

      - Site Collection Title
      - Site Name
      - Library
      - File Name
      - File URL
      - File Type
      - Last Modified Date
      - Number of Versions
      - Latest Version Size
      - Version Size
      - Total size

Technical Details

Below are the technical details for this PowerShell script -

    Execution

    Prerequisite:

    Login to SharePoint Server as Farm Administrator and copy the required files as per your requirement.
    Run:

    1. Edit and Update Configurations.xml file as per your need. See below file.

    1. <?xml version="1.0" encoding="utf-8" ?>
    2.
    3. <Configuration Environment="Dev" Version="1.0.0.0">
    4.     <GlobalWebApplications>
    5.         <GlobalWebApplication url="http://mywebApplicationURL/">
    6.             <SiteCollections>
    7.                 <SiteCollection relativeURL="sites/SiteCollectionTitle" />
    8.                 <SiteCollection relativeURL="sites/SiteCollectionTitle1" />
    9.             </SiteCollections>
    10.         </GlobalWebApplication>
    11.     </GlobalWebApplications>
    12. </Configuration>
    2. Run the PowerShell Script as “Run as Administrator“.

    3. Browse the folder path where you have kept this PowerShell script file and execute a command.

    run

    Note: Copy and paste the above xml code in a notepad and save it as Configurations.xml.
PowerShell Script
  1. #check to see
  2. if the PowerShell Snapin is added
  3. if ((Get - PSSnapin | Where
  4.     {
  5.         $_.Name - eq "Microsoft.SharePoint.PowerShell"
  6.     }) - eq $null)
  7. {
  8.     Add - PSSnapin Microsoft.SharePoint.PowerShell;
  9. }
  10. #SharePoint DLL
  11.     [void][System.Reflection.Assembly]::LoadWithPartialName("Microsoft.SharePoint")
  12. $global: currentPhysicalPath = Split - Path((Get - Variable MyInvocation - Scope 0).Value).MyCommand.Path[xml] $xmlinput = (Get - Content "$global:currentPhysicalPath\Configurations.xml")
  13. Function SPDocVersionSizeReport
  14. {
  15.     foreach($configWebApp in $xmlinput.Configuration.GlobalWebApplications.GlobalWebApplication)
  16.     {
  17.         $webApp = Get - SPWebApplication $configWebApp.url - ErrorAction silentlycontinue
  18.         if ($webApp - eq $null)
  19.         {
  20.             Write - host Web Application at url: $configWebApp.url does not Exists.. - foregroundcolor Red
  21.         }
  22.         else
  23.         {
  24.             try
  25.             {
  26.                 foreach($siteCollection in $xmlinput.Configuration.GlobalWebApplications.GlobalWebApplication.SiteCollections.SiteCollection)
  27.                 {
  28.                     $siteCollUrl = $($webApp.url + $siteCollection.relativeUrl)
  29.                     $site = Get - SPSite - identity $siteCollUrl - ErrorAction SilentlyContinue
  30.                     if ($site - ne $null)
  31.                     {#Write the CSV Header - Tab Separated
  32.                         $fileName = $site.RootWeb.Title + "_" + "VersionSizeReport" + ".csv"
  33.                         "Site Collection Name `t Site Name`t Library `t File Name `t File URL `t File Type `t Last Modified `t No. of Versions `t Latest Version Size(MB) `t Versions Size(MB) `t Total File Size(MB)" | out - file $fileName
  34.                         # Fill out the names of those document libraries that should be excluded below
  35.                         $forbidden = @("Pages""Converted Forms""Master Page Gallery""Customized Reports""Documents",
  36.                             "Form Templates""Images""List Template Gallery""Theme Gallery""Reporting Templates",
  37.                             "Site Collection Documents""Site Collection Images""Site Pages""Solution Gallery",
  38.                             "Style Library""Web Part Gallery""Site Assets""wfpub")
  39.                         foreach($web in $site.AllWebs)
  40.                         {#Loop through each List
  41.                             foreach($List in $Web.Lists)
  42.                             {#Get only Document Libraries & Exclude Hidden System libraries
  43.                                 if (($List.BaseType - eq "DocumentLibrary") - and($List.Hidden - eq $false) - and($SystemLists - notcontains $List.Title))
  44.                                 {
  45.                                     foreach($ListItem in $List.Items)
  46.                                     {##Consider items with 5 + versions And apply Date Filter
  47.                                         if (($ListItem.Versions.Count - gt 1) - and($ListItem['Modified'] - gt([DateTime]::Now.AddYears(-1))))
  48.                                         {
  49.                                             $versionSize = 0# File Versioning details
  50.                                             foreach($FileVersion in $ListItem.File.Versions)
  51.                                             {
  52.                                                 $versionSize = $versionSize + $FileVersion.Size;
  53.                                             }#Calculate Total File Size in MB
  54.                                             $ToalFileSize = [Math]::Round(((($ListItem.File.Length + $versionSize) / 1024) / 1024), 2)
  55.                                             $VersionSize = [Math]::Round((($versionSize / 1024) / 1024), 2)
  56.                                             # Size of the current version
  57.                                             $CurrentVersionSize = [Math]::Round((($ListItem.File.Length / 1024) / 1024), 2)
  58.                                             # Log the data to a CSV
  59.                                             if ($versionSize - gt 0)
  60.                                             {
  61.                                                 "$($Site.RootWeb.Title) `t $($Web.Title) `t $($List.Title) `t $($ListItem.Name) `t $($Web.Url)/$($ListItem.Url) `t $($ListItem['File Type'].ToString()) `t $($ListItem['Modified'].ToString())`t $($ListItem.Versions.Count) `t $CurrentVersionSize `t $($versionSize) `t $($ToalFileSize)" | Out - File $fileName - Append
  62.                                             }
  63.                                         }
  64.                                     }
  65.                                 }
  66.                             }
  67.                             $Web.Dispose()
  68.                         }
  69.                         $site.Dispose()
  70.                     }
  71.                     else
  72.                     {
  73.                         Write - host - ForeGroundColor Red "Site Collection with this name does not exist. Please check if you have typed the URL correctly."
  74.                     }
  75.                 }#Message to console
  76.                 write - host "Versioning Report Generated Successfully!"
  77.             }
  78.             catch [Exception]
  79.             {
  80.                 write - output(”Error: ”+$_.Exception.ToString())
  81.             }
  82.         }
  83.     }
  84. }
  85. #Call the Function to Generate Version History Report
  86. SPDocVersionSizeReport $xmlinput
Output

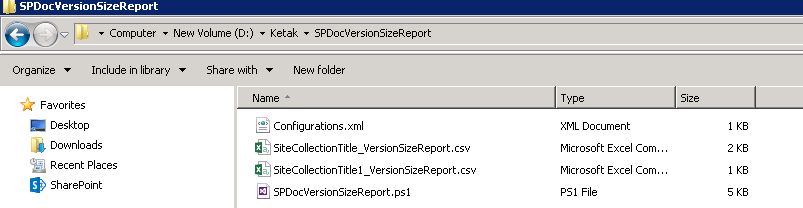

This script will generate a separate report file for every site collection it operates on. See below.

Output
