Push Notification Delivery Using One Signal In Android - Part Two

Read the first part of this article from the following link.

• Push Notification Delivery Using One Signal In Android – Part One

Introduction

One Signal notification is one hundred percent free and gives unlimited access for mobile and web applications. One Signal offers cross-platform support, and is secure and reliable push notification delivery service.

In this article, I will show you how to deliver push notifications using One Signal in Android application. Android is a kernel based operating system in which users can modify the GUI components and source code.

Requirements

• Android Studio
• A little knowledge of XML and Java.
• Android Emulator (or) Android mobile
• Stable internet connection during execution.
• Download link (Android Studio)

Steps to be followed

Carefully follow the below steps to enable push notification delivery using One Signal in your Android application. I have included the source code too for download.



Step 1

Go to app, open build.gradle, and add the below lines in your dependencies.

compile 'com.android.support:appcompat-v7:25.3.1'
compile 'com.android.support.constraint:constraint-layout:1.0.2'
compile 'com.google.android.gms:play-services:8.1.0'
compile 'com.google.android.gms:play-services-ads:8.1.0'
compile 'com.google.android.gms:play-services-identity:8.1.0'
compile 'com.google.android.gms:play-services-gcm:8.1.0'
compile 'com.onesignal:OneSignal:2.+@aar'
compile 'com.google.android.gms:play-services-analytics:8.1.0'
compile 'com.google.android.gms:play-services-location:8.1.0'
testCompile 'junit:junit:4.12'

Step 2

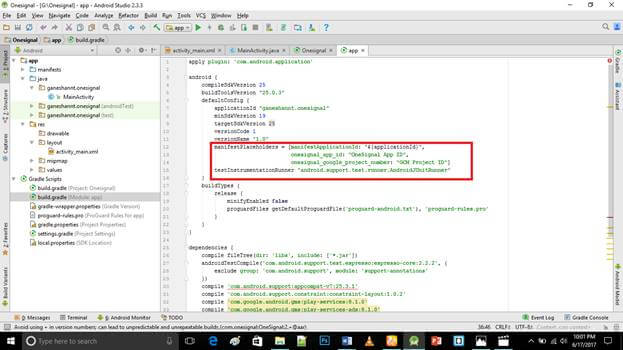

Then, add the below lines to you defaultconfig in build.gradle below the versionName.

manifestPlaceholders = [manifestApplicationId: "${applicationId}",
                       onesignal_app_id: "OneSignal App ID",
                       onesignal_google_project_number: "GCM Project ID"]
estInstrumentationRunner "android.support.test.runner.AndroidJUnitRunner"

Step 3

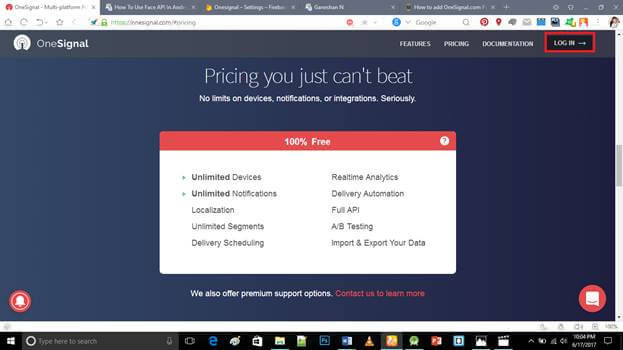

Go to the below link and click Login button.

Link : https://onesignal.com/#pricing



Step 4

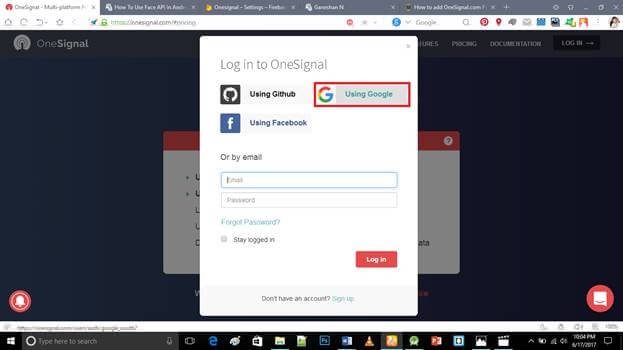

Login via your Gmail Id.



Step 5

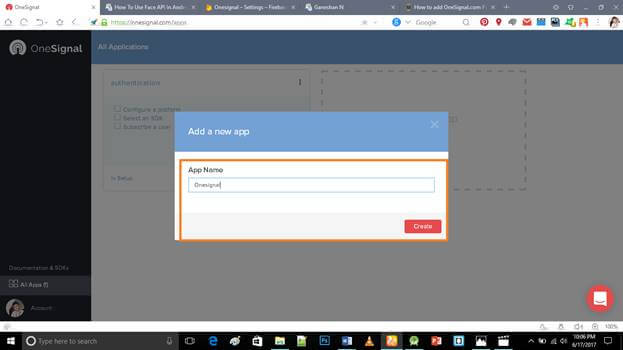

Type your app and click "Create".



Step 6

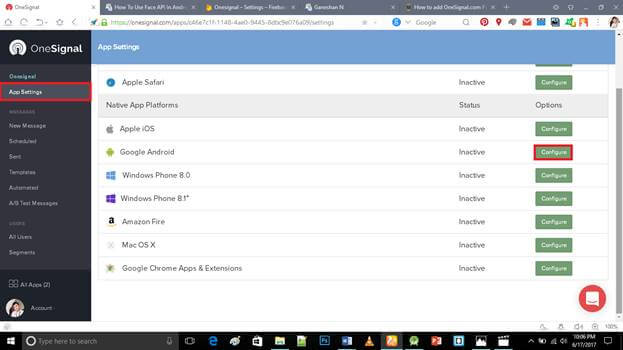

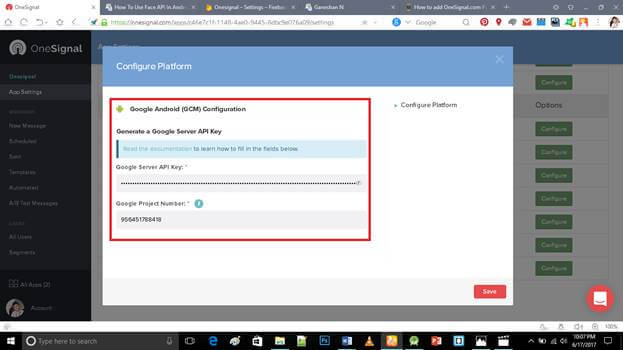

Open your project, go to "App Settings", and click "Configure" in Google Android.



Step 7

Copy your Google server and sender key from Firebase account and paste that key in One Signal Settings; then click "Save".



Step 8

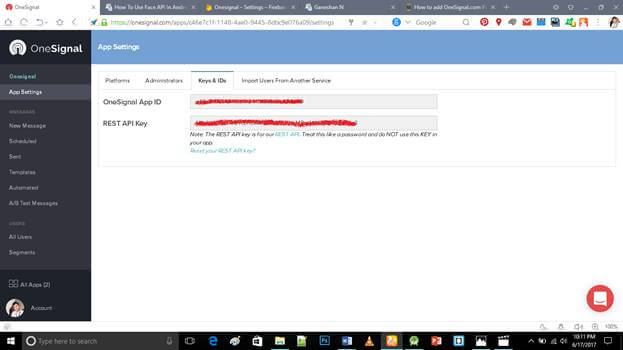

Copy your One Signal app id and paste that into the build.gradle file. After that, click on "Synchronize" the project.



Step 9

In the MainActivity.java file, copy and paste the below code. Do not replace your package name otherwise the app will not run.

MainActivity.java code

package ganeshannt.onesignal;

import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.util.Log;

import com.onesignal.OneSignal;

import org.json.JSONObject;

public class MainActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        OneSignal.startInit(this).setNotificationOpenedHandler(new ExampleNotificationOpenedHandler())
.init();
        setContentView(R.layout.activity_main);
    }

    // This fires when a notification is opened by tapping on it or one is received while the app is running.
    private class ExampleNotificationOpenedHandler implements OneSignal.NotificationOpenedHandler {
@Override
public void notificationOpened(String message, JSONObject additionalData, boolean isActive) {
try {
if (additionalData != null) {
if (additionalData.has("actionSelected"))
 Log.d("OneSignalExample", "OneSignal notification button with id " + additionalData.getString("actionSelected") + " pressed");

Log.d("OneSignalExample", "Full additionalData:\n" + additionalData.toString());
}} catch (Throwable t) {
t.printStackTrace();
}
}}}

Step 10

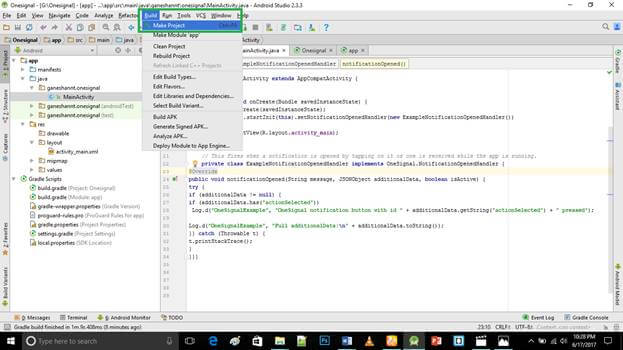

Click the "Make Project" option and run the app.



Deliverables

Here, we have successfully created and executed the Push Notification Delivery, using One Signal in Android application.











Thank you for reading my article.

Don’t forgot to like and follow me. If you have any doubts, just comment below.
