Internet of Things

Raspberry Pi With Azure Mobile Services

This article is about your Raspberry Pi device where you can switch on/off your LED lights connected on the bread board by giving data from Azure Mobile Services.

Requirements :
  • Visual studio 2015
  • Raspberry Pi 2 Model B
  • Azure Mobile Service
  • Bread Broad
  • Connecting Wires
  • LED

Activities We do

  1. Circuit Connection
  2. Creating Azure Mobile Service
  3. Creating a Windows10 UWP for Raspberry Pi
  4. Creating a Client App
  5. Deploying the App
Step 1: Circuit Connection

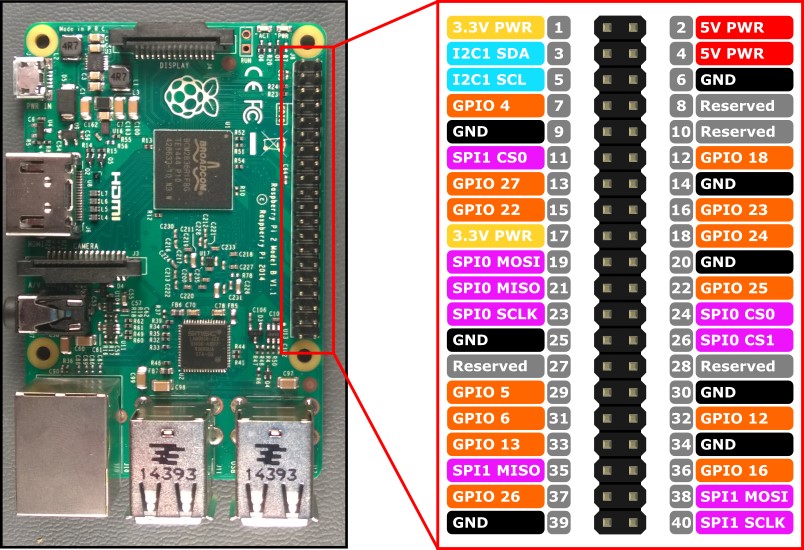

  • Using GPIO Pin 5,6,13,19,26,7,8,25,24,18,15,14,2,3,4
  • I am take GPIO Pin 5 and 3.3v power supply

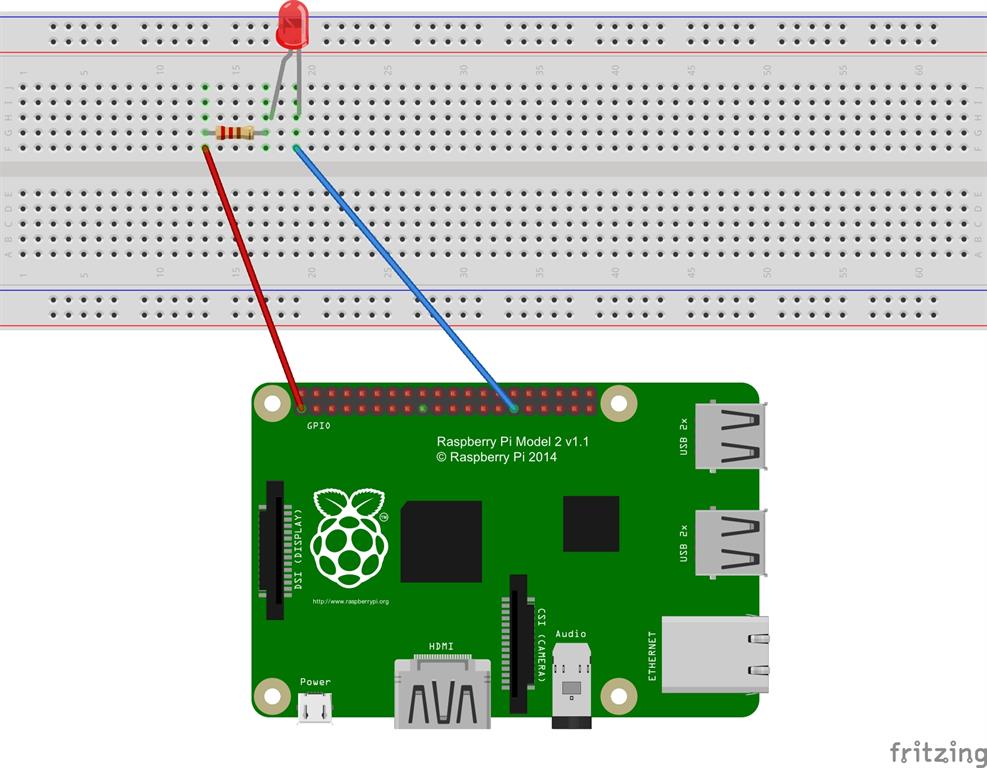

Connection can be made as the Circuit below ,
Step:2 Creating Azure Mobile Services

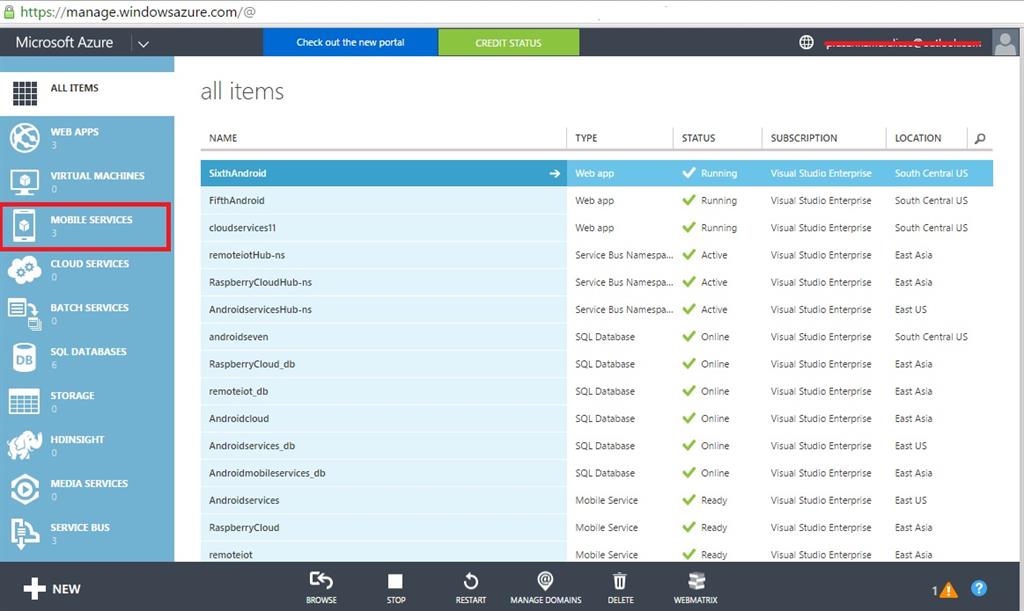

Creating an Azure Mobile Service from Azure Portal

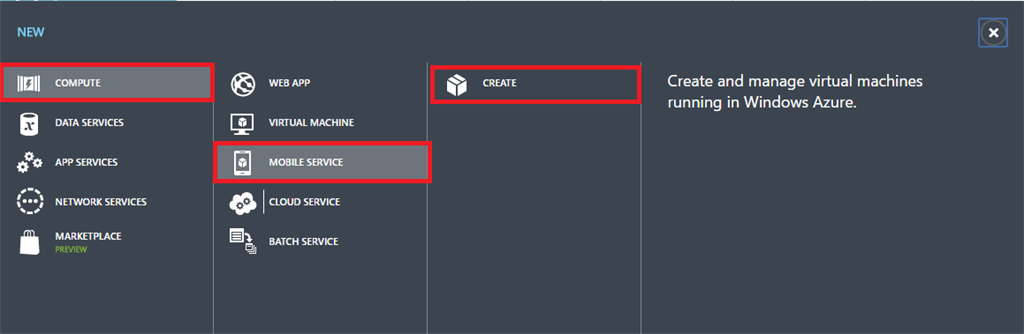

New Mobile Dialog Box Opens, Click on COMPUTEà MOBILE SERVICE à CREATE,

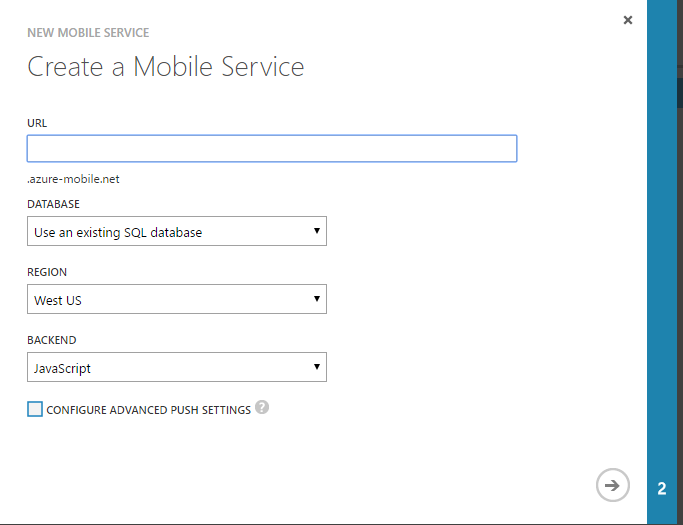

Enter Mobile service url, select database, region & backend options,

  • Using existing SQL database, the below dialog box will open otherwise create new database & create new server options available.

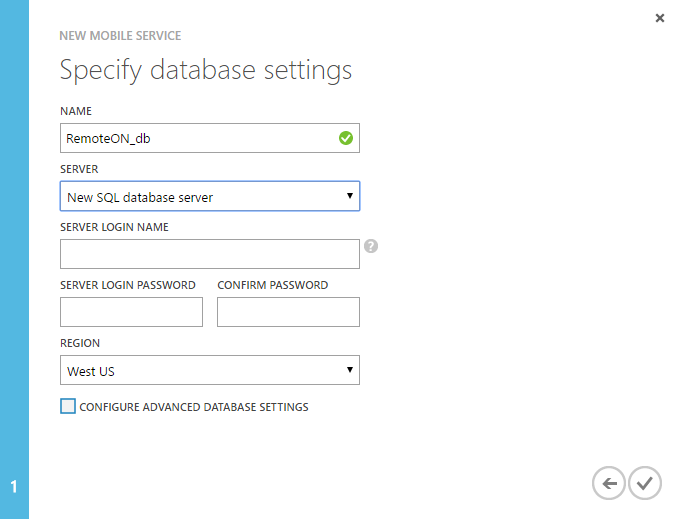

  • If you are Creating new SQL database it means:
  • Enter the Server Login Name & Password.
  • Click Ok,

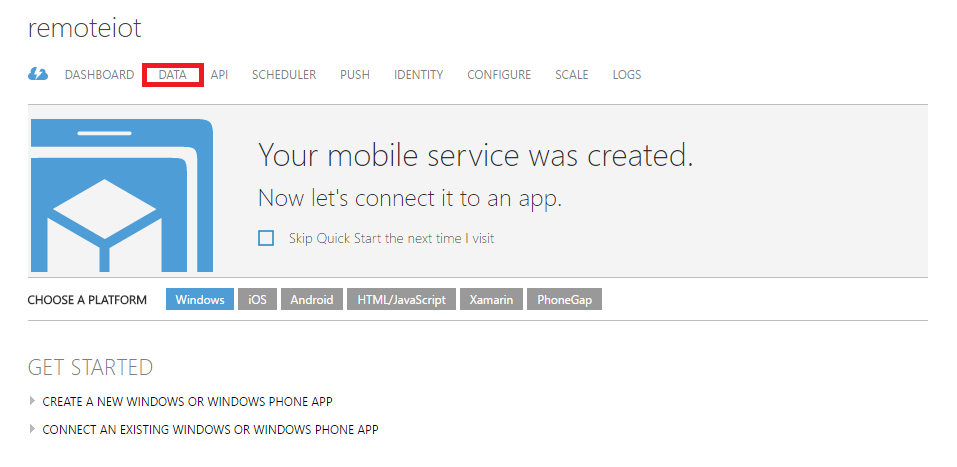

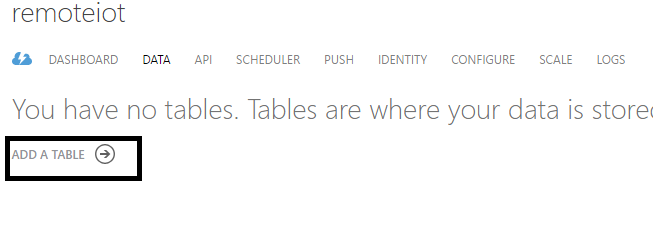

After creating mobile service, add new table.

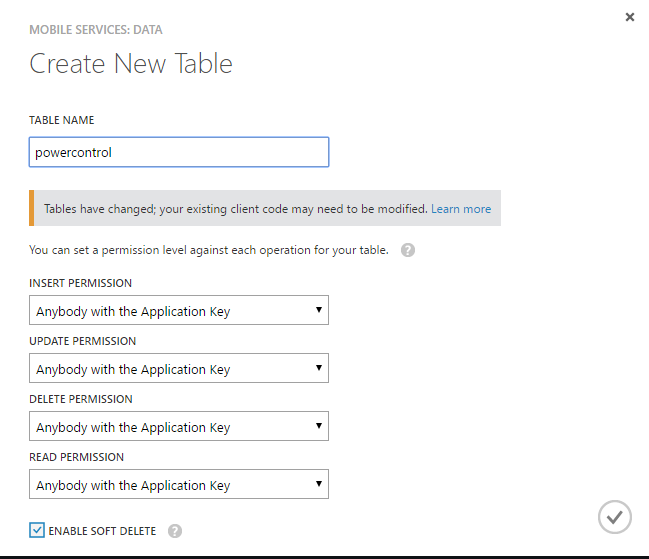

Enter the table name as powercontrol.


Step 2: Creating a Windows10 Universal App for Raspberry PI,

Below are the steps to create an app to the Azure Mobile Service,

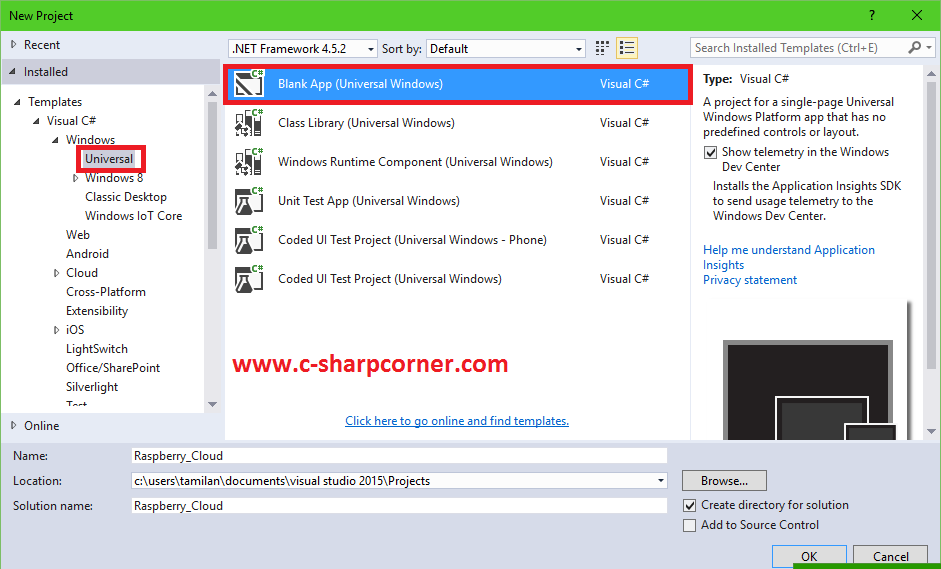

  • Create a new Universal Blank App,


To perform this experiment there are two samples that we need to create,

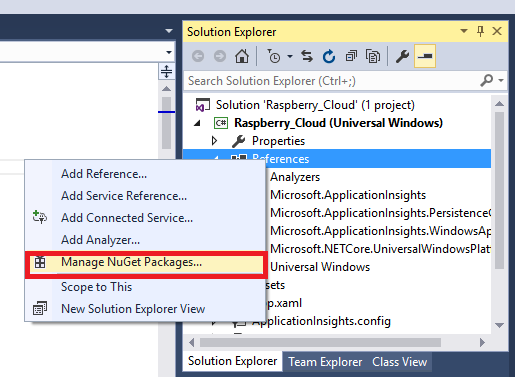

  • Right Click on Reference Tab On Project & select “Manage NuGet Package”,

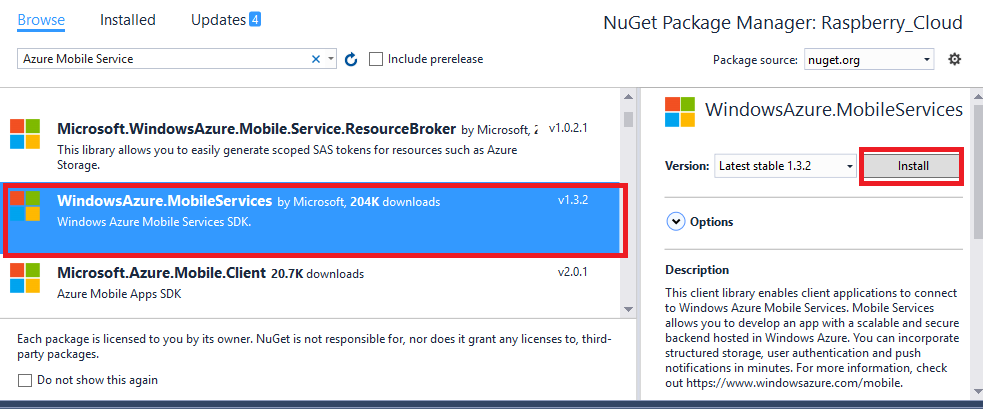

  • NuGet Package page will open & search for “Microsoft Azure Mobile Service."
  • Select from the list & click on Install button.

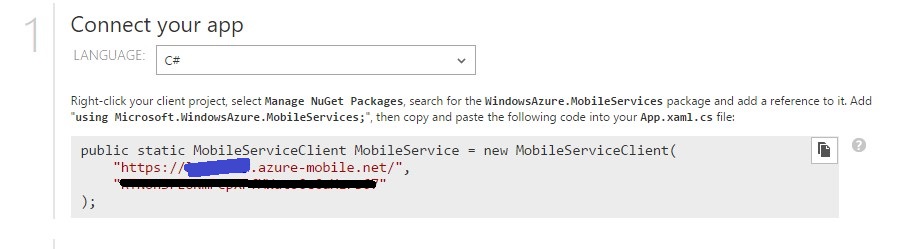

Connect your app to Azure

  • Again go to the Azure Management portal.
  • Select mobile service first tab & select windows platform.
  • Start Visual Studio & Open App.mainpage.xaml.cs,
  • Copy App Connection String From the Azure Portal.
  1. sealed partial class App : Application
  2.     {
  3.         /// <summary>
  4.         /// Initializes the singleton application object.  This is the first line of authored code
  5.         /// executed, and as such is the logical equivalent of main() or WinMain().
  6.         /// </summary>
  7.         public App()
  8.         {
  9.             this.InitializeComponent();
  10.             this.Suspending += OnSuspending;
  11.         }
  12.
  13.         public static MobileServiceClient MobileService = new MobileServiceClient(
  14.             "https://mobileservice.azure-mobile.net/",
  15.             "jwernSrEUNmPcpXPfMWatoCcCahglki89"
  16.

  •        Create one class (right click on project name & add new class item from list).

  • Note : table name on Azure & class name in project must be the same name.
  1. namespace RaspberryCloud
  2. {
  3.  public class powercontrol
  4.  {
  5.  public string id { get; set; }
  6.
  7.  public string status { get; set; }
  8.  }
  9. }
  • Open Mainpage.xaml.
  • Add the Code.
    1. <Grid Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">
    2.
    3.         <StackPanel HorizontalAlignment="Center" VerticalAlignment="Center">
    4.
    5.             <Ellipse x:Name="LED" Fill="LightGray" Stroke="White" Width="100" Height="100" Margin="10"/>
    6.
    7.             <TextBlock x:Name="GpioStatus" Text="Waiting to initialize GPIO..." Margin="10,50,10,10" TextAlignment="Center" FontSize="26.667" />
    8.
    9.             <StackPanel Orientation="Horizontal" Width="500">
    10.
    11.                 <TextBlock x:Name="DelayText" Text="Current Status" Margin="10" FontSize="26.667" />
    12.
    13.                 <ListBox Name="l1" HorizontalAlignment="Center">
    14.
    15.                     <ListBox.ItemTemplate>
    16.
    17.                         <DataTemplate>
    18.
    19.                             <StackPanel>
    20.
    21.                                 <TextBlock FontSize="30" Foreground="Red" Text="{Binding status}"/>
    22.
    23.                             </StackPanel>
    24.
    25.                         </DataTemplate>
    26.
    27.                     </ListBox.ItemTemplate>
    28.
    29.                 </ListBox>
    30.
    31.             </StackPanel>
    32.
    33.         </StackPanel>
    34.
    35.     </Grid>
  • Open MainPage.xaml.cs.
  • Add Reference for GPIO.
  • Add  Namespace using Windows.Devices.Gpio in Mainpage.xaml.cs.

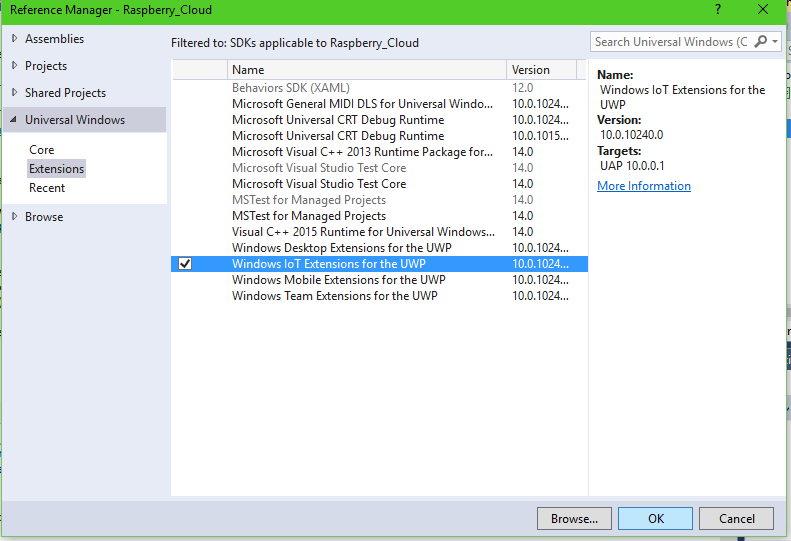

  • Add Windows IoT Extensions for the UWP from Reference Library tab.
  • Add Below Code in Mainpage.xaml.cs,
  1. namespace Raspberrycloud
  2. {
  3.     /// <summary>
  4.     /// An empty page that can be used on its own or navigated to within a Frame.
  5.     /// </summary>
  6.     public sealed partial class MainPage : Page
  7.     {
  8.         private const int LED_PIN = 5;
  9.         private GpioPin pin;
  10.         private GpioPinValue pinValue;
  11.         private DispatcherTimer timer;
  12.         private SolidColorBrush redBrush = new SolidColorBrush(Windows.UI.Colors.Red);
  13.         private SolidColorBrush grayBrush = new SolidColorBrush(Windows.UI.Colors.LightGray);
  14.
  15.         public MainPage()
  16.         {
  17.             this.InitializeComponent();
  18.             timer = new DispatcherTimer();
  19.             timer.Interval = TimeSpan.FromSeconds(5);
  20.             timer.Tick += Timer_Tick;
  21.             InitGPIO();
  22.             if (pin != null)
  23.             {
  24.                 timer.Start();
  25.             }
  26.         }
  27.
  28.         private void InitGPIO()
  29.         {
  30.             var gpio = GpioController.GetDefault();
  31.
  32.             // Show an error if there is no GPIO controller
  33.             if (gpio == null)
  34.             {
  35.                 pin = null;
  36.                 GpioStatus.Text = "There is no GPIO controller on this device.";
  37.                 return;
  38.             }
  39.
  40.             pin = gpio.OpenPin(LED_PIN);
  41.             pinValue = GpioPinValue.High;
  42.             pin.Write(pinValue);
  43.             pin.SetDriveMode(GpioPinDriveMode.Output);
  44.
  45.             GpioStatus.Text = "GPIO pin initialized correctly.";
  46.         }
  47.
  48.         public string value;
  49.
  50.         private async void Timer_Tick(object sender, object e)
  51.         {
  52.             List<powercontrol> datalist = await App.MobileService.GetTable<powercontrol>().ToListAsync();
  53.             l1.ItemsSource = datalist;
  54.
  55.             foreach (var x in datalist)
  56.             {
  57.                 value = x.status.ToString();
  58.             }
  59.
  60.             if (value == "on")
  61.             {
  62.                 pinValue = GpioPinValue.Low;
  63.                 pin.Write(pinValue);
  64.                 LED.Fill = redBrush;
  65.             }
  66.             else
  67.             {
  68.                 pinValue = GpioPinValue.High;
  69.                 pin.Write(pinValue);
  70.                 LED.Fill = grayBrush;
  71.             }
  72.
  73.         }
  74.     }
To Deploy this App to Raspberry pi -- you need to change Architecture to ARM,


  • To Run this App, use Remote Machine to deploy.
  • Change Target device to Remote Machine.

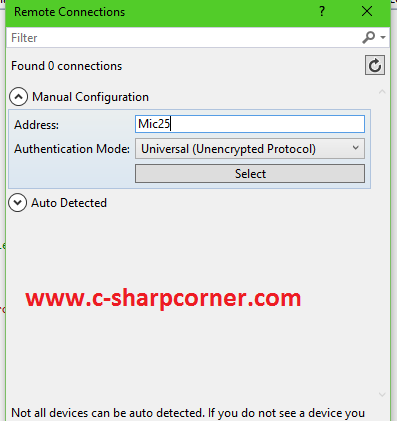

  • Enter the Remote Machine IP address or DeviceName of Raspberry Pi.
  • Authentication mode : Universal (Unencrypted Protocol).
  • Using WINDOWS IOT CORE WATCHER to track IOT Devices easily.
  • Click on “Remote Machine” to run the app

Step 4: Creating a Client App

Create a new Universal Blank App.



To perform this experiment there are two samples that we need to create,
  • Right Click on Reference Tab On Project & select “Manage NuGet Package”.
  • Add Azure Mobile Service Reference to the project.
  • Open Azure Management portal & Copy the Connection String and Paste the string in App.xaml.cs.

Create one class (right click on project name & add new class item from list).

Note: Table name on Azure & class name in project must be same name,
  1. namespace RaspberryCloud
  2. {
  3.     public class powercontrol
  4.     {
  5.         public string id { get; set; }
  6.
  7.         public string status { get; set; }
  8.     }
  9. }
  • Open Mainpage.xaml
  • Add the below code.
  1. <StackPanel Margin="0,100,0,0" Width="200">
  2.
  3.             <Button x:Name="btnOn" Content="On" Click="btnOn_Click" HorizontalAlignment="Stretch"/>
  4.
  5.             <Button x:Name="btnOff" Content="Off" Click="btnOff_Click" HorizontalAlignment="Stretch" Margin="0,50,0,0"/>
  6.
  7.             <Button x:Name="btnInsert" Content="Reset" Click="btnInsert_Click" HorizontalAlignment="Stretch" Margin="0,50,0,0"/>
  8.
  9.         </StackPanel>
  • Open the Mainpage.xaml.cs
  • Add the below code.
  1. Namespace RaspberryClientApp
  2.
  3. {
  4.
  5.     /// <summary>
  6.
  7.     /// An empty page that can be used on its own or navigated to within a Frame.
  8.
  9.     /// </summary>
  10.
  11.     public sealed partial class MainPage : Page
  12.
  13.     {
  14.
  15.         IMobileServiceTable<powercontrol> userTable = App.MobileService.GetTable<powercontrol>();
  16.
  17.
  18.
  19.         public MainPage()
  20.
  21.         {
  22.
  23.             this.InitializeComponent();
  24.
  25.         }
  26.
  27.
  28.
  29.         private async void btnOn_Click(object sender, RoutedEventArgs e)
  30.
  31.         {
  32.
  33.             List<powercontrol> datalist = await App.MobileService.GetTable<powercontrol>().ToListAsync();
  34.
  35.             powercontrol obj = new powercontrol();
  36.
  37.             foreach (var x in datalist)
  38.
  39.             {
  40.
  41.                 obj.id = x.id;
  42.
  43.                 obj.status = "on";
  44.
  45.             }
  46.
  47.             await userTable.UpdateAsync(obj);
  48.
  49.
  50.
  51.         }
  52.
  53.
  54.
  55.         private async void btnOff_Click(object sender, RoutedEventArgs e)
  56.
  57.         {
  58.
  59.             List<powercontrol> datalist = await App.MobileService.GetTable<powercontrol>().ToListAsync();
  60.
  61.             powercontrol obj = new powercontrol();
  62.
  63.             foreach (var x in datalist)
  64.
  65.             {
  66.
  67.                 obj.id = x.id;
  68.
  69.                 obj.status = "off";
  70.
  71.             }
  72.
  73.             await userTable.UpdateAsync(obj);
  74.
  75.         }
  76.
  77.
  78.
  79.         private async void btnInsert_Click(object sender, RoutedEventArgs e)
  80.
  81.         {
  82.
  83.             powercontrol obj1 = new powercontrol();
  84.
  85.             obj1.status = "on";
  86.
  87.
  88.
  89.             await userTable.InsertAsync(obj1);
  90.
  91.         }
  92.
  93.     }
  94.
  95. }  Run ClientApp in All Windows 10 devices
  • Now run the app on Local Machine and execute On/Off operations from your Azure Mobile Services
Conclusion:

We find out that it's easy to Connect your Raspberry pi devices to Azure Mobile Services for passing and sending data to azure services by managing IoT devices.
