Remote Binding of Kendo DropDownlist with MVVM Pattern Using WEB API

MVVM

MVVM stands for Model< ->View <-> View Model which supports two-way binding between view and view model, where View-Model is responsible for exposing the data objects from the Model in such a way that those objects are easily consumed in the View.

  • Model: The Model represents a set of classes that describes the business logic and data.

  • View: The View represents the presentation or the user interface layer.

  • View Model: The View-Model part of the MVVM is responsible for exposing the data objects from the Model in such a way that those objects are easily consumed in the View.

Let us start with creating an ASP.NET WEB API

Creating an Empty ASP.NET WEB API Project:

Create a simple empty WEB API project as in the following figures:

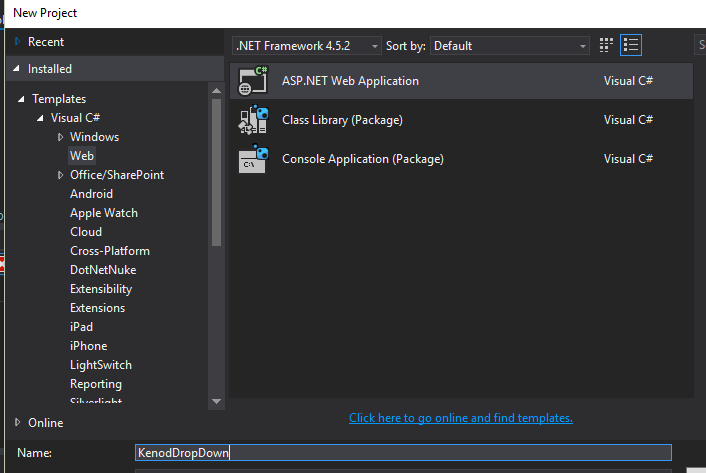

                                                              Figure 1

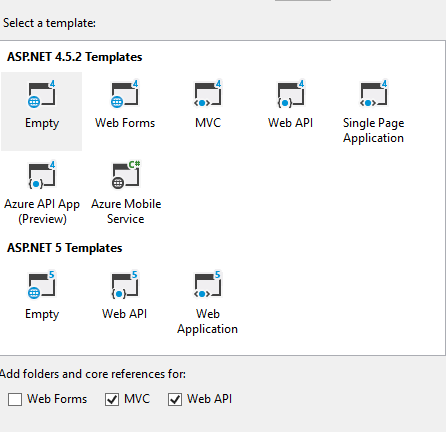

                                        Figure 2

Creating a Model Class:

Right click on the model folder add a new class, in my case I named it CommonList.cs:

Code in CommonList.cs
  1. public class CommonList
  2. {
  3.     public  CommonList(int Id, string Text)
  4.     {
  5.         this.Id = Id;
  6.         this.Text = Text;
  7.     }
  8.     public int Id { getset; }
  9.     public string Text { getset; }
  10. }

Creating a Controller:

Right click on the Controller folder and add a new controller, in my case I named it ListsitemsController.cs:

Code in ListsitemsController.cs
  1. public class ListsitemsController : ApiController
  2. {
  3.     [HttpGet]
  4.     [Route("items")]
  5.     public HttpResponseMessage ListItems()
  6.     {
  7.         List<CommonList> _list = new List<CommonList>();
  8.         _list.Add(new CommonList(1, "India"));
  9.         _list.Add(new CommonList(2, "China"));
  10.         _list.Add(new CommonList(3, "United States"));

  11.          return Request.CreateResponse(HttpStatusCode.OK, _list, Configuration.Formatters.JsonFormatter);
  12.      }
  13. }

The above controller will return a Country list as a response.

Now the API is ready to consume.

Using a Kendo Dropdownlist with MVVM pattern

Creating a HTML page

Create a new HTML page in the project, in my case I named it kendoDropdownlist.html.

Design:

  1. <!DOCTYPE html>
  2. <html>
  3.
  4. <head>
  5.     <title>Kendo Dropdownlist MVVM</title>
  6.     <meta charset="utf-8" />
  7.     <link rel="stylesheet" href="http://kendo.cdn.telerik.com/2remote-binding-of-kendo-dropdownlist-with-mvvm-pattern-using16.1.112/styles/kendo.common.min.css">
  8.     <link rel="stylesheet" href="http://kendo.cdn.telerik.com/2remote-binding-of-kendo-dropdownlist-with-mvvm-pattern-using16.1.112/styles/kendo.rtl.min.css">
  9.     <link rel="stylesheet" href="http://kendo.cdn.telerik.com/2remote-binding-of-kendo-dropdownlist-with-mvvm-pattern-using16.1.112/styles/kendo.default.min.css">
  10.     <link rel="stylesheet" href="http://kendo.cdn.telerik.com/2remote-binding-of-kendo-dropdownlist-with-mvvm-pattern-using16.1.112/styles/kendo.mobile.all.min.css">
  11.     <script src="http://code.jquery.com/jquery-1.9.1.min.js"></script>
  12.     <script src="http://kendo.cdn.telerik.com/2remote-binding-of-kendo-dropdownlist-with-mvvm-pattern-using16.1.112/js/angular.min.js"></script>
  13.     <script src="http://kendo.cdn.telerik.com/2remote-binding-of-kendo-dropdownlist-with-mvvm-pattern-using16.1.112/js/jszip.min.js"></script>
  14.     <script src="http://kendo.cdn.telerik.com/2remote-binding-of-kendo-dropdownlist-with-mvvm-pattern-using16.1.112/js/kendo.all.min.js"></script>
  15.     <script src="scripts/Core.js"></script>
  16.     <script src="scripts/Data.js"></script>
  17.     <script src="scripts/ViewModel.js"></script>
  18. </head>
  19.
  20. <body>
  21.     <div class="col-lg-12">
  22.         <div id="Main" class="main"></div>
  23.     </div>
  24.     <script type="text/x-kendo-template" id="Layout-temp">
  25.         <div class="col-lg-12">
  26.             <div id="content"></div>
  27.         </div>
  28.     </script>
  29.     <script type="text/x-kendo-template" id="Dashboard-temp">
  30.         <div class="row">
  31.             <h4>Kendo DropDownlist with MVVM Pattern</h4> <input data-role="dropdownlist" data-bind="source:country,value:Country" data-text-field="Text" data-value-field="Id" data-option-label="--Select Country--" style="width:5remote-binding-of-kendo-dropdownlist-with-mvvm-pattern-using%" /> </div>
  32.     </script>
  33. </body>
  34.
  35. </html>

Creating a JavaScript files

       1. View Model

Create a JavaScript file, in my case I named it ViewModel.Js

The View-Model is a representation of your data (the Model) which will be displayed in the View. To declare your View-Model use the kendo.observable function and pass it as a JavaScript object.

ViewModel.Js


  1. (function (G, $, undefined) {
  2.     $.extend(true, G, {
  3.         KendoDropdown: {
  4.             ViewModel: {
  5.                 DashboardModel: new kendo.observable({
  6.                     Country: '',
  7.                     country: G.KendoDropdown.Data.CountryList,
  8.
  9.
  10.                 }),
  11.             }
  12.         }
  13.     });
  14. })(window.Gni = window.Gni || {}, jQuery);
 2. Data

Create a JavaScript file, in my case I named it Data.Js

This script is responsible to bound the DataSource by requesting the API.

Data.js
  1. (function (G, $, K, undefined) {
  2.
  3.     $.extend(true, G, {
  4.         KendoDropdown: {
  5.             Data: {
  6.                 CountryList: new kendo.data.DataSource({
  7.                     transport: {
  8.                         read: {
  9.                             type: "GET",
  10.                             url: "api/list/items",
  11.                             datatype: "json",
  12.                         },
  13.                     },
  14.                     schema: {
  15.                         model: {
  16.                             id: "Id",
  17.                             fields: {
  18.                                 "Text""Text",
  19.
  20.
  21.                             }
  22.
  23.                         }
  24.                     }
  25.                 }),
  26.
  27.             }
  28.         }
  29.     });
  30. })(window.Gni = window.Gni || {}, jQuery, kendo);

1.   3.Core

Create a JavaScript file, in my case I named it Core.Js.

This core script is used to start the rendering of the templates and calls the view model to bind the data in the UI.

  1. $(function () {
  2.     var Layout = new kendo.Layout("Layout-temp");
  3.     var DashboardView = new kendo.View("Dashboard-temp", { model: Gni.KendoDropdown.ViewModel.DashboardModel });
  4.     var router = new kendo.Router({
  5.         init: function () {
  6.             Layout.render("#Main");
  7.             Layout.showIn("#content", DashboardView);
  8.
  9.
  10.         }
  11.     });
  12.     router.start();
  13. });

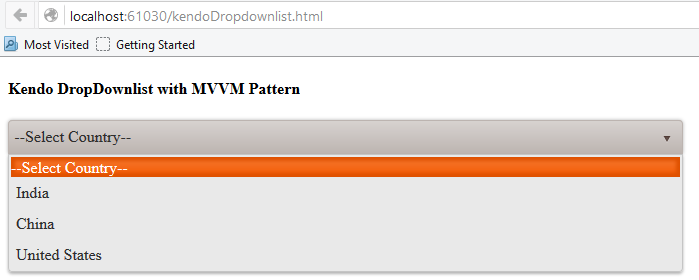

The Result in Browser:



I hope you enjoyed this article. Your valuable feedback, question, or comments about this article are always welcome.
