Security Based Alarm System With Arduino Mega 2560

Introduction

In this article I will explain about security based Alarm Systems with Arduino Mega 2560. It can be used to identify a person who crossed a line  without permission. It can be used at many places like schools, homes, hospitals, colleges, industries etc.

Parts
  • Arduino Mega 2560.
  • PIR Sensor
  • GSM Module
  • Buzzer
  • LED
GSM
  • GSM means Global System For Mobile Communication. It is used to send and receive message in critical area.
  • It can also act as GSM modem.
  • It can have a PIN configuration and MIC is also attached.


      Figure 1: GSM Board
PIR Sensor
  • It is used to detect people moving around approximately 10m from sensor.
  • The actual range is between 5m to 12m.
  • It is of high sensitivity and low noise.

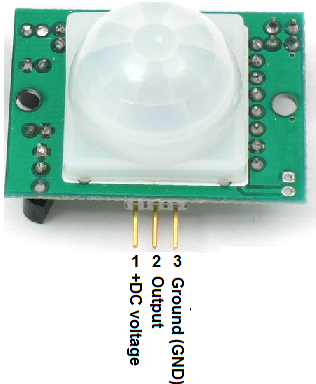

            Figure 2 : PIR Sensor
Connection

Step 1 - Arduino Mega 2560 To GSM Board
  • Connect the RX pin of the GSM board to the 04 of Arduino Mega 2560.
  • Connect the TX pin of the GSM board to the 03 of Arduino Mega 2560.
  • Connect the 5V power supply to the Arduino Mega 2560.
  • At last connect the 12 DC voltage to the GSM board.
Step 2 - Arduino Mega 2560 To PIR Sensor
  • In the PIR sensor they have three pins.
  • The first pin can be connected to dc voltage range as 5v.
  • The second pin can be connected to the Arduino board 5 in digital pin.
Step 3 - Arduino Mega 2560 To LED
  • The Anode(+) pin can be connected to the digital pin 7 to an Arduino board.
  • The cathode(-) pin can be connected to the Gnd to an Arduino board.
Step 4 - Arduino mega 2560 To Buzzer
  • The red color wire can be connected to the digital pin 10 to the Arduino board.
  • The black color wire can be connected to the Gnd to the Arduino board.
  • We can connect both the wires in exchange.
Programming
  1. #include < SoftwareSerial.h >
  2. #include "Timer.h"
  3. const int PIR = 5;
  4. const int TC35TXD0 = 04;
  5. const int TC35RXD0 = 03;
  6. SoftwareSerial mySerial = SoftwareSerial(TC35RXD0, TC35TXD0);
  7. const int siren = 10;
  8. int count;
  9. Timer t;
  10. void setup()
  11. {
  12.     pinMode(testswitch, INPUT);
  13.     pinMode(testled, OUTPUT);
  14.     pinMode(PIR, INPUT);
  15.     pinMode(siren, OUTPUT);
  16.     pinMode(TC35button, OUTPUT);
  17.     mySerial.begin(9600);
  18.     digitalWrite(testled, LOW);
  19.     digitalWrite(siren, LOW);
  20.     digitalWrite(TC35button, HIGH);
  21.     count = 0;
  22. }
  23. void loop()
  24. {
  25.     if (digitalRead(testswitch) == HIGH)
  26.     {
  27.         if (digitalRead(PIR) == HIGH)
  28.         {
  29.             digitalWrite(testled, HIGH);
  30.         } else {
  31.             digitalWrite(testled, LOW);
  32.         }
  33.     }
  34.     if (digitalRead(testswitch) == LOW)
  35.     {
  36.         digitalWrite(testled, LOW);
  37.         delay(15000);
  38.         digitalWrite(siren, HIGH);
  39.         delay(500);
  40.         digitalWrite(siren, LOW);
  41.         delay(15000);
  42.         digitalWrite(siren, HIGH);
  43.         delay(500);
  44.         digitalWrite(siren, LOW);
  45.         delay(500);
  46.         digitalWrite(siren, HIGH);
  47.         delay(500);
  48.         digitalWrite(siren, LOW);
  49.         while (count < 2)
  50.         {
  51.             t.update();
  52.         }
  53.         digitalWrite(TC35button, LOW);
  54.         delay(1000);
  55.         digitalWrite(TC35button, HIGH);
  56.         delay(20000);
  57.         mySerial.print("AT+CMGF=1\r");
  58.         delay(1000);
  59.         mySerial.print("AT+CMGS=\"+xxxxxxxxxxxx\"\r");
  60.         delay(1000);
  61.         mySerial.println("object dected ALERT!");
  62.         mySerial.print("\r");
  63.         delay(1000);
  64.         mySerial.println((char) 26);
  65.         mySerial.println();
  66.         delay(5000);
  67.         digitalWrite(siren, HIGH);
  68.         delay(20000);
  69.         digitalWrite(siren, LOW);
  70.         delay(1800000);
  71.     }
  72. }
  73. void checkPIR()
  74. {
  75.     if (digitalRead(PIR) == HIGH)
  76.     {
  77.         count = count + 1;
  78.     }
  79. }
  80. void clearPIR()
  81. {
  82.     if (count >= 2) {} else
  83.     {
  84.         count = 0;
  85.     }
  86. }
Explanation
  • In this article I explained about security of the system.
  • It can work or function in the sensor.
  • The sensor can be used to monitor the object of a person.
  • It can locate the object and sends SMS to mobile. It also raises an alarm.
  • It will function under the GSM Module.
Output

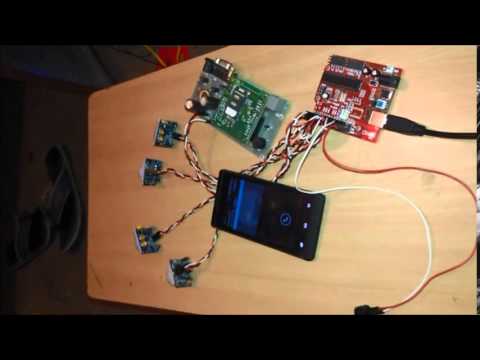

                                  Figure 3: Output
