SharePoint

SharePoint 2013: Custom Search, Sorting And Paging Using CSOM

In this particular article I am showing data in tiles format.

So now we can display data in any format and have custom paging, sorting, and search.

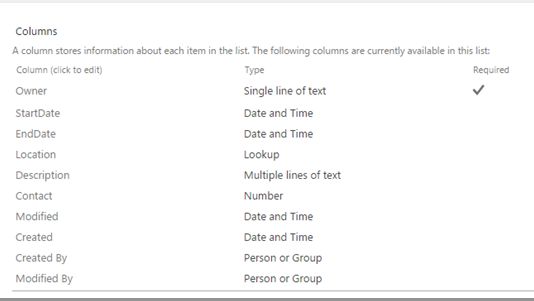

For this you require a SharePoint site with Events List. The Events list needs to have the following columns.

Also you need a Location List.This Location List has a Title column which we need to refer to in Events List.

I am attaching both the list templates.



Owner is Title Column.

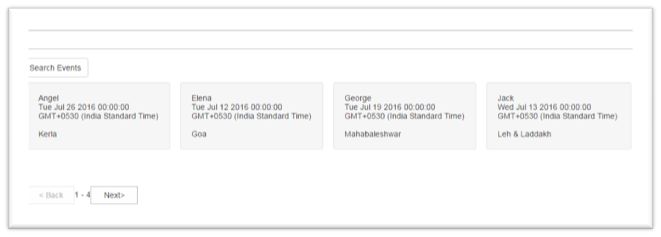

The Project basically contains a search box and a button and below the data is displayed in horizontal format. At the end you can see custom pager.



The Data is sorted on the basis of Title Column; i.e, Owner.

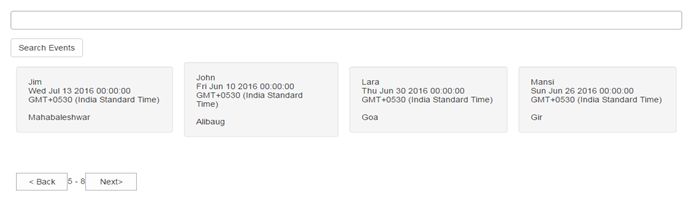

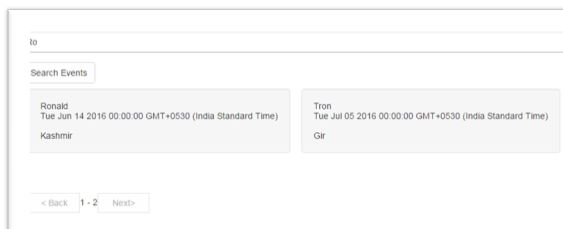

When you enter a key word in a search box and click on “Search Events”, it searches based on Title (Owner) column.



The code has page size 4 which can be changed.


  1. <!DOCTYPEHTMLPUBLIC"-//W3C//DTD XHTML 1.0 Transitional//EN""http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  2. <html>
  3.     <head>
  4.         <title>Events</title>
  5.         <linkrel="stylesheet"type="text/css"href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.6/css/bootstrap.min.css"/>
  6.         <scripttype="text/javascript"src="https://cdnjs.cloudflare.com/ajax/libs/jquery/3.0.0/jquery.min.js">
  7.         </script>
  8.         <scriptsrc="//ajax.aspnetcdn.com/ajax/4.0/1/MicrosoftAjax.js"type="text/javascript">
  9.         </script>
  10.         <scripttype="text/javascript"src="/_layouts/15/sp.runtime.js">
  11.         </script>
  12.         <scripttype="text/javascript"src="/_layouts/15/sp.js">
  13.         </script>
  14.         <styletype="text/css">
  15.             .pager {
  16.                 padding-left: 9px;
  17.                 /*margin: 20px 0;*/
  18.                 text-align: center;
  19.                 list-style: none;
  20.                 float: left;
  21.             }
  22.             .boxspace
  23.             {
  24.                 padding:9px;
  25.             }
  26.
  27.
  28.         </style>
  29.         <scripttype="text/javascript">
  30.             var pageIndex = 1; // default page index value
  31.             var pageSize = 4;//defualt page size
  32.             var nextPagingInfo;
  33.             var previousPagingInfo;
  34.             var position;
  35.             var splistitems;
  36.             var searchvalue;
  37.             var sflag;
  38.             var sortColumn = 'Title';//name if sort column
  39.             var listname = 'Events';//name if list
  40.
  41.             //next click code
  42.             function btnnextclick() {
  43.                 pageIndex = pageIndex + 1;
  44.                 if (nextPagingInfo) {
  45.                     position = new SP.ListItemCollectionPosition();
  46.                     position.set_pagingInfo(nextPagingInfo);
  47.                 }
  48.                 else {
  49.                     position = null;
  50.                 }
  51.
  52.                 getListItems();
  53.             }
  54.             //prev click code
  55.             function btnprevclick() {
  56.                 pageIndex = pageIndex - 1;
  57.                 position = new SP.ListItemCollectionPosition();
  58.                 position.set_pagingInfo(previousPagingInfo);
  59.                 getListItems();
  60.             }
  61.             $(document).ready(function () {
  62.
  63.                 //fetch items from list on page load
  64.                 getListItems();
  65.
  66.             });
  67.             function getListItems(searchbtnclickflag) {
  68.
  69.                 try {
  70.
  71.                     sflag = searchbtnclickflag;//value will be undefined as search button is not clicked
  72.                     var context = new SP.ClientContext.get_current();
  73.                     // Load the web object
  74.                     this.web = context.get_web();
  75.                     //Get the list
  76.                     var list = this.web.get_lists().getByTitle(listname);
  77.                     var spQuery = new SP.CamlQuery();
  78.                     //if search button is click then if condition will execute to set the default position of pager
  79.                     if (sflag == "1") {
  80.                         spQuery.set_listItemCollectionPosition(undefined);
  81.                     }
  82.                     else {
  83.                         spQuery.set_listItemCollectionPosition(position);
  84.                     }
  85.                     //on page load search input box is not created,hence this condition will execute.
  86.                     if (document.getElementById('search') == null) {
  87.                         spQuery.set_viewXml("
  88.             <View>
  89.                 <Query>
  90.                     <OrderBy>
  91.                         <FieldRef Name='" + sortColumn + "' Ascending='True'/>
  92.                     </OrderBy>
  93.                 </Query>" + "
  94.                 <RowLimit>" + pageSize + "</RowLimit>
  95.             </View>");
  96.
  97.                     }
  98.             //when search box does not contain any text
  99.             elseif (document.getElementById('search').value == "") {
  100.                         spQuery.set_viewXml("
  101.                 <View>
  102.                     <Query>
  103.                         <OrderBy>
  104.                             <FieldRef Name='" + sortColumn + "' Ascending='True'/>
  105.                         </OrderBy>
  106.                     </Query>" + "
  107.                     <RowLimit>" + pageSize + "</RowLimit>
  108.                 </View>");
  109.                     }
  110.                     //when search value contains text
  111.                     else {
  112.                         searchvalue = document.getElementById('search').value;
  113.
  114.                         spQuery.set_viewXml("
  115.                 <View>
  116.                     <Query>
  117.                         <Where>
  118.                             <Contains>
  119.                                 <FieldRef Name='Title' />
  120.                                 <Value Type='Text'>" + document.getElementById('search').value + "</Value>
  121.                             </Contains>
  122.                         </Where>
  123.                         <OrderBy>
  124.                             <FieldRef Name='" + sortColumn +
  125.                             "' Ascending='True'/>
  126.                         </OrderBy>
  127.                     </Query>" + "
  128.                     <RowLimit>" + pageSize + "</RowLimit>
  129.                 </View>");
  130.                     }
  131.                     splistitems = list.getItems(spQuery);
  132.                     context.load(splistitems);
  133.                     context.executeQueryAsync(Function.createDelegate(this,
  134.                     get_splistitems_onSuccess), Function.createDelegate(this,
  135.                     get_splistitems_onFailure));
  136.
  137.                 }
  138.                 catch (e) {
  139.                     alert("An error occurred while fetching data. Please contact your system administrator.");
  140.                 }
  141.             }
  142.             function get_splistitems_onSuccess() {
  143.                 if (splistitems.get_count() > 0) {
  144.
  145.                     var splistitemCollection = splistitems.getEnumerator();
  146.
  147.
  148.
  149.
  150.                     var table = "
  151.                         <input type='text'class='form-control' id='search' value='" + searchvalue + "'/>
  152.                         <br/>
  153.                         <button id='btnsearch' class='btn btn-default' type='button' onclick='getListItems(1)' value='Search Events'>Search Events</button>
  154.                         <br/>
  155.                         <table class='status'>
  156.                         <tr>";
  157.
  158.                     while (splistitemCollection.moveNext()) {
  159.                         var listItem = splistitemCollection.get_current();
  160.                         table += "
  161.                     <td class='boxspace'>
  162.                         <div class='well'>
  163.                             <span class='span2 title boldName id='" + listItem.get_item('ID') + "span1" + "'>" + listItem.get_item('Title') + "</span>
  164.                             <br/>
  165.                             <span class='span2 title boldCategory' id='" + listItem.get_item('ID') + "span2" + "'>" + listItem.get_item('StartDate') + "</span>
  166.                             <br/>
  167.                             <br/>
  168.                             <span class='span2 title boldCode' id='" + listItem.get_item('ID') + "span3" + "'>" + listItem.get_item('Location').get_lookupValue() + "</span>
  169.                         </div>
  170.                     </a>
  171.                 </td>";
  172.                         }
  173.
  174.                     table += "
  175.             </tr>
  176.         </table>";
  177.                     tableview.innerHTML = table + "
  178.         <br/>
  179.         <div class='pager'>
  180.             <button id='btnBack' type='button' onclick='btnprevclick()'>"
  181.                     + "< Back" + "
  182.             </button>" +
  183. "
  184.             <span id='pageInfo'></span>" +
  185. "
  186.             <button id='btnNext' type='button' onclick='btnnextclick()'>Next></button>" +
  187. "
  188.         </div>";
  189.                     if (document.getElementById('search').value == "undefined") {
  190.                         document.getElementById('search').value = "";
  191.                     }
  192.                     managePagerControl();
  193.                 }
  194.                 else {
  195.                     alert("No Data found");
  196.                 }
  197.             }
  198.             function managePagerControl() {
  199.
  200.                 if (sflag == "1") {
  201.                     pageIndex = 1;
  202.                 }
  203.                 if (splistitems.get_listItemCollectionPosition()) {
  204.                     nextPagingInfo = splistitems.get_listItemCollectionPosition().get_pagingInfo();
  205.                 } else {
  206.                     nextPagingInfo = null;
  207.                 }
  208.
  209.                 //The following code line shall add page information between the next and back buttons
  210.                 $("#pageInfo").html((((pageIndex - 1) * pageSize) + 1) + " - " + ((pageIndex * pageSize) - (pageSize - splistitems.get_count())));
  211.                 previousPagingInfo = "PagedPrev=TRUE&Paged=TRUE&p_ID=" + splistitems.itemAt(0).get_item('ID') + "&p_" + sortColumn + "=" + encodeURIComponent(splistitems.itemAt(0).get_item(sortColumn));
  212.
  213.
  214.
  215.                 if (pageIndex <= 1) {
  216.                     $("#btnBack").attr('disabled', 'disabled');
  217.                 }
  218.                 else {
  219.                     $("#btnBack").removeAttr('disabled');
  220.                 }
  221.
  222.                 if (nextPagingInfo) {
  223.                     $("#btnNext").removeAttr('disabled');
  224.                 }
  225.                 else {
  226.                     $("#btnNext").attr('disabled', 'disabled');
  227.                 }
  228.
  229.             }
  230.                 function get_splistitems_onFailure() {
  231.                 alert("An error occurred while fetching data. Please contact your system administrator."+e);
  232.             }
  233.
  234.     </script>
  235. </head>
  236. <body>
  237.     <!--HTML Content-->
  238.     <divclass="Status"id="tableview">
  239.     </div>
  240. </body>undefined</html>
