SharePoint Modern UI - Column Formatting

Overview

Microsoft is focusing more on Modern UI in SharePoint online. Microsoft is releasing new and very nice features to Office 365 on a frequent basis. SharePoint in its online version is also experiencing the addition of new useful features.

The recent addition to the new feature of SharePoint online is Column formatting. Microsoft had released SharePoint Framework extensions for Column Customizer on similar lines but needed some custom development. Column formatting, on the other hand, is relatively very simple to configure and use.

As the word says “Column formatting”, needless to say, it helps to customize how fields or columns in SharePoint list and libraries are displayed to the end users.

Formatting using JSON

Although I said Column formatting is relatively easy to configure, one should have a basic knowledge of JSON. We can form a JSON object that will describe elements which will be displayed when the field is displayed in the list view.

Can I change data using Column formatting?

If you have explored JSLink previously, Column formatting is similar to it in Modern UI. That means, you will not be able to change the data in list item or a file, but you will be able to change the look and feel of a field

How it looks like

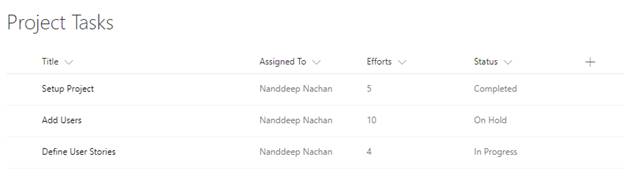

Let us take an example of tasks list. A tasks list where all project related tasks are tracked. In the out of box look and feel, it looks like below

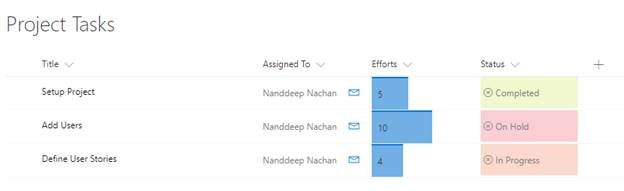

With the column formatter, each of the columns in Project Tasks list can be formatted to look something like below.



Applying the column formatting

Open the SharePoint list

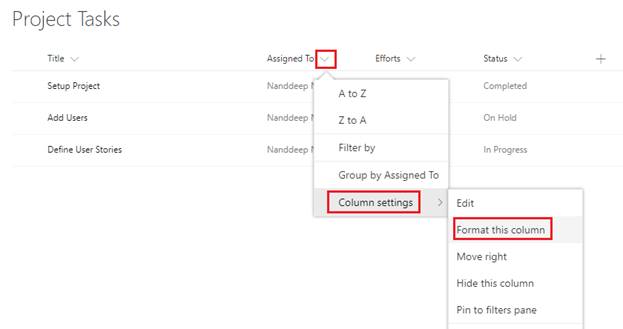

Click the down arrow beside the column name

Select “Column settings” > “Format this column”

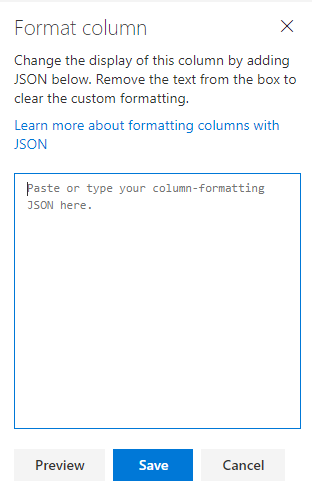

The Pane will appear as below to write and test the JSON.

Text, Number, Date, Choice fields

To display the column value in a div, use the following JSON.

{
   "elmType": "div",
   "txtContent": "@currentField"
}

Person field

To display the column value in a div, use the following JSON.

{
   "elmType": "div",
   "txtContent": "@currentField.title"
}

Person field

To display the column value in a div, the following JSON.

{
   "elmType": "div",
   "txtContent": "@currentField. lookupValue"
}

Useful Column formatting JSON examples can be found here - https://github.com/SharePoint/sp-dev-column-formatting/tree/master/samples

To apply formatting to number column (Efforts in our case), use the following JSON.

{
  "debugMode": true,
  "elmType": "div",
  "txtContent": "@currentField",
  "attributes": {
   "class": "sp-field-dataBars"
  },
  "style": {
    "width": {
      "operator": "?",
      "operands": [
        {
          "operator": ">",
          "operands": [
            "@currentField",
            "20"
          ]
        },
        "100%",
        {
          "operator": "+",
          "operands": [
            {
              "operator": "toString()",
              "operands": [
                {
                  "operator": "*",
                  "operands": [
                    "@currentField",
                    5
                  ]
                }
              ]
            },
            "%"
          ]
        }
      ]
    }
  }
}

The field will be formatted as shown below.

Predefined Classes

Out of the box, the following classes are available.

sp-field-customFormatBackground	Padding and margins for backgrounds.
sp-field-severity--good	Green box with text Done and check mark
sp-field-severity--low	White box with text In Progress and arrow
sp-field-severity--warning	Yellow box with text In Review and hazard icon
sp-field-severity--severeWarning	Orange box with text Has issues and hazard icon
sp-field-severity--blocked	Red box with text Blocked and X icon
sp-field-dataBars	Blue bar with number
sp-field-trending--up	Green arrow with number 500
sp-field-trending--down	Red arrow with number
sp-field-quickAction	Name with mail icon

Custom JSON

You can also create your own JSON.

1. Create .json file
2. Add below line

{
   "$schema": "http://columnformatting.sharepointpnp.com/columnFormattingSchema.json"
}

This will help to validate and autocomplete the JSON.

Column Formatting vs Field Customizer

Both Column formatting and Field customizer will help you to format the SharePoint fields. Field Customizer is custom developed using SharePoint Framework extensions and you will have more control over how the field should be rendered. Column formatting is easy to use with JSON.

In simple words, use Field customizer for complex scenarios that cannot be fulfilled using column formatting.
