Step By Step Creation Of Combo Box Control In Universal Window App

Prerequisites

  • Visual Studio 2015

Now, let's get started with the following steps:

Step 1 - Create Windows Universal Project

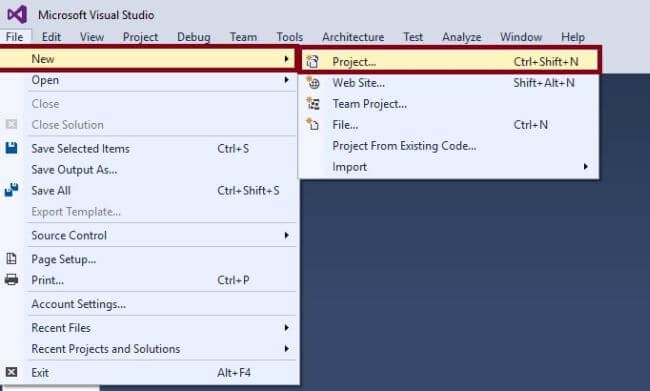

Open Visual Studio 2015 and click File -> New -> Project Option for New Universal App.

New

Step 2 - Giving the Project Name

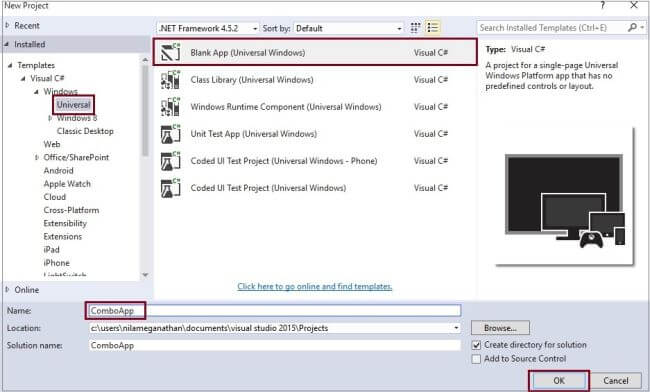

Then, New Project Window will open. There, you can select Installed -> Template -> Visual C# -> Windows -> Universal and select  "Blank App (Universal Windows)".

Type the project name, such as ComboApp and click the OK button.

Project Name

Step 3 - Setting the platform Versions

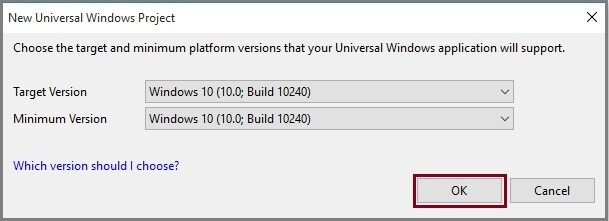

Here, we choose the Target Version and Minimum Version for our Universal Windows application. Click OK.

platform Versions

Step 4 - Choose Designer Window

Now, go to the Solution Explorer and open the MainPage.xaml for design.

Solution Explorer

Step 5 - Designing the App

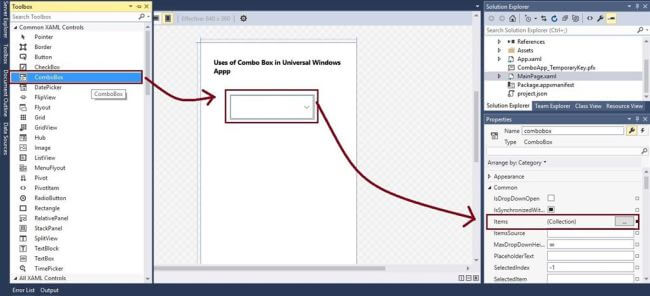

In the MainPage.xaml designing page, drag the Combo Box button control from the tool box. Then, go to the Properties window and click Items.

Designing the App

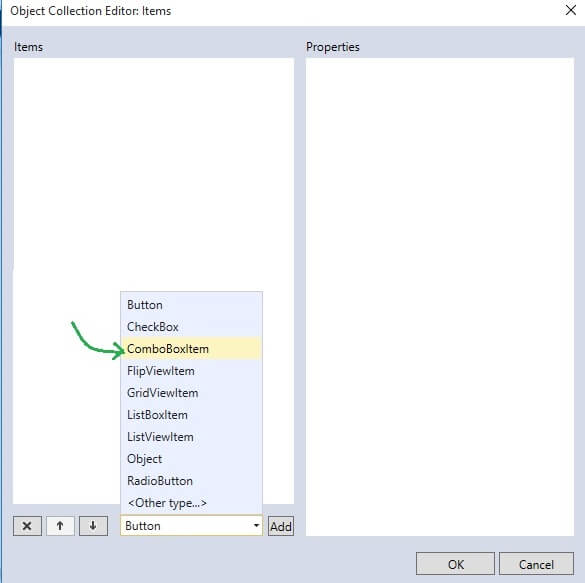

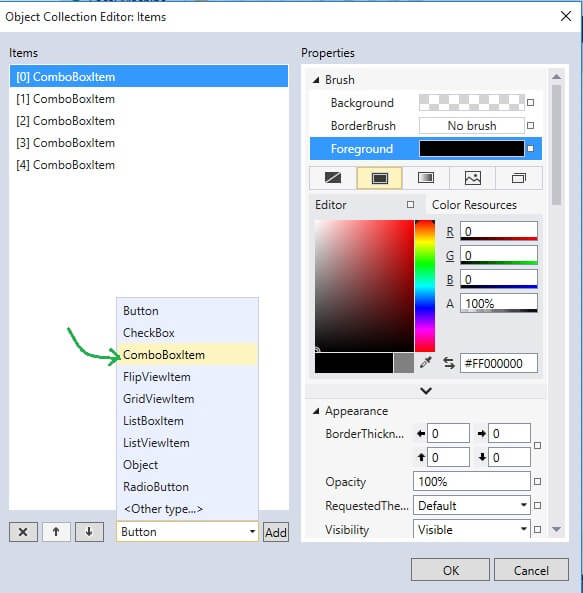

Next, choose ComboBoxitem and click Add.

Combobox item

Now, add the ComboBoxItems that you required.

Combobox item

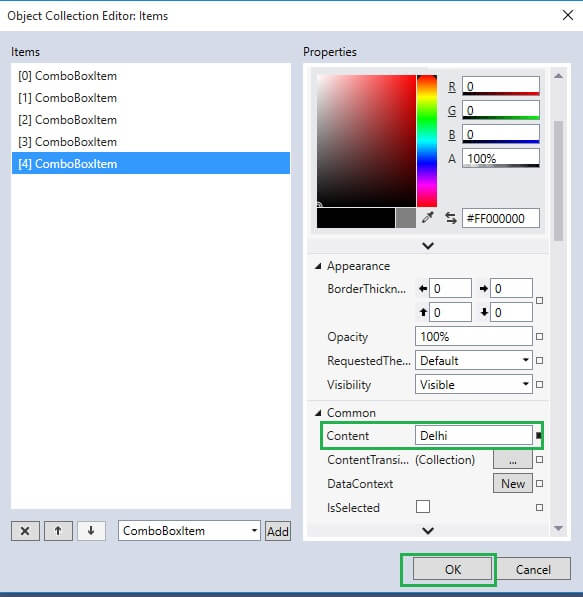

Next, choose Common -> Content from the properties window and change the item name.

properties

Step 6 - Add the Coding

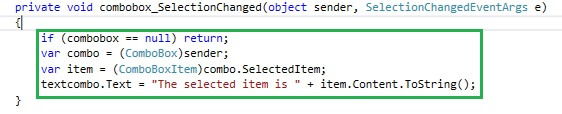

To add the coding, double click on the Combo box and add the below mentioned source code.

Coding

  1. private void combobox_SelectionChanged(object sender, SelectionChangedEventArgs e)
  2. {
  3.     if (combobox == nullreturn;
  4.     var combo = (ComboBox) sender;
  5.     var item = (ComboBoxItem) combo.SelectedItem;
  6.     textcombo.Text = "The selected item is " + item.Content.ToString();
  7. }

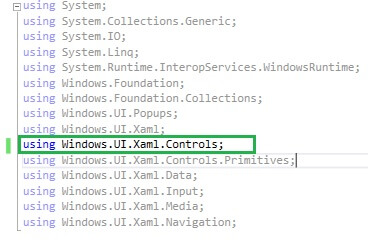

Add the following to the Header file.

file
  1. using Windows.UI.Xaml.Controls;
Step 7 - Run the Application

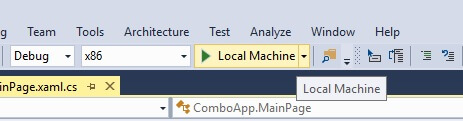

Now, we are ready to run our Project. Click on the Local Machine icon at top ribbon for running the application.

Application

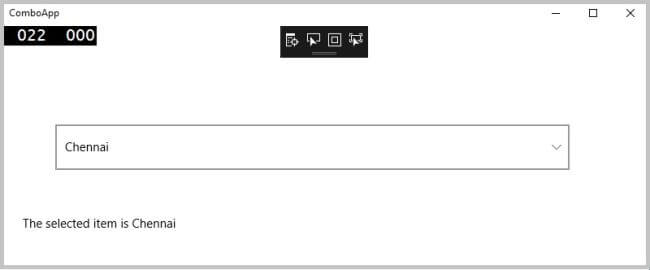

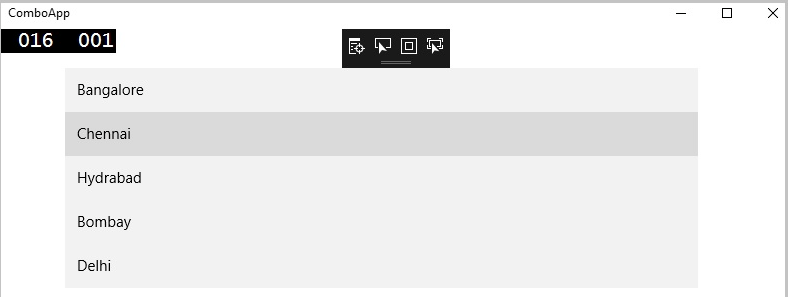

Output

Output

Output

Conclusion - I hope you understood Combo Box button control in Universal Window and how to run it.
