Steps To Follow In ShareGate Migration

Steps To Follow With The Best Practices While Doing Share Gate Migration

  1. Create the Web Apps after proper certifications and token settings using PowerShell scripts provided by the client.

  2. Execute the Inventory PowerShell script code for finding out the total reports in the below sections: Workflows, Workflows_InProgress, Workflows_Other, Lists_InfoPath, Features, Lists_All, Lists_Large, Features_Site, Features_SiteCollections.

    You need to create a CSV folder with the above CSV files ready in the required path for getting them updated.
  1. Also, make an Excel sheet of site collections and their size ranges in MB, GB of the required WebApps for migration to make an estimated timesheet schedule.PowerShell script used for this purpose is shown below.

    Get-SPWebApplication <Web App name> | Get-SPSite -limit all| Select Url, @{label="Size in MB";Expression={$_.usage.storage/1MB}}| Out-File -FilePath "C:\Output.txt"

    Please create Output text file in the mentioned path.

    1. function GetWebSizes ($StartWeb)
    2. {
    3.     $web = $StartWeb
    4.     [long]$total = 0
    5.     $total += GetWebSize -Web $web
    6.     $total += GetSubWebSizes -Web $web
    7.     $totalInMb = ($total/1024)/1024
    8.     $totalInMb = "{0:N2}" -f $totalInMb
    9.     $totalInGb = (($total/1024)/1024)/1024
    10.     $totalInGb = "{0:N2}" -f $totalInGb
    11.     write-host "Total size of all sites below" $StartWeb "is" $total "Bytes,"
    12.     write-host "which is" $totalInMb "MB or" $totalInGb "GB"
    13.     $web.Dispose()
    14. }
    15.
    16. function GetWebSize ($Web)
    17. {
    18.     [long]$subtotal = 0
    19.     foreach ($folder in $Web.Folders)
    20.     {
    21.         $subtotal += GetFolderSize -Folder $folder
    22.     }
    23.     write-host "Site" $Web.Title "is" $subtotal "KB"
    24.     return $subtotal
    25. }
    26.
    27. function GetWebSizePlain ($Web)
    28. {
    29.     [long]$subtotal = 0
    30.     foreach ($folder in $Web.Folders)
    31.     {
    32.         $subtotal += GetFolderSize -Folder $folder
    33.     }
    34.     #write-host "Site" $Web.Title "is" $subtotal
    35.     return $subtotal
    36. }
    37.
    38. function GetSubWebSizes ($Web)
    39. {
    40.     [long]$subtotal = 0
    41.     foreach ($subweb in $Web.GetSubwebsForCurrentUser())
    42.     {
    43.         [long]$webtotal = 0
    44.         foreach ($folder in $subweb.Folders)
    45.         {
    46.             $webtotal += GetFolderSize -Folder $folder
    47.         }
    48.         #write-host "Site" $subweb.Title "is" $webtotal "Bytes"
    49.         $subtotal += $webtotal
    50.         $subtotal += GetSubWebSizes -Web $subweb
    51.     }
    52.     return $subtotal
    53. }
    54.
    55. function GetFolderSize ($Folder)
    56. {
    57.     [long]$folderSize = 0
    58.     foreach ($file in $Folder.Files)
    59.     {
    60.         $folderSize += $file.Length;
    61.     }
    62.     foreach ($fd in $Folder.SubFolders)
    63.     {
    64.         $folderSize += GetFolderSize -Folder $fd
    65.     }
    66.     return $folderSize
    67. }
    68.
    69. $CountWorkflows= 0
    70. $CountWorkflowsTotal= 0
    71. $CountWorkflowsInProgress = 0
    72. $CountWorkflowsInProgressTotal = 0
    73. $CountWorkflowsOther = 0
    74. $CountWorkflowsOtherTotal = 0
    75. $SiteAdmins = ""
    76. $FullControl = ""
    77.
    78. $scriptBase = split-path $SCRIPT:MyInvocation.MyCommand.Path -parent
    79. New-Item -ItemType Directory -Force -Path $scriptBase"\csv"
    80. $scriptBase = $scriptBase + "\csv"
    81. Set-Location $scriptBase
    82.
    83. $WorkflowsFile = $scriptbase + "\" + "Workflows.csv"
    84.     "Site" + "," + "SiteGUID" + "," + "List" + "," + "WorkflowName" + "," + "Count" | Out-File -Encoding Default -FilePath $WorkflowsFile
    85. $InProgressWorkflowsFile = $scriptbase + "\" + "Workflows_InProgress.csv"
    86.     "Site" + "," + "SiteGUID" + "," + "List" + "," + "ItemName" + "," + "ItemGUID" + "," + "WorkflowInstanceID" | Out-File -Encoding Default -FilePath $InProgressWorkflowsFile
    87. $OtherWorkflows = $scriptbase + "\" + "Workflows_Other.csv"
    88.     "Site" + "," + "SiteGUID" + "," + "List" + "," + "ItemName" + "," + "ItemGUID" + "," + "WorkflowInstanceID" | Out-File -Encoding Default -FilePath $OtherWorkflows
    89. $InfoPathLibs = $scriptbase + "\" + "Lists_InfoPath.csv"
    90.     "Site, SiteGUID , List Name , List Url , Docs Count , Last Modified , WF Count , Live WF , Live WF Names , Form Template" | Out-File -Encoding Default -FilePath $InfoPathLibs
    91. $SitesFile = $scriptbase + "\" + "Sites.csv"
    92.     "Site,ID,ParentWebID,SiteCollectionID, Last Modified , WebTemplate , WebTemplateID , Unique Permissions , Size , Site Collection Admins , Full Control Users , Unique Workflows , Workflows in Progress, Workflows non complete state" | Out-File -Encoding Default -FilePath $SitesFile
    93.
    94. $AllLists = "Lists_All.csv"
    95. "SiteURL,SiteGUID,ParentWebID,ListName , Size , ItemCount , Template , LastModified" | Out-File -Encoding Default -FilePath $AllLists
    96. $LargeLists = "Lists_Large.csv"
    97. "SiteURL,SiteGUID,ParentWebID,ListName , Size , ItemCount , Template, LastModified" | Out-File -Encoding Default -FilePath $LargeLists
    98.
    99. $SiteCollectionsFile = $scriptbase + "\" + "SiteCollections.csv"
    100. $WebAppsOut = $scriptbase + "\" + "WebApps.csv"
    101. $ServersOut = $scriptbase + "\" + "Servers.csv"
    102. $ServiceAppsOut  = $scriptbase + "\" + "ServiceApp.csv"
    103.
    104. $FeaturesFile = "Features_Site.csv"
    105. "SiteURL,SiteGUID,Feature_ID,Feature_Name,State" | Out-File -Encoding Default -FilePath $FeaturesFile
    106. $SiteCollectionsFeaturesFile = "Features_SiteCollections.csv"
    107. "SiteCollectionURL,SiteCollectionGUID,Feature_ID,Feature_Name,State" | Out-File -Encoding Default -FilePath $SiteCollectionsFeaturesFile
    108. Get-SPServer | Select DisplayName, Role | Export-CSV $ServersOut
    109. Get-SPServiceApplication | Select DisplayName,{$_.ApplicationPool.Name} | Export-CSV $ServiceAppsOut
    110. Get-SPWebApplication | Select DisplayName,Url, {$_.AlternateUrls.Count}, {$_.AlternateUrls.Uri} | Export-CSV $WebAppsOut
    111. Get-SPSite -Limit All | Select Url, Owner,{$_.Quota.StorageMaximumLevel},ID | Export-CSV $SiteCollectionsFile
    112.
    113.
    114. Get-SPSite "http://gateway2013.softura.com/" | Get-SPWeb -Limit All  | foreach {
    115.     $SiteAdmins = ""
    116.     $FullControl = ""
    117.     $CountWorkflows = 0
    118.     $CountWorkflowsInProgress = 0
    119.     $CountWorkflowsOther = 0
    120.
    121.     $subwebtitle =  $_.Title + "_"
    122.
    123.     ##$FeaturesFile = $_.Title + "_Features.csv"
    124.
    125.
    126.
    127.     $subWeb = $_
    128.
    129.     if($subWeb.Url -eq $subWeb.Site.Url)
    130.      {
    131.
    132.       $siteFeatures = Get-SPFeature | Where-Object {$_.Scope -eq "Site" }
    133.       if ($siteFeatures -ne $null)
    134.       {
    135.        foreach ($feature in $siteFeatures)
    136.        {
    137.         # Actived feature
    138.         if ((Get-SPFeature -Site $subWeb.Url | Where-Object {$_.Id -eq $feature.id}) -ne $null)
    139.         {
    140.             $subWeb.Site.URL + "," + $subWeb.Site.ID.ToString() + "," + $feature.Id.ToString() + "," + $feature.DisplayName + ",activated" | Out-File -Encoding Default -Append -FilePath $SiteCollectionsFeaturesFile
    141.         }
    142.         # DeActived feature
    143.         elseif ((Get-SPFeature -Site $subWeb.Url | Where-Object {$_.Id -eq $feature.id}) -eq $null)
    144.         {
    145.             $subWeb.Site.URL + "," + $subWeb.Site.ID.ToString() + "," + $feature.Id.ToString() + "," + $feature.DisplayName + ",deactivated" | Out-File -Encoding Default -Append -FilePath $SiteCollectionsFeaturesFile
    146.         }
    147.        }
    148.       }
    149.      }
    150.
    151.     $siteFeatures = Get-SPFeature | Where-Object {$_.Scope -eq "Web" }
    152.      if ($siteFeatures -ne $null)
    153.      {
    154.       foreach ($feature in $siteFeatures)
    155.       {
    156.        # Actived feature
    157.        if ((Get-SPFeature -Web $subWeb.Url | Where-Object {$_.Id -eq $feature.id}) -ne $null)
    158.        {
    159.           $subWeb.Url + "," + $subWeb.Id.ToString() + "," + $feature.Id.ToString() + "," + $feature.DisplayName + ",activated" | Out-File -Encoding Default -Append -FilePath $FeaturesFile
    160.        }
    161.        # DeActived feature
    162.        elseif ((Get-SPFeature -Web $subWeb.Url | Where-Object {$_.Id -eq $feature.id}) -eq $null)
    163.        {
    164.           $subWeb.Url + "," + $subWeb.Id.ToString() + "," +$feature.Id.ToString() + "," + $feature.DisplayName + ",deactivated" |Out-File -Encoding Default -Append -FilePath $FeaturesFile
    165.        }
    166.       }
    167.      }
    168.
    169.
    170.     ""
    171.     ""+$_.url
    172.     "  GUID:"+$_.ID
    173.     "  Parent GUID:"+$_.ParentWebID
    174.     "  Site Collection GUID:"+$_.Site.ID
    175.     "  LastItemModifiedDate: " + $_.LastItemModifiedDate
    176.     "  WebTemplate: " + $_.WebTemplate
    177.     "  WebTemplateID: " + $_.WebTemplateID
    178.     "  Web has unique permissions: " + $_.HasUniquePerm
    179.     GetWebSizes ($_)
    180.
    181.     $Size = GetWebSizePlain($_)
    182.     # the Site Collection Administrators
    183.     " Site Collection Administrators:"
    184.     foreach ($user in $_.SiteAdministrators)
    185.     {
    186.        "  " + $user.DisplayName + " " + $user.UserLogin
    187.        $SiteAdmins = $SiteAdmins + $user.DisplayName + " " + $user.UserLogin + "`n"
    188.     }
    189.
    190.     # full control users
    191.     " Full Control Users:"
    192.     foreach ($user in $_.Users)
    193.     {
    194.        if ( $_.DoesUserHavePermissions($user,[Microsoft.SharePoint.SPBasePermissions]::FullMask) )
    195.        {
    196.          "  " + $user.DisplayName + " " + $user.UserLogin
    197.          $FullControl = $FullControl + $user.DisplayName + " " + $user.UserLogin + "`n"
    198.        }
    199.     }
    200.
    201.
    202.      $_.Lists | foreach { $_.WorkflowAssociations | foreach {
    203.         ##write-host "Site URL :" $_.ParentWeb.Url ", List Name :" $_.ParentList.Title ", Workflow Name :" $_.Name ", Workflow Count :" $_.ItemGUID
    204.         $_.ParentList.ParentWeb.URL + "," + $_.ParentList.ParentWeb.ID + "," + $_.ParentList.Title + "," + $_.Name + "," + $_.Count | Out-File -Encoding Default  -Append -FilePath $WorkflowsFile;
    205.         $CountWorkflows = $CountWorkflows + 1
    206.      } }
    207.
    208.
    209.      foreach($list in $_.Lists)
    210.             {
    211.             $listSize = 0
    212.             foreach ($item in $list.items)
    213.             {
    214.                 $listSize += ($item.file).length
    215.             }
    216.             $list.ParentWeb.URL + "," +  $list.ParentWeb.ID +"," + $list.title + ","+ $listSize + "," + $list.ItemCount+ "," + $list.BaseTemplate + "," + $list.LastItemModifiedDate.ToShortDateString() | Out-File -Encoding Default -Append -FilePath $AllLists
    217.             if( $list.ItemCount -gt 2000 )
    218.             {
    219.                 $list.ParentWeb.URL + "," +  $list.ParentWeb.ID +"," + $list.title + ","+ $listSize + "," + $list.ItemCount+ "," + $list.BaseTemplate + "," + $list.LastItemModifiedDate.ToShortDateString() | Out-File -Encoding Default -Append -FilePath $LargeLists
    220.             }
    221.
    222.             if( $list.BaseType -eq "DocumentLibrary" -and $list.BaseTemplate -eq "XMLForm")
    223.             {
    224.                 $listModDate = $list.LastItemModifiedDate.ToShortDateString()
    225.                 $listTemplate = $list.ServerRelativeDocumentTemplateUrl
    226.                 $listWorkflowCount = $list.WorkflowAssociations.Count
    227.                 $listLiveWorkflowCount = 0
    228.                 $listLiveWorkflows = ""
    229.                 foreach ($wf in $list.WorkflowAssociations)
    230.                 {
    231.                     if ($wf.Enabled)
    232.                     {
    233.                         $listLiveWorkflowCount++
    234.                         if ($listLiveWorkflows.Length -gt 0)
    235.                         {
    236.                             $listLiveWorkflows = "$listLiveWorkflows, $($wf.Name)"
    237.                         }
    238.                         else
    239.                         {
    240.                             $listLiveWorkflows = $wf.Name
    241.                         }
    242.                     }
    243.                 }
    244.                 $list.ParentWeb.URL +"," + $list.ParentWeb.ID +"," + $list.title +"," + $_.ParentWeb.Url + "/" + $list.RootFolder.Url  +"," + $list.ItemCount +"," + $listModDate +"," + $listWorkflowCount +"," + $listLiveWorkflowCount +"," + $listLiveWorkflows +"," + $listTemplate | Out-File -Encoding Default -Append -FilePath $InfoPathLibs
    245.             }
    246.                 foreach($item in $list.items)
    247.                 {
    248.                     foreach($workflow in $item.workflows)
    249.                     {
    250.                         if($workflow.iscompleted -eq $false)
    251.                         {
    252.                            $list.ParentWeb.URL + "," + $list.ParentWeb.ID + "," + $list.Title + "," + $workflow.ItemName + "," + $workflow.ItemGUID + "," + $workflow.InstanceId | Out-File -Encoding Default  -Append -FilePath $InProgressWorkflowsFile;
    253.                            $CountWorkflowsInProgress++
    254.                         }
    255.                         else
    256.                         {
    257.                            $list.ParentWeb.URL + "," + $list.ParentWeb.ID + "," + $list.Title + "," + $workflow.ItemName + "," + $workflow.ItemGUID + "," + $workflow.InstanceId | Out-File -Encoding Default  -Append -FilePath $OtherWorkflows;
    258.                            $CountWorkflowsOther++
    259.                         }
    260.                     }
    261.                 }
    262.             }
    263.             " WorkFlows:"+ $CountWorkflows
    264.                 $CountWorkflowsTotal = $CountWorkflowsTotal+$CountWorkflows
    265.             " WorkFlows InProgress:" + $CountWorkflowsInProgress
    266.                 $CountWorkflowsInProgressTotal = $CountWorkflowsInProgressTotal+ $CountWorkflowsInProgress
    267.             " WorkFlows Other States:" + $CountWorkflowsOther
    268.                 $CountWorkflowsOtherTotal = $CountWorkflowsOtherTotal + $CountWorkflowsOther
    269.             $_.url + "," + $_.ID + "," + $_.ParentWebID + "," + $_.Site.ID + "," + $_.LastItemModifiedDate  + "," + $_.WebTemplate + "," + $_.WebTemplateID + "," + $_.HasUniquePerm + "," + $Size + "," + "`"$SiteAdmins`"" + "," + "`"$FullControl`"" + "," + $CountWorkflows + "," + $CountWorkflowsInProgress + "," + $CountWorkflowsOther| Out-File -Encoding Default  -Append -FilePath $SitesFile;
    270.
    271.   }
    272.   "Total Workflows:" + $CountWorkflowsTotal
    273.   "Total Workflows In Progress:" + $CountWorkflowsInProgressTotal
    274.   "Total Workflows In Other States:" + $CountWorkflowsOtherTotal
  1. Give Site Collection Admin permission to the user id in both the source and destination site collections.

  2. Check the features in both the source and destination, and activate whichever ones are not yet activated in the destination site collection.

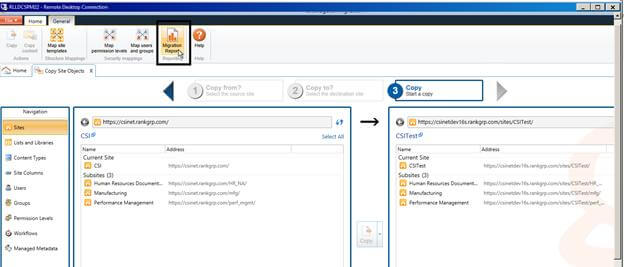

  3. Run as administrator on the ShareGate tool and launch Migration.

  4. Connect the source destination with valid authentication.

  5. Run the Pre-Check report to solve errors and warnings in bulk.

  6. Map the Unresolved Users and Groups to an SPFarmAdmin id to avoid users not found errors /warnings, as shown below in the screenshot.


  1. Similarly, do the necessary Site Template mappings.


  1. Similarly, do the necessary Permissions mappings.


  1. Select the top site if sub sites are also available for migration, as ShareGate automatically selects all of them to migrate.


  1. Start migration with the below settings.


  1. You can also generate the report and start validating to solve the errors /warnings.


  2. Check the help links from the migration report to resolve the errors/warnings. If not available, kindly share the report with the ShareGate Support team and describe your errors/warnings to get a proper solution to fix it.
That's it. I hope you liked this article.

Up Next
    Ebook Download
    View all
    Learn
    View all
