Xamarin.Forms - BugSweeper App

Introduction

This is a familiar game with a new twist. To win, you must find and flag all ten bugs. Ten bugs are hidden in a 9-by-9 grid of tiles.That first double tab is always safe. Thereafter, numbers indicate the number of surrounding tiles with bugs. Flag it with a single tab. Avoid double-tabbing a tile with bug!.



Let's start.



Step 1

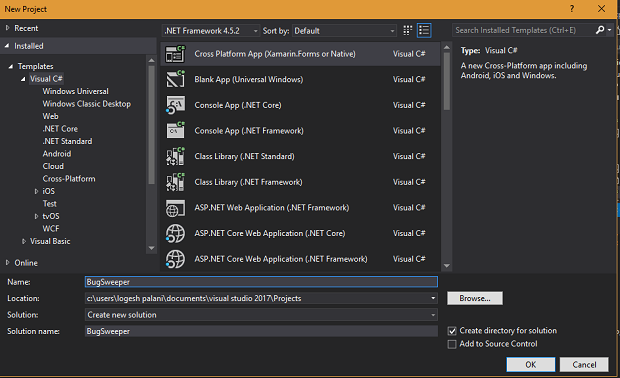

You can create Xamarin.Forms app by going to File >> New >> Visual C# >> Cross-platform >> Cross-Platform App (Xamarin.Native or Xamarin.Forms), enter desired name for your project, and press OK.

(Project name- BugSweeper)





Step 2

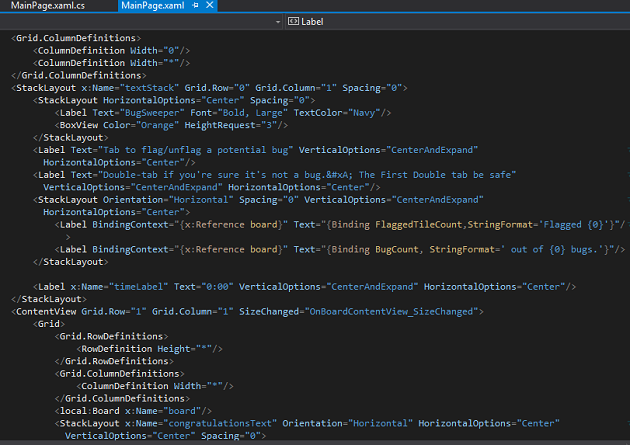

After the project creation, go to Solution Explorer >> BugSweeper(PCL) app >> click open MainPage.xaml and add the following code.

Used ToolBox items,

• StackLayout
• Label
• BoxView
• Grid

<?xml version="1.0" encoding="utf-8" ?>
<ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             xmlns:local="clr-namespace:BugSwapperApp"
             x:Class="BugSwapperApp.MainPage">

    <ContentView SizeChanged="OnMainContentView_SizeChanged">
        <Grid x:Name="mainGrid" ColumnSpacing="0" RowSpacing="0">
            <Grid.RowDefinitions>
                <RowDefinition Height="7*"/>
                <RowDefinition Height="4*"/>
            </Grid.RowDefinitions>
            <Grid.ColumnDefinitions>
                <ColumnDefinition Width="0"/>
                <ColumnDefinition Width="*"/>
            </Grid.ColumnDefinitions>
            <StackLayout x:Name="textStack" Grid.Row="0" Grid.Column="1" Spacing="0">
                <StackLayout HorizontalOptions="Center" Spacing="0">
                    <Label Text="BugSweeper" Font="Bold, Large" TextColor="Navy"/>
                    <BoxView Color="Orange" HeightRequest="3"/>
                </StackLayout>
                <Label Text="Tab to flag/unflag a potential bug" VerticalOptions="CenterAndExpand" HorizontalOptions="Center"/>
                <Label Text="Double-tab if you're sure it's not a bug.
 The First Double tab be safe" VerticalOptions="CenterAndExpand" HorizontalOptions="Center"/>
                <StackLayout Orientation="Horizontal" Spacing="0" VerticalOptions="CenterAndExpand" HorizontalOptions="Center">
                    <Label BindingContext="{x:Reference board}" Text="{Binding FlaggedTileCount,StringFormat='Flagged {0}'}"/>
                    <Label BindingContext="{x:Reference board}" Text="{Binding BugCount, StringFormat=' out of {0} bugs.'}"/>
                </StackLayout>

                <Label x:Name="timeLabel" Text="0:00" VerticalOptions="CenterAndExpand" HorizontalOptions="Center"/>
            </StackLayout>
            <ContentView Grid.Row="1" Grid.Column="1" SizeChanged="OnBoardContentView_SizeChanged">
                <Grid>
                    <Grid.RowDefinitions>
                        <RowDefinition Height="*"/>
                    </Grid.RowDefinitions>
                    <Grid.ColumnDefinitions>
                        <ColumnDefinition Width="*"/>
                    </Grid.ColumnDefinitions>
                    <local:Board x:Name="board"/>
                    <StackLayout x:Name="congratulationsText" Orientation="Horizontal" HorizontalOptions="Center" VerticalOptions="Center" Spacing="0">
                        <Label Text="C" TextColor="Black"/>
                        <Label Text="O" TextColor="Black"/>
                        <Label Text="N" TextColor="Black"/>
                        <Label Text="G" TextColor="Black"/>
                        <Label Text="R" TextColor="Black"/>
                        <Label Text="A" TextColor="Black"/>
                        <Label Text="T" TextColor="Black"/>
                        <Label Text="U" TextColor="Black"/>
                        <Label Text="L" TextColor="Black"/>
                        <Label Text="A" TextColor="Black"/>
                        <Label Text="T" TextColor="Black"/>
                        <Label Text="I" TextColor="Black"/>
                        <Label Text="O" TextColor="Black"/>
                        <Label Text="N" TextColor="Black"/>
                        <Label Text="S" TextColor="Black"/>
                        <Label Text="!" TextColor="Black"/>
                        <Label Text="!" TextColor="Black"/>
                     </StackLayout>
                    <StackLayout x:Name="consolationText" Orientation="Horizontal" Spacing="0" HorizontalOptions="Center" VerticalOptions="Center">
                        <Label Text="T" TextColor="Black"/>
                        <Label Text="O" TextColor="Black"/>
                        <Label Text="O" TextColor="Black"/>
                        <Label Text="L" TextColor="Black"/>
                        <Label Text="O" TextColor="Black"/>
                        <Label Text="S" TextColor="Black"/>
                        <Label Text="T" TextColor="Black"/>
                        <Label Text="!" TextColor="Black"/>
                        <Label Text=":" TextColor="Gray"/>
                        <Label Text=")" TextColor="Green"/>
                    </StackLayout>
                    <Button x:Name="playAgainButton" Text="Play Another Game?" VerticalOptions="Center" HorizontalOptions="Center" Clicked="onplayAgainButton_Clicked" BorderColor="Black" BorderWidth="2" BackgroundColor="White" TextColor="Blue"/>
                </Grid>
            </ContentView>

        </Grid>

    </ContentView>

</ContentPage>

Step 3

In this step, open Solution Explorer >> BugSweeper (PCL) >> MainPage.xaml.cs and double click to open MainPage.xaml.cs. Here is the code.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using Xamarin.Forms;

namespace BugSwapperApp
{
    public partial class MainPage : ContentPage
    {
        const string timeFormat = @"%m\:ss";

        bool isGameInProgress;
        DateTime gameStartTime;
        public MainPage()
        {
            InitializeComponent();

            board.GameStarted += (sender, args) =>
            {
                isGameInProgress = true;
                gameStartTime = DateTime.Now;
                Device.StartTimer(TimeSpan.FromSeconds(1), () =>
                {
                    timeLabel.Text = (DateTime.Now - gameStartTime).ToString(timeFormat);
                    return isGameInProgress;
                });
            }; board.GameEnded += (sender, hasWon) =>
            {
                isGameInProgress = false;

                if (hasWon)
                {
                    DisplayWonAnimation();
                }
                else
                {
                    DisplayLostAnimation();
                }
            };
            PrepareForNewGame();
        }

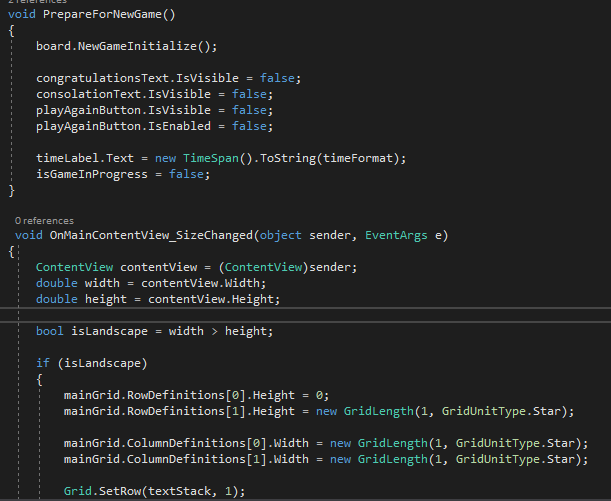

        void PrepareForNewGame()
        {
            board.NewGameInitialize();

            congratulationsText.IsVisible = false;
            consolationText.IsVisible = false;
            playAgainButton.IsVisible = false;
            playAgainButton.IsEnabled = false;

            timeLabel.Text = new TimeSpan().ToString(timeFormat);
            isGameInProgress = false;
        }

         void OnMainContentView_SizeChanged(object sender, EventArgs e)
        {
            ContentView contentView = (ContentView)sender;
            double width = contentView.Width;
            double height = contentView.Height;

            bool isLandscape = width > height;

            if (isLandscape)
            {
                mainGrid.RowDefinitions[0].Height = 0;
                mainGrid.RowDefinitions[1].Height = new GridLength(1, GridUnitType.Star);

                mainGrid.ColumnDefinitions[0].Width = new GridLength(1, GridUnitType.Star);
                mainGrid.ColumnDefinitions[1].Width = new GridLength(1, GridUnitType.Star);

                Grid.SetRow(textStack, 1);
                Grid.SetColumn(textStack, 0);
            }
            else // portrait
            {
                mainGrid.RowDefinitions[0].Height = new GridLength(3, GridUnitType.Star);
                mainGrid.RowDefinitions[1].Height = new GridLength(5, GridUnitType.Star);

                mainGrid.ColumnDefinitions[0].Width = 0;
                mainGrid.ColumnDefinitions[1].Width = new GridLength(1, GridUnitType.Star);

                Grid.SetRow(textStack, 0);
                Grid.SetColumn(textStack, 1);
            }
        }

         void OnBoardContentView_SizeChanged(object sender, EventArgs e)
        {
            ContentView contentView = (ContentView)sender;
            double width = contentView.Width;
            double height = contentView.Height;
            double dimension = Math.Min(width, height);
            double horzPadding = (width - dimension) / 2;
            double vertPadding = (height - dimension) / 2;
            contentView.Padding = new Thickness(horzPadding, vertPadding);
        }
        async void DisplayWonAnimation()
        {
            congratulationsText.Scale = 0;
            congratulationsText.IsVisible = true;

            // Because IsVisible has been false, the text might not have a size yet,
            //  in which case Measure will return a size.
            double congratulationsTextWidth = congratulationsText.Measure(Double.PositiveInfinity, Double.PositiveInfinity).Request.Width;

            congratulationsText.Rotation = 0;
            congratulationsText.RotateTo(3 * 360, 1000, Easing.CubicOut);

            double maxScale = 0.9 * board.Width / congratulationsTextWidth;
            await congratulationsText.ScaleTo(maxScale, 1000);

            foreach (View view in congratulationsText.Children)
            {
                view.Rotation = 0;
                view.RotateTo(180);
                await view.ScaleTo(3, 100);
                view.RotateTo(360);
                await view.ScaleTo(1, 100);
            }

            await DisplayPlayAgainButton();
        }

        async void DisplayLostAnimation()
        {
            consolationText.Scale = 0;
            consolationText.IsVisible = true;

            // (See above for rationale)
            double consolationTextWidth = consolationText.Measure(Double.PositiveInfinity, Double.PositiveInfinity).Request.Width;

            double maxScale = 0.9 * board.Width / consolationTextWidth;
            await consolationText.ScaleTo(maxScale, 1000);
            await Task.Delay(1000);
            await DisplayPlayAgainButton();
        }

        async Task DisplayPlayAgainButton()
        {
            playAgainButton.Scale = 0;
            playAgainButton.IsVisible = true;
            playAgainButton.IsEnabled = true;

            // (See above for rationale)
            double playAgainButtonWidth = playAgainButton.Measure(Double.PositiveInfinity, Double.PositiveInfinity).Request.Width;

            double maxScale = board.Width / playAgainButtonWidth;
            await playAgainButton.ScaleTo(maxScale, 1000, Easing.SpringOut);
        }



         void onplayAgainButton_Clicked(object sender, EventArgs e)
        {
            PrepareForNewGame();
        }
    }
}



Step 4



Open Solution Explorer >> BugSweeper(PCL) >> right click and select New Item. In this popup window, select Cross Platform >> Class.

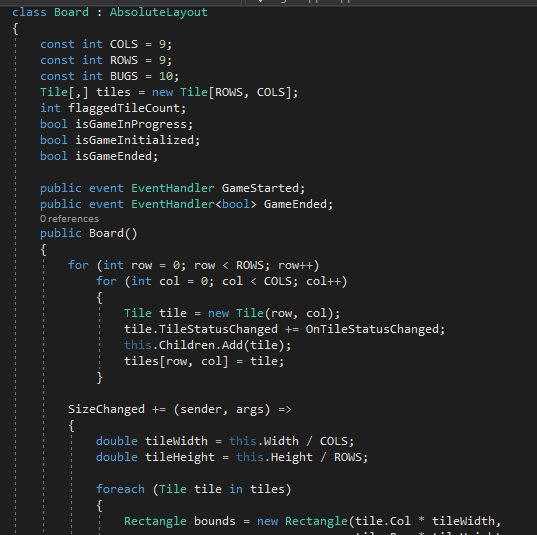

This way, you can add a new class. Now, create a new class named Board.cs and double-click to get into its design view and insert the code given below.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using Xamarin.Forms;

namespace BugSwapperApp
{
    class Board : AbsoluteLayout
    {
        const int COLS = 9;
        const int ROWS = 9;
        const int BUGS = 10;
        Tile[,] tiles = new Tile[ROWS, COLS];
        int flaggedTileCount;
        bool isGameInProgress;
        bool isGameInitialized;
        bool isGameEnded;

        public event EventHandler GameStarted;
        public event EventHandler<bool> GameEnded;
        public Board()
        {
            for (int row = 0; row < ROWS; row++)
                for (int col = 0; col < COLS; col++)
                {
                    Tile tile = new Tile(row, col);
                    tile.TileStatusChanged += OnTileStatusChanged;
                    this.Children.Add(tile);
                    tiles[row, col] = tile;
                }

            SizeChanged += (sender, args) =>
            {
                double tileWidth = this.Width / COLS;
                double tileHeight = this.Height / ROWS;

                foreach (Tile tile in tiles)
                {
                    Rectangle bounds = new Rectangle(tile.Col * tileWidth,
                                                     tile.Row * tileHeight,
                                                     tileWidth, tileHeight);
                    AbsoluteLayout.SetLayoutBounds(tile, bounds);
                }
            };

            NewGameInitialize();
        }

        public void NewGameInitialize()
        {
            // Clear all the tiles.
            foreach (Tile tile in tiles)
                tile.Initialize();

            isGameInProgress = false;
            isGameInitialized = false;
            isGameEnded = false;
            this.FlaggedTileCount = 0;
        }

        public int FlaggedTileCount
        {
            set
            {
                if (flaggedTileCount != value)
                {
                    flaggedTileCount = value;
                    OnPropertyChanged();
                }
            }
            get
            {
                return flaggedTileCount;
            }
        }

        public int BugCount
        {
            get
            {
                return BUGS;
            }
        }


        // Not called until the first tile is double-tapped.
        void DefineNewBoard(int tappedRow, int tappedCol)
        {
            // Begin the assignment of bugs.
            Random random = new Random();
            int bugCount = 0;

            while (bugCount < BUGS)
            {
                // Get random row and column.
                int row = random.Next(ROWS);
                int col = random.Next(COLS);

                // Skip it if it's already a bug.
                if (tiles[row, col].IsBug)
                {
                    continue;
                }

                // Avoid the tappedRow & Col & surrounding ones.
                if (row >= tappedRow - 1 &&
                    row <= tappedRow + 1 &&
                    col >= tappedCol - 1 &&
                    col <= tappedCol + 1)
                {
                    continue;
                }

                // It's a bug!
                tiles[row, col].IsBug = true;

                // Calculate the surrounding bug count.
                CycleThroughNeighbors(row, col,
                    (neighborRow, neighborCol) =>
                    {
                        ++tiles[neighborRow, neighborCol].SurroundingBugCount;
                    });

                bugCount++;
            }
        }

        void CycleThroughNeighbors(int row, int col, Action<int, int> callback)
        {
            int minRow = Math.Max(0, row - 1);
            int maxRow = Math.Min(ROWS - 1, row + 1);
            int minCol = Math.Max(0, col - 1);
            int maxCol = Math.Min(COLS - 1, col + 1);

            for (int neighborRow = minRow; neighborRow <= maxRow; neighborRow++)
                for (int neighborCol = minCol; neighborCol <= maxCol; neighborCol++)
                {
                    if (neighborRow != row || neighborCol != col)
                        callback(neighborRow, neighborCol);
                }
        }

        void OnTileStatusChanged(object sender, TileStatus tileStatus)
        {
            if (isGameEnded)
                return;

            // With a first tile tapped, the game is now in progress.
            if (!isGameInProgress)
            {
                isGameInProgress = true;

                // Fire the GameStarted event.
                if (GameStarted != null)
                {
                    GameStarted(this, EventArgs.Empty);
                }
            }

            // Update the "flagged" bug count before checking for a loss.
            int flaggedCount = 0;

            foreach (Tile tile in tiles)
                if (tile.Status == TileStatus.Flagged)
                    flaggedCount++;

            this.FlaggedTileCount = flaggedCount;

            // Get the tile whose status has changed.
            Tile changedTile = (Tile)sender;

            // If it's exposed, some actions are required.
            if (tileStatus == TileStatus.Exposed)
            {
                if (!isGameInitialized)
                {
                    DefineNewBoard(changedTile.Row, changedTile.Col);
                    isGameInitialized = true;
                }

                if (changedTile.IsBug)
                {
                    isGameInProgress = false;
                    isGameEnded = true;

                    // Fire the GameEnded event!
                    if (GameEnded != null)
                    {
                        GameEnded(this, false);
                    }
                    return;
                }

                // Auto expose for zero surrounding bugs.
                if (changedTile.SurroundingBugCount == 0)
                {
                    CycleThroughNeighbors(changedTile.Row, changedTile.Col,
                        (neighborRow, neighborCol) =>
                        {
                            // Expose all the neighbors.
                            tiles[neighborRow, neighborCol].Status = TileStatus.Exposed;
                        });
                }
            }

            // Check for a win.
            bool hasWon = true;

            foreach (Tile til in tiles)
            {
                if (til.IsBug && til.Status != TileStatus.Flagged)
                    hasWon = false;

                if (!til.IsBug && til.Status != TileStatus.Exposed)
                    hasWon = false;
            }

            // If there's a win, celebrate!
            if (hasWon)
            {
                isGameInProgress = false;
                isGameEnded = true;

                // Fire the GameEnded event!
                if (GameEnded != null)
                {
                    GameEnded(this, true);
                }
                return;
            }
        }
    }
}



Step 5

Now, we need to add images. For that, go to Solution Explorer >> BugSweeper(PCL) >> right-click on BugSweeper(PCL) project and select Add>> Existing Item. In this popup window, select images to insert and the images are used for tiles.


Step 6

In this step, similarly, create a new class named Tile.cs. Here is the code for this class.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using Xamarin.Forms;

namespace BugSwapperApp
{
    enum TileStatus
    {
        Hidden,
        Flagged,
        Exposed
    }
    class Tile : Frame
    {
        TileStatus tileStatus = TileStatus.Hidden;
        Label label;
        Image flagImage, bugImage;
        static ImageSource flagImageSource;
        static ImageSource bugImageSource;
        bool doNotFireEvent;

        public event EventHandler<TileStatus> TileStatusChanged;

        static Tile()
        {
            flagImageSource = ImageSource.FromResource("BugSwapperApp.Microsoft.png");
            bugImageSource = ImageSource.FromResource("BugSwapperApp.Xbox.png");
        }

        public Tile(int row , int col)
        {
            this.Row = row;
            this.Col = col;

            this.BackgroundColor = Color.Yellow;
            this.OutlineColor = Color.Blue;
            this.Padding = 2;

            label = new Label
            {
                Text = " ",
                TextColor = Color.Yellow,
                BackgroundColor = Color.Blue,
                HorizontalTextAlignment = TextAlignment.Center,
                VerticalTextAlignment = TextAlignment.Center,
            };

            flagImage = new Image
            {
                Source = flagImageSource,

            };

            bugImage = new Image
            {
                Source = bugImageSource
            };

            TapGestureRecognizer singleTap = new TapGestureRecognizer
            {
                NumberOfTapsRequired = 1
            };
            singleTap.Tapped += OnSingleTap;
            this.GestureRecognizers.Add(singleTap);
            if (Device.OS != TargetPlatform.Windows && Device.OS != TargetPlatform.WinPhone)
            {
                TapGestureRecognizer doubleTap = new TapGestureRecognizer
                {
                    NumberOfTapsRequired = 2
                };
                doubleTap.Tapped += OnDoubleTap;
                this.GestureRecognizers.Add(doubleTap);


            }
        }

        public int Row { private set; get; }

        public int Col { private set; get; }

        public bool IsBug { set; get; }

        public int SurroundingBugCount { set; get; }

        public TileStatus Status
        {
            set
            {
                if (tileStatus != value)
                {
                    tileStatus = value;

                    switch (tileStatus)
                    {
                        case TileStatus.Hidden:
                            this.Content = null;

#if FIX_WINDOWS_PHONE_NULL_CONTENT

                            if (Device.OS == TargetPlatform.WinPhone || Device.OS == TargetPlatform.Windows) {
                                this.Content = new Label { Text = " " };
                            }

#endif
                            break;

                        case TileStatus.Flagged:
                            this.Content = flagImage;
                            break;

                        case TileStatus.Exposed:
                            if (this.IsBug)
                            {
                                this.Content = bugImage;
                            }
                            else
                            {
                                this.Content = label;
                                label.Text =
                                        (this.SurroundingBugCount > 0) ?
                                            this.SurroundingBugCount.ToString() : " ";
                            }
                            break;
                    }

                    if (!doNotFireEvent && TileStatusChanged != null)
                    {
                        TileStatusChanged(this, tileStatus);
                    }
                }
            }
            get
            {
                return tileStatus;
            }
        }

        // Does not fire TileStatusChanged events.
        public void Initialize()
        {
            doNotFireEvent = true;
            this.Status = TileStatus.Hidden;
            this.IsBug = false;
            this.SurroundingBugCount = 0;
            doNotFireEvent = false;
        }

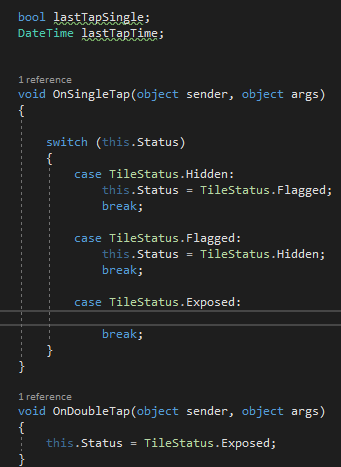

        bool lastTapSingle;
        DateTime lastTapTime;


        void OnSingleTap(object sender, object args)
        {

            switch (this.Status)
            {
                case TileStatus.Hidden:
                    this.Status = TileStatus.Flagged;
                    break;

                case TileStatus.Flagged:
                    this.Status = TileStatus.Hidden;
                    break;

                case TileStatus.Exposed:

                    break;
            }
        }

        void OnDoubleTap(object sender, object args)
        {
            this.Status = TileStatus.Exposed;
        }
    }
}





Step 7

Click ' F5 ' or Build to run your projects. Running this project, you will have the result like below.





Finally, we have successfully created a Xamarin.Forms BugSweeper Application.
