AdRotator Contorl in ASP.NET

AdRotator Control in ASP.NET  à

Hi!

Here i will show you step by step procedure how to use

AdRotator Control in ASP.NET in visual studio 2005 / 2008

The use of AdRotator performs a very important role in Web sites

by AdRotator control linked pictures can  be show and will change on

refreshing or by timing…

__________________________________________________

Here I am using Visual Studio 2008 but there is no condition you can use Visual Studio 2005 also.

So follow these steps to create State Implementation

The Steps are:

1- Start -> All Programs -> Visual Studio 2005 or Visual Studio 2008

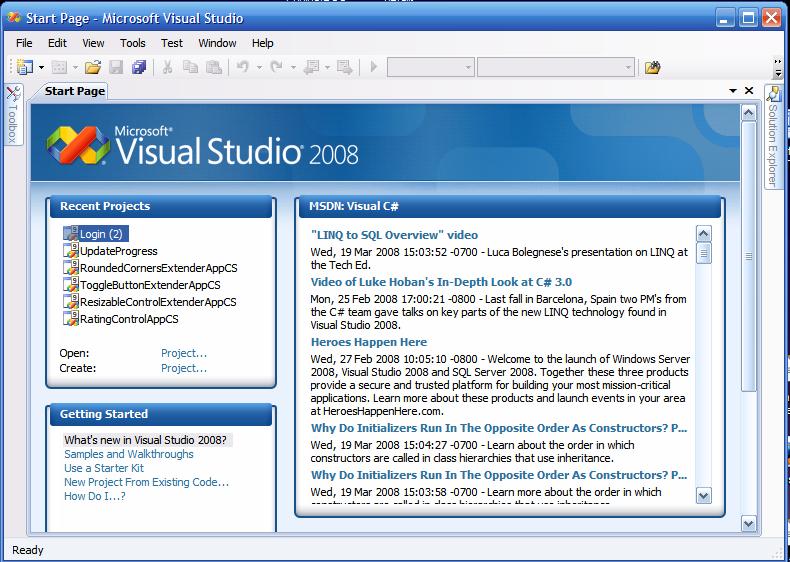

Now The Visual Studio will Open like this:-

Visual studio 2008.JPG

2- Now go to File Menu -> New -> Web Site

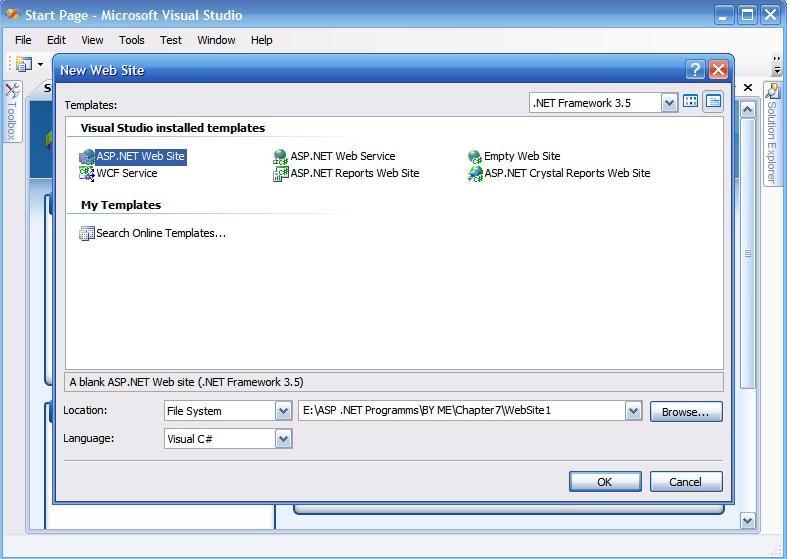

When you will click on the New Web Site a new form will open like this:-


3- Under Visual Studio Installed Template-> Choose ASP.NET WEB SITE -> Choose File System from the location combo box -> Set the path by the browse button - > Choose the language from the Language ComboBox (Visual C# , Visual Basic , J #)

Choose Visual C#

4 - Click on the OK Button:-

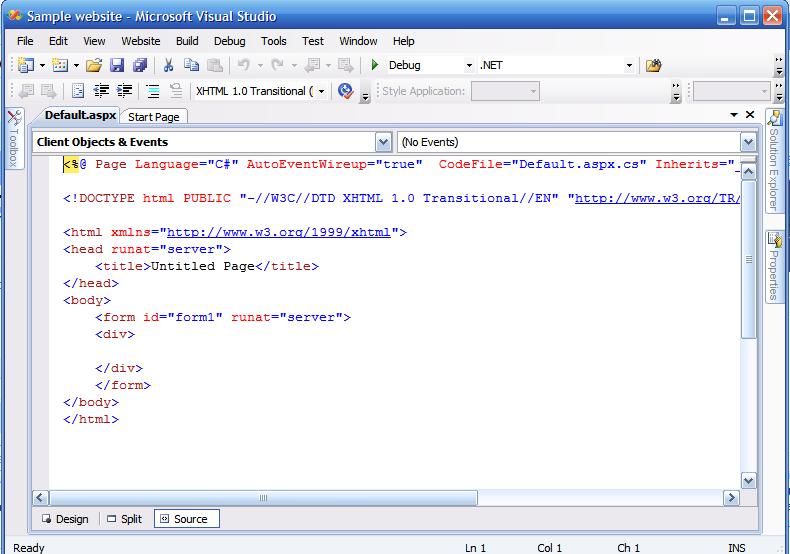

Now you will see a new from like this :-


First you have to learn XML and HTML to work with ASP .NET_

I have used <!– text –> to make the text as comment this is the way to make comment in this code …

This is the Source Code window and in this page you will se this code…

<%@ Page Language=”C#” AutoEventWireup=”true”  CodeFile=”Default.aspx.cs” Inherits=”_Default” %>

<!DOCTYPE html PUBLIC “-//W3C//DTD XHTML 1.0 Transitional//EN” “http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd”>

<html xmlns=”http://www.w3.org/1999/xhtml”>
<head runat=”server”>
<title>Type your webpage title here</title>  <!– Here you can specify your page title in between title tag
</head>
<body>
<form id=”form1? runat=”server”>
<div>
<!– In between div tags you can manage your web controls like buttons, labels, picture

Box, ImageMap etc –>


</div>
</form>
</body>
</html>

See here is a tab named Design in the bottom of this page

5- Click on this tab and you will see a blank web page where you can drag any control from the toolbox (which is in the left side of this window)

Open Web.config file and write true in place of false, See

  <compilation debug="true">

6- Drag a AdRotator Control in the design window or in the source window…

(If you are not able to see the AdRotator control in Toolbox then just type this code

<asp:AdRotator ID=”AdRotator1” runat=”server” DataSourceID=”XMLDataSource1”/>

7-Now the source window should be look like this :

<%@ Page Language="C#" AutoEventWireup="true"  CodeFile="Default.aspx.cs" Inherits="_Default" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">

<head runat="server">

   <title>AdRotator Control Example</title>

</head>

<body>

<br />

                    <asp:AdRotator ID="AdRotator2" runat="server" DataSourceID="XmlDataSource1" />

8- Now go to solution explorer and right click on the web site and choose Add New Item

and add a  .xml extension file .

9- Now type this code in the .xml extension file

First of all you have to paste three images named (google.jpg,yahoo.jpg,msn.jpg) in App_Data folder which is in solution explorer…

<Advertisements>

  <Ad>

    <ImageUrl>google.jpg</ImageUrl>

    <NavigateUrl>http://www.google.com</NavigateUrl>

    <AlternateText>Visit Google.com</AlternateText>

    <Impressions>80</Impressions>

    <Keyword>search</Keyword>

  </Ad>

  <Ad>

    <ImageUrl>msn.jpg</ImageUrl>

    <NavigateUrl>http://www.msn.com</NavigateUrl>

    <AlternateText>

      Visit MSN.com

    </AlternateText>

    <Impressions>80</Impressions>

    <Keyword>MSN</Keyword>

  </Ad>

  <Ad>

    <ImageUrl>yahoo.jpg</ImageUrl>

    <NavigateUrl>http://www.yahoo.com</NavigateUrl>

    <AlternateText>

      Visit yahoo.com

    </AlternateText>

    <Impressions>80</Impressions>

    <Keyword>yahoo</Keyword>

  </Ad>

</Advertisements>



10 - Now run your web site by Ctrl + F5

11- Refresh your web page…

OUT PUT

10-When you refresh your web page the picture will change with the link which you have given in ImageUrl.

11- Close web browser

12-Close visual studio

Thanks!
