Click on Button to Change the Image in ImageView in Android

First of all create New Project and give the Name And MainACtivity name all that.

Now open the MainActivity.

MainActivity
  1. public class MainActivity extends AppCompatActivity {
  2.     ImageView img;
  3.     Button b;
  4.     int flag = 0;
  5.
  6.     @Override
  7.     public void onCreate(Bundle savedInstanceState) {
  8.         super.onCreate(savedInstanceState);
  9.         setContentView(R.layout.activity_main);
  10.
  11.         img = (ImageView) findViewById(R.id.imageView1);
  12.         b = (Button) findViewById(R.id.button1);
  13.
  14.         b.setOnClickListener(new View.OnClickListener() {
  15.
  16.             @Override
  17.             public void onClick(View v) {
  18.                 // TODO Auto-generated method stub
  19.
  20.                 if (flag == 0) {
  21.                     img.setImageResource(R.drawable.home1);
  22.                     flag = 1;
  23.                 } else if (flag == 1) {
  24.                     img.setImageResource(R.drawable.home2);
  25.                     flag = 2;
  26.                 } else if (flag == 2) {
  27.                     img.setImageResource(R.drawable.home3);
  28.                     flag = 0;
  29.                 }
  30.             }
  31.         });
  32.     }
  33.
  34.     @Override
  35.     public boolean onCreateOptionsMenu(Menu menu) {
  36.         // Inflate the menu; this adds items to the action bar if it is present.
  37.         getMenuInflater().inflate(R.menu.menu_main, menu);
  38.         return true;
  39.     }
  40.
  41.     @Override
  42.     public boolean onOptionsItemSelected(MenuItem item) {
  43.         // Handle action bar item clicks here. The action bar will
  44.         // automatically handle clicks on the Home/Up button, so long
  45.         // as you specify a parent activity in AndroidManifest.xml.
  46.         int id = item.getItemId();
  47.
  48.         //noinspection SimplifiableIfStatement
  49.         if (id == R.id.action_settings) {
  50.             return true;
  51.         }
  52.
  53.         return super.onOptionsItemSelected(item);
  54.     }
  55. }
Now Open Your activity_main.xml file.

activity_main.xml
  1. <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  2.     xmlns:tools="http://schemas.android.com/tools"
  3.     android:layout_width="match_parent"
  4.     android:layout_height="match_parent" >
  5.
  6.     <TextView
  7.         android:id="@+id/textView1"
  8.         android:textSize="20dp"
  9.         android:textColor="#FF0000"
  10.         android:layout_width="wrap_content"
  11.         android:layout_height="wrap_content"
  12.         android:layout_alignParentTop="true"
  13.         android:layout_centerHorizontal="true"
  14.         android:layout_marginTop="110dp"
  15.         android:text="Static ImageView" />
  16.
  17.     <ImageView
  18.         android:id="@+id/imageView1"
  19.         android:layout_width="60dp"
  20.         android:layout_height="60dp"
  21.         android:layout_centerVertical="true"
  22.         android:layout_centerHorizontal="true"
  23.         android:src="@drawable/home1" />
  24.
  25.     <Button
  26.         android:id="@+id/button1"
  27.         android:layout_width="wrap_content"
  28.         android:layout_height="wrap_content"
  29.         android:layout_alignParentBottom="true"
  30.         android:layout_centerHorizontal="true"
  31.         android:layout_marginBottom="80dp"
  32.         android:text="Change" />
  33.
  34. </RelativeLayout>
In your Drawable Folder add below name Image. The Image are contain in Rar file.


Or you can use your image by giving this Name to Image.

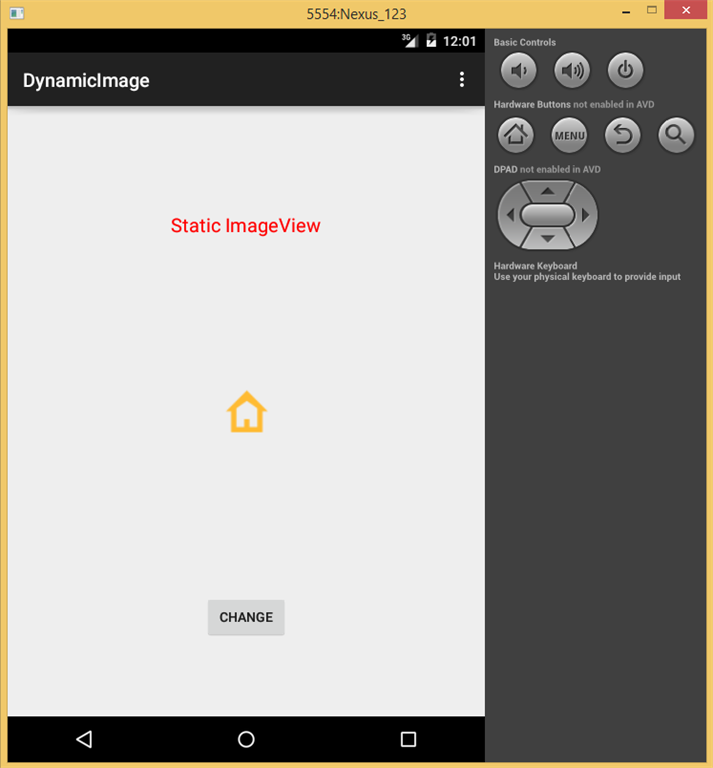

Now Run the Application the following Output is Generated.

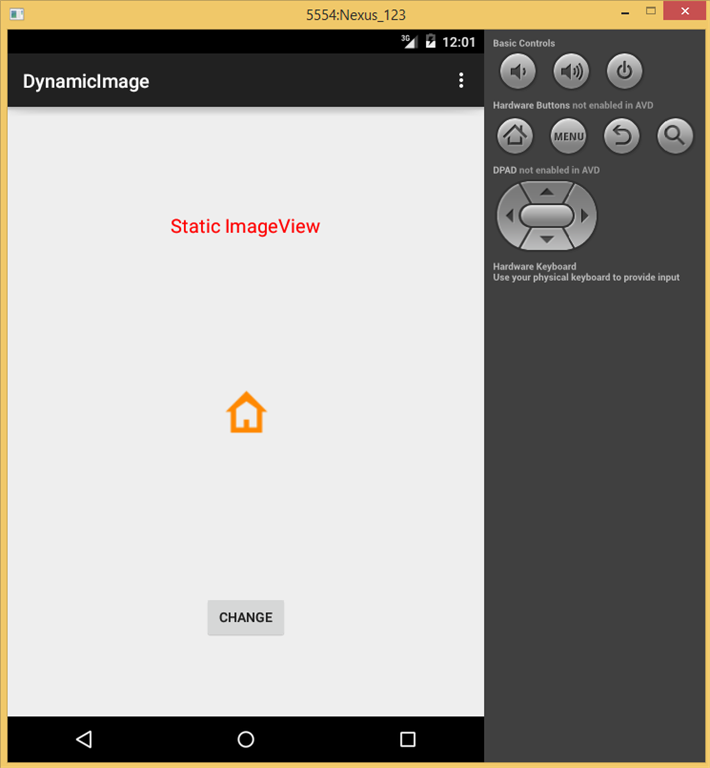

Click on Button the following output is generated

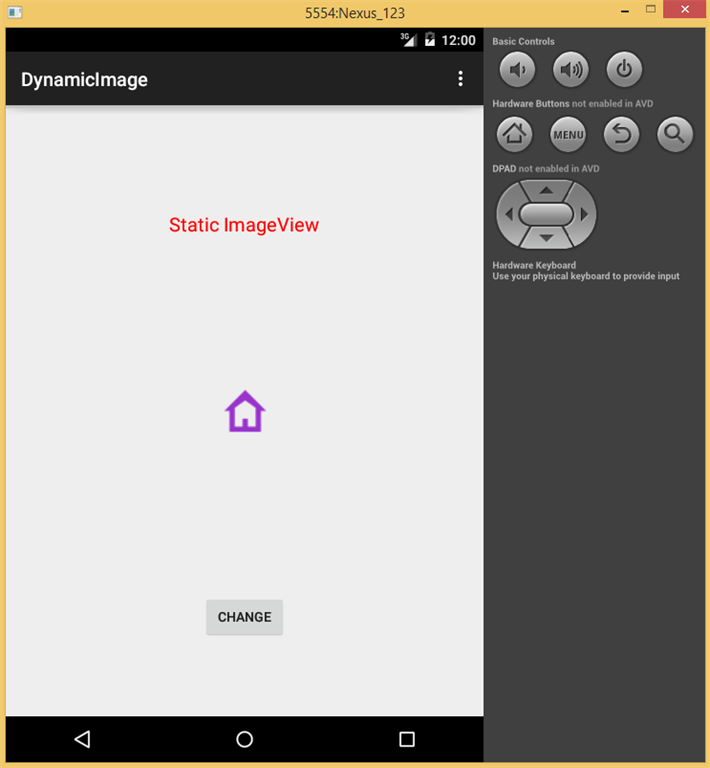

And then,



The Image is in the Drawable file
