Clock in Silverlight With C#

Here is designer code xaml:

  1. <UserControl x:Class="Clock.Page"
  2.     xmlns="http://schemas.microsoft.com/client/2007"
  3.     xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
  4.     Width="400" Height="400">
  5.     <Canvas Width="400" Height="400" Loaded="Canvas_Loaded">
  6.         <Canvas.Resources>
  7.             <Storyboard x:Name="clockStoryboard">
  8.
  9.                 <!-- This animation targets the hour hand transform -->
  10.                 <DoubleAnimation x:Name="hourAnimation"
  11.      Storyboard.TargetName="hourHandTransform"
  12.      Storyboard.TargetProperty="Angle"
  13.      Duration="12:0:0" RepeatBehavior="Forever"/>
  14.
  15.                 <!-- This animation targets the minute hand transform -->
  16.                 <DoubleAnimation x:Name="minuteAnimation"
  17.      Storyboard.TargetName="minuteHandTransform"
  18.      Storyboard.TargetProperty="Angle"
  19.      Duration="1:0:0" RepeatBehavior="Forever"/>
  20.
  21.                 <!-- This animation targets the second hand transform  -->
  22.                 <DoubleAnimation x:Name="secondAnimation"
  23.      Storyboard.TargetName="secondHandTransform"
  24.      Storyboard.TargetProperty="Angle"
  25.      Duration="0:1:0" RepeatBehavior="Forever"/>
  26.             </Storyboard>
  27.         </Canvas.Resources>
  28.
  29.         <!-- Clock Shadow -->
  30.         <!--<Ellipse Width="330" Height="330" Canvas.Left="40"
  31.          Canvas.Top="40" Fill="Black" Opacity="0.5"/>-->
  32.
  33.         <!-- Outer rim -->
  34.         <Ellipse Stroke="#FF000000" x:Name="outerCircle" Width="330" Height="330"
  35.          Canvas.Left="32" Canvas.Top="32">
  36.             <Ellipse.Fill>
  37.                 <!--This linear gradient creates a subtle shadow effect on the outer rim. -->
  38.                 <LinearGradientBrush EndPoint="0.196,0.127" StartPoint="0.852,0.814">
  39.                     <GradientStop Color="#FFC0C0C0" Offset="0.788"/>
  40.                     <GradientStop Color="#FFE4E5F4" Offset="0.995"/>
  41.                 </LinearGradientBrush>
  42.             </Ellipse.Fill>
  43.         </Ellipse>
  44.
  45.         <!-- Bevel -->
  46.         <Ellipse Stroke="#FF000000" Width="290" Height="281" Canvas.Left="52"
  47.          Canvas.Top="57">
  48.             <Ellipse.Fill>
  49.                 <!-- This linear gradient creates a subtle shadow effect on
  50.          the outer rim. -->
  51.                 <LinearGradientBrush EndPoint="0.867,0.848" StartPoint="0.232,0.126">
  52.                     <GradientStop Offset="0.1"/>
  53.                     <GradientStop Color="#FFE4E5F4" Offset="0.995"/>
  54.                 </LinearGradientBrush>
  55.             </Ellipse.Fill>
  56.         </Ellipse>
  57.
  58.         <!-- Clock Face -->
  59.         <!--<Ellipse Stroke="#FF000000" Width="273" Height="265"
  60.          Canvas.Left="60" Canvas.Top="65" Fill="#FF000000"/>-->
  61.
  62.         <!-- Central Clock Circle -->
  63.         <Ellipse StrokeThickness="7"
  64.          Width="32" Height="31" Canvas.Left="180" Canvas.Top="190">
  65.             <Ellipse.Stroke>
  66.                 <LinearGradientBrush EndPoint="1,0.5" StartPoint="0,0.5">
  67.                     <GradientStop Color="Black" Offset="0" />
  68.                     <GradientStop Color="White" Offset="1" />
  69.                 </LinearGradientBrush>
  70.             </Ellipse.Stroke>
  71.             <Ellipse.Fill>
  72.                 <LinearGradientBrush EndPoint="1,0.5" StartPoint="0,0.5">
  73.                     <GradientStop Color="Black" Offset="1" />
  74.                     <GradientStop Color="White" Offset="0" />
  75.                 </LinearGradientBrush>
  76.             </Ellipse.Fill>
  77.         </Ellipse>
  78.         <!-- Minute Hand -->
  79.         <Rectangle Fill="Gray" Width="8" Height="80" Canvas.Left="192.5" Canvas.Top="226"
  80.            RenderTransformOrigin="0.41,-0.26" x:Name="MinutedHand">
  81.             <Rectangle.RenderTransform>
  82.                 <RotateTransform x:Name="minuteHandTransform"/>
  83.             </Rectangle.RenderTransform>
  84.         </Rectangle>
  85.
  86.         <!-- Hour Hand -->
  87.         <Rectangle Fill="Gray" Width="10" Height="60" Canvas.Left="192.5" Canvas.Top="226"
  88.            RenderTransformOrigin="0.35,-0.35" x:Name="HourHand">
  89.             <Rectangle.RenderTransform>
  90.                 <RotateTransform x:Name="hourHandTransform"/>
  91.             </Rectangle.RenderTransform>
  92.         </Rectangle>
  93.
  94.         <!-- Second Hand -->
  95.         <Rectangle Fill="Gray" Width="5" Height="80" Canvas.Left="192.5" Canvas.Top="226"
  96.            RenderTransformOrigin="0.65,-0.26" x:Name="SecondHand" >
  97.             <Rectangle.RenderTransform>
  98.                 <RotateTransform x:Name="secondHandTransform"/>
  99.             </Rectangle.RenderTransform>
  100.         </Rectangle>
  101.
  102.     </Canvas>
  103. </UserControl>
Now go to view code in C#:
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Windows;
  5. using System.Windows.Controls;
  6. using System.Windows.Documents;
  7. using System.Windows.Input;
  8. using System.Windows.Media;
  9. using System.Windows.Media.Animation;
  10. using System.Windows.Shapes;
  11.
  12. namespace Clock
  13. {
  14.     public partial class Page : UserControl
  15.     {
  16.         public Page()
  17.         {
  18.             InitializeComponent();
  19.         }
  20.
  21.
  22.         public void Canvas_Loaded(object sender, EventArgs e)
  23.         {
  24.
  25.             // The current date and time.
  26.             System.DateTime date = DateTime.Now;
  27.
  28.             // Find the appropriate angle (in degrees) for the hour hand
  29.             // based on the current time.
  30.             double hourangle = (((float)date.Hour) / 12) * 360 + date.Minute / 2;
  31.
  32.             // The transform is already rotated 116.5 degrees to make the hour hand be
  33.             // in the 12 o'clock position. You must build this already existing angle
  34.             // into the hourangle.
  35.             hourangle += 180;
  36.
  37.             // The same as for the hour angle.
  38.             double minangle = (((float)date.Minute) / 60) * 360;
  39.             minangle += 180;
  40.
  41.             // The same for the hour angle.
  42.             double secangle = (((float)date.Second) / 60) * 360;
  43.             secangle += 180;
  44.
  45.             // Set the beginning of the animation (From property) to the angle
  46.             // corresponging to the current time.
  47.             hourAnimation.From = hourangle;
  48.
  49.             // Set the end of the animation (To property)to the angle
  50.             // corresponding to the current time PLUS 360 degrees. Thus, the
  51.             // animation will end after the clock hand moves around the clock
  52.             // once. Note: The RepeatBehavior property of the animation is set
  53.             // to "Forever" so the animation will begin again as soon as it completes.
  54.             hourAnimation.To = hourangle + 360;
  55.
  56.             // Same as with the hour animation.
  57.             minuteAnimation.From = minangle;
  58.             minuteAnimation.To = minangle + 360;
  59.
  60.             // Same as with the hour animation.
  61.             secondAnimation.From = secangle;
  62.             secondAnimation.To = secangle + 360;
  63.
  64.             // Start the storyboard.
  65.             clockStoryboard.Begin();
  66.
  67.         }
  68.
  69.     }
  70.
  71. }
Canvas and StoryBoard controls are main part of this.

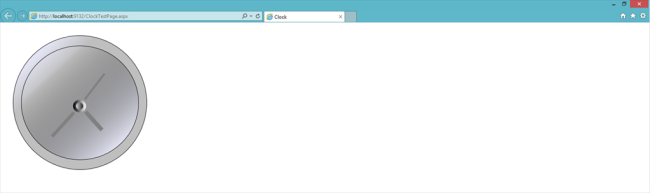

clock

Here is 3D Clock in silverlight with C#.
