Convert XML to Dataset in C#

We have the following XML data in an XML file named ‘Student.xml’. The XML is present in the root folder of our application.

  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <STUDENTS>
  3.     <STUDENT>
  4.         <StudentID>1</StudentID>
  5.         <Name>John Smith</Name>
  6.         <Marks>200</Marks>
  7.     </STUDENT>
  8.     <STUDENT>
  9.         <StudentID>2</StudentID>
  10.         <Name>Mark Johnson</Name>
  11.         <Marks>300</Marks>
  12.     </STUDENT>
  13. </STUDENTS>
We will display this data in a Gridview using C#. Create a web application. Add a webpage. Copy the following code in the .aspx page.
  1. <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="ConvertXMLtoDatatable.aspx.cs" Inherits="ConvertDatatabletoXMLString.ConvertXMLtoDatatable" %>
  2.
  3.     <!DOCTYPE html>
  4.
  5.     <html xmlns="http://www.w3.org/1999/xhtml">
  6.
  7.     <head runat="server">
  8.         <title></title>
  9.     </head>
  10.
  11.     <body>
  12.         <form id="form1" runat="server">
  13.             <div>
  14.                 <asp:GridView ID="Grddata" runat="server"></asp:GridView>
  15.             </div>
  16.         </form>
  17.     </body>
  18.
  19.     </html>
In the Code behind write the following code,
  1. using System;
  2. usingSystem.Collections.Generic;
  3. usingSystem.Data;
  4. usingSystem.Linq;
  5. usingSystem.Web;
  6. usingSystem.Web.UI;
  7. usingSystem.Web.UI.WebControls;
  8. namespaceConvertDatatabletoXMLString
  9. {
  10.     public partial class ConvertXMLtoDatatable: System.Web.UI.Page
  11.     {
  12.         protected void Page_Load(object sender, EventArgs e)
  13.         {
  14.             if (!Page.IsPostBack)
  15.             {
  16.                 ConvertXMLtoDataSet();
  17.             }
  18.         }
  19.         protected void ConvertXMLtoDataSet()
  20.         {
  21.             DataSetobjDataSet;
  22.             stringstrFileName = string.Empty;
  23.             try
  24.             {
  25.                 strFileName = Server.MapPath("Student.xml");
  26.                 objDataSet = new DataSet();
  27.                 objDataSet.ReadXml(strFileName);
  28.                 Grddata.DataSource = objDataSet;
  29.                 Grddata.DataBind();
  30.             }
  31.             catch (Exception Ex)
  32.             {
  33.                 throw Ex;
  34.             }
  35.             finally
  36.             {
  37.                 objDataSet = null;
  38.                 strFileName = string.Empty;
  39.             }
  40.         }
  41.     }
  42. }

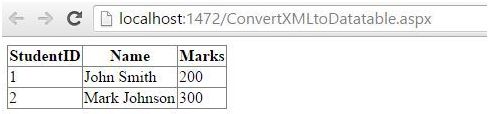

When we run the page we get the following output.



We have successfully converted XML to Dataset in C# and bound a Gridview with the dataset.
