Create a New Window in WPF

Introduction

This blog will help us in working with the basic window creation under WPF using Visual Studio.

Prerequisites



  • Visual Studio 2013 with Update 4 or Visual Studio 2015



Follow the below steps to create a new window in WPF:

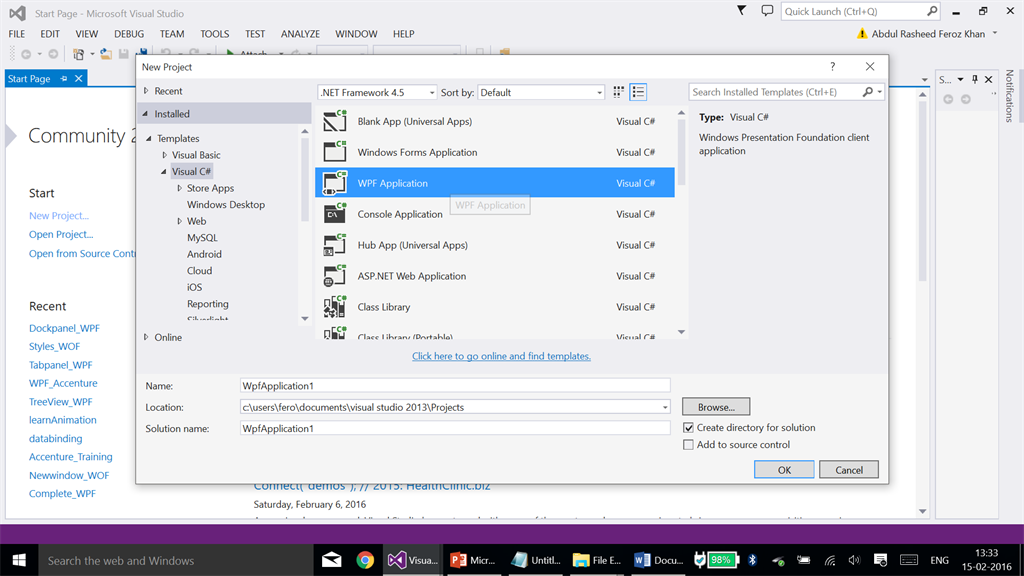

Step 1: Create an empty WPF using Visual Studio, enter the name for the application and click on OK.

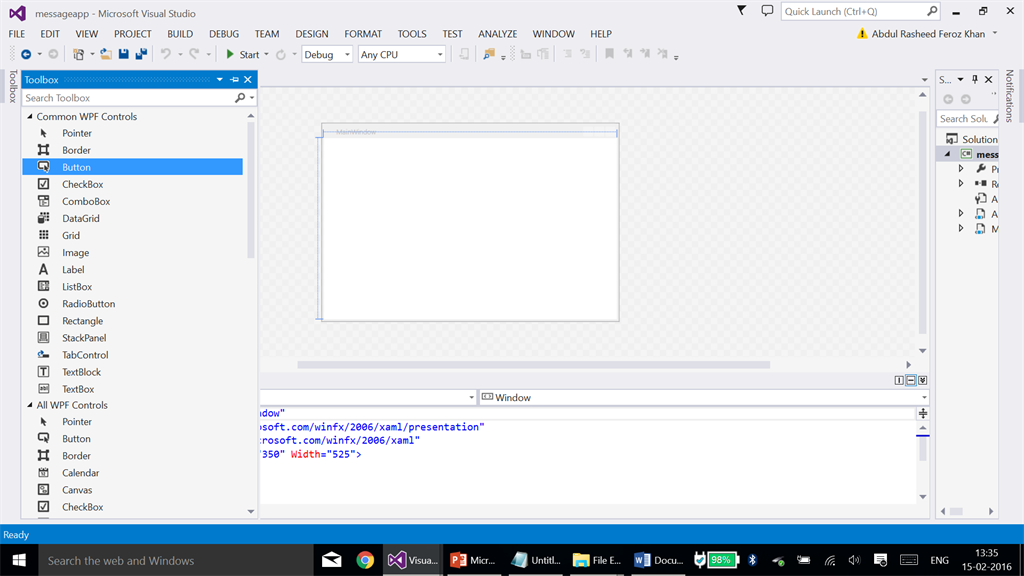

Step 2: Create a button using the following code or drag and drop a button from the ToolBox of Visual Studio 2013.

Code:

  1. <Button Content="Button" HorizontalAlignment="Left" Margin="133,120,0,0" VerticalAlignment="Top" Width="75"/>

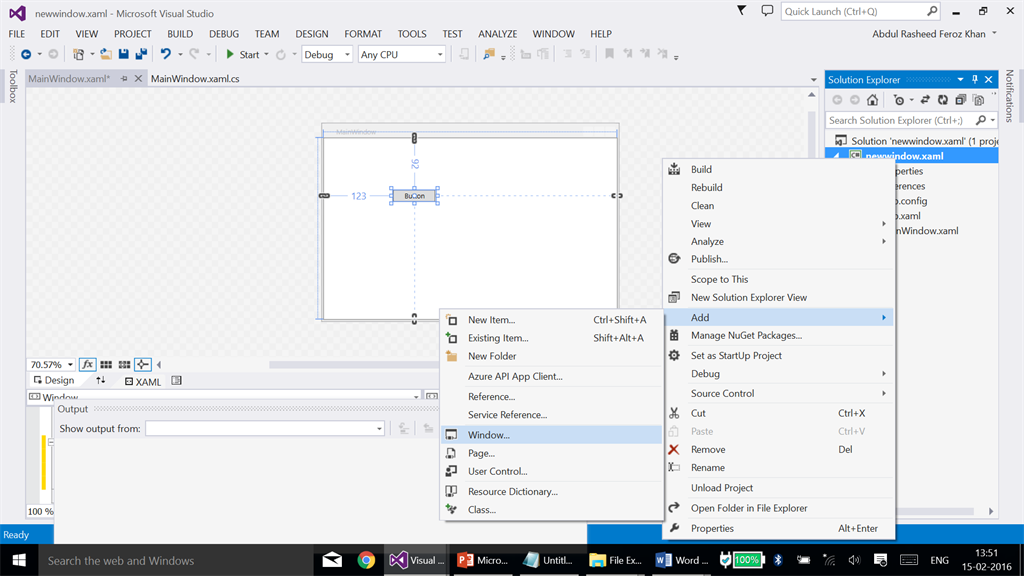

Step 3: Solution Name(Right Click) --> Add à New Window.

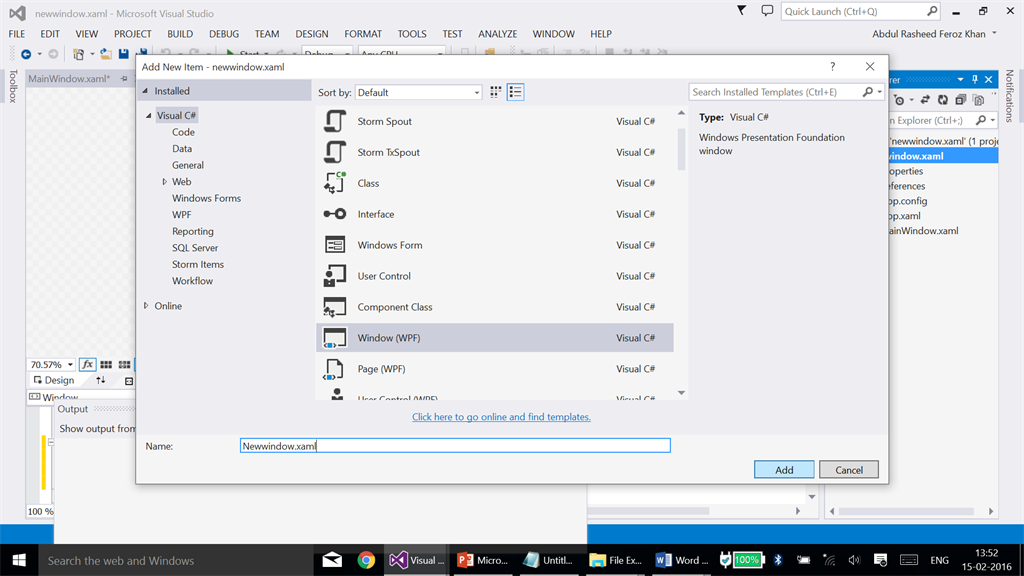

Step 4: Name the New window and click on OK.

Step 5: Name the New window and click on OK.

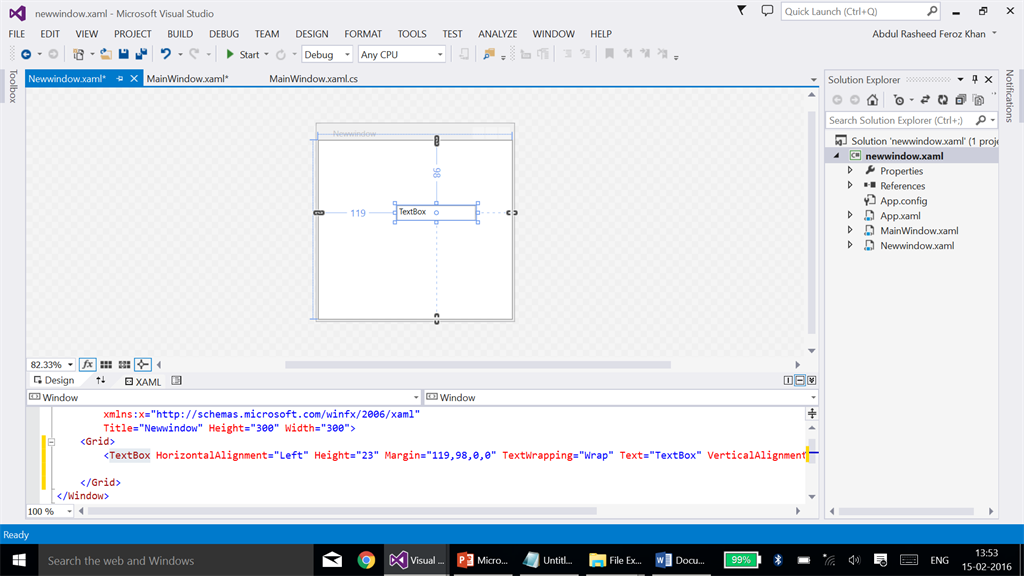

Code:

  1. <TextBox HorizontalAlignment="Left" Height="23" Margin="119,98,0,0" TextWrapping="Wrap"Text="TextBox" VerticalAlignment="Top" Width="120"/>



Rename the Text if you need

Now move to MainWindow.xaml and double click on the Button, enter the following code

  1. Newwindow p = Newwindow();
  2.
  3. p.Show();

Code for Mainwindow.xaml.cs is:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  6. using System.Windows;
  7. using System.Windows.Controls;
  8. using System.Windows.Data;
  9. using System.Windows.Documents;
  10. using System.Windows.Input;
  11. using System.Windows.Media;
  12. using System.Windows.Media.Imaging;
  13. using System.Windows.Navigation;
  14. using System.Windows.Shapes;
  15. namespace newwindow.xaml
  16. {
  17.     /// <summary>
  18.     /// Interaction logic for MainWindow.xaml
  19.     /// </summary>
  20.     public partial class MainWindow: Window
  21.     {
  22.         public MainWindow()
  23.         {
  24.             InitializeComponent();
  25.         }
  26.         private void Button_Click(object sender, RoutedEventArgs e)
  27.         {
  28.             Newwindow p = Newwindow();
  29.             p.Show();
  30.         }
  31.     }
  32. }

Now run the program.
