Creating a Chart on ASP. NET 4.0
Steps of Creating a Chart

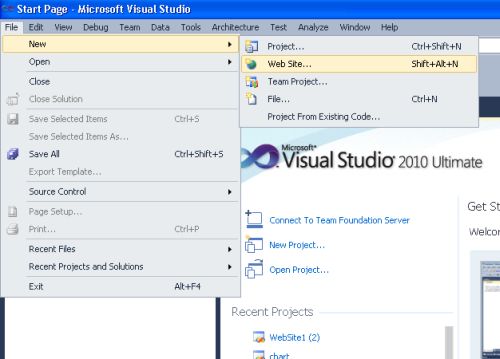

Step 1: Open Microsoft Visual Studio 4.0
Step2: Select File->>New ->>Website
![1.jpg]()

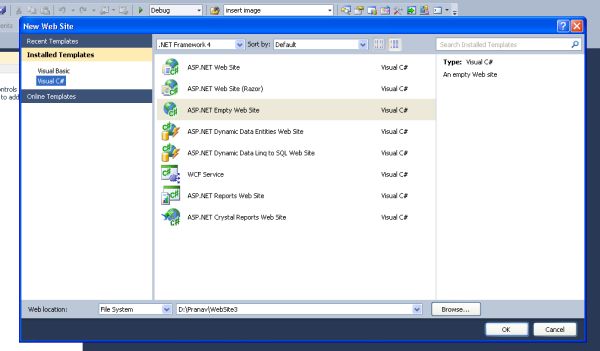

Step3: Select ASP. NET Empty Web Site
![2.jpg]()

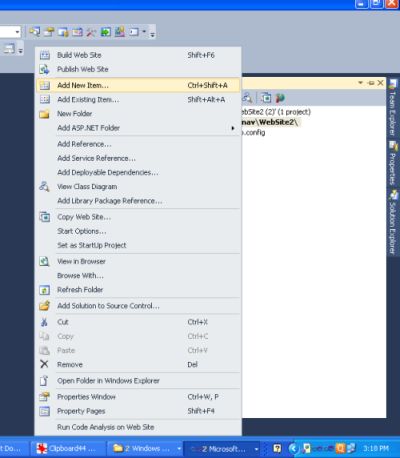

Step4: Add New Item
![4.jpg]()

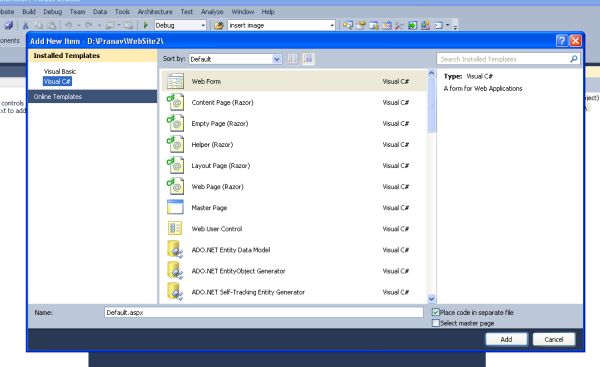

Step5: Select Item Web Form
![5.jpg]()

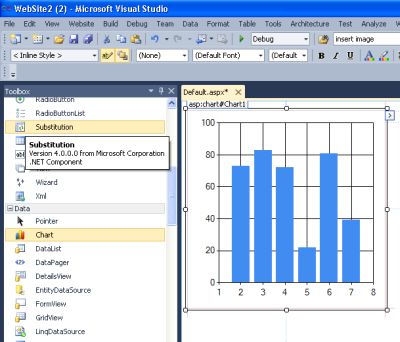

Step6 : Drag the chart from data from the toolbox to the design
form and drop there.
Choose your graph like pie , column , bubble etc.
Here for example we take a Column Chart.
![6.jpg]()
Step 7: Go to a source panel of a chart and write a coding there
as per requirement.
For example the code is given below
Here is the code using Script:
<body>
<form
id="form1"
runat="server">
<div<asp:DataPoint
AxisLabel="Information
Technology" YValues="50"
/>
<asp:DataPoint
AxisLabel="Computer
Science" YValues="15"
/>
<asp:DataPoint
AxisLabel="Mechanical
" YValues="30"
/>
<asp:DataPoint
AxisLabel="Electronics"
YValues="40"
/>
</Points>
</asp:Series>
</Series>
<ChartAreas>
<asp:ChartArea
Name="ChartArea">
</asp:ChartArea>
</ChartAreas>
</asp:Chart>
</div>
</form>
</body>

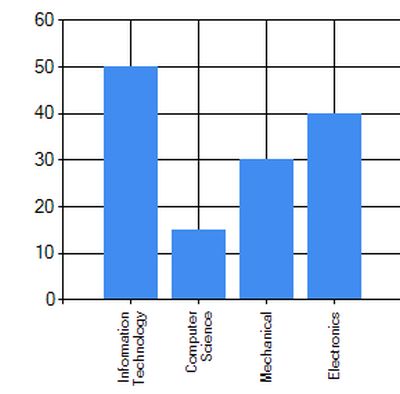

The output of the code is give below:
.![7.jpg]()
Conclusion:
As the Chart is a good approach to understand the organization.
So it is an important tool to implement in the project. To make the analysis of
an organization effective.
