Recently, I am deploying
my website. One of the improvements I wanted to make to it
was to add useful error pages. You know more than the YSOD (yellow screen of
death). One of the major issues for me was creating a useful and informative
404 page. I wanted the page to tell the user why they got there, offer
suggestions about what page they may be looking for, and allow them to search
the site. So I did the development work committed the changes and had the CI
machine push to the server (in the case app harbor).
1.
<system.web>
2.
<compilationdebug=“true“targetFramework=“4.0“ />
3.
<customErrorsmode=“On“defaultRedirect=“~/error“>
4.
<errorstatusCode=“404“redirect=“~/404“ />
5.
</customErrors>
6.
</system.web>
But I was still
seeing the generic IIS sever errors! I did some searching on the internet and
found a helpful property of the response object.
1.
Response.TrySkipIisCustomErrors
= true;
By default IIS
will see an response with an error status code (400-500) and will automatically
change the content of the response to its default error page. What this
property does it tell IIS not to do that if there is already content in the
body of the page. Well that was easy, right? So I made the change and pushed it
to the server, and navigated to a page that didn't exist. Well the server still
returned me the default 404 page, but on a 500 it would give me my custom error
page. So what gives? Well here is the deal, the way routing works is that if
ASP.NET cannot find a file that matches the requested URL the request is given
back to IIS to handle. So in the case of a 404 ASP.NET can't find the file so
its given back to IIS who uses the default static file handler to serve the
request. This would be slightly different if the route had matched but then say
somewhere in our code we set the status to 404. In this case it would already
be in the ASP.NET pipeline and ASP.NET would server the custom 404 page.
There are two

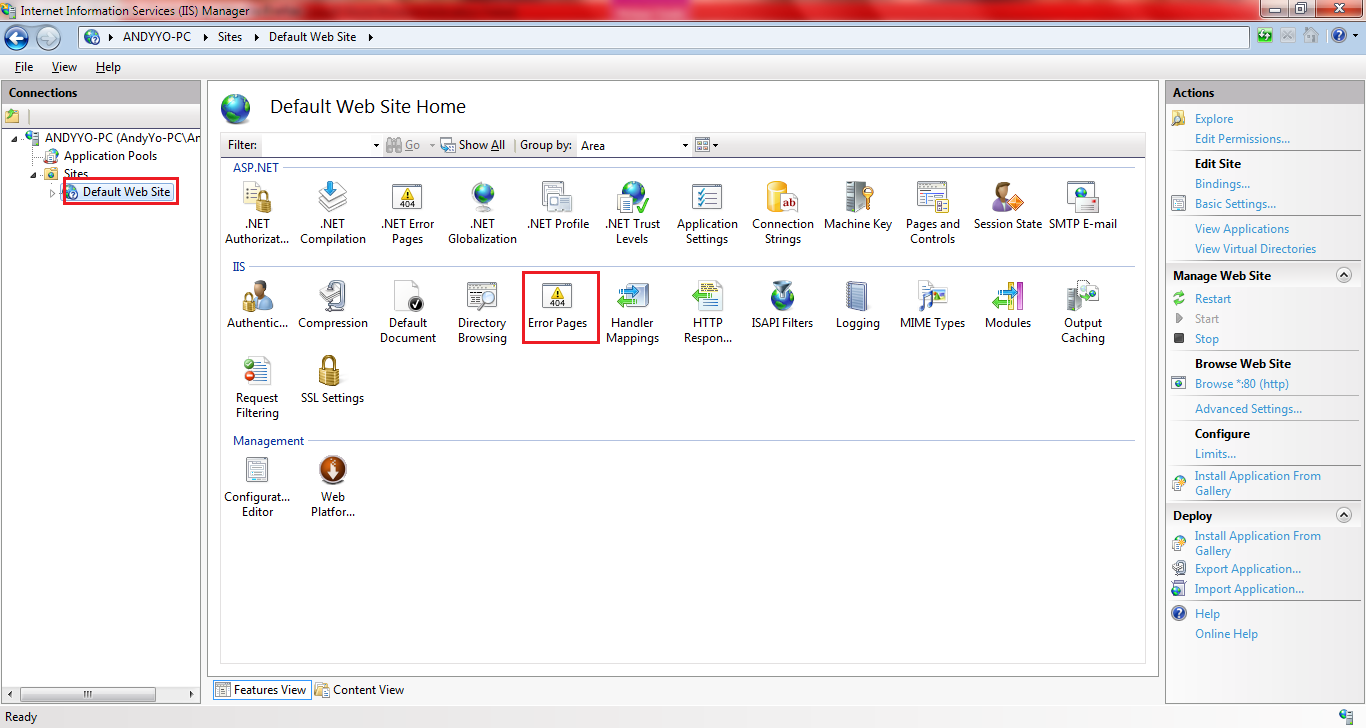

ways to solve this problem. First is the easiest which is to open up IIS Manger
and go to the “Error Pages” settings under IIS and change the 404 page there to
use your custom 404 page.
![custom_error.png]()
This is fine if
you can remote into the server or you're not running in the cloud where
multiple instances can be started. So how then do you make that work? These settings
can be added to your web.config file under the System.WebServer node.
1.
<system.webServer>
2.
<httpErrorserrorMode=“Custom“ >
3.
<removestatusCode=“404“subStatusCode=“-1“/>
4.
<errorstatusCode=“404“path=“/404“responseMode=“ExecuteURL“ />
5.
</httpErrors>
6.
</system.webServer>
So lets dig into
what some of this code means and tell you about the tricky parts that you need
to know. Before you can add a custom page you need to remove the entry for the
status code as there can only be one entry per status code. The tricky bit here
is knowing to set SubStatusCode to –1. This basically means all
the possible sub statuses. If you like you could remove only the specific one
you needed and set only the specific one. Also if you are playing around with
the config you might find that there is a defaultPath attribute on the httpErrors
node. This defines a “default” error page should an entry not be found in
the list. The problem is that by default this is “locked” and cannot be set in
an applications web.config and instead needs to be set at the machine
level. Once you add these settings to your config you should be able to
see your custom error page when you navigate to a page that does not exist.
