Display Data On Click Of Row In GridView Using jQuery And Web Service In ASP.NET

Introduction

  • Here, I will explain how to display the data on click of row in GridView, using jQuery and Web Service in ASP.NET.
  • Follow the steps, mentioned below, to achieve our requirement.
Step 1

Create table, using query, mentioned below.
  1. CREATE TABLE [tblgrid](
  2. [UserId] [int] IDENTITY(1,1) NOT NULL,
  3. [userName] [varchar](50) NULL,
  4. [City] [varchar](50) NULL,
  5. [Designation] [varchar](50) NULL,
  6. [sal] [bigintNULL
  7. )
Step 2

Add below code to .aspx file.
  1. <html xmlns="http://www.w3.org/1999/xhtml">
  2.
  3. <head runat="server">
  4.     <title></title>
  5.     <script src="http://dotnettricks-abdul.in/Contents/jquery-1.4.1.js" type="text/javascript"></script>
  6.     <script type="text/javascript">
  7.         function visiblefalse() {
  8.
  9.             $("#dv").attr("style""display:none");
  10.             $("#GridView1″).attr("
  11.                 style ", "
  12.                 backgroundColor: white ");
  13.
  14.             }
  15.
  16.             function GetDetails(id) {
  17.
  18.                 WebService.GetAllData(id, success, failure);
  19.             }
  20.
  21.             function success(result) {
  22.                 $(result).each(function(i) {
  23.                     var username = result[i].userName;
  24.                     var City = result[i].City;
  25.                     var des = result[i].des;
  26.                     var sal = result[i].sal;
  27.                     $("div[id$=dv]").attr("style""block");
  28.                     $("#UName").html(username);
  29.                     $("#City").html(City);
  30.                     $("#Des").html(des);
  31.                     $("#Sal").html(sal)
  32.                 });
  33.             }
  34.
  35.             function failure() {
  36.                 alert("error");
  37.
  38.             }
  39.     </script>
  40. </head>
  41.
  42. <body>
  43.     <form id="form1″ runat=" server ">
  44. <div>
  45. <asp:GridView ID="GridView1″ runat="server" AutoGenerateColumns="False" DataKeyNames="UserId,userName" EnableModelValidation="True" OnRowCommand="GridView1_RowCommand" HeaderStyle-BorderWidth="1″
  46. HeaderStyle-Font-Bold=" true " OnRowDataBound="GridView1_RowDataBound ">
  47. <Columns>
  48. <asp:TemplateField HeaderText="UserName ">
  49. <ItemTemplate>
  50. <asp:Label ID="lblitemUser " runat="server " Text=’<%# Eval("userName ") %>’></asp:Label>
  51. </ItemTemplate>
  52. </asp:TemplateField>
  53. <asp:TemplateField HeaderText="City ">
  54. <ItemTemplate>
  55. <asp:Label ID="lblitemCity " runat="server " Text=’<%# Eval("City ") %>’></asp:Label>
  56. </ItemTemplate>
  57. </asp:TemplateField>
  58. <asp:TemplateField HeaderText="Designation ">
  59. <ItemTemplate>
  60. <asp:Label ID="lblDesig " runat="server " Text=’<%# bind("Designation ")%>’></asp:Label>
  61. </ItemTemplate>
  62. </asp:TemplateField>
  63. <asp:TemplateField HeaderText="Salary ">
  64. <ItemTemplate>
  65. <asp:Label ID="lblsal " runat="server " Text=’<%# Eval("sal ") %>’></asp:Label>
  66. </ItemTemplate>
  67. </asp:TemplateField>
  68. </Columns>
  69. </asp:GridView>
  70. </div>
  71. <div>
  72. <asp:Label ID="lblresult " runat="server "></asp:Label>
  73. </div>
  74. <div id="dv " runat="server " style="display: none; ">
  75. <table>
  76. <tr>
  77. <td>
  78. User Name:
  79. </td>
  80. <td id="UName ">
  81. </td>
  82. </tr>
  83. <tr>
  84. <td>
  85. City:
  86. </td>
  87. <td id="City ">
  88. </td>
  89. </tr>
  90. <tr>
  91. <td>
  92. Designation:
  93. </td>
  94. <td id="Des ">
  95. </td>
  96. </tr>
  97. <tr>
  98. <td>
  99. Salary:
  100. </td>
  101. <td id="Sal ">
  102. </td>
  103. </tr>
  104. </table>
  105. <asp:ScriptManager ID="ScriptManager1″ runat="server">
  106.         <Services>
  107.             <asp:ServiceReference Path="~/WebService.asmx" />
  108.         </Services>
  109.         </asp:ScriptManager>
  110.         </div>
  111.     </form>
  112. </body>
  113.
  114. </html>
Step 3

Add below code to .cs page.
  1. SqlConnection con = new SqlConnection("Data Source=.\\SQLExpress;Initial Catalog=abc;Integrated Security=True");
  2. SqlDataAdapter da = new SqlDataAdapter();
  3. DataSet ds = new DataSet();
  4. protected void Page_Load(object sender, EventArgs e)
  5. {
  6.     if (!IsPostBack)
  7.     {
  8.     bind();
  9.
  10.     }
  11. }
  12.
  13. protected void bind()
  14. {
  15.
  16.     SqlCommand cmd = new SqlCommand("select * from tblgrid", con);
  17.
  18.     da.SelectCommand = cmd;
  19.     da.Fill(ds, "tblgrid");
  20.     if (ds.Tables[0].Rows.Count > 0)
  21.     {
  22.         GridView1.DataSource = ds.Tables[0];
  23.         GridView1.DataBind();
  24.     }
  25.
  26. }
  27.
  28. protected void GridView1_RowDataBound(object sender, GridViewRowEventArgs e)
  29. {
  30.     if (e.Row.RowType == DataControlRowType.DataRow)
  31.     {
  32.         e.Row.Attributes.Add("onclick""JavaScript: GetDetails('" + Convert.ToInt32(GridView1.DataKeys[e.Row.RowIndex].Value.ToString()) + "')");
  33.         e.Row.Attributes.Add("onmouseover""JavaScript:this.style.cursor=’pointer’; this.style.backgroundColor=’Red’");
  34.         e.Row.Attributes.Add("onmouseout""this.style.backgroundColor=’white’");
  35.     }
  36. }
Step 4

Create webService project.
  1. [WebMethod]
  2. public GetRec[] GetAllData(int ID)
  3. {
  4.     SqlCommand cmd = new SqlCommand("select userName,City,Designation,sal from tblgrid where UserId="+ID);
  5.     DataTable dt = new DataTable();
  6.     cmd.Connection = con;
  7.     da.SelectCommand = cmd;
  8.     //da.Fill(ds, "tblgrid");
  9.     da.Fill(dt);
  10.     List<GetRec> objList = new List<GetRec>();
  11.     foreach(DataRow dr in dt.Select())
  12.     {
  13.         objList.Add(new GetRec
  14.             {
  15.             userName=dr["userName"].ToString(),
  16.             City=dr["City"].ToString(),
  17.             des = dr["Designation"].ToString(),
  18.             sal = Convert.ToInt32(dr["sal"])
  19.
  20.             }
  21.         );
  22.     }
  23. return objList.ToArray();
  24. }
  25.
  26. public struct GetRec {
  27.
  28.     public string userName { getset; }
  29.     public string City { getset; }
  30.     public string des { getset; }
  31.     public int sal { getset; }
  32.
  33.     }
Step 5

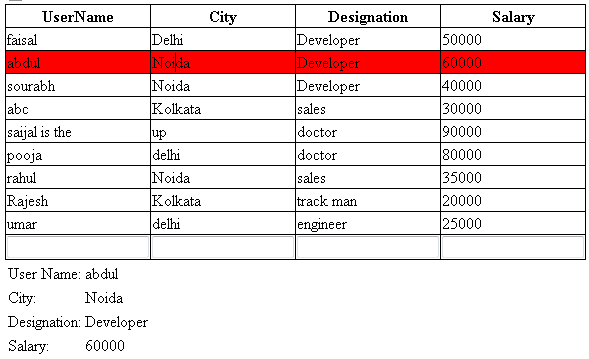

We got the output, mentioned below.
