Drag And Drop In Kendo Tree View

Introduction

In my last article, I explained how to do remote data binding in Kendo TreeView. In this blog, I’m going to explain how to implement the drag and drop in it.

Kendo Tree View with remote databinding

KendoTreeView.html
  1. <!DOCTYPE html>
  2. <html>
  3. <head>
  4.     <style>
  5.         html {
  6.             font-size: 14px;
  7.             font-family: Arial, Helvetica, sans-serif;
  8.         }
  9.     </style>
  10.     <title></title>
  11.     <link rel="stylesheet" href="https://kendo.cdn.telerik.com/2017.3.1026/styles/kendo.common-material.min.css" />
  12.     <link rel="stylesheet" href="https://kendo.cdn.telerik.com/2017.3.1026/styles/kendo.material.min.css" />
  13.     <link rel="stylesheet" href="https://kendo.cdn.telerik.com/2017.3.1026/styles/kendo.material.mobile.min.css" />
  14.
  15.     <script src="https://kendo.cdn.telerik.com/2017.3.1026/js/jquery.min.js"></script>
  16.     <script src="https://kendo.cdn.telerik.com/2017.3.1026/js/kendo.all.min.js"></script>
  17. </head>
  18. <body>
  19.     <div id="example">
  20.         <div class="demo-section k-content">
  21.             <div class="k-content">
  22.                 <h4> Kendo Tree View</h4>
  23.
  24.             </div>
  25.
  26.             <div id="treeview"></div>
  27.             <!--<div>
  28.                 <p id="result">No nodes checked.</p>
  29.             </div>-->
  30.         </div>
  31.         <script>
  32.                     homogeneous = new kendo.data.HierarchicalDataSource({
  33.                         transport: {
  34.                             read: {
  35.                                 url: "http://github-ci-staging.azurewebsites.net/api/Automobiles/DataSource",
  36.                                 dataType: "json"
  37.                             }
  38.                         },
  39.                         schema: {
  40.                             model: {
  41.                                 id: "value",
  42.                                 children: "items"
  43.                             }
  44.                         }
  45.                     });
  46.
  47.                 $("#treeview").kendoTreeView({
  48.                     dataSource: homogeneous,
  49.                     dataTextField: ["name"],
  50.                     checkboxes: {
  51.                         checkChildren: true
  52.                     },
  53.                     check: onCheck,
  54.                     dataBound: function (e)
  55.                     {
  56.                         var treeView = $('#treeview').data('kendoTreeView');
  57.                         treeView.expand(".k-item");
  58.                     }
  59.             });
  60.
  61.                 function checkedNodeIds(nodes, checkedNodes) {
  62.                     for (var i = 0; i < nodes.length; i++) {
  63.                         if (nodes[i].checked) {
  64.                             checkedNodes.push(nodes[i].name);
  65.
  66.                         }
  67.
  68.                         if (nodes[i].hasChildren) {
  69.                             checkedNodeIds(nodes[i].children.view(), checkedNodes);
  70.                         }
  71.                     }
  72.                 }
  73.
  74.                 // show checked node IDs on datasource change
  75.                 function onCheck() {
  76.                     var checkedNodes = [],
  77.                         treeView = $("#treeview").data("kendoTreeView"),
  78.                         message;
  79.
  80.                     checkedNodeIds(treeView.dataSource.view(), checkedNodes);
  81.
  82.                     if (checkedNodes.length > 0) {
  83.                         message = "IDs of checked nodes: " + checkedNodes.join(",");
  84.                     } else {
  85.                         message = "No nodes checked.";
  86.                     }
  87.
  88.                     $("#result").html(message);
  89.                 }
  90.
  91.
  92.         </script>
  93.     </div>
  94. </body>
  95. </html>
The kendo TreeView binding is done by the reponse of http://github-ci-staging.azurewebsites.net/api/Automobiles/DataSource -  REST API

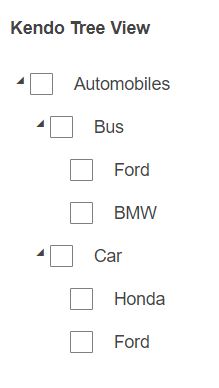

Result in Browser

Drag and drop in kendo TreeView

To enable the drag and drop in Kendo TreeView, make the DragAndDrop attribute true.

KendoTreeView.cshtml
  1. <!DOCTYPE html>
  2. <html>
  3. <head>
  4.     <style>
  5.         html {
  6.             font-size: 14px;
  7.             font-family: Arial, Helvetica, sans-serif;
  8.         }
  9.     </style>
  10.     <title></title>
  11.     <link rel="stylesheet" href="https://kendo.cdn.telerik.com/2017.3.1026/styles/kendo.common-material.min.css" />
  12.     <link rel="stylesheet" href="https://kendo.cdn.telerik.com/2017.3.1026/styles/kendo.material.min.css" />
  13.     <link rel="stylesheet" href="https://kendo.cdn.telerik.com/2017.3.1026/styles/kendo.material.mobile.min.css" />
  14.
  15.     <script src="https://kendo.cdn.telerik.com/2017.3.1026/js/jquery.min.js"></script>
  16.     <script src="https://kendo.cdn.telerik.com/2017.3.1026/js/kendo.all.min.js"></script>
  17. </head>
  18. <body>
  19.     <div id="example">
  20.         <div class="demo-section k-content">
  21.             <div class="k-content">
  22.                 <h4> Kendo Tree View</h4>
  23.
  24.             </div>
  25.
  26.             <div id="treeview"></div>
  27.             <!--<div>
  28.                 <p id="result">No nodes checked.</p>
  29.             </div>-->
  30.         </div>
  31.         <script>
  32.                     homogeneous = new kendo.data.HierarchicalDataSource({
  33.                         transport: {
  34.                             read: {
  35.                                 url: "http://github-ci-staging.azurewebsites.net/api/Automobiles/DataSource",
  36.                                 dataType: "json"
  37.                             }
  38.                         },
  39.                         schema: {
  40.                             model: {
  41.                                 id: "value",
  42.                                 children: "items"
  43.                             }
  44.                         }
  45.                     });
  46.
  47.                 $("#treeview").kendoTreeView({
  48.                     dataSource: homogeneous,
  49.                     dragAndDrop: true,
  50.                     dataTextField: ["name"],
  51.                     checkboxes: {
  52.                         checkChildren: true
  53.                     },
  54.                     check: onCheck,
  55.                     dataBound: function (e)
  56.                     {
  57.                         var treeView = $('#treeview').data('kendoTreeView');
  58.                         treeView.expand(".k-item");
  59.                     }
  60.             });
  61.
  62.                 function checkedNodeIds(nodes, checkedNodes) {
  63.                     for (var i = 0; i < nodes.length; i++) {
  64.                         if (nodes[i].checked) {
  65.                             checkedNodes.push(nodes[i].name);
  66.
  67.                         }
  68.
  69.                         if (nodes[i].hasChildren) {
  70.                             checkedNodeIds(nodes[i].children.view(), checkedNodes);
  71.                         }
  72.                     }
  73.                 }
  74.
  75.                 // show checked node IDs on datasource change
  76.                 function onCheck() {
  77.                     var checkedNodes = [],
  78.                         treeView = $("#treeview").data("kendoTreeView"),
  79.                         message;
  80.
  81.                     checkedNodeIds(treeView.dataSource.view(), checkedNodes);
  82.
  83.                     if (checkedNodes.length > 0) {
  84.                         message = "IDs of checked nodes: " + checkedNodes.join(",");
  85.                     } else {
  86.                         message = "No nodes checked.";
  87.                     }
  88.
  89.                     $("#result").html(message);
  90.                 }
  91.
  92.
  93.         </script>
  94.     </div>
  95. </body>
  96. </html>
Result in browser

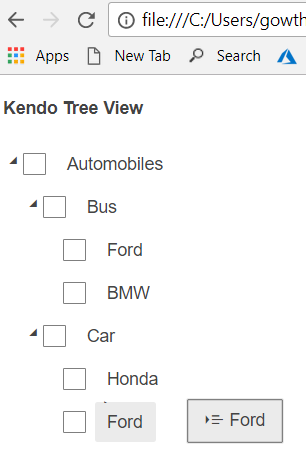

While Dragging

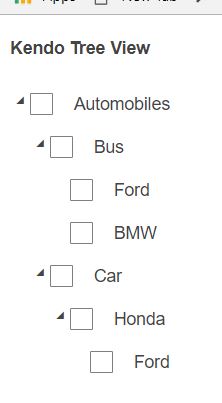

After Drop


I hope you have learned from this blog. Your valuable feedback, questions, or comments about this article are always welcome.

Download the source code from GitHub.
