Draw Signature On Mobile Computer Screen (Portable Terminal Device) C#

Draw Signature On Mobile Computer Screen (Portable Terminal Device) C#

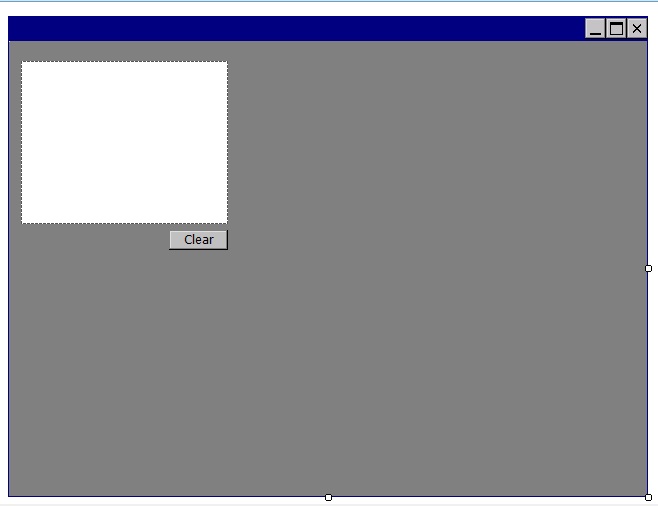

Fig 1 : Design Screen of Smart Device Application

Write the following code in the application

Name Spaces
  1. using System;
  2. using System.Linq;
  3. using System.Collections.Generic;
  4. using System.ComponentModel;
  5. using System.Data;
  6. using System.Drawing;
  7. using System.Text;
  8. using System.Windows.Forms;
  9. using System.IO;
  10. using System.Reflection;
  11. using System.Drawing.Imaging;
  12. using System.Collections;
  13. using System.Runtime.InteropServices;
In Partial Class
  1. public partial class Form2 : Form
  2.     {
  3.         string Img;
  4.
  5.
  6.         private string AppPath = Path.GetDirectoryName(Assembly.GetExecutingAssembly().GetName().CodeBase);
  7.         private Signature cSignature;
  8.         private Point? _Previous = null;
  9.         private Pen _Pen = new Pen(Color.Black);
Create Events of PictureBox
  1. private void pictureBox1_MouseDown(object sender, MouseEventArgs e)
  2.         {
  3.             _Previous = new Point(e.X, e.Y);
  4.             pictureBox1_MouseMove(sender, e);
  5.         }
  6.
  7.         private void pictureBox1_MouseMove(object sender, MouseEventArgs e)
  8.         {
  9.             if (_Previous != null)
  10.             {
  11.                 if (pictureBox1.Image == null)
  12.                 {
  13.                     Bitmap bmp = new Bitmap(pictureBox1.Width, pictureBox1.Height);
  14.                     using (Graphics g = Graphics.FromImage(bmp))
  15.                     {
  16.                         g.Clear(Color.White);
  17.                     }
  18.                     pictureBox1.Image = bmp;
  19.                 }
  20.                 using (Graphics g = Graphics.FromImage(pictureBox1.Image))
  21.                 {
  22.                     g.DrawLine(_Pen, _Previous.Value.X, _Previous.Value.Y, e.X, e.Y);
  23.                 }
  24.                 pictureBox1.Invalidate();
  25.                 _Previous = new Point(e.X, e.Y);
  26.             }
  27.         }
  28.
  29.         private void pictureBox1_MouseUp(object sender, MouseEventArgs e)
  30.         {
  31.             _Previous = null;
  32.         }
Clear Button Click Event :
  1. private void btnClear_Click_1(object sender, EventArgs e)
  2.         {
  3.             pictureBox1.Image = null;
  4.         }

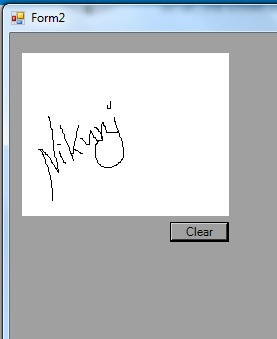

Lets see the output below :


 Its Done
