Drawing And Inking Using InkCanvas Control For UWP

Prerequisites
  • Visual Studio 2015
InkCanvas element represents a InkCanvas control in XAML.
  1. <Grid>
  2. <InkCanvas x:Name="inkCanvas" ></InkCanvas>
  3. </Grid>
Now, let's get started with the steps, given below.

Step 1 Create Windows Universal Project

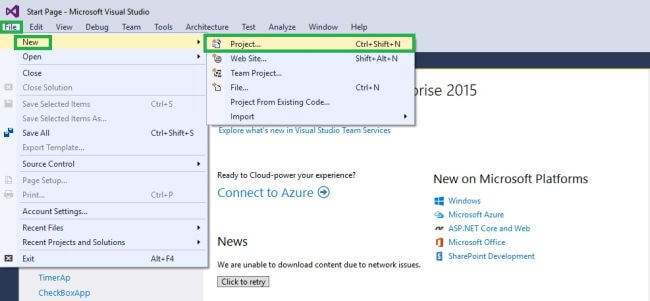

Open Visual Studio 2015 and click File -> New -> Project Option for New Universal app.

Visual Studio

Step 2 Giving the Project Name

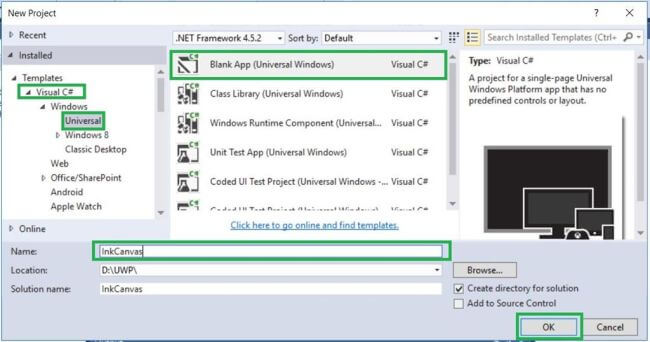

Now, new Project Window will open. You can select an Installed -> Template -> Visual C# -> Windows -> Universal and select a Blank app (Universal Windows).

Type project name InkCanvas and click OK button.

Visual Studio

Step 3 Setting the platform Versions

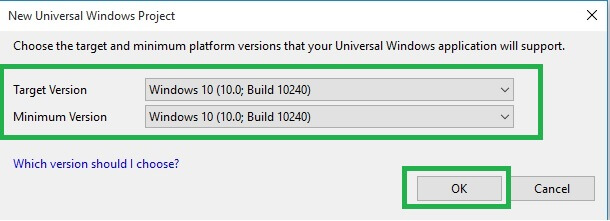

Here, we choose the Target Version, Minimum Version for our Universal Windows Application and click OK button.

Visual Studio

Step 4 Choose Designer Window

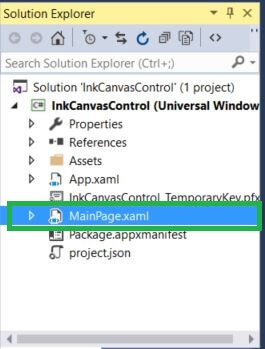

Now, we go to Solution Explorer and select MainPage.xaml.

Visual Studio

Step 5 Designing the App

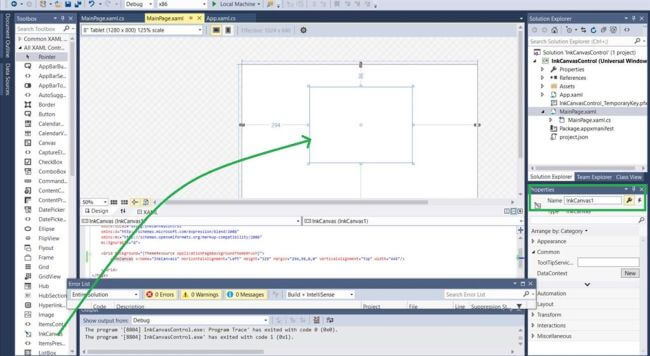

Drag the InkControl Control from the tool box and change the name to Inkcontrol1 in the Property Window.

Visual Studio

Step 6 Add the Coding

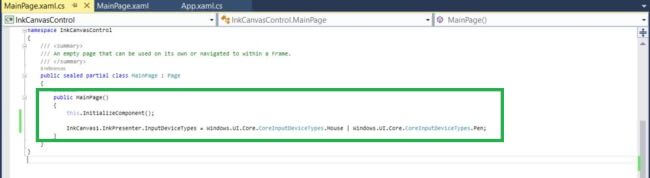

Now, we add C# code, given below in MainPage.xaml.cs.
  1. public MainPage()
  2. {
  3.     this.InitializeComponent();
  4.     InkCanvas1.InkPresenter.InputDeviceTypes = Windows.UI.Core.CoreInputDeviceTypes.Mouse | Windows.UI.Core.CoreInputDeviceTypes.Pen;
  5. }
Visual Studio

Step 7 Run the Application

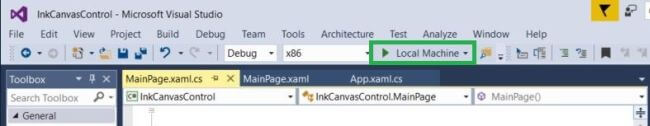

Now, we are ready to run our project. Thus, click the local machine to run the Application.

public MainPage() { this.InitializeComponent(); InkCanvas1.InkPresenter.InputDeviceTypes = Windows.UI.Core.CoreInputDeviceTypes.Mouse | Windows.UI.Core.CoreInputDeviceTypes.Pen; }

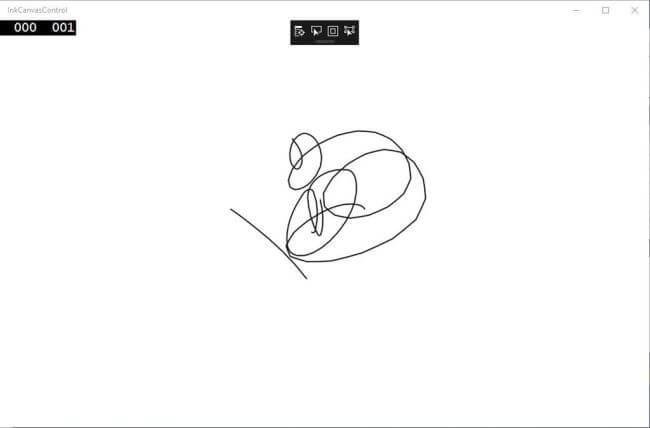

Output

public MainPage() { this.InitializeComponent(); InkCanvas1.InkPresenter.InputDeviceTypes = Windows.UI.Core.CoreInputDeviceTypes.Mouse | Windows.UI.Core.CoreInputDeviceTypes.Pen; }

Changing the Ink Color

We can change the ink colors, thickness and other properties by overriding the DefultDrawingAttributes.

Add the namespaces, given below, to our project, which is required in the further process.

using Windows.UI.Input.Inking;

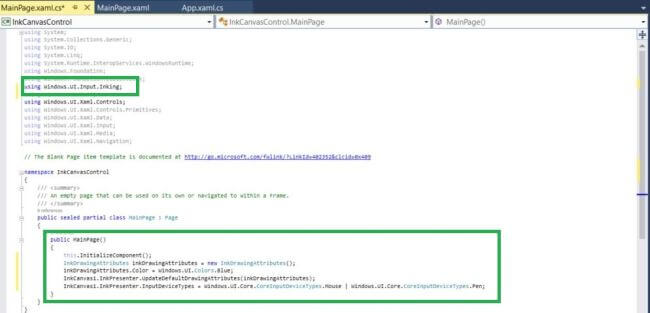

The code, given below, will change the default ink color to blue.
  1. public MainPage()
  2. {
  3.     this.InitializeComponent();
  4.     InkDrawingAttributes inkDrawingAttributes = new InkDrawingAttributes();
  5.     inkDrawingAttributes.Color = Windows.UI.Colors.Blue;
  6.     InkCanvas1.InkPresenter.UpdateDefaultDrawingAttributes(inkDrawingAttributes);
  7.     InkCanvas1.InkPresenter.InputDeviceTypes = Windows.UI.Core.CoreInputDeviceTypes.Mouse | Windows.UI.Core.CoreInputDeviceTypes.Pen;
  8. }

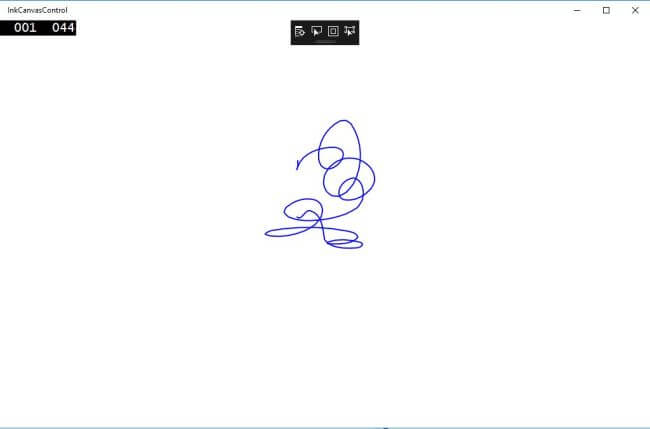

Output

public MainPage() { this.InitializeComponent(); InkCanvas1.InkPresenter.InputDeviceTypes = Windows.UI.Core.CoreInputDeviceTypes.Mouse | Windows.UI.Core.CoreInputDeviceTypes.Pen; }

Conclusion

I hope you understood InkCanvas control in Universal Windows platform and how to use it.
