Dynamic Menu with Icon in WPF

In this document we are discussing about how to generate WPF menu dynamically in visual studio 2012.

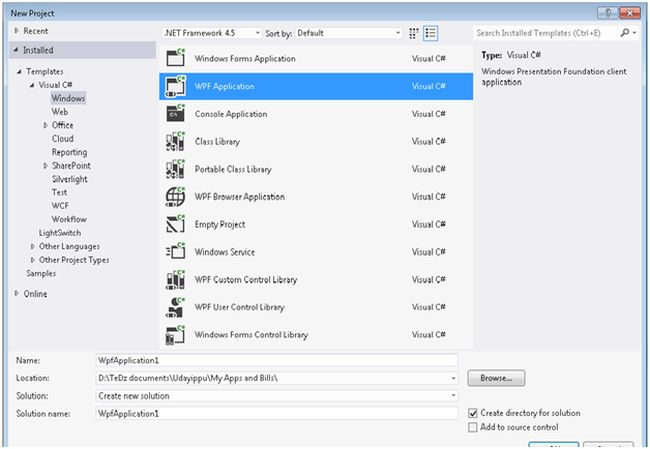

Step 1: Create New Project .

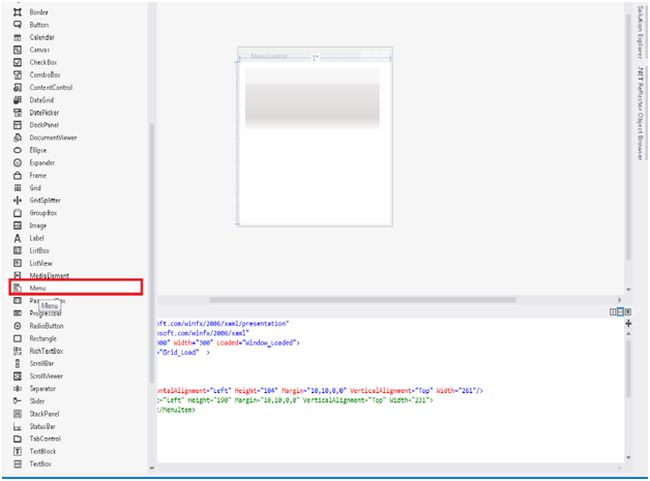

Step 2: Add Menu Control to The grid.



Step 3: Create Menu

• Include “System.Windows.Controls” in the project.
• Create object for Menuitem.
• Edit the properties of MenuItem.
• Add Menu item to the Main Menu.

MenuItem mnuInvoices = new MenuItem();
mnuInvoices.Header = "Invoice";
mnuInvoices.Height = 50;
this.mnuMain.Items.Add(mnuInvoices);

Step 4: Create Sub Menu

• Create object for Menuitem.
• Edit the properties of MenuItem.
• And add the submenu object to the corresponding MenuItem.

MenuItem mnuInvoices = new MenuItem();
mnuInvoices.Header = "Invoice";
mnuInvoices.Height = 50;
this.mnuMain.Items.Add(mnuInvoices);

if (ObjUsr.UserTypeid == 1)
{
      MenuItem mnuDeleteInvoice = new MenuItem();
      mnuDeleteInvoice.Header = "Delete Invoice";
      mnuDeleteInvoice.Height = 50;
      mnuInvoices.Items.Add(mnuDeleteInvoice);


      MenuItem mnuInvoiceStatus = new MenuItem();
      mnuInvoiceStatus.Header = "Invoice Status";
      mnuInvoiceStatus.Height = 50;
      mnuInvoices.Items.Add(mnuInvoiceStatus);
}
else
{
      MenuItem mnuInvoiceStatus = new MenuItem();
      mnuInvoiceStatus.Header = "Invoice Status";
      mnuInvoiceStatus.Height = 50;
      mnuInvoices.Items.Add(mnuInvoiceStatus);
}

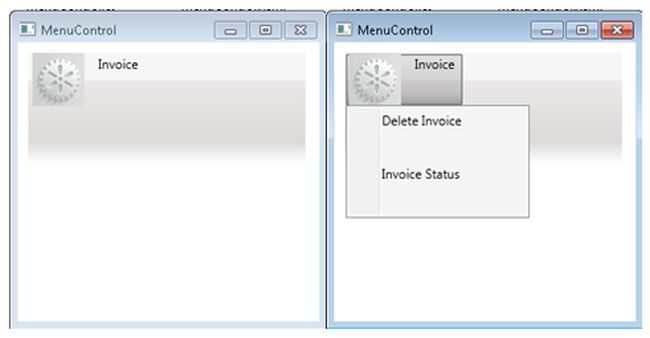

Step 5: Load Image Icon

• Create Object of System.Windows.Controls.Image.
• Assign the “System.Windows.Media.ImageSource” Path to Image Object .
• Assign the Image object to the “Icon” Property of Menu Items.

Image ObjImage = new Image();
string path = ConfigurationManager.AppSettings["AppPath"].ToString() + "/Images/pic.png";
ObjImage.Source = new BitmapImage(new Uri(path, UriKind.RelativeOrAbsolute));
mnuInvoices.Icon = ObjImage;

Reference

Uri: http://msdn.microsoft.com/en-us/library/system.uri(v=vs.110).aspx
UriKind : http://www.c-sharpcorner.com/Forums/Thread/242530/
WPF setting a MenuItem.Icon in code
