Export-Import SharePoint Designer Workflow

If the workflows are not getting attached to a specific list or library while developing SharePoint 2010 workflow in SharePoint Designer 2013, or if you wish to export and import Designer Workflow from one site to another site in a site collection, then follow the below steps:

Workflow (WF) Export and Import process

Export Process

Step 1

Export the source Workflow which you want to attach on another Site’s List.


Step 2

Rename the downloaded file and append it with .zip extension.



Step 3

Open the Zip folder and delete “Workflow.xoml.wfconfig.xml”.



Step 4

Rename the file again. Remove “.zip”.



Import Process

Step 1

Import the Source Workflow from the destination site.



Step 2

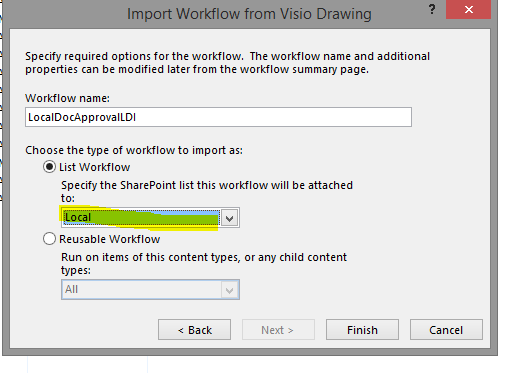

Specify the List/library name.


Step 3

Save (do not publish at this step).

Step 4

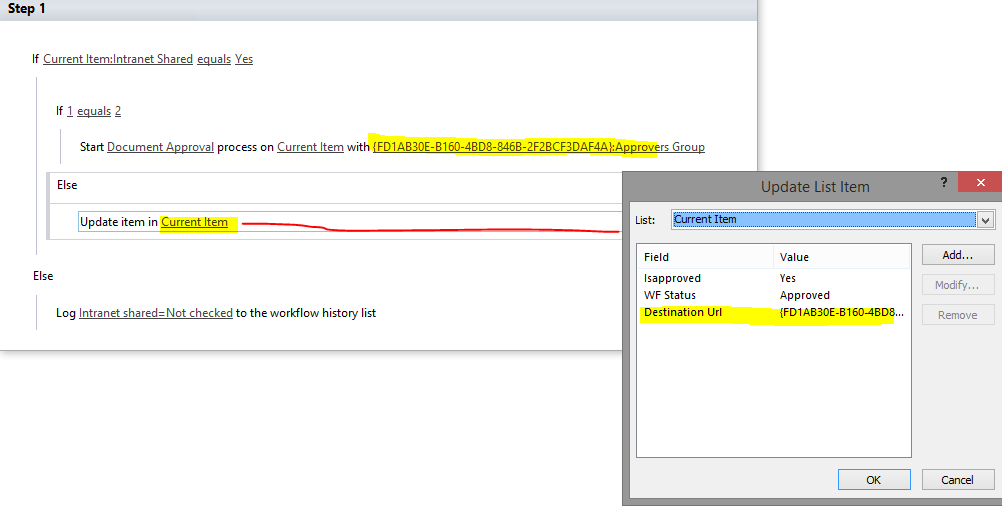

Update the approver list; i.e., update the objects in your workflow which you want in your new workflow.


Step 5

Save and Publish.

Step 6

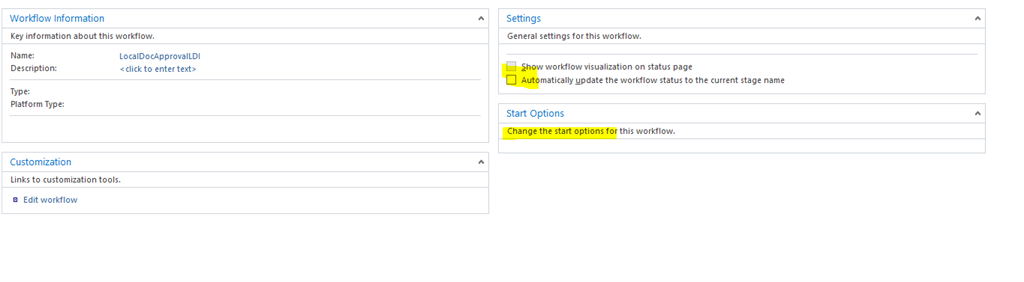

At this stage, the workflow has no Task and History list associated with it.


Step 7

Close the Designer because task/history list association and start option are disabled.

Step 8

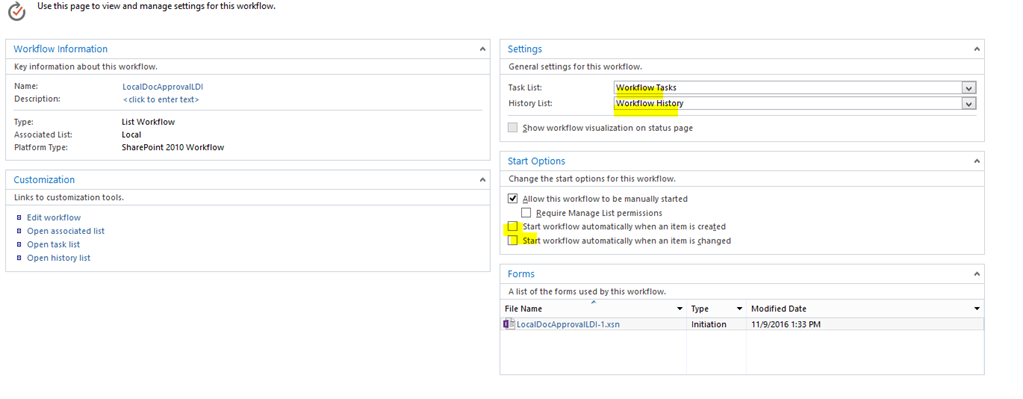

Open designer once again. Now, you can see that these options are visible.

Step 9

Configure Workflow Settings and Save, then Publish.

NOTE - Microsoft Visio installation is not required for this export-import process.
