Google Map View With Travel Distance And Duration Between Places Using ASP.NET MVC And Bootstrap In Real-Time - Part Ten

Introduction

The directionsDisplay in Google Maps helps us to show routes between places.

Description

The Autocomplete widget provides a type-ahead search box . It is operated by using Google Api Key.
The source and destination textbox will show you places.

After putting source and destination then click on button then you will get the realtime duration and distance details with map view.

Before reading it Go through my Part-8 google map blog
http://www.c-sharpcorner.com/members/satyaprakash-samantaray

Steps to be followed

Step1


As I described earlier,

Create a controller action method named "DistanceCalculation" in "HomeController.cs".
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6.
  7. namespace SatyaGoogleMapBootstrapMVC.Controllers
  8. {
  9.     public class HomeController : Controller
  10.     {
  11.         //
  12.         // GET: /Home/
  13.
  14.         public ActionResult Index()
  15.         {
  16.             return View();
  17.         }
  18.         public ActionResult Details()
  19.         {
  20.             return View();
  21.         }
  22.         public ActionResult Animate()
  23.         {
  24.             return View();
  25.         }
  26.         public ActionResult Icon()
  27.         {
  28.             return View();
  29.         }
  30.         public ActionResult Steet()
  31.         {
  32.             return View();
  33.         }
  34.         public ActionResult ModeTravel()
  35.         {
  36.             return View();
  37.         }
  38.         public ActionResult Traffic()
  39.         {
  40.             return View();
  41.         }
  42.         public ActionResult RouteColor()
  43.         {
  44.             return View();
  45.         }
  46.         public ActionResult DistanceCalculation()
  47.         {
  48.             return View();
  49.         }
  50.     }

Then create a view named "DistanceCalculation.cshtml".
  1. @{
  2.     ViewBag.Title = "Satyaprakash Goolge Map Distance Calculation";
  3. }
  4.
  5. <title>@ViewBag.Title</title>
  6.
  7. <h2 style="background-color: Yellow;color: Blue; text-align: center; font-style: oblique">Satyaprakash'sGoolge Map Distance Calculation Using MVC and BOOTSTRAP</h2>
  8. <meta charset="utf-8">
  9. <meta name="viewport" content="width=device-width, initial-scale=1">
  10. <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.7/css/bootstrap.min.css">
  11. <script src="https://ajax.googleapis.com/ajax/libs/jquery/3.2.1/jquery.min.js"></script>
  12. <script src="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.7/js/bootstrap.min.js"></script>
  13.
  14. <title>Places Searchbox</title>
  15. <style>
  16.
  17.     #dvMap {
  18.         height: 50%;
  19.     }
  20.
  21.     .button {
  22.         background-color: #4CAF50;
  23.         border: none;
  24.         color: white;
  25.         padding: 15px 32px;
  26.         text-align: center;
  27.         text-decoration: none;
  28.         display: inline-block;
  29.         font-size: 16px;
  30.         margin: 4px 2px;
  31.         cursor: pointer;
  32.     }
  33.
  34.     .button4 {
  35.         border-radius: 9px;
  36.     }
  37.
  38.     input[type=text], select {
  39.         width: 40%;
  40.         padding: 12px 20px;
  41.         margin: 10px 0;
  42.         display: inline-block;
  43.         border: 1px solid #ccc;
  44.         border-radius: 4px;
  45.         box-sizing: border-box;
  46.     }
  47. </style>
  48.
  49.     <script src="https://maps.googleapis.com/maps/api/js?key=AIzaSyCkVZYQFe4YYva_g5ulymGDt9EBoVjjZJ8&libraries=places">
  50.     </script>
  51.         <script type="text/javascript">
  52.             var source, destination;
  53.             var directionsDisplay;
  54.             var directionsService = new google.maps.DirectionsService();
  55.             google.maps.event.addDomListener(window, 'load'function () {
  56.                 new google.maps.places.SearchBox(document.getElementById('txtSource'));
  57.                 new google.maps.places.SearchBox(document.getElementById('txtDestination'));
  58.                 directionsDisplay = new google.maps.DirectionsRenderer({ 'draggable'true });
  59.             });
  60.
  61.             function GetRoute() {
  62.                 var mumbai = new google.maps.LatLng(18.9750, 72.8258);
  63.                 var mapOptions = {
  64.                     zoom: 7,
  65.                     center: mumbai
  66.                 };
  67.                 map = new google.maps.Map(document.getElementById('dvMap'), mapOptions);
  68.                 directionsDisplay.setMap(map);
  69.
  70.                 source = document.getElementById("txtSource").value;
  71.                 destination = document.getElementById("txtDestination").value;
  72.
  73.                 var request = {
  74.                     origin: source,
  75.                     destination: destination,
  76.                     travelMode: google.maps.TravelMode.DRIVING
  77.                 };
  78.                 directionsService.route(request, function (response, status) {
  79.                     if (status == google.maps.DirectionsStatus.OK) {
  80.                         directionsDisplay.setDirections(response);
  81.                     }
  82.                 });
  83.
  84.
  85.                 var service = new google.maps.DistanceMatrixService();
  86.                 service.getDistanceMatrix({
  87.                     origins: [source],
  88.                     destinations: [destination],
  89.                     travelMode: google.maps.TravelMode.DRIVING,
  90.                     unitSystem: google.maps.UnitSystem.METRIC,
  91.                     avoidHighways: false,
  92.                     avoidTolls: false
  93.                 }, function (response, status) {
  94.                     if (status == google.maps.DistanceMatrixStatus.OK && response.rows[0].elements[0].status != "ZERO_RESULTS") {
  95.                         var distance = response.rows[0].elements[0].distance.text;
  96.                         var duration = response.rows[0].elements[0].duration.text;
  97.                         var dvDistance = document.getElementById("dvDistance");
  98.                         dvDistance.innerHTML = "";
  99.                         dvDistance.innerHTML += "Distance Is: " + distance + "<br />";
  100.                         dvDistance.innerHTML += "Duration Is:" + duration;
  101.                         //alert(dvDistance.innerHTML);
  102.                     } else {
  103.                         alert("Your Request For Distance Not Available");
  104.                     }
  105.                 });
  106.             }
  107.         </script>
  108.
  109.                     <input type="text" id="txtSource" placeholder="Enter Source...." />
  110.
  111.                     <input type="text" id="txtDestination" placeholder="Enter Destination...." />
  112.                     <br />
  113.                     <input type="button" value="Show" onclick="GetRoute()" class="button button4" />
  114.                     <hr />
  115.                     <div id="dvDistance" style="font-size:x-large; font-family: Arial Black; background-color: Yellow; color: Blue; text-align: center">
  116.                     </div>
  117.                     <div id="dvMap">
  118.                     </div>
  119.                     <hr />
  120.
  121. <footer>
  122.     <p style="background-color: Yellow; font-weight: bold; color:blue; text-align: center; font-style: oblique">© @DateTime.Now.ToLocalTime()</p> @*Add Date Time*@
  123. </footer>
I have added a div tag for map.
  1. <div id="dvMap">
  2.  </div>
 Then passed the div id "dvMap":
  1. map = new google.maps.Map(document.getElementById('dvMap'), mapOptions);
  2. directionsDisplay.setMap(map);
Always set the map height explicitly to define the size of the div element that contains the map.
  1. #dvMap {
  2.         height: 50%;
  3.     }
OUTPUT

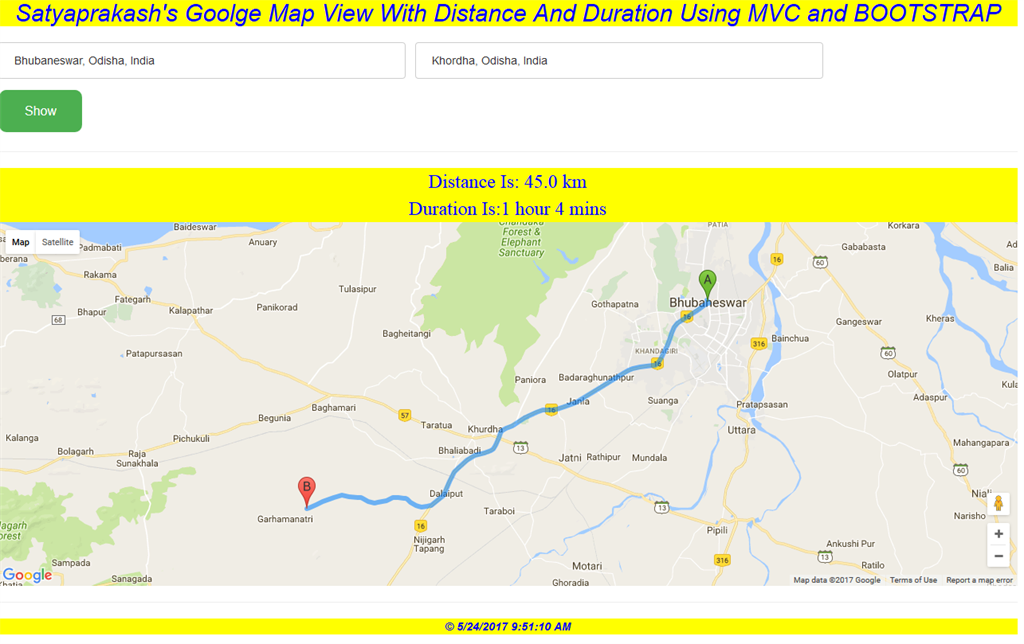

DESKTOP VIEW

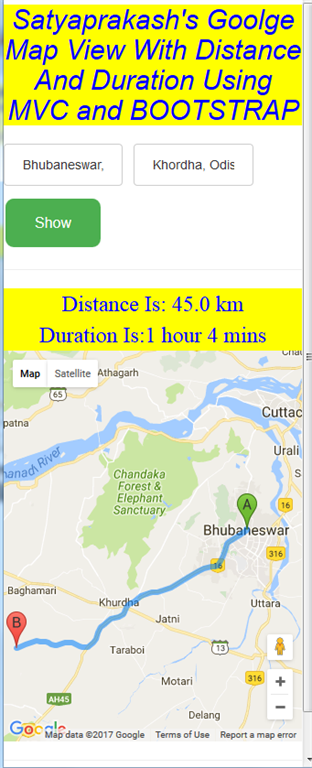

Mobile View

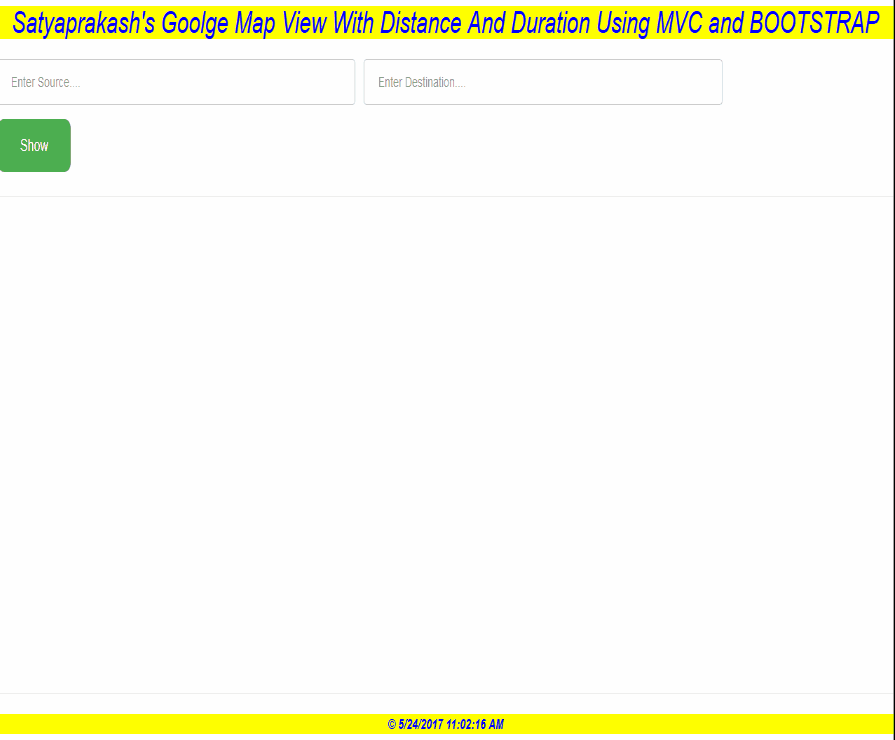

Gif Image For Better Undertstanding....



SUMMARY
  1. Calculate Distance and Duration with map view using gogole api key.
  2. How to implement in mvc and bootstrap.
  3. Autocomplete widget link with textboxes.
  4. Goolge api key link URL.
