How To Create HDinsight With Azure Using Microsoft Cloud Services

Prerequisites

• Sign into Azure account.

Step 1

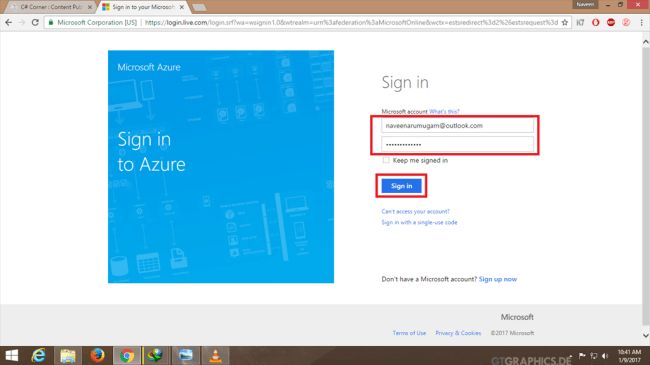

Go to "portal.azure.com" and sign into your account.




Step 2

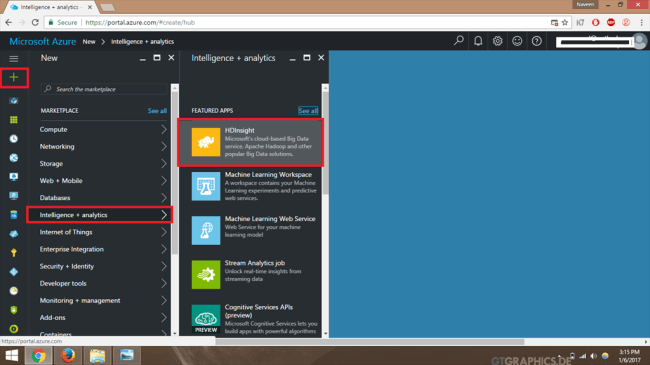

Click New------>select Intelligence+analytics------>select HDInsight to create a cluster for HDinsight.



Step 3

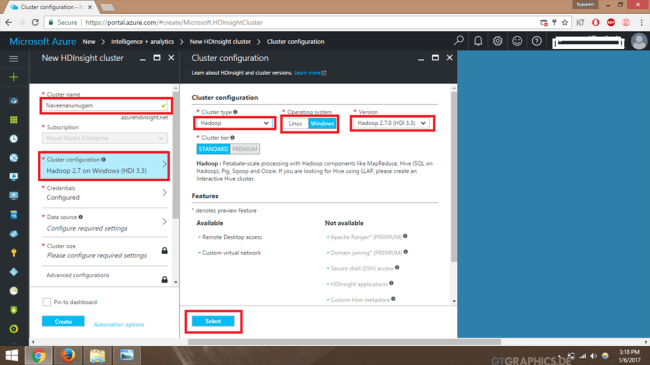

Subsequently, give a cluster name and select cluster configuration------>(Cluster type-->Hadoop)------->(Operating System-->Windows)----->(Version-->Hadoop 2.7.0) and click select to create cluster configuration.




Step 4

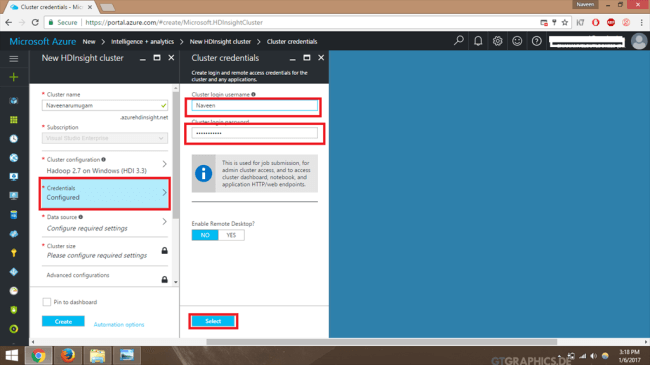

Now, go to credential configured ---->give cluster login username and cluster login password and click select.



Step 5

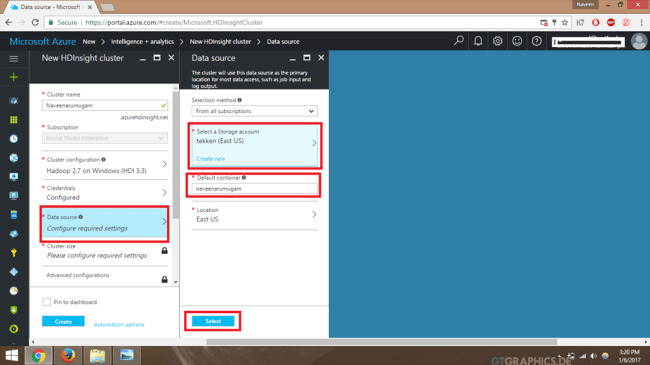

Now, go to data source to configure the required settings and select storage account (or) create new storage account and select default container name, followed by clicking select to configure the required settings.



Step 6

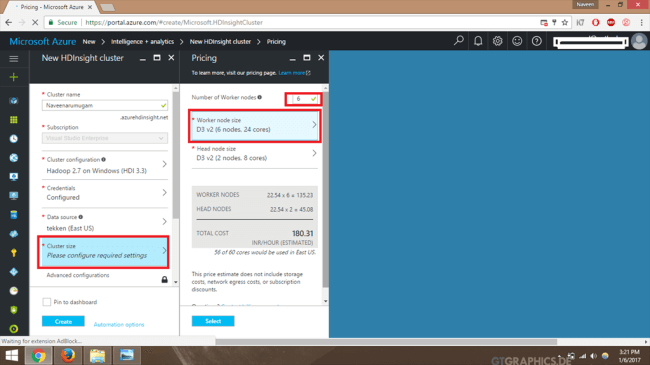

Now, go to cluster size for requiring number of nodes for the worker, make total cost and click select to configure the nodes for the workers.



Step 7

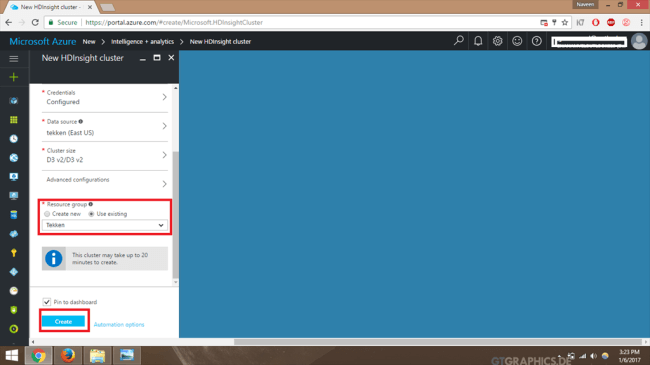

Now, go to "Resource Group" Click Use existing (or) create new to creating resource group for new HDinsight cluster.




Step 8

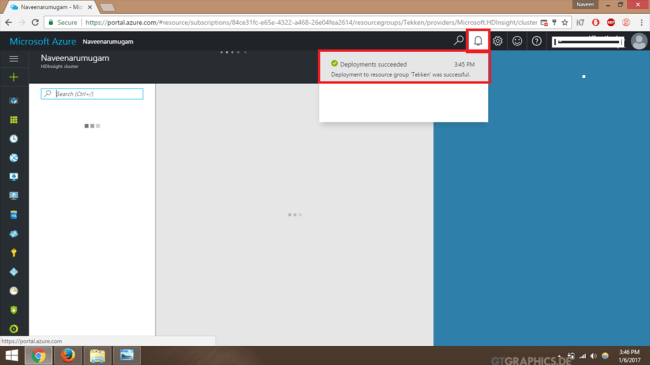

Go to notifications for resource group and deployments succeeded.



Step 9

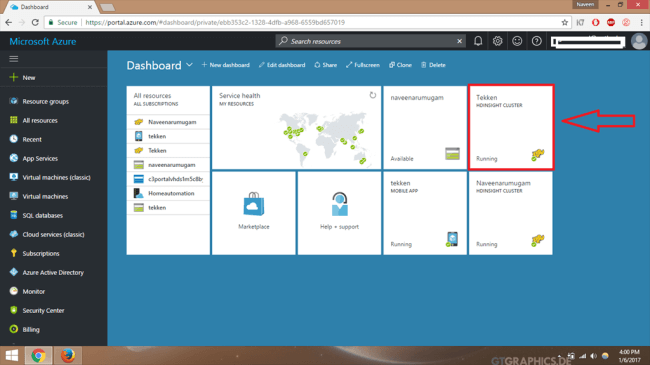

Subsequently, go to Dashboard for Deployment of HDinsight and cluster is created with Azure services.




Step 10

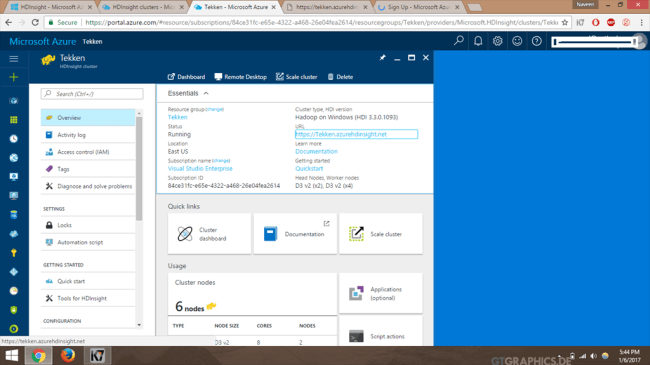

Click on HDinsight cluster to see the output of created HDinsight cluster name for the URL.
