Junction Object In Salesforce

Junction Object:

· J  junction Object is an Object in salesforce it helps to maintain many-to-many relationship between two objects.

·     Let's Create One Example: online Ecommerce Section Management

Custom Object:-Section__c

SectionID	SectionName	IsActive
1	New coming Book	true
2	Best Deal	True
3	Deals Of The day	True

Custom Object:- ProductMaster__c

ProductID	ProductName	IsActive
1	Iphone 5	true
2	Iphone5s	True
3	Iphone6	True

Custom Object:-SectionProductMaster__C

ProductSectionID	SectionID	ProductID
1	1	3
2	1	4
3	2	1

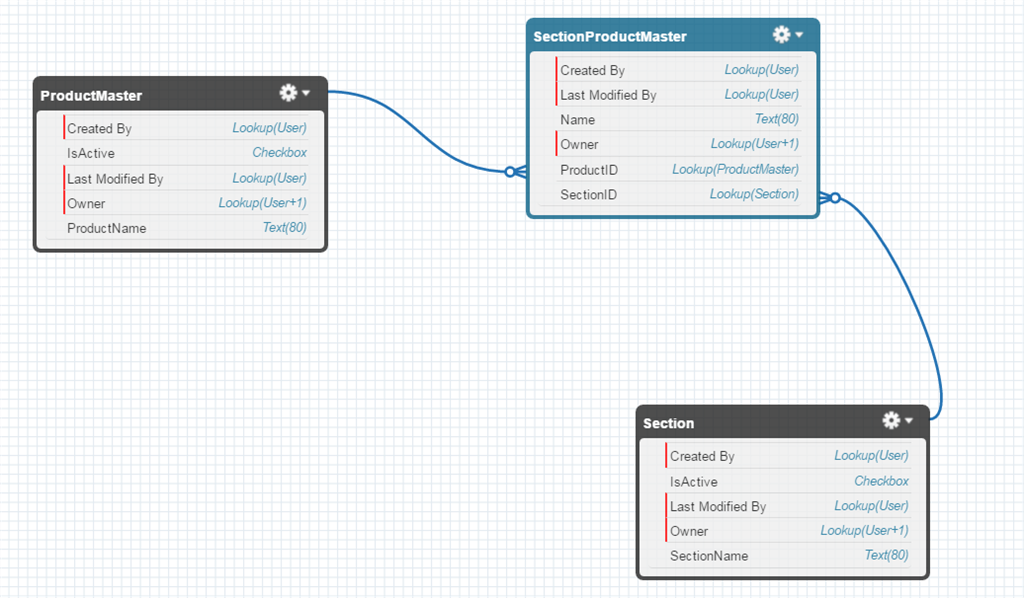

SectionProductMaster__c is Junction Object For Section__c and ProductMaster__c Object.

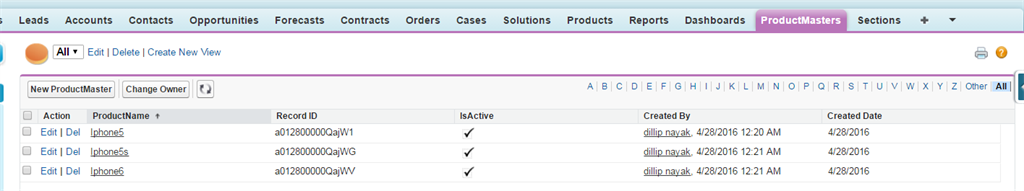

Product Master Data

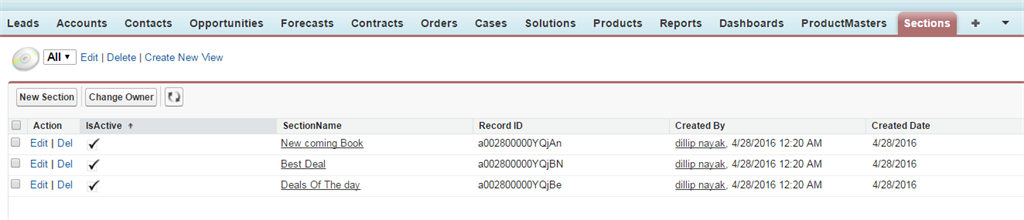

Section Master Data

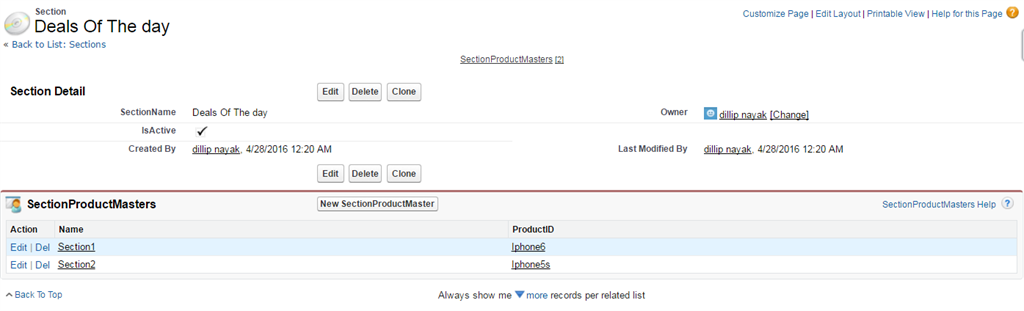

The Below image shows junction object Record (Many-to-Many relationships),



SOQL:

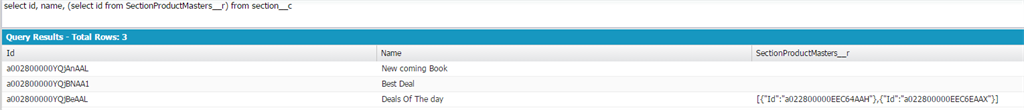

select id,name,(select id from SectionProductMasters__r) from section__c

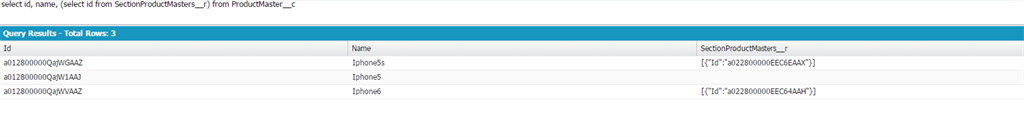

select id,name,(select id from SectionProductMasters__r) from ProductMaster__c

Note: Junction objects allow you to track multiple records at once in either direction.

Delete:

Whenever you delete a record from master object like Section__c, ProductMaster__c its automatically deleted over SectionProductMasters__c

OpportunityLineItem,PriceBookEntry are standard junction objects in salesforce.
