Matching Game Of Image In Windows Application Using C# .Net

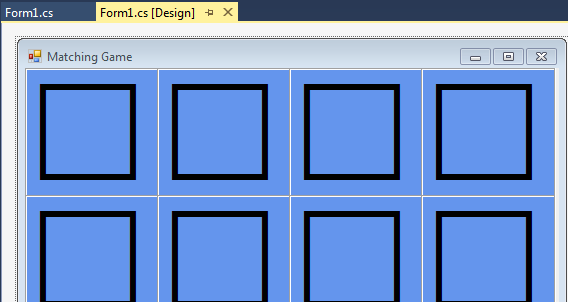

This blog will show you how you can create a very cool image matching game for the kids, using C#.NET in Windows Application. Thus, for this article, we will create a new Windows Application and design the form, as shown below.

design

Afterwards, we will add the code, given below, into the form.cs.
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Drawing;
  4. using System.Windows.Forms;
  5.
  6. namespace MatchingGame
  7. {
  8.     public partial class Form1 : Form
  9.     {
  10.         Label firstClicked = null;
  11.         Label secondClicked = null;
  12.
  13.         // Use this Random object to choose random icons for the squares.
  14.         Random random = new Random();
  15.
  16.         //Symbol show as image
  17.         List<string> icons = new List<string>()
  18.         {
  19.             "!""!""N""N"","",""k""k",
  20.             "b""b""v""v""w""w""z""z"
  21.         };
  22.
  23.         /// <summary>
  24.         /// Assign each icon from the list of icons to a random square
  25.         /// </summary>
  26.         private void AssignIconsToSquares()
  27.         {
  28.             foreach (Control control in tableLayoutPanel1.Controls)
  29.             {
  30.                 Label iconLabel = control as Label;
  31.                 if (iconLabel != null)
  32.                 {
  33.                     int randomNumber = random.Next(icons.Count);
  34.                     iconLabel.Text = icons[randomNumber];
  35.                     iconLabel.ForeColor = iconLabel.BackColor;
  36.                     icons.RemoveAt(randomNumber);
  37.                 }
  38.             }
  39.         }
  40.
  41.
  42.         public Form1()
  43.         {
  44.             InitializeComponent();
  45.             AssignIconsToSquares();
  46.         }
  47.
  48.         /// <summary>
  49.         /// Every label's Click event is handled by this event handler.
  50.         /// </summary>
  51.         /// <param name="sender">The label that was clicked.</param>
  52.         /// <param name="e"></param>
  53.         private void label_Click(object sender, EventArgs e)
  54.         {
  55.             if (timer1.Enabled == true)
  56.                 return;
  57.
  58.             Label clickedLabel = sender as Label;
  59.
  60.             if (clickedLabel != null)
  61.             {
  62.                 if (clickedLabel.ForeColor == Color.Black)
  63.                     // All done - leave the if statements.
  64.                     return;
  65.
  66.                 if (firstClicked == null)
  67.                 {
  68.                     firstClicked = clickedLabel;
  69.                     firstClicked.ForeColor = Color.Black;
  70.
  71.                     // All done - leave the if statements.
  72.                     return;
  73.                 }
  74.
  75.                 secondClicked = clickedLabel;
  76.                 secondClicked.ForeColor = Color.Black;
  77.
  78.                 // Check to see if the player won.
  79.                 CheckForWinner();
  80.
  81.                 if (firstClicked.Text == secondClicked.Text)
  82.                 {
  83.                     firstClicked = null;
  84.                     secondClicked = null;
  85.                     return;
  86.                 }
  87.                 timer1.Start();
  88.             }
  89.         }
  90.
  91.         /// <summary>
  92.         /// This timer is started when the player clicks
  93.         /// two icons that don't match,
  94.         /// so it counts three quarters of a second
  95.         /// and then turns itself off and hides both icons.
  96.         /// </summary>
  97.         /// <param name="sender"></param>
  98.         /// <param name="e"></param>
  99.         private void timer1_Tick(object sender, EventArgs e)
  100.         {
  101.             // Stop the timer.
  102.             timer1.Stop();
  103.
  104.             // Hide both icons.
  105.             firstClicked.ForeColor = firstClicked.BackColor;
  106.             secondClicked.ForeColor = secondClicked.BackColor;
  107.
  108.             // Reset firstClicked and secondClicked  .
  109.             firstClicked = null;
  110.             secondClicked = null;
  111.         }
  112.
  113.         /// <summary>
  114.         /// Check every icon to see if it is matched, by
  115.         /// comparing its foreground color to its background color.
  116.         /// If all of the icons are matched, the player wins.
  117.         /// </summary>
  118.         private void CheckForWinner()
  119.         {
  120.             foreach (Control control in tableLayoutPanel1.Controls)
  121.             {
  122.                 Label iconLabel = control as Label;

  123.
  124.                 if (iconLabel != null)
  125.                 {
  126.                     if (iconLabel.ForeColor == iconLabel.BackColor)
  127.                         return;
  128.                 }
  129.             }
  130.             //On completion show message
  131.             MessageBox.Show("You matched all the icons!""Congratulations!");
  132.             Close();
  133.         }
  134.
  135.     }

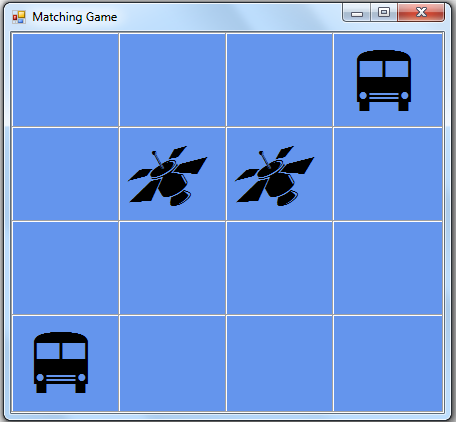

Now, check the output of the game:

output
