Merging Table Data Using Merging Statement In MSSQL 2012

Junaid Syed
7y
1.7k
0
1

Blog

In this blog, we will learn how we can merge the table data using a merging statement. Before I share, I would like to explain in which cases we can use the merging statements. MERGE statement works best when two tables have a complex mixture of matching characteristics; for example, inserting a row if it does not exist, or updating the row if it does match. When simply updating one table based on the rows of another table, improved performance and scalability can be achieved with basic INSERT, UPDATE, and DELETE statements.

Step 1

Create "Products table", i.e., target table contains the changes which we are going to apply from the Source table.

CREATE TABLE Products
(
ProductID INT PRIMARY KEY,
ProductName VARCHAR(100),
Rate MONEY
)
GO

Step 2

Now, insert the data into Products Table.

INSERT INTO Products
VALUES
(1, 'Tea', 10.00),
(2, 'Coffee', 20.00),
(3, 'Muffin', 30.00),
(4, 'Biscuit', 40.00)
GO

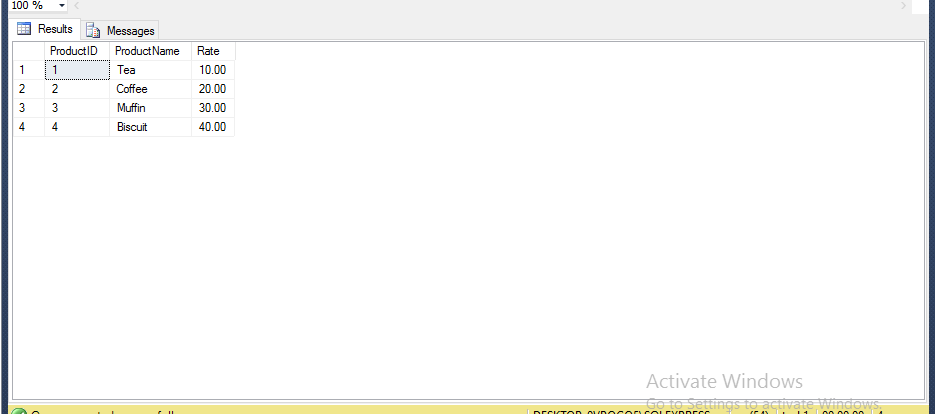

The table will be something like this.

Step 3

Now, create UpdatedProducts table; i.e., Source table which the table data will be merged into with the target table; i.e., with Products table.

CREATE TABLE UpdatedProducts
(
ProductID INT PRIMARY KEY,
ProductName VARCHAR(100),
Rate MONEY
)
GO

Step 4

Now, insert data into UpdateProudcts table.

INSERT INTO UpdatedProducts
VALUES
(1, 'Tea', 10.00),
(2, 'Coffee', 25.00),
(3, 'Muffin', 35.00),
(5, 'Pizza', 60.00)
GO

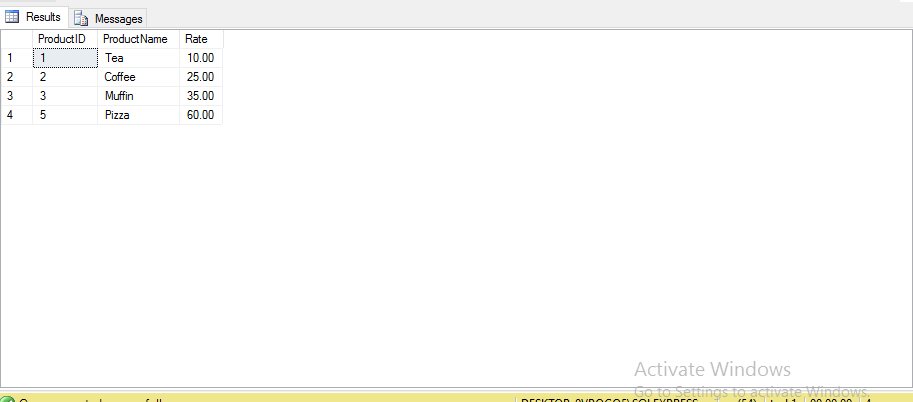

The result will be something like this.

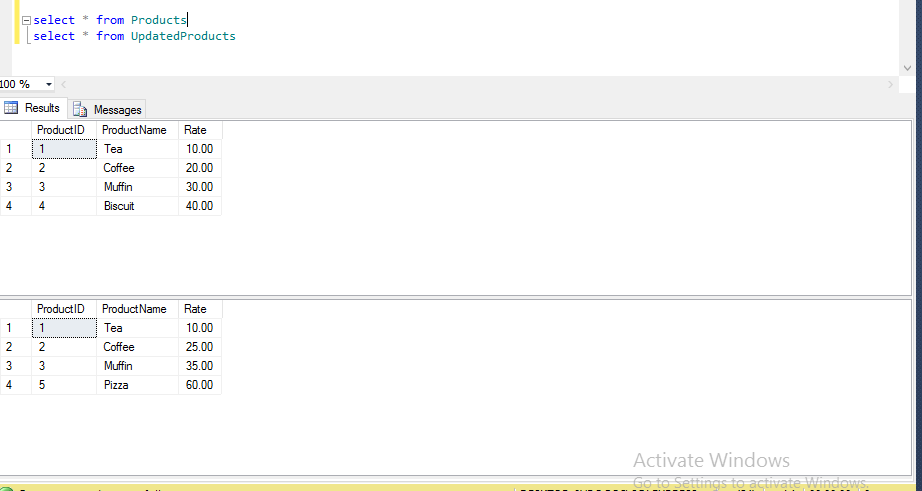

Now, observe the two table that we created.

Step 5

Now, the Merge statement comes into the picture to make the changes which you want in your table.

Syntax

Initially, synchronize the target table with refreshed data from the source table.

MERGE Products AS TARGET
USING UpdatedProducts AS SOURCE
ON (TARGET.ProductID = SOURCE.ProductID)

When records are matched, update the records if there is any change.

WHEN MATCHED AND TARGET.ProductName <> SOURCE.ProductName
OR TARGET.Rate <> SOURCE.Rate THEN
UPDATE SET TARGET.ProductName = SOURCE.ProductName,
TARGET.Rate = SOURCE.Rate

When no records are matched, insert the incoming records from source table to target table.

WHEN NOT MATCHED BY TARGET THEN
INSERT (ProductID, ProductName, Rate)
VALUES (SOURCE.ProductID, SOURCE.ProductName, SOURCE.Rate)

When there is a row that exists in the target table and same record does not exist in the source table, then delete this record from the target table.

WHEN NOT MATCHED BY SOURCE THEN
DELETE

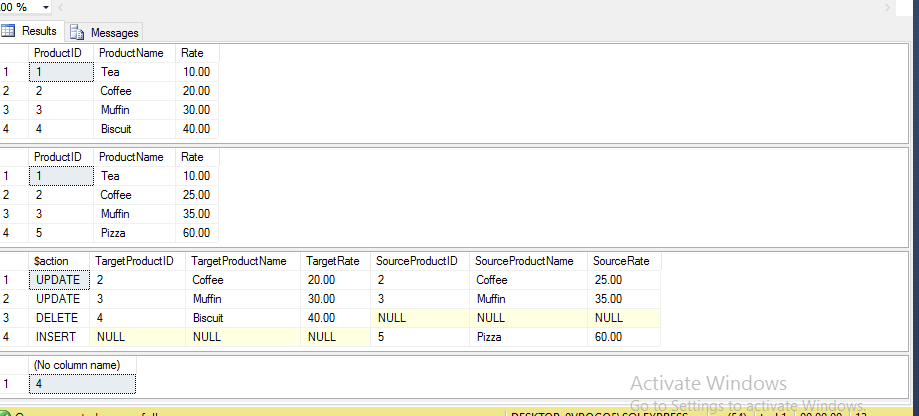

In the below code $action specifies a column of type nvarchar(10) in the OUTPUT clause that returns one of the three values for each row: 'INSERT', 'UPDATE', or 'DELETE', according to the action that was performed on that row. This is for our convenience to understand on which row the action is performed.
