Display after
application in ASP.NET
Hi!
Here i will show you step by step procedure how to use
Display after application in ASP.NET in visual studio
2005 / 2008
This article shows you the usage
of progress bar which works after a specified time and display the current date
and time….
__________________________________________________
Here I am using Visual Studio 2008 but there is no condition you can use
Visual Studio 2005 also.
So follow these steps to create Display
after application
The Steps are:
1- Start -> All Programs -> Visual Studio 2005 or Visual Studio 2008
2- Now go to File Menu -> New -> Web Site
3- Under Visual Studio Installed Template-> Choose ASP.NET WEB SITE ->
Choose File System from the location combo box -> Set the path by the browse
button - > Choose the language from the Language ComboBox (Visual C# ,
Visual Basic , J #)
Choose Visual C#
4 - Click on the OK Button:-
First you have to learn XML and HTML to work with ASP .NET_
I have used <! – –> to make the text as comment this is
the way to make comment in this code …
This is the Source Code window and in this page you will se this code…
<%@ Page Language=”C#”
AutoEventWireup=”true” CodeFile=”Default.aspx.cs” Inherits=”_Default”
%>
<!DOCTYPE html PUBLIC “-//W3C//DTD XHTML 1.0 Transitional//EN”
“http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd”>
<html xmlns=”http://www.w3.org/1999/xhtml”>
<head runat=”server”>
<title>Type your webpage title here</title>
<!– Here you can specify your page title in
between title tag ->
</head>
<body>
<form id=”form1? runat=”server”>
<div>
<!– In between div tags you can manage your web
controls like buttons, labels, picture
Box, ImageMap etc –>
</div>
</form>
</body>
</html>
See here is a tab named Design in the bottom of this page
5- Click on this tab and you will see a blank web page where you can drag
any control from the toolbox (which is in the left side of this window)
6-copy and .gif progress image and paste it into the solution explorer.
7- Now Drag some controls under the AJAX Extensions
One scriptmanager
One UpdatePanel
One UpdateProgress
And now set the source code window like this….
Under the form tag__
<div>
<asp:ScriptManager ID="ScriptManager1" runat="server">
</asp:ScriptManager>
<asp:UpdatePanel ID="UpdatePanel1" runat="server" UpdateMode="Conditional">
<ContentTemplate>
<center>
<div><asp:Button ID ="button1" runat="server" Text="Update Time/ Date"
onclick="button1_Click"/>
<br />
<asp:Label ID ="label1" runat
="server"></asp:Label>
</div>
</center>
</ContentTemplate>
</asp:UpdatePanel>
<asp:UpdateProgress ID="UpdateProgress1" runat="server" AssociatedUpdatePanelID="UpdatePanel1" DisplayAfter="2000" DynamicLayout
="true">
<ProgressTemplate>
<center><img src="progress.gif" runat="server" /></center>
</ProgressTemplate>
</asp:UpdateProgress>
</div>
8- Now in the design window double click the button and type this code in
the code window…
protected void button1_Click(object
sender, EventArgs e)
{
System.Threading.Thread.Sleep(5000);
label1.Text = "Page
refreshed at" + DateTime.Today.ToLongDateString()
+ "" + DateTime.Now.ToLongTimeString();
}
11 - Now run your web site by Ctrl + F5
OUT PUT

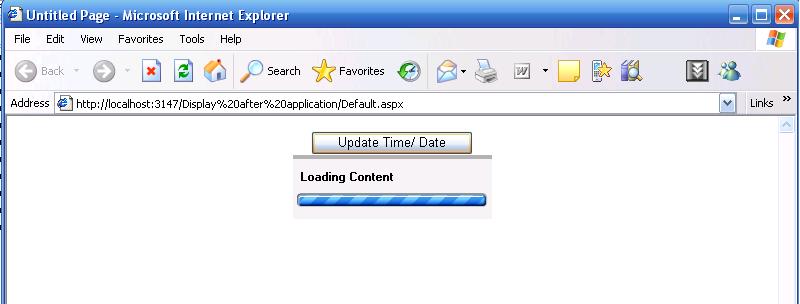

12-When you click on the button then it will seem like this…
![Progress bar.JPG]()
13- And after 5 seconds it will display the current date and time….of your
system.
14-Close web browser
14-Close visual studio
Thanks!
--Nikhil Kumar
