Recycler View With Android DataBinding

In I/O 2015, Google announced a data binding library for Android. With Data Binding, you create an ongoing link between an element in the user interface and a value. Data Binding is the process that establishes a connection between the Application UI and business logic.

In this post, we will learn how to integrate RecyclerView with Android Data Binding.

Step 1

Enable Data Binding in your module level gradle. Here is how your build.gradle should look.
  1. apply plugin: 'com.android.application'
  2. android {
  3.     compileSdkVersion 24
  4.     buildToolsVersion "23.0.3"
  5.     defaultConfig {
  6.         applicationId "com.androidgig.recyclerviewbinding"
  7.         minSdkVersion 15
  8.         targetSdkVersion 24
  9.         versionCode 1
  10.         versionName "1.0"
  11.         dataBinding {
  12.             enabled true
  13.         }
  14.     }
  15.     buildTypes {
  16.         release {
  17.             minifyEnabled false
  18.             proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro'
  19.         }
  20.     }
  21. }
  22. dependencies {
  23.     compile fileTree(dir: 'libs', include: ['*.jar'])
  24.     compile 'com.android.support:appcompat-v7:23.4.0'
  25.     compile 'com.android.support:recyclerview-v7:23.4.0'
  26.     compile 'com.squareup.picasso:picasso:2.5.2'
  27. }
Step 2

Create POJO/Model class called User with 3 parameters i.e. name, profile_image & age.
  1. public class User {
  2.     private String name, profile_image;
  3.     private int age;
  4.     public User(String name, String profile_image, int age) {
  5.         this.name = name;
  6.         this.profile_image = profile_image;
  7.         this.age = age;
  8.     }
  9.     public String getName() {
  10.         return name;
  11.     }
  12.     public void setName(String name) {
  13.         this.name = name;
  14.     }
  15.     public String getProfile_image() {
  16.         return profile_image;
  17.     }
  18.     public void setProfile_image(String profile_image) {
  19.         this.profile_image = profile_image;
  20.     }
  21.     public int getAge() {
  22.         return age;
  23.     }
  24.     public void setAge(int age) {
  25.         this.age = age;
  26.     }
  27. }
Step 3

Create a layout for Recycler list items
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <layout xmlns:android="http://schemas.android.com/apk/res/android"
  3.         xmlns:app="http://schemas.android.com/apk/res-auto"
  4.         xmlns:tools="http://schemas.android.com/tools">
  5.
  6.     <data>
  7.
  8.         <variable
  9.             name="user"
  10.             type="com.androidgig.recyclerviewbinding.User" />
  11.
  12.     </data>
  13.
  14.     <LinearLayout android:layout_width="match_parent"
  15.                   android:layout_height="wrap_content"
  16.                   android:orientation="horizontal">
  17.
  18.         <LinearLayout android:layout_width="match_parent"
  19.                       android:layout_height="wrap_content"
  20.                       android:layout_margin="5dp"
  21.                       android:background="@drawable/round_corner_view"
  22.                       android:orientation="horizontal"
  23.                       android:padding="10dp">
  24.
  25.             <ImageView android:layout_width="50dp"
  26.                        android:layout_height="50dp"
  27.                        tools:src="@mipmap/ic_launcher"
  28.                        app:url="@{user.profile_image}" />
  29.
  30.             <LinearLayout android:layout_width="match_parent"
  31.                           android:layout_height="wrap_content"
  32.                           android:layout_gravity="center_vertical"
  33.                           android:layout_marginLeft="10dp"
  34.                           android:orientation="vertical">
  35.
  36.                 <TextView android:layout_width="wrap_content"
  37.                           android:layout_height="wrap_content"
  38.                           android:text="@{user.name}"
  39.                           android:textAppearance="?android:attr/textAppearanceMedium"
  40.                           android:textColor="@android:color/black"
  41.                           tools:text="Name" />
  42.
  43.                 <TextView android:layout_width="wrap_content"
  44.                           android:layout_height="wrap_content"
  45.                           android:text="@{`` + user.age}"
  46.                           android:textColor="@android:color/black"
  47.                           tools:text="Age" />
  48.
  49.             </LinearLayout>
  50.         </LinearLayout>
  51.     </LinearLayout>
  52. </layout>
Here, the user will be model class reference variable. You can have any number of variables, as you need. <layout> will contain your model class information,  using which you will notify your controls about the value that they are going to show.

Step 4

Create an adapter for RecyclerView called UserAdapter.
  1. public class UserAdapter extends RecyclerView.Adapter<UserAdapter.ViewHolder> {
  2.     private ArrayList<User> list;
  3.     public UserAdapter(ArrayList<User> list) {
  4.         this.list = list;
  5.     }
  6.     @Override
  7.     public UserAdapter.ViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {
  8.         View statusContainer = LayoutInflater.from(parent.getContext()).inflate(R.layout.recycler_item, parent, false);
  9.         return new UserAdapter.ViewHolder(statusContainer);
  10.     }
  11.
  12.     @Override
  13.     public void onBindViewHolder(ViewHolder holder, int position) {
  14.         User status = list.get(position);
  15.         holder.bindUser(status);
  16.     }
  17.
  18.     @Override
  19.     public int getItemCount() {
  20.         return list.size();
  21.     }
  22.
  23.     class ViewHolder extends RecyclerView.ViewHolder {
  24.
  25.         private RecyclerItemBinding binding;
  26.         public ViewHolder(View itemView) {
  27.             super(itemView);
  28.             binding = DataBindingUtil.bind(itemView);
  29.         }
  30.
  31.         public void bindUser(User user) {
  32.             binding.setUser(user);
  33.         }
  34.     }
  35. }
Here

binding = DataBindingUtil.bind(itemView); will create binding for your recycler_item layout and return view.

binding.setUser(user);
will set the user data to recycler items.

Step 5

Write XML code for your activity/fragment layout.
  1. <layout xmlns:android="http://schemas.android.com/apk/res/android"
  2.         xmlns:app="http://schemas.android.com/apk/res-auto">
  3.
  4.     <RelativeLayout android:layout_width="match_parent"
  5.                     android:layout_height="match_parent">
  6.         <android.support.v7.widget.RecyclerView android:id="@+id/recycler"
  7.                      android:layout_width="match_parent"
  8.                      android:layout_height="wrap_content"
  9.                      app:layoutManager="android.support.v7.widget.LinearLayoutManager" />
  10.     </RelativeLayout>
  11. </layout>
Step 6

Write your code in the activity/fragment to attach adapter to RecyclerView.
  1. public class MainActivity extends AppCompatActivity {
  2.     private ActivityMainBinding binding;
  3.     private ArrayList<User> userList = new ArrayList<>();
  4.     private UserAdapter adapter;
  5.     @Override
  6.     protected void onCreate(Bundle savedInstanceState) {
  7.         super.onCreate(savedInstanceState);
  8.         binding = DataBindingUtil.setContentView(this, R.layout.activity_main);
  9.         fillData();
  10.         adapter = new UserAdapter(userList);
  11.         binding.recycler.setAdapter(adapter);
  12.     }
  13.     private void fillData() {
  14.         userList.add(new User("Ravi""https://pbs.twimg.com/profile_images/446522135721164800/pdVA44as.jpeg", 26));
  15.         userList.add(new User("Ritesh""", 30));
  16.         userList.add(new User("Naman""", 20));
  17.     }
  18.     @BindingAdapter({
  19.         "bind:url"
  20.     })
  21.     public static void setImage(ImageView imageView, String url) {
  22.         if (url != null & amp; & amp; url.trim().length() & gt; 0) {
  23.             Picasso.with(imageView.getContext()).load(url).error(R.mipmap.ic_launcher).into(imageView);
  24.         } else
  25.             imageView.setImageResource(R.mipmap.ic_launcher);
  26.     }
  27. }

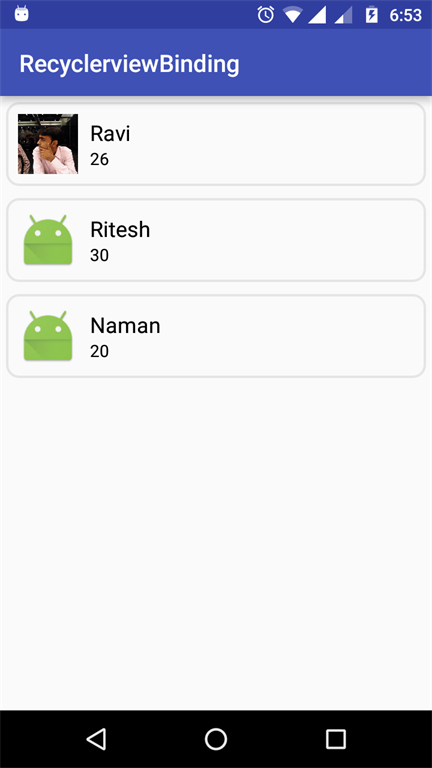

Output

Output

This article was originally posted on AndroidGig.com.
