Saving Values in XML and Retrieving Them

As I saw So many new developers are asking similar question so thought of writing this blog.

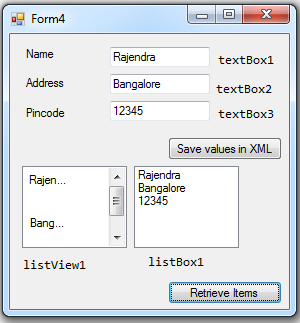

So to made it bit user friendly, I put 3 text box, where you can enter the values and by clicking "Save value in XML" button, you can save the values in XML format. Currently I am using @"C:\xmlfile.xml" for file path, so you can modify this as per your requirement. I have also added 1 list view and 1 list box, where you can get the values from XML by clicking "RetrieveItems" button.
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Windows.Forms;
  5. using System.Xml;
  6.
  7. namespace WindowsFormsApplication1
  8. {
  9.     public partial class Form1 : Form
  10.     {
  11.         private const string FilePath = @"C:\xmlfile.xml";
  12.
  13.         public Form1()
  14.         {
  15.             InitializeComponent();
  16.         }
  17.
  18.         /// <summary>
  19.         /// Save Values in XML
  20.         /// </summary>
  21.         /// <param name="sender"></param>
  22.         /// <param name="e"></param>
  23.         private void btnSaveValuesInXML_Click(object sender, EventArgs e)
  24.         {
  25.             // Creates an instance of the System.Xml.XmlTextWriter class using the specified file.
  26.             var textWriter = new XmlTextWriter(FilePath, null);
  27.             // Writes the XML declaration with the version "1.0".
  28.             textWriter.WriteStartDocument();
  29.             // Write comments
  30.             textWriter.WriteComment("First Comment for XmlTextWriter Sample Example");
  31.             // Write first element
  32.             textWriter.WriteStartElement("Student");
  33.             // textWriter.WriteStartElement("Document", "Test", "RECORD");
  34.             // Write next element Name
  35.             textWriter.WriteStartElement("Name");
  36.             textWriter.WriteString(textBox1.Text);
  37.             textWriter.WriteEndElement();
  38.             // Write element Address
  39.             textWriter.WriteStartElement("Address");
  40.             textWriter.WriteString(textBox2.Text);
  41.             textWriter.WriteEndElement();
  42.             // Write element Pincode
  43.             textWriter.WriteStartElement("Pincode");
  44.             textWriter.WriteString(textBox3.Text);
  45.             textWriter.WriteEndElement();
  46.             // Ends the document.
  47.             textWriter.WriteEndDocument();
  48.             // close writer
  49.             textWriter.Close();
  50.             MessageBox.Show(@"Values got stored in XML");
  51.         }
  52.
  53.         /// <summary>
  54.         /// Retrieve Items
  55.         /// </summary>
  56.         /// <param name="sender"></param>
  57.         /// <param name="e"></param>
  58.         private void btnRetrieveItems_Click(object sender, EventArgs e)
  59.         {
  60.             var doc = new XmlDocument();
  61.             doc.Load(FilePath);
  62.
  63.             var nodeNames = new List<string>();
  64.             var xmlNodeList = doc.SelectNodes("/Student");
  65.
  66.             // Normal Foreach Statement.
  67.             //if (xmlNodeList != null)
  68.             //    foreach (System.Xml.XmlNode node in xmlNodeList)
  69.             //    {
  70.             //        foreach (System.Xml.XmlNode child in node.ChildNodes)
  71.             //        {
  72.             //            nodeNames.Add(child.InnerText);
  73.             //        }
  74.             //    }
  75.
  76.             // Linq Statement
  77.             if (xmlNodeList != null)
  78.                 nodeNames.AddRange(from XmlNode node in xmlNodeList
  79.                     from XmlNode child in node.ChildNodes
  80.                     select child.InnerText);
  81.
  82.             foreach (var node in nodeNames)
  83.             {
  84.                 listView1.Items.Add(node); // You can add SubItems for this also.
  85.                 listBox1.Items.Add(node);
  86.             }
  87.
  88.         }
  89.     }
  90. }
